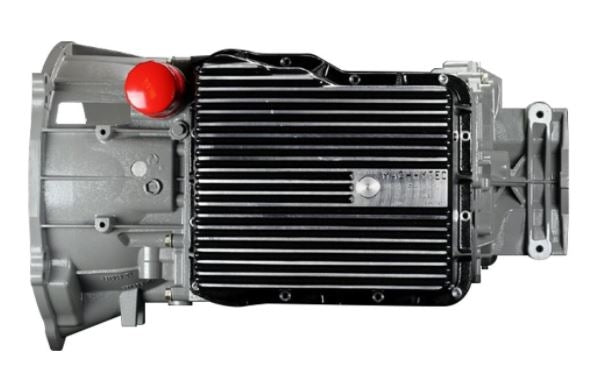

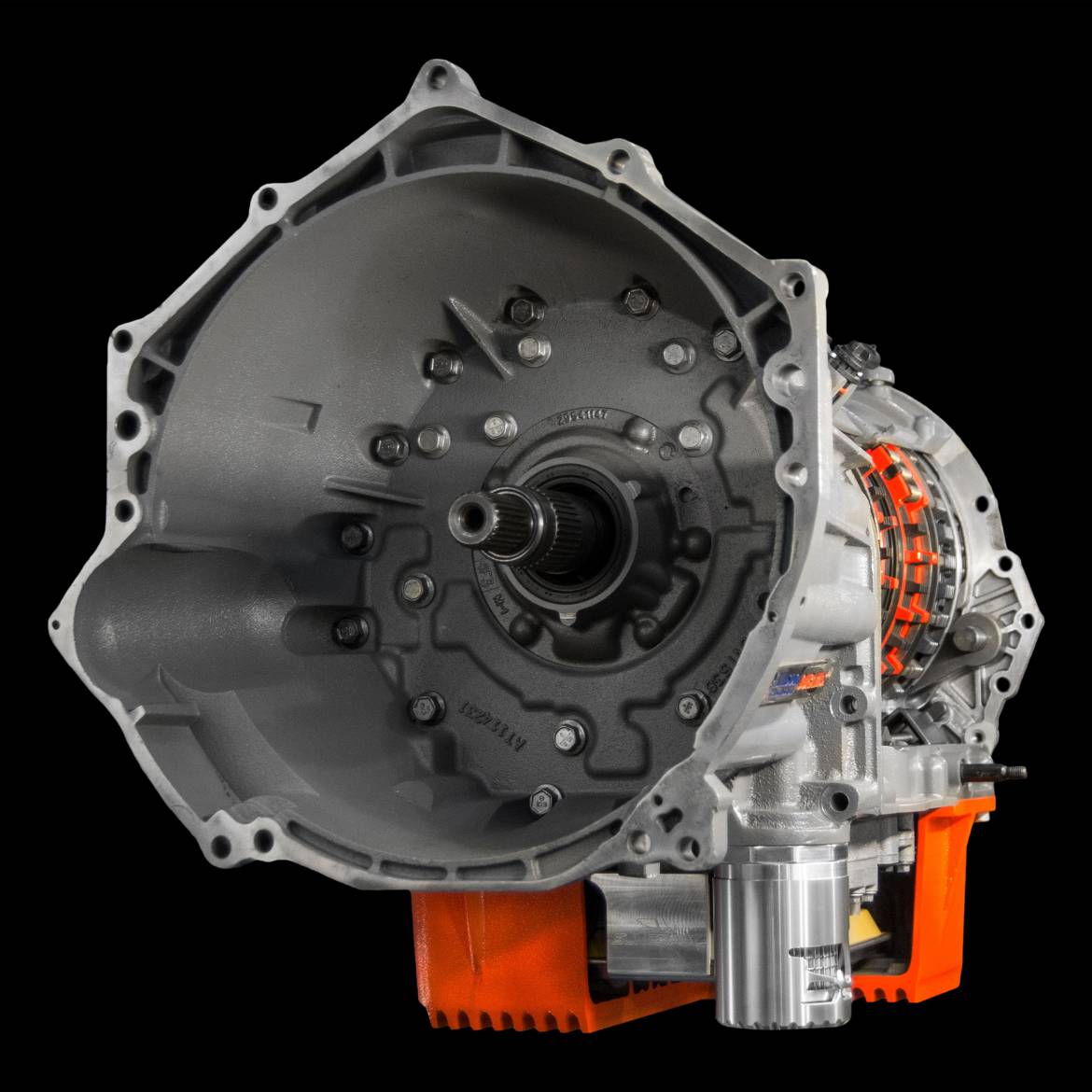

SunCoast GMAX-CAT1-LB7-0103-2WD Allison GMAX 500HP Capable Category 1 Transmission Package with Converter | 2001-2004 GM Silverado/Sierra 2500HD/3500HD 6.6L Duramax LB7 2WD



SunCoast has designed these kits in house to exact specifications for many in tents, including but not limited to towing, sled pulling, racing or simply having a vehicle to get from point A to point B.

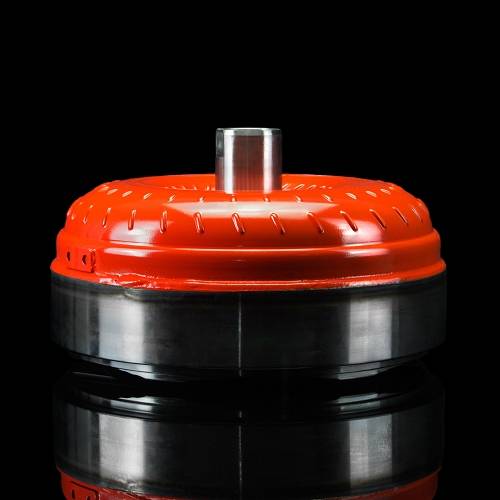

SunCoast Allison 1000 torque converters come in many varieties, from heavy hauling, sled pulling, drag racing, to daily driving. Here at SunCoast we design and manufacture all of our torque converters in house. Because of this unique advantage SunCoast can supply almost any request in regards to stall speed or torque multiplication. All of our SunCoast Allison triple disc converters are outfitted with a heavy duty forged billet steel cover and give unbeatable lock up performance.



All of the SunCoast Allison 1000 torque converters come standard with custom pump and turbine modifications (in house). SunCoast also Tig Welds each individual furnace brazed fin for improved reinforcement. The SunCoast Allison billet triple disc converter also comes standard with our proprietary trapezoidal clutch teeth.





Every build here at SunCoast reliability is our number one priority. Each one of our (Category) Allison Transmissions comes with a new internal wiring harness. As the transmission continues to age, the plastic connectors become brittle and will break during disassembly. This will eventually lead to premature failure.

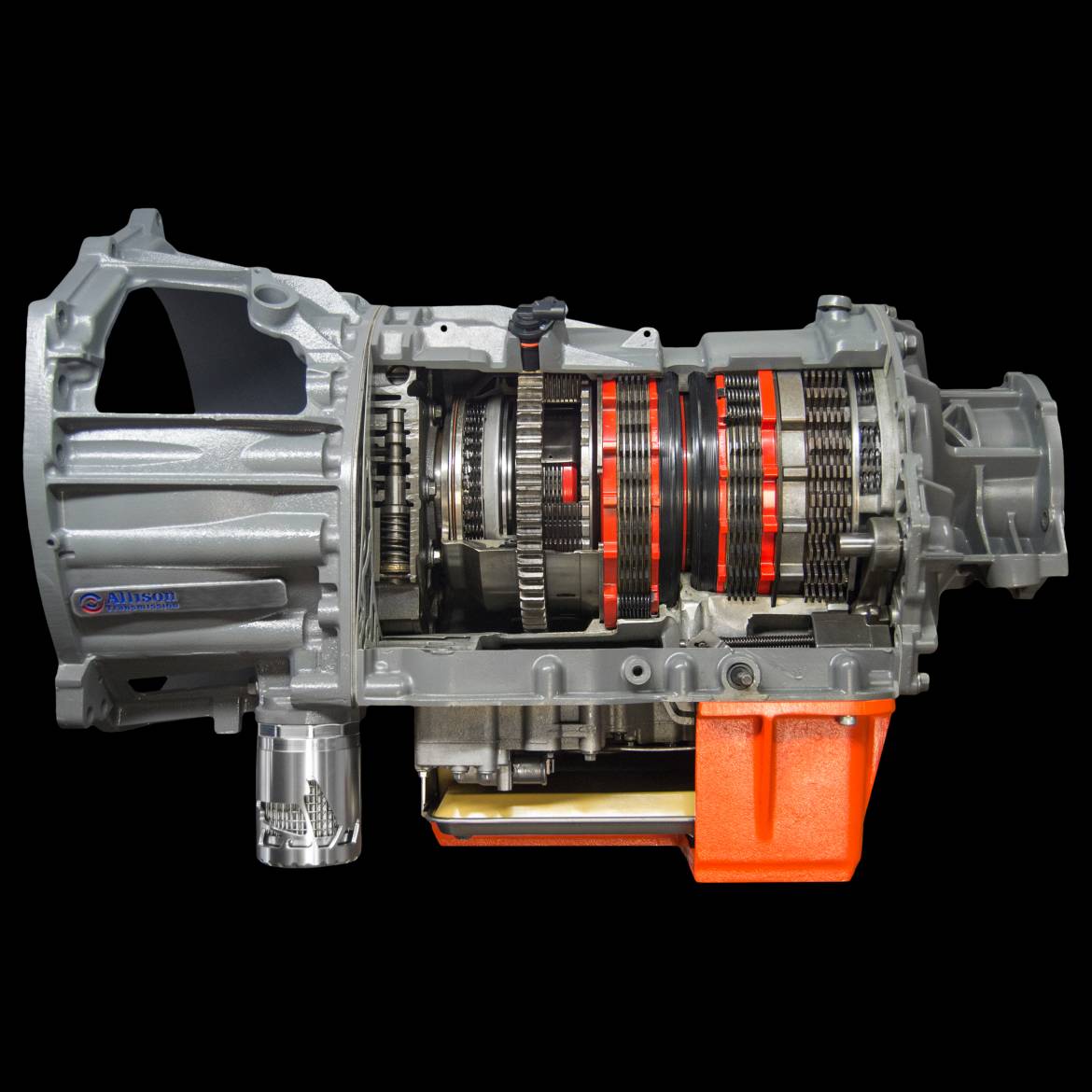

Some other transmissions exclusives include SunCoast proprietary C1, C2, C3, and C4 Alto carbonite frictions/Rabestos SCZ frictions that contain no center slots. These frictions utilize a waffle pattern in the material to help retain oil helping the clutch cool when not applied. Redesigned apply pistons with improved rubber compounds proven to hold higher heat. This custom piston allows us to use a thicker spring apply plate which replaces the thin OEM one that will cone and cause uneven apply surface resulting in premature clutch failure. Custom SunCoast apply plate that redirects fluid to better lubricate frictions from the inside out which lubes the entire friction rather than OEM style that lubricates from the center out leaving the inner half of the clutch burnt. Includes exclusive smart trim / clutch control valve. Includes all items needed to modify the C2 clutch piston for increased clutch durability.
