SunCoast SC-6R140SC-3 6R140 Cat 3 550 HP Rebuild Kit with Torque Converter | 2011-2019 Ford F250/F350

Rebuild Kit Features:

• 3-YEAR, UNLIMITED MILEAGE WARRANTY
• Billet Stator Of Your Choice
• Billet Lockup Apply Piston
• CNC-Machined Billet Steel Cover
• Balloon Plate
• 4140 Turbine Splines
• 4140 Hardened Hub
• 3 Carbon-Graphitic Clutch Discs
• Furnaced-Brazed Fins
• Torrington Thrust Bearing Stator Design
• Pressurized Hot Soak Leak Testing
• Computer-Balanced to Within .01 Gram
• Precision-Assembled by Caring American Workers

Enhance Your Rig's Power and Performance

The new 6R140 from Ford is definitely one of the most exciting drivetrains on the market today. The new 6R140 was released to replaced the previous Torqshift unit, which was the 5R110. The 5R110 was previously used in both the 6.0 and 6.4 Ford diesel engines. When Ford released the 6.7 L Powerstroke powerplant it also released the new much stronger 6R140 Torqshift transmission. The new Ford 6R140 Torqshift transmission is the most robust transmission Ford has yet to build. This unit was designed and manufactured exclusively by Ford Motor Company. First and foremost, Ford opted to incorporate a robust one-piece bell housing design for the all new 6R140 Torqshift transmission. This new one piece design is not only tough but adds a tremendous amount of rigidity to the case making torsional flex an afterthought.

Made With High-Quality Components

The 6R140 E clutch hub is designed without any damper. This makes perfect sense due to the fact that Ford designed the 6R140 Torqshift transmission with the thought process that there would be torque management. With torque management in place we are defueling during shifts essentially pulling the power between shifts. Ford has also designed this with a certain torque limit in mind that most certainly did not have deletes, larger chargers, and aftermarket tuners involved. Couple this along with the removal of torque management and you have created a situation where failure is imminent.

Kit Includes:

• All new Carbon Graphitic clutches
• All new custom machined steels
• Improved heavy duty 4-5-6 Overdrive Clutch pack
• Increased overdrive clutch count
• Custom machined Overdrive apply piston
• New Gasket, Seal, & O'ring sealing kit
• New Transmission Filter Kit

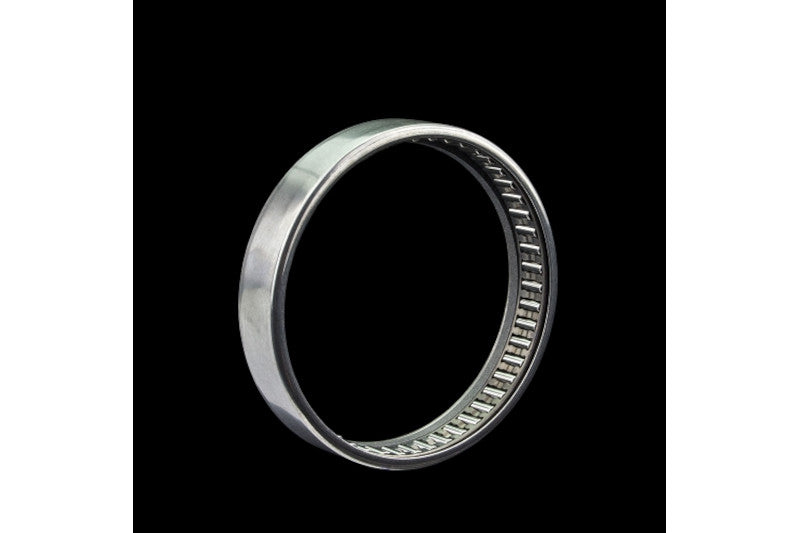

• New pump bearing

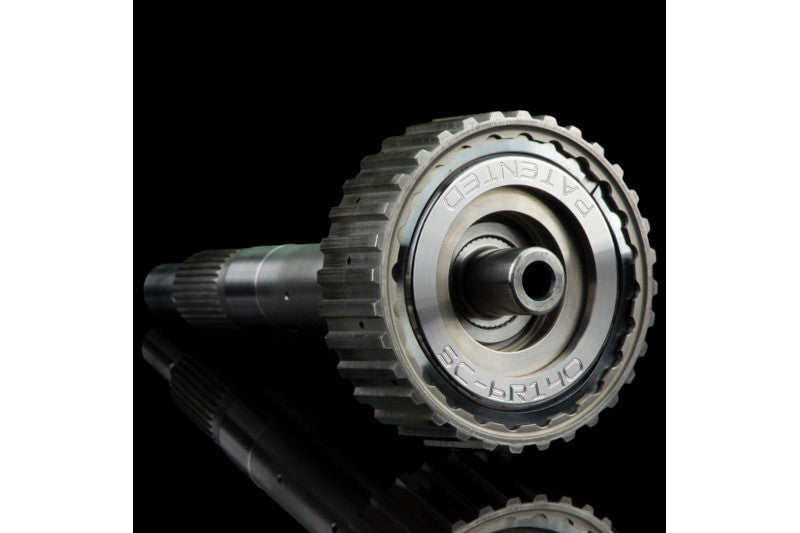

• New SunCoast Patented Damper

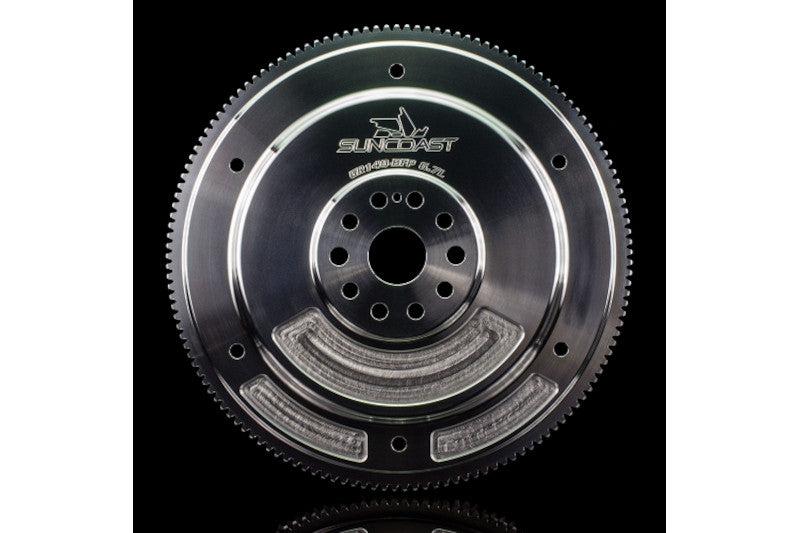

• Billet Flexplate
• Sure cure Valve body calibration kit
• Guardian Torque Converter

Note: This kit comes with the SunCoast patented damper with stock shaft and hub,..

Vehicle Fitment: 2011-2019 Ford F250, F350 Super Duty

Year Ranges	Make	Model	Series	Engine
2011-2019	Ford	Super Duty	F250/F350	6.7L Powerstroke

Property	Values
Year Ranges	2011-2019
Make	Ford
Model	Super Duty
Series	F250/F350
Engine	6.7L Powerstroke

📄 Download Core Return Form (PDF)
