Insight CTS4

Features:

• 5.5-inch high-resolution color touchscreen
• 21% larger viewing area than CTS3
• 60 FPS refresh for smooth gauge movement
• Wi-Fi updates and auto-dimming display
• 70% faster boot-up than previous generation

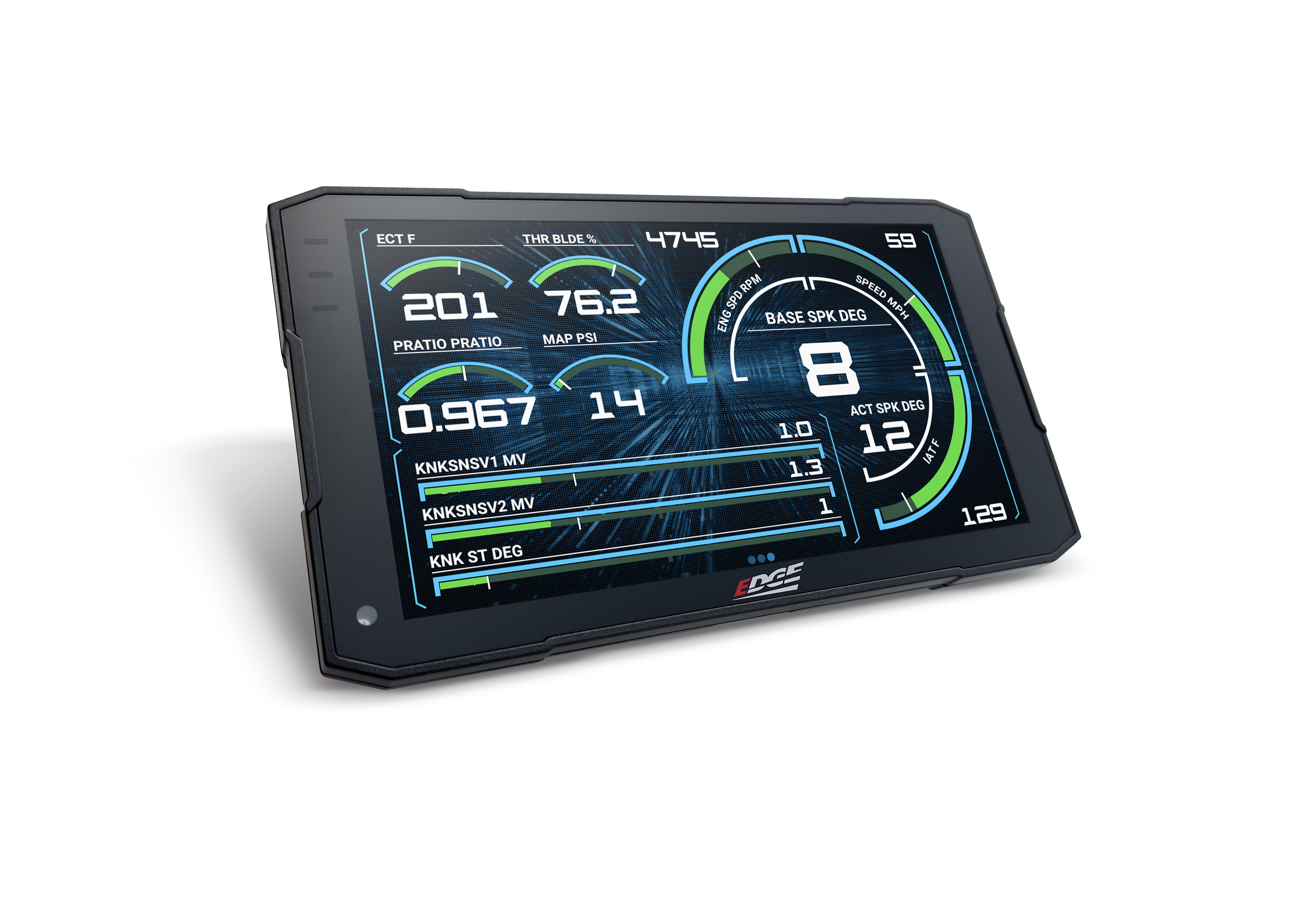

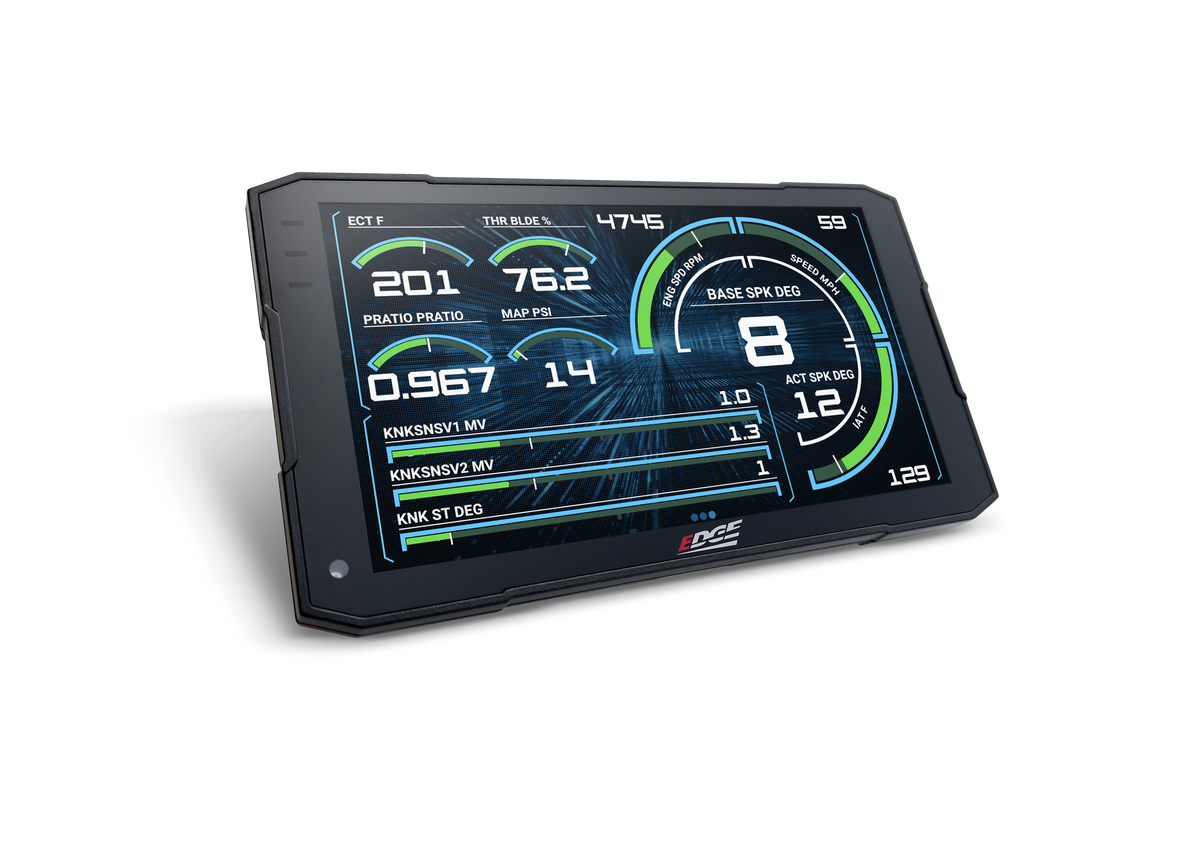

• Customizable digital gauges and layouts
• Custom alerts and warnings
• Data logging and performance tests
• Check and clear diagnostic trouble codes
• Plugs into OBD-II port, no tuning needed
• Supports EAS sensors and backup camera

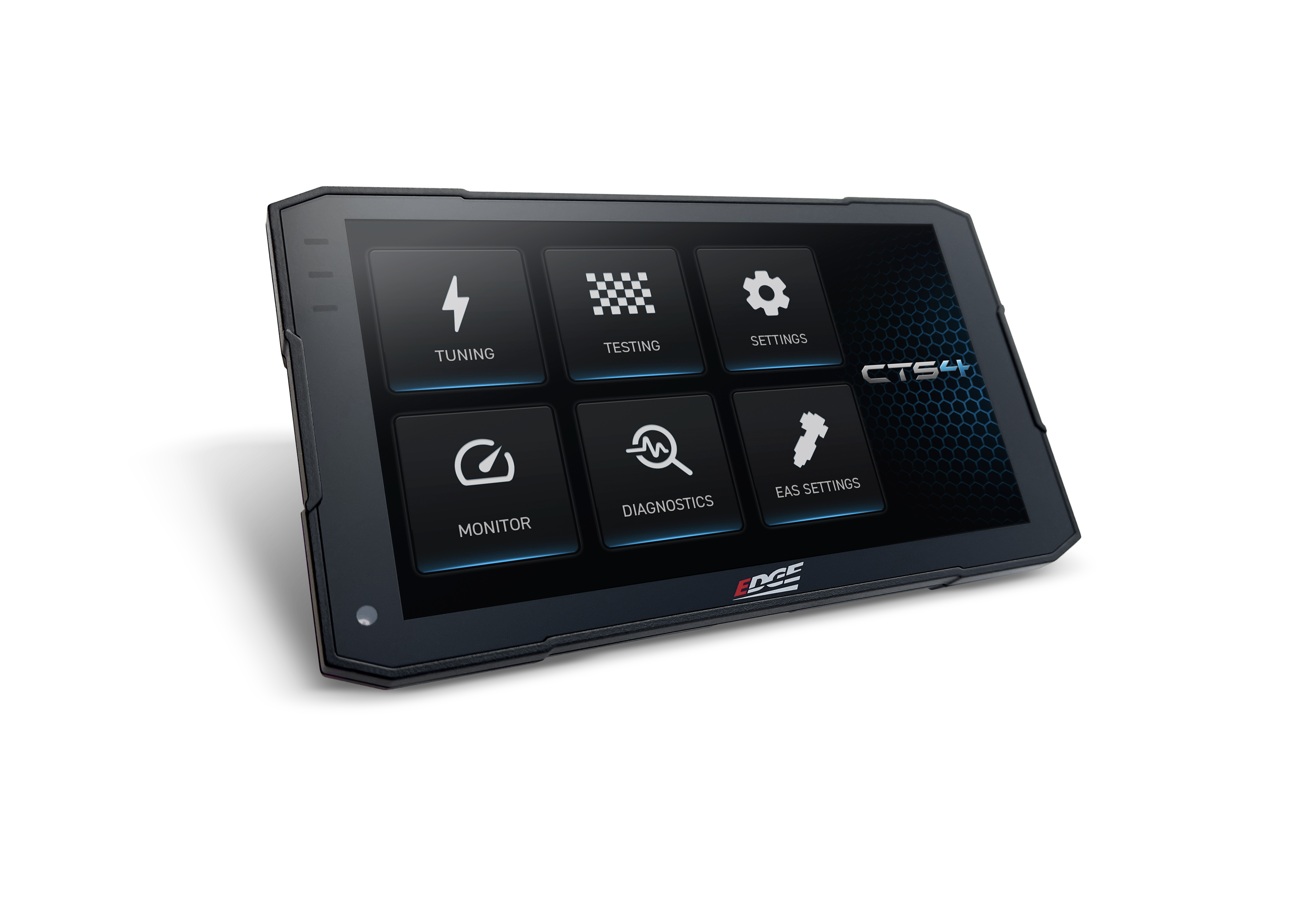

• Upgradable to Evolution or Insight+ tuning

Put The Numbers That Matter Right In Front Of You When The Trailer Is Hooked Up

Pulling a heavy trailer up a long grade is exactly when you want to know what your truck is doing, and the factory dash does not always tell you. The Edge Insight CTS4 puts supported engine, drivetrain, temperature, and pressure data on a dedicated screen in the cab, using nothing more than a cable to your OBD II port. You can build the display around the readings you care about most, with configurable digital gauges and multiple layouts. Custom alerts and warnings let you set your own limits, so you notice quickly when conditions start to change. The new 5.5 inch touchscreen has 21 percent more viewing area than the CTS3 and a smooth 60 FPS refresh rate, which keeps the gauges easy to read at a glance. Edge says the CTS4 boots 70 percent faster than the previous generation, so you spend less time waiting and more time driving. Because it is a monitor and not a tuner, you get the information without changing how the truck runs, and Edge says you can upgrade to an Evolution CTS4 or an Insight+ CTS4 later through an internet update. For anyone who tows, hauls, or runs a modified truck, it is a clear way to see what is happening under the hood.

Faster Processor, Bigger Screen, And An Upgrade Path Built Into The CTS4 Platform

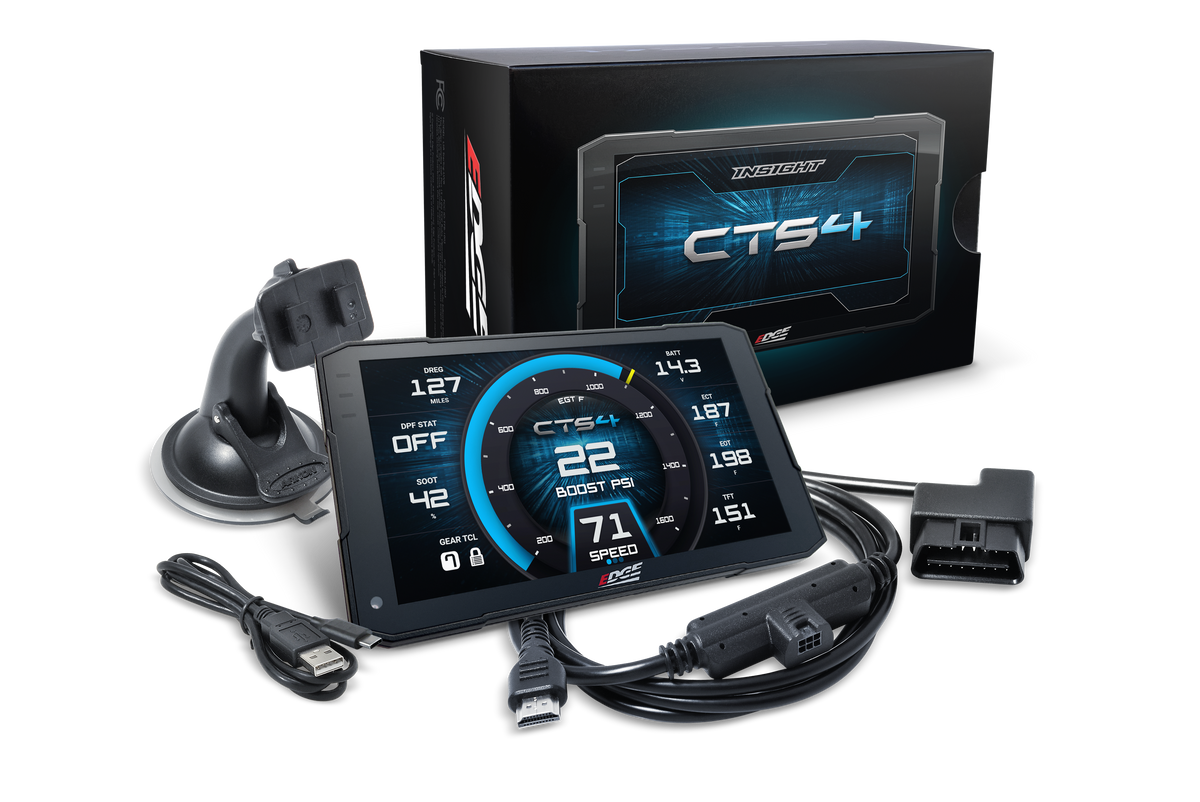

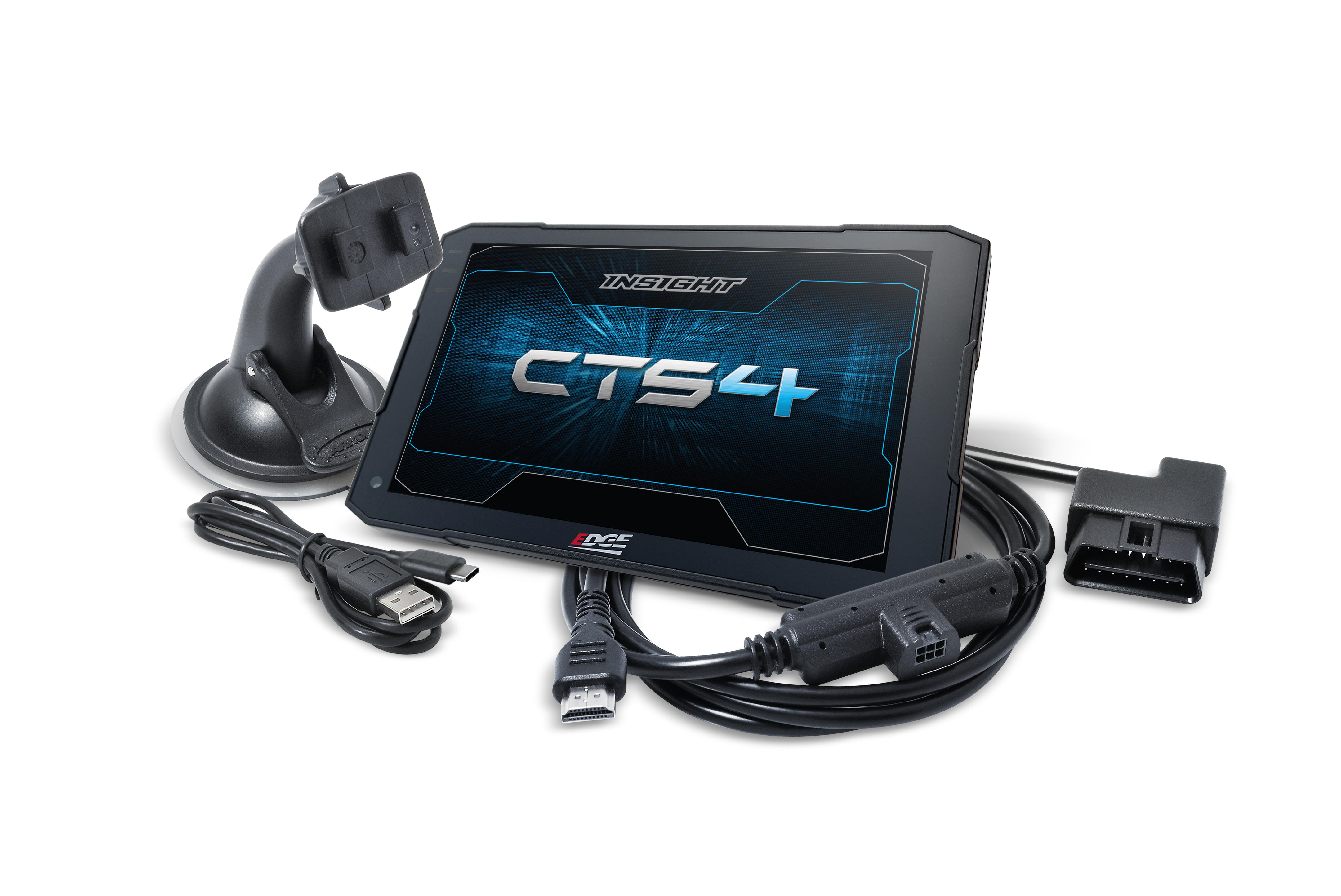

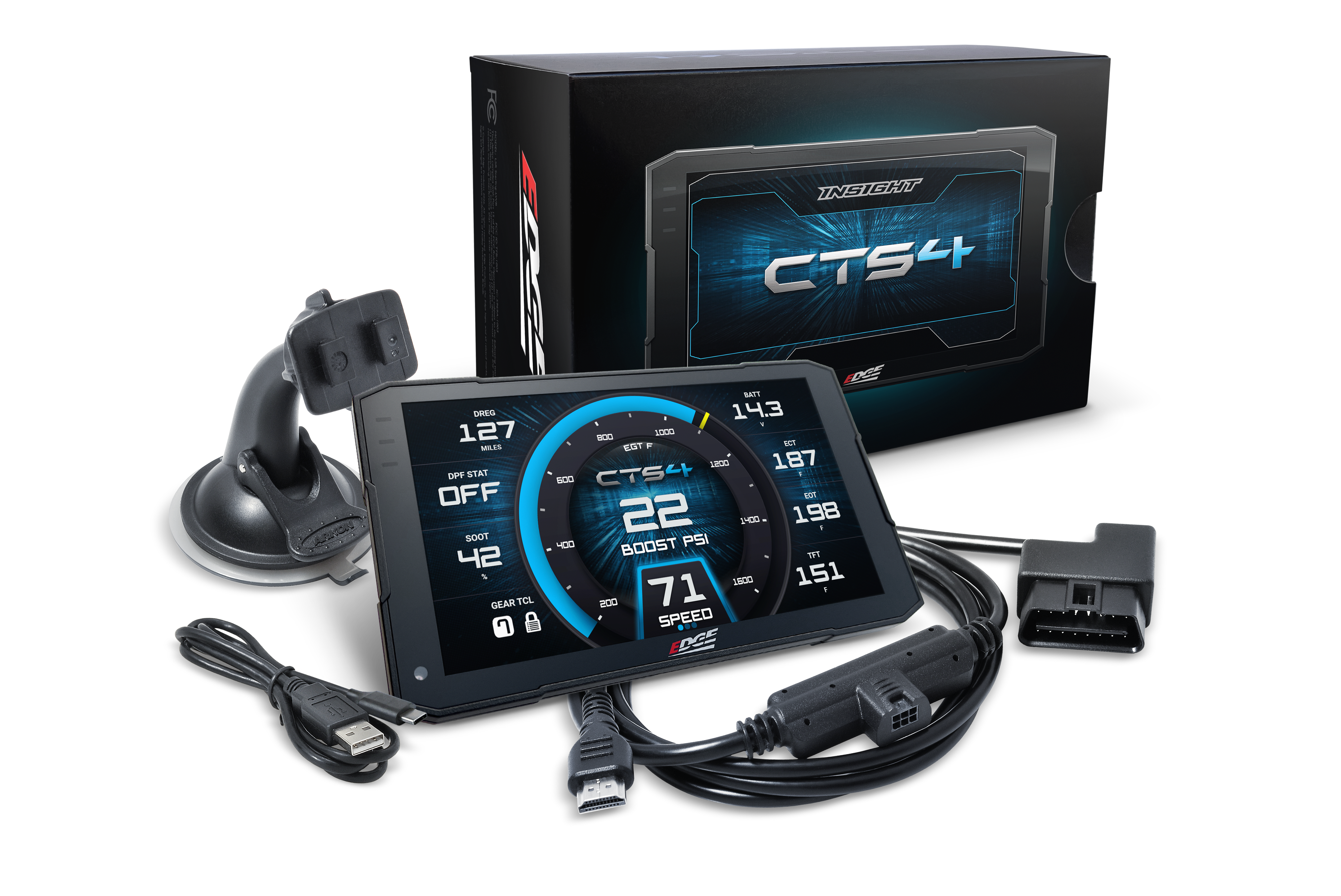

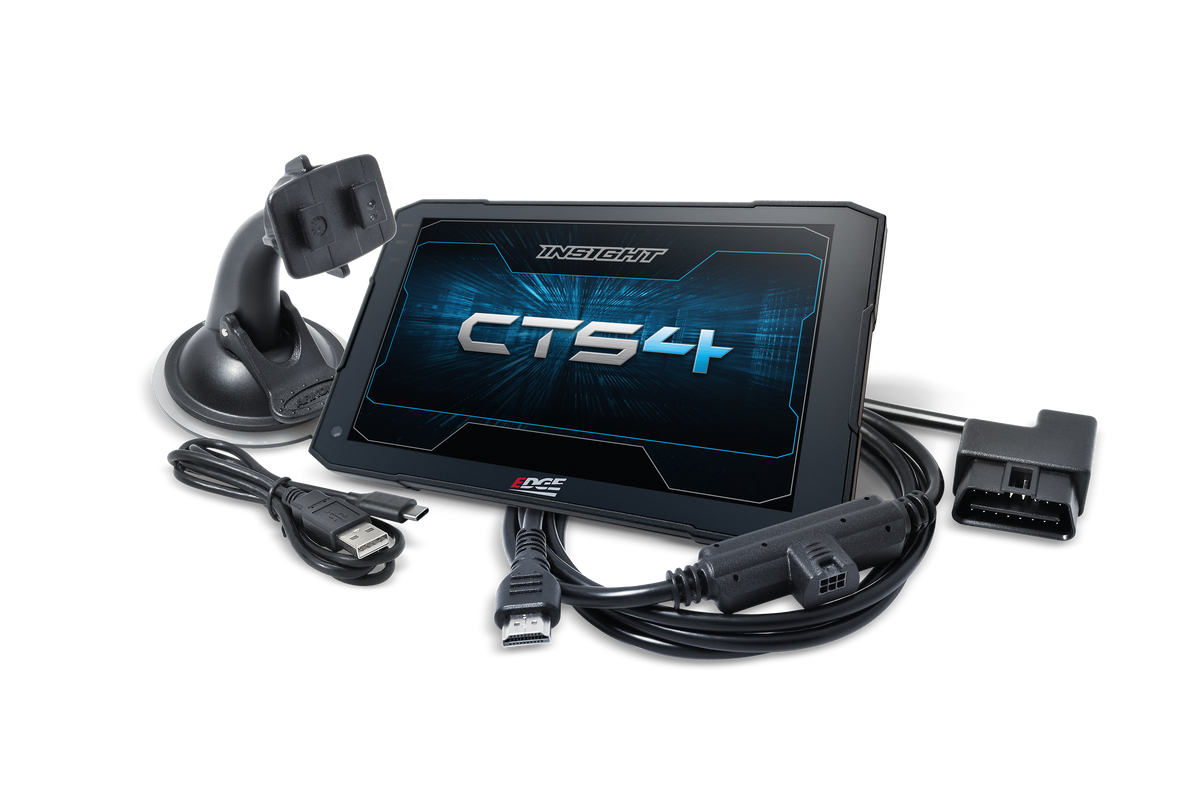

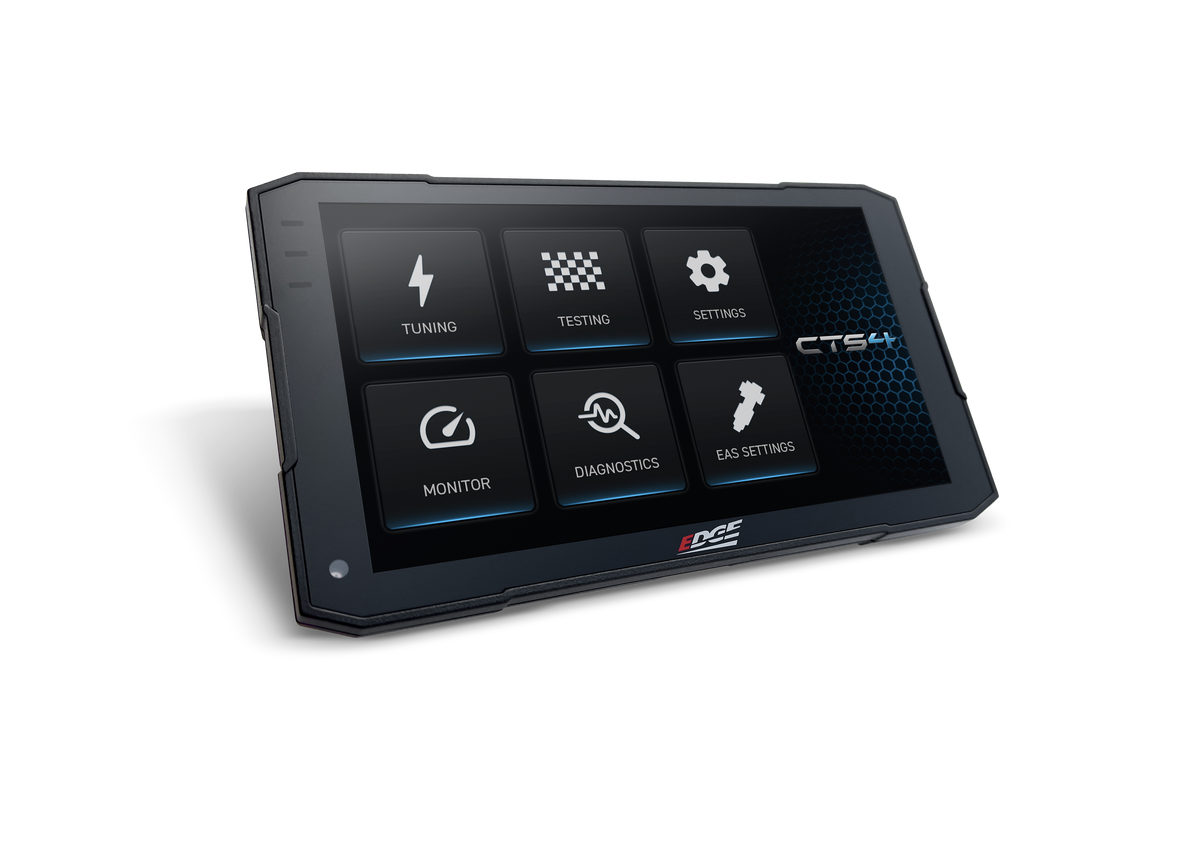

The Edge 84130-4 Insight CTS4 is an in cab digital gauge monitor that connects to the vehicle's OBD II port. It uses a 1.7GHz dual core 64 bit processor, which Edge rates at 3.4 times the processing power of the CTS3, along with 2GB of RAM, a 300 percent increase. Edge lists the memory as 3400MHz LPDDR4 and says it delivers up to 325 percent faster memory speed. Edge also reports 50 percent less set up time, 70 percent faster cold boot up, and 50 percent faster PID changes. The display is a 5.5 inch high resolution color touchscreen with a 60 FPS refresh rate and an auto dimming screen. On the software side, the CTS4 offers configurable gauges, multiple layouts, custom alerts and warnings, data logging, performance tests, and the ability to check and clear diagnostic trouble codes. It has 5 volt data logging inputs and works with Edge's Expandable Accessory System, including EGT probes, pressure and temperature sensors, and a backup camera kit. Wi-Fi supports internet updates, including upgrades to the Evolution CTS4 for emissions friendly tuning or to the Insight+ CTS4 for vehicle specific custom tuning.

Fitment: Universal, connects to the vehicle's OBD-II port

Notes:

• Available parameters, features, accessories, tuning support, and functionality vary by vehicle application, confirm your vehicle's supported data with Edge before ordering
• Monitor only, it does not add a performance tune

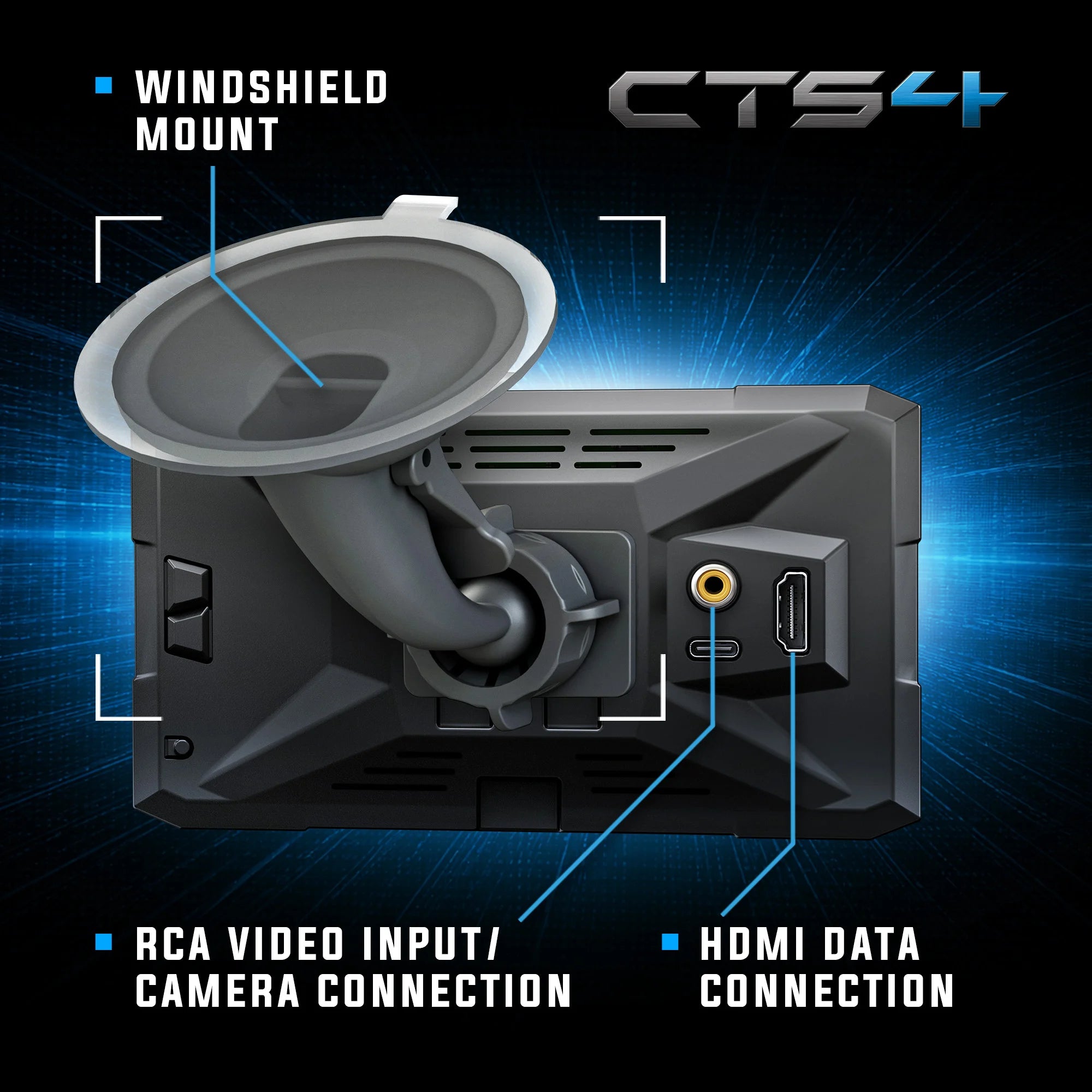

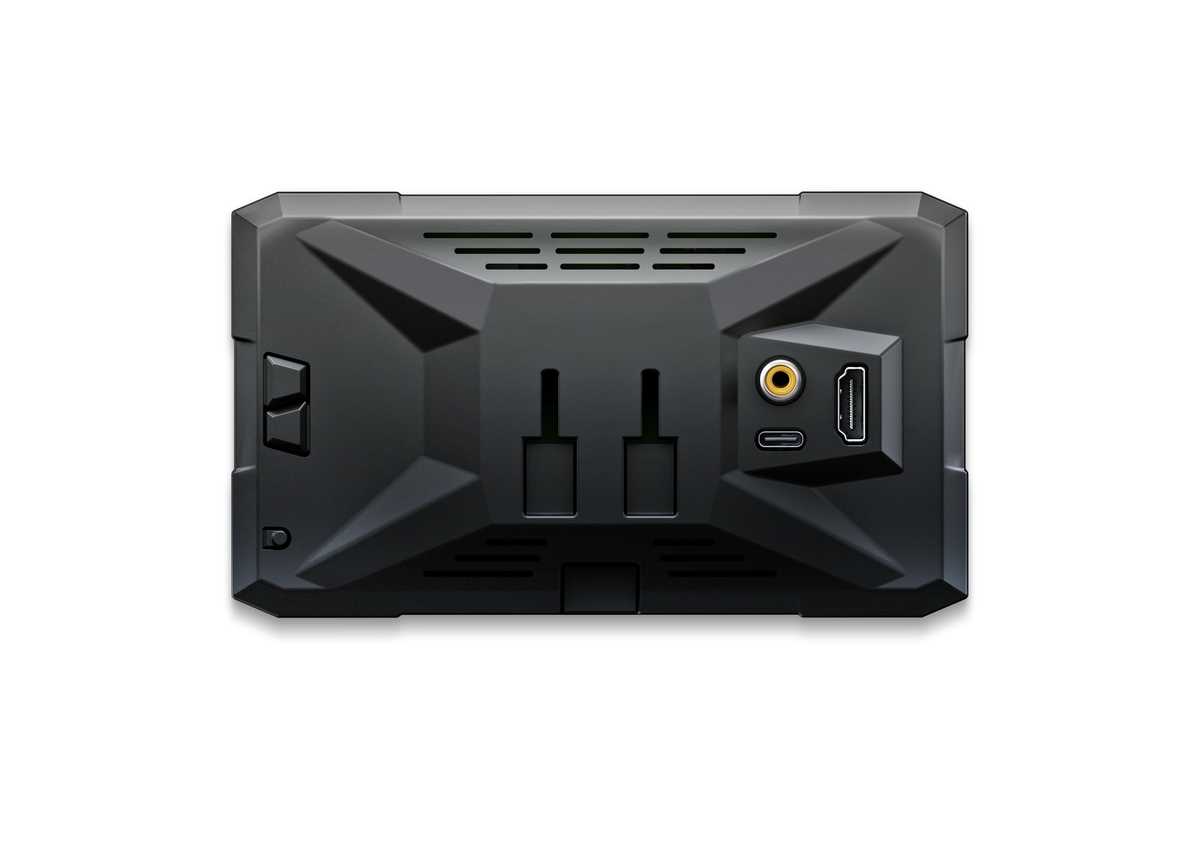

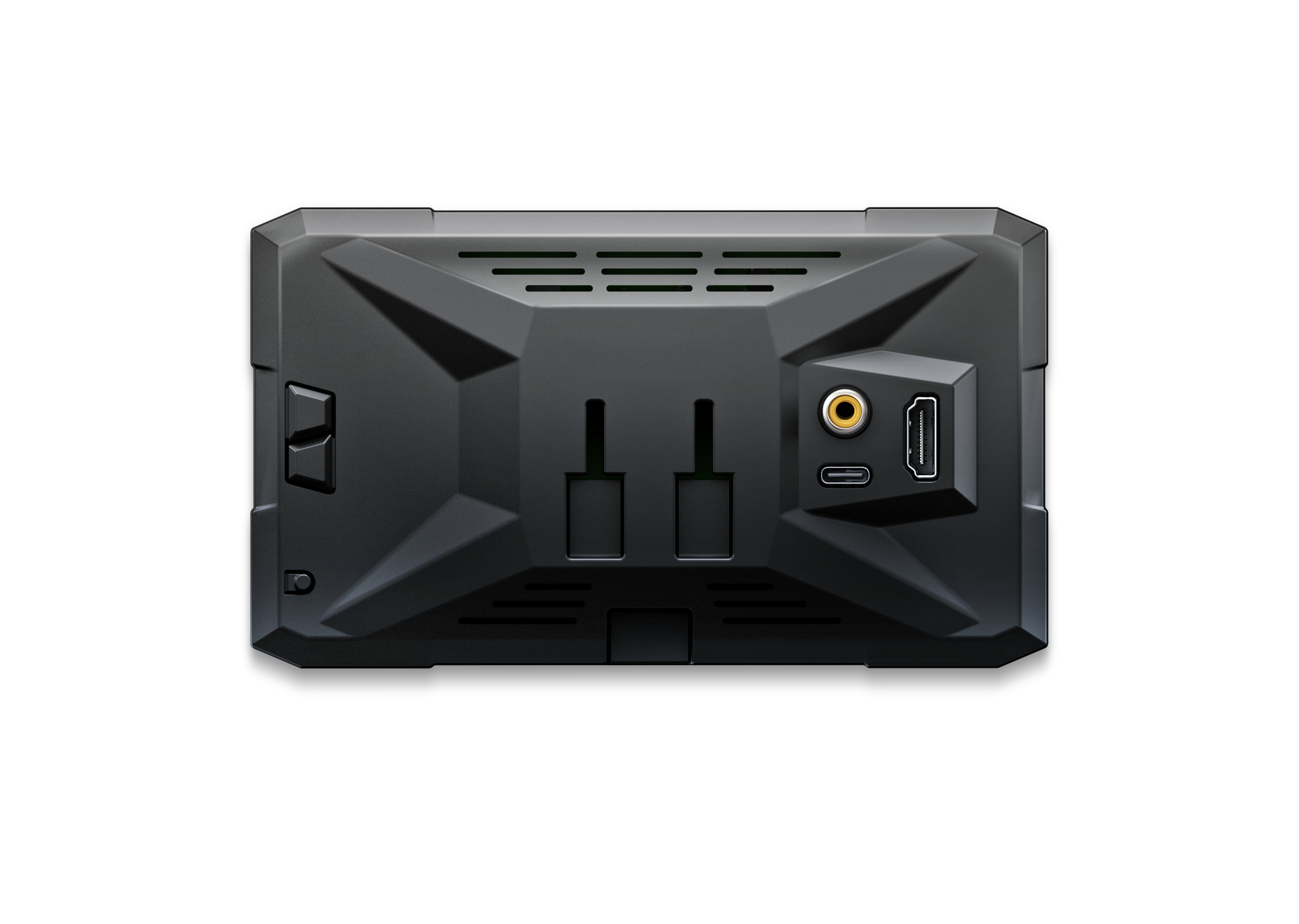

• Connects to the OBD-II port, the display mounts in the cab and the cable routes to the port
• Compatible Edge accessories include EAS sensors such as EGT probes and pressure and temperature sensors, a backup camera kit, and vehicle-specific pillar mounts and pods
• Can be upgraded to an Evolution CTS4 (emissions-friendly performance tuning) or an Insight+ CTS4 (vehicle-specific custom tuning) through an internet update
• Speed, memory, and boot-time figures are Edge's comparisons to the previous CTS3 generation
• Edge states this part is legal for sale or use on emissions controlled vehicles, uncontrolled vehicles, and racing use only vehicles because it does not affect vehicle emissions
