12mm Extended Sway Bar End Links

Features:

• Designed for 0–3″ front lift setups
• Built for control arm-equipped trucks
• Uses 18mm upper sway bar nut
• 12mm end link sizing for proper fitment
• Precision-machined 17-4 stainless steel
• Corrosion-resistant for long-lasting durability
• 1/2″ FK chromoly rod ends with nylon liner
• Replaces weak factory ball and socket joints
• Improves front-end stability and articulation

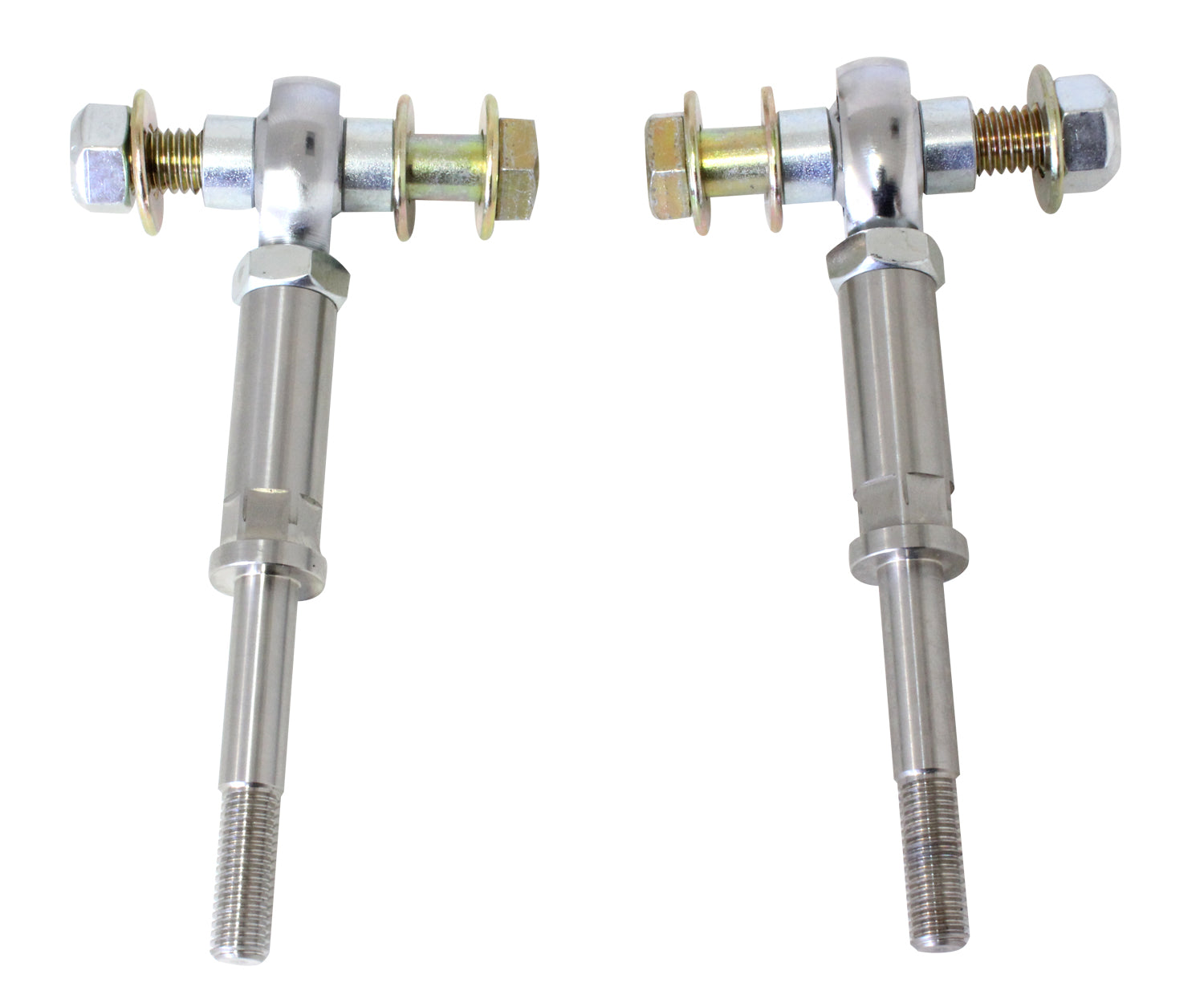

Extended Sway Bar End Links by Carli

If you’ve added a bit of lift to your Ram and want your sway bar to keep up, Carli’s Extended Sway Bar End Links are a smart, reliable upgrade. Designed specifically for 2010–2012 Ram 2500 and 3500 4WD trucks with control arms and up to 3 inches of front lift, these end links help maintain proper sway bar geometry—keeping your truck planted, predictable, and riding the way it should. What sets these apart is the construction. Carli machines each set in-house from 17-4 stainless steel, a material known for its high strength and excellent resistance to corrosion. These aren’t just good enough to get the job done—they’re built to be the last set of end links you’ll need. Every link goes through a five-stage machining process to ensure precise tolerances and a smooth, clean finish.

Complete with High-Quality Hardware

Instead of the factory’s weaker ball-and-socket setup, Carli equips these links with ½-inch FK chromoly rod ends, complete with nylon liners for smooth articulation and long-term durability. The result is a much stronger, more responsive connection between your axle and sway bar. You’ll notice the difference in cornering stability, body control, and even in how the truck tracks over uneven terrain.

Fits: 2010, 2011, 2012 Ram 2500/3500 4WD

Fitment Note: Using an 18mm Deep Socket, check the upper sway bar end link nut (retains the link bushing to the sway bar itself) to see if it fits. 18mm fitment signifies a 12mm end link. If it’s too large, order the CS-DEL-10.
