10mm Extended Sway Bar End Links

Features:

• Compatible with 0–3″ front lift setups

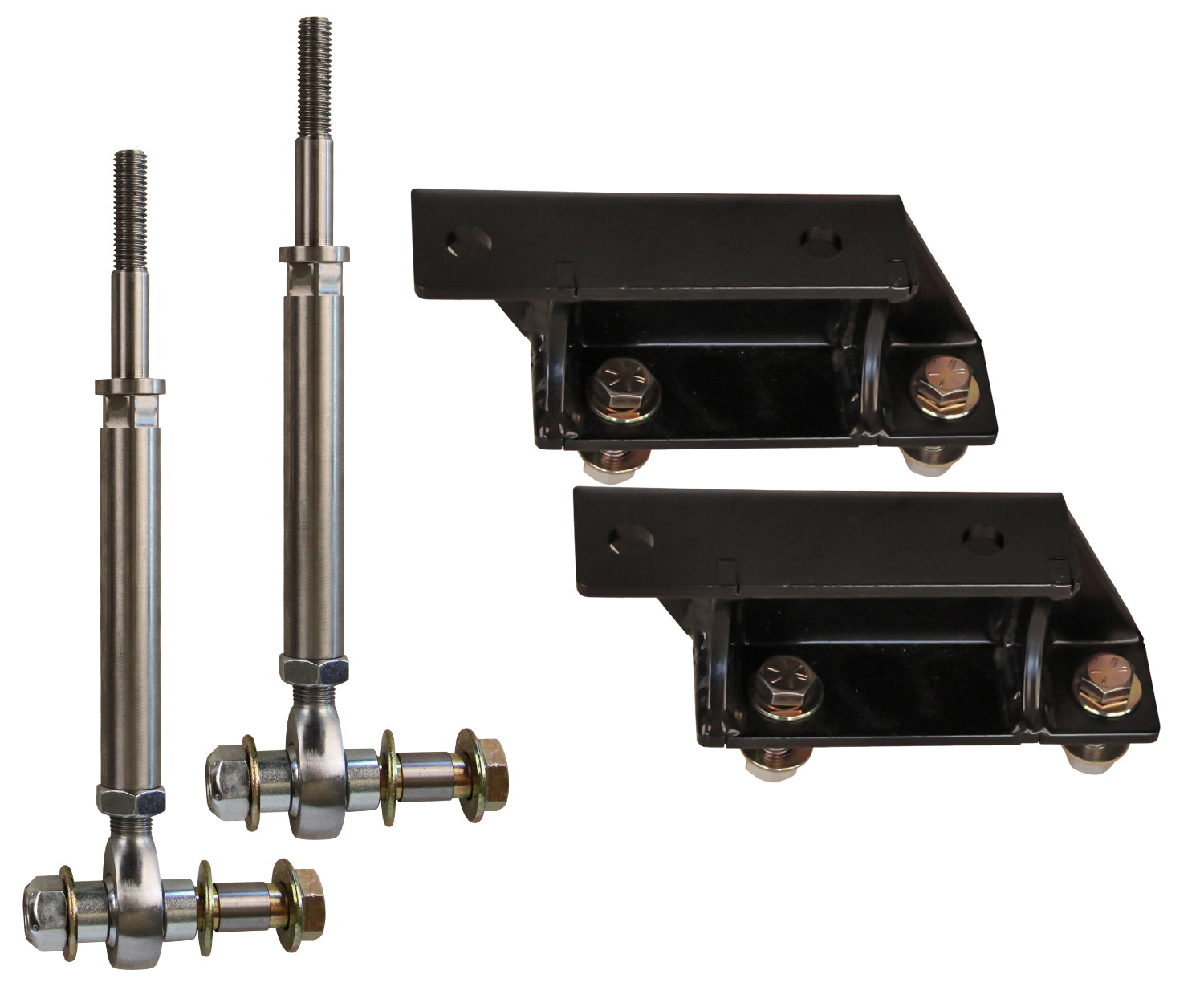

• Also fits 6″ lift with sway bar drop
• Precision-machined 17-4 stainless steel
• 1/2″ FK chromoly rod-end bearings
• Replaces weak factory ball and socket
• Built to handle heavy-duty suspension loads
• Corrosion-resistant, long-lasting construction
• Works with 15mm or 16mm sway bar nut
• Ideal for control arm-equipped trucks

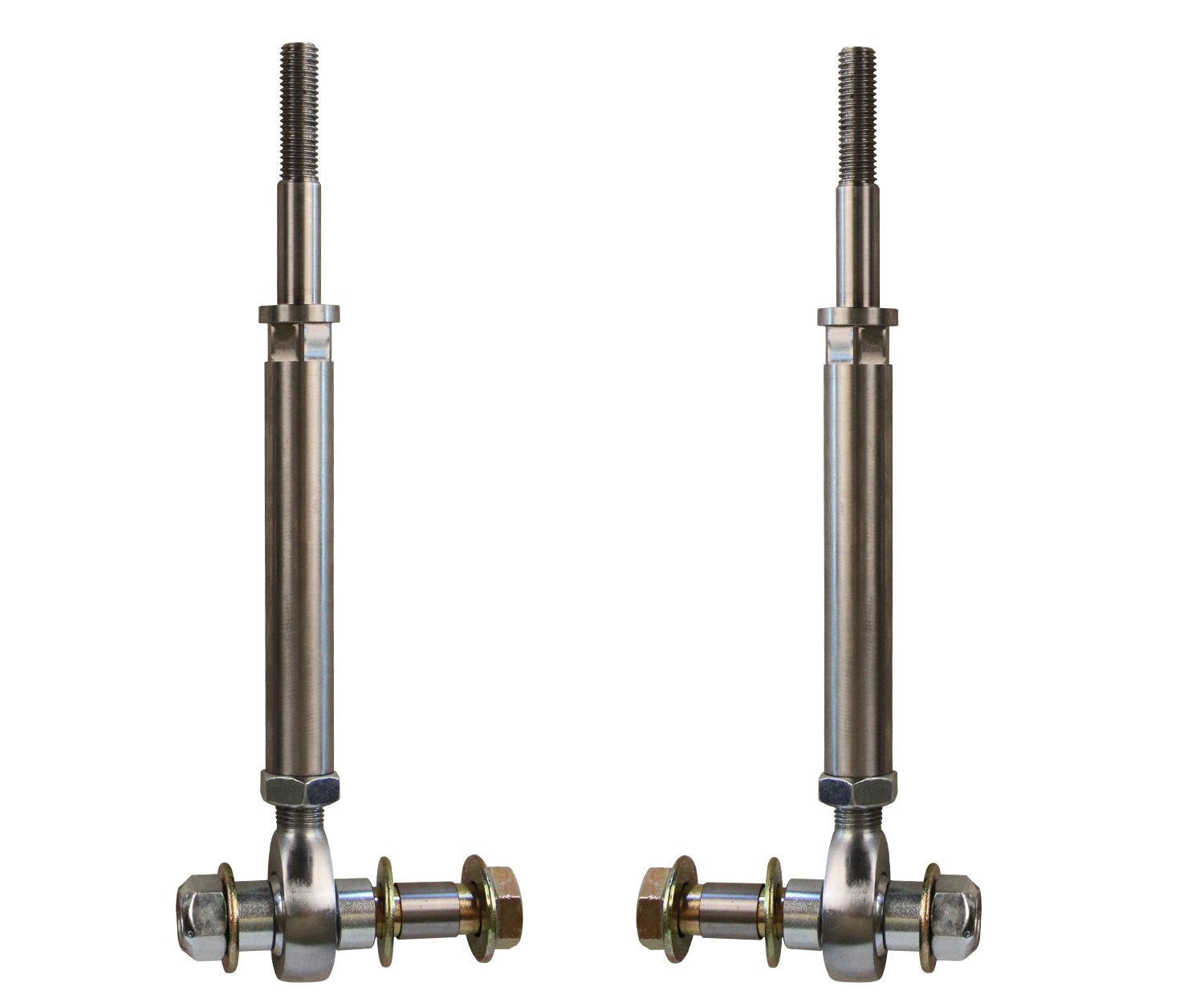

Sway Bar End Links for HD Ram Trucks

If you’ve lifted your Ram and noticed your sway bar geometry feels off—or if you’re just tired of factory links that can’t keep up—Carli’s Extended Sway Bar End Links are exactly what your front end needs. Built for 2010–2012 Ram 2500 and 3500 4WD trucks with control arms, these links are designed to restore proper sway bar function and improve durability in a way the OEM parts simply can’t. Each link is machined in-house from high-grade 17-4 stainless steel. This isn’t your average material—it's corrosion-resistant, incredibly strong, and practically overbuilt for this application, which is exactly what you want when your truck sees heavy use. Whether you're running up to 3 inches of front lift or as much as 6 inches with a sway bar drop bracket, these links are ready to handle it.

Heavy-Duty Components with Straightforward Install

At both ends of each link, Carli installs 1/2-inch FK chromoly rod ends with nylon liners. These rod ends replace the factory’s weak ball-and-socket design, giving you tighter control, better articulation, and a whole lot more confidence on rough roads or off-camber terrain. They’re the kind of upgrade that instantly feels more solid—especially when your suspension is cycling hard. Fitment is straightforward, but it’s worth checking the size of your upper sway bar nut just to be sure. If an 18mm socket doesn’t fit snug, this 10mm kit is the one you need. Once installed, you'll get improved sway bar performance, longer service life, and a clean, purpose-built look under the truck.

Fits: 2010, 2011, 2012 Ram 2500/3500 4WD

Fitment Note: Using an 18mm Deep Socket, check the upper sway bar end link nut (retains the link bushing to the sway bar itself) to see if it fits. 18mm fitment signifies a 12mm end link (CS-DEL-10-12MM). If it’s too large, these are the correct links.
