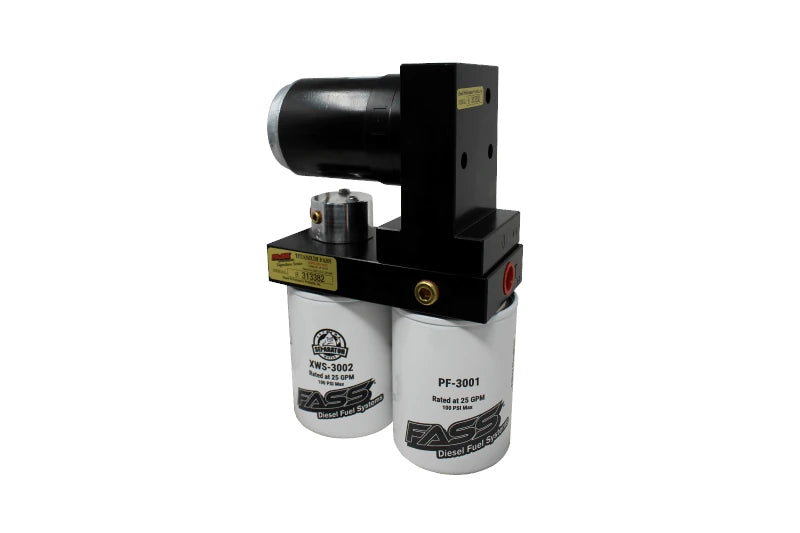

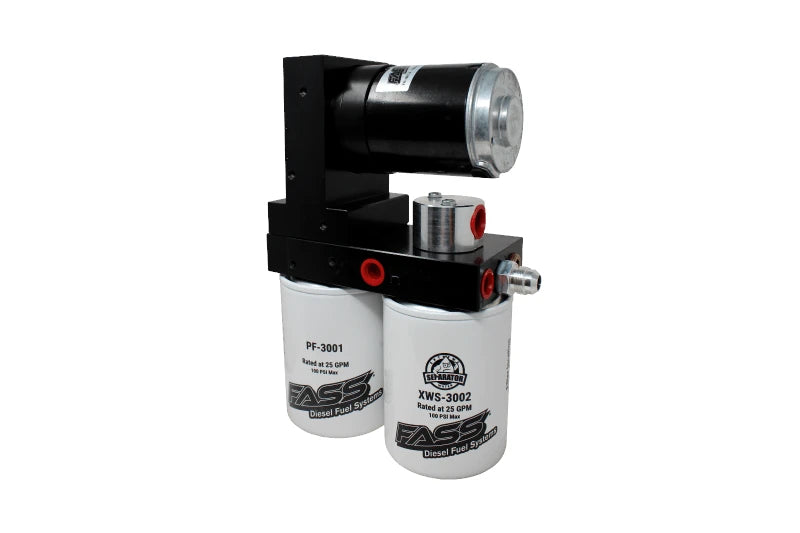

FASS TSD07165G Titanium Signature Series Diesel Fuel Lift Pump 165GPH | 2005-2018 & 2021-2024 RAM 2500/3500 5.9L Cummins/6.7L Cummins

Manufacturer: Fass Fuel systems

SKU: FASTSD07165G
Price
$729
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

165GPH Lift Pump Features:

  • New Whisper Technology
  • New Bolt On Bracket Installation
  • Preset 16-18 PSI Fuel Pressure
  • Complete Replacement Pump
  • 165 Gallons Per Hour Flow Rating
  • Removes Water, Air and Debris From Diesel Fuel
  • 2 Micron Filtration Rating
  • Protects and Extends The Life Of Your Injectors
  • Improved Cold Weather Starts
  • Decreases Carbon Monoxide and Carbon Dioxide Emissions
  • 1/2 Inch Fuel Lines and Ports
  • Fuel Mileage Improvement
  • Improved Fuel Volume Delivery
  • Smoother Engine Idle
  • Optional Electric Heater Ports
  • Optional Fuel Pressure Gauge Port
  • Limited Lifetime Warranty
  • 30,000 Mile Filter Life Expectancy
  • Quietest Motor On The Market
  • 50 State Legal, CARB EO # D-713-3

Superior Protection for Your Fuel Injection System

Fuel injection system failure can put a huge damper on your adventures with your Dodge Cummins 5.9L and 6.7L diesel engine. Fortunately, the FASS Titanium Signature Series diesel fuel system is engineered to be the top performing, longest lasting, and most reliable aftermarket filtration system in the diesel industry. Rated at 165 gallons per hour, this system offers advanced filtration benefits that will help protect your injection systems, effectively extending the life of both your Bosch Injection Pump and Bosch Diesel Injectors. Key features include an improved filtration rating of 2 microns, a built-in water separation filter, FASS' signature Whisper Technology, and FASS' patented air and vapor removal process. Aftermarket lift pumps like this one are essential for both daily drivers and high-performance applications, enhancing fuel economy and boosting horsepower and torque.

Durable Construction and Straightforward Installation

This kit includes a Bulkhead and Suction Tube Kit (FASS BHF-1005). Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return, with a 5/8 inch Suction Tube along with a 1/2 inch Fuel Return Port. This new and improved version from the previous Suction Tube Kit allows you to plum their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process. The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. FASS also utilizes a Performance Radius Cuts (PRC) technique to prevent the reintroduction of air and vapor back into the fuel. Mounting your Titanium Signature Series lift pump takes only minutes and all brackets are made from machined steel for superior support and strength.

Vehicle Fitments:



  • 2005-2007 Dodge Ram 2500 5.9L Cummins
  • 2005-2007 Dodge Ram 3500 5.9L Cummins
  • 2007.5-2018 Dodge Ram 2500 6.7L Cummins
  • 2007.5-2018 Dodge Ram 3500 6.7L Cummins
  • 2021-2024 Dodge Ram 2500 6.7L Cummins
  • 20021-2024 Dodge Ram 3500 6.7L Cummins
Year Ranges Make Model Series Engine
2005-2018 RAM 2500/3500 6.7L CM2100/CM2350A
Property Values
Year Ranges 2005-2018
Make RAM
Model
Series 2500/3500
Engine 6.7L CM2100/CM2350A
