PRODUCT DETAIL

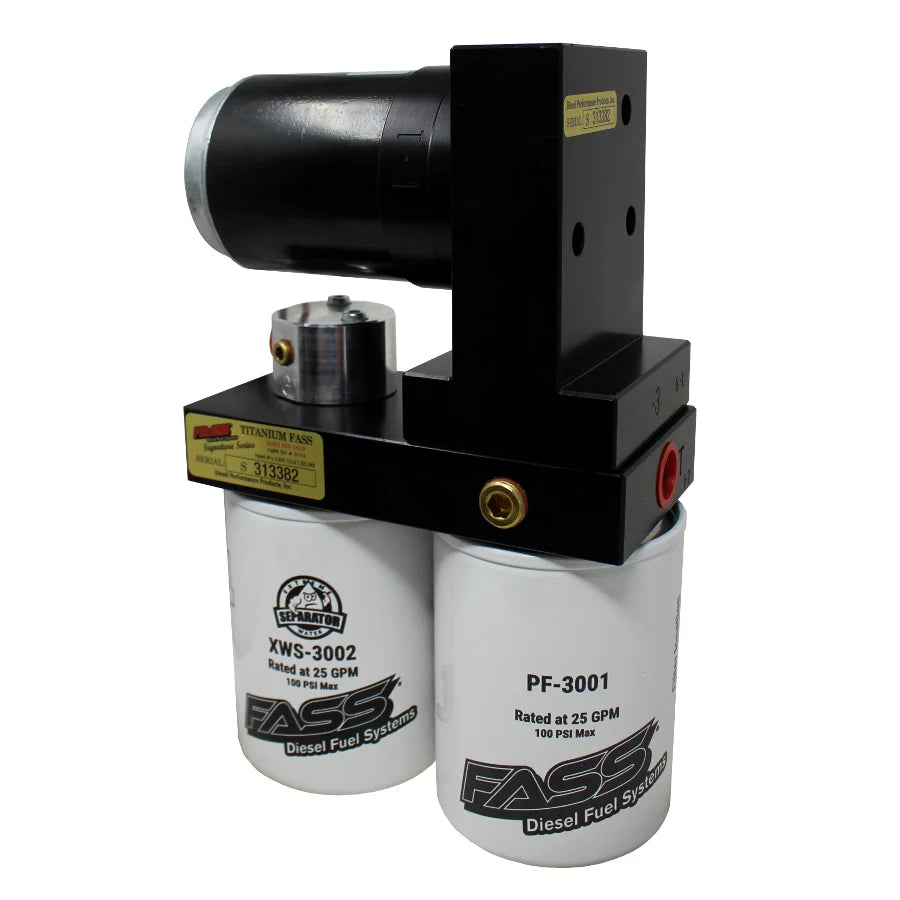

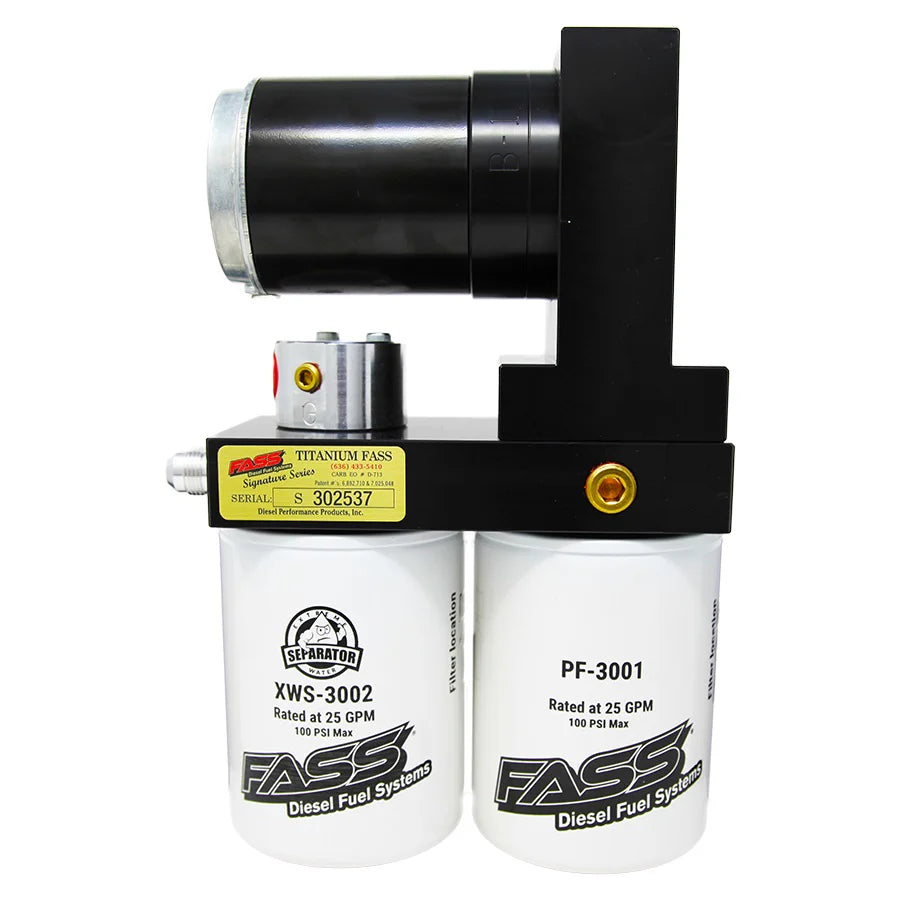

The FASS TSC10100G Titanium Signature Series Diesel Fuel Lift Pump is a 100 GPH lift pump and filtration system for 2001-2010 GM 2500HD/3500HD trucks with the 6.6L Duramax (LB7, LLY, LBZ, and LMM). It delivers 100 gallons per hour at 8-10 PSI, with 2-micron filtration and a built-in water separator. FASS rates it for stock to moderately tuned trucks up to 600 HP, and backs it with a lifetime warranty when registered.
| Status | Application |
|---|---|
| ✅ Fits | 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 GM 2500HD/3500HD with the 6.6L Duramax (LB7, LLY, LBZ, LMM) |
| ✅ Power level | Stock to moderately tuned trucks up to 600 HP |
| ✅ Optional ports | Allow add-ons such as a fuel heater or pressure gauge |
| ❌ Not intended for | Builds exceeding 600 HP or heavy racing applications |
| ❌ Not listed | Other engines, other model years, and other models. Chat with us to confirm before ordering. |
| Brand | FASS |
|---|---|
| Part Number | TSC10100G |
| Product Type | Titanium Signature Series Diesel Fuel Lift Pump |
| Fits | 2001-2010 GM 2500HD/3500HD 6.6L Duramax (LB7, LLY, LBZ, LMM) |
| Flow | 100 GPH at 8-10 PSI |
| Power Rating | FASS states up to 600 HP |

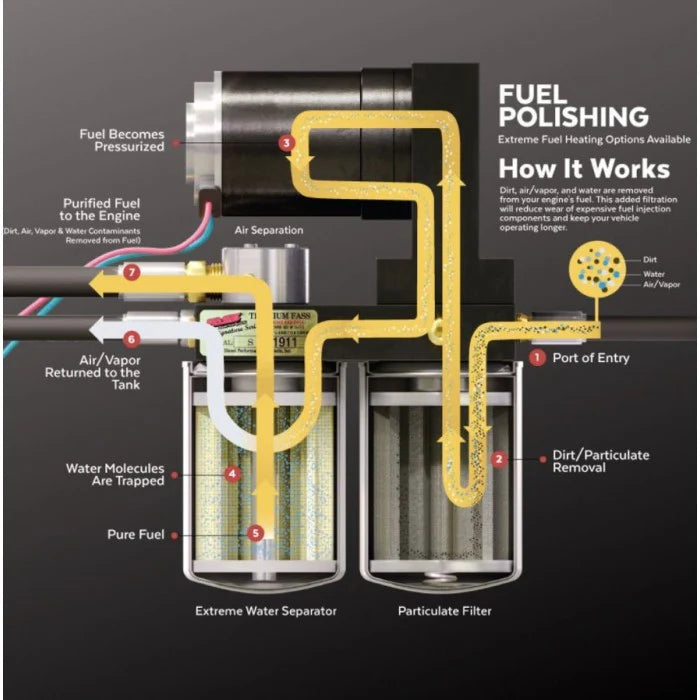

| Filtration | 2-micron particulate filter and Extreme Series water separator |
| Fuel Return | Mass Flow Return |
| Pump Housing | Performance Radius Cuts |
| Noise | Whisper Technology |
| Optional Ports | Allow add-ons such as a fuel heater or pressure gauge |
| Included | Complete wiring harness, mounting brackets, and hardware |
| Install | Bolt-on bracket system at factory mounting points |
| Filter Change Interval | FASS recommends every 30,000 miles |
| Emissions | FASS states it is CARB approved and legal in all 50 states (EO D-713-3) |
| Warranty | Lifetime, with product registration. Terms not listed. |
| Prop 65 | Prop 65 warning label applies |
| Tuning Required | Not listed |
| Install Time | Not listed |
What trucks does the TSC10100G fit?
It is listed for 2001-2010 GM 2500HD/3500HD trucks with the 6.6L Duramax (LB7, LLY, LBZ, and LMM).
How much power does it support?
FASS rates it for stock to moderately tuned trucks up to 600 HP. It is not intended for builds above 600 HP or heavy racing.
How much fuel does it flow?
It flows 100 gallons per hour at 8-10 PSI.
What filtration does it have?
It has a 2-micron particulate filter and an Extreme Series water separator. FASS recommends changing the filters every 30,000 miles.
Is it CARB legal?
FASS states it is CARB approved and legal in all 50 states, with EO D-713-3.
What does the warranty cover?
FASS offers a lifetime warranty when you register the product. The source doesn't list the terms.
Can I add a fuel heater or pressure gauge?
Yes. FASS lists optional ports that allow add-ons like a fuel heater or pressure gauge.
