SES Suspension Enhancement System - Rear Severe Service Kit

Features:

• Built for truck campers and salt spreaders
• 8,000 lb rated capacity
• Single-convoluted Aeon rubber springs
• Progressive spring rate as load increases
• Reduces sag, sway, and roll
• Comfortable ride when unloaded
• Zero post-installation maintenance
• DIY installation in under 30 minutes
• Includes 1" spacers, brackets, and hardware

Take The White Knuckles Out Of Hauling A Top Heavy Load

If you have ever driven a truck camper down the highway with a crosswind pushing on it, you know the feeling of both hands locked on the wheel while the whole rig sways back and forth. Top heavy loads like campers and salt spreaders need more stability than a standard towing or hauling setup can give, and that is the job Timbren's Severe Service Kit was built to do. It uses a single-convoluted Aeon rubber spring that resists weight more aggressively than the standard Timbren spring, which keeps your RAM 3500 level and your ride smoother under a heavy, high-riding load. The springs have a progressive rate, so they push back harder as the load increases, and that works against squat, sway, and roll. When the camper is off or the spreader is empty, the springs sit with a gap above the frame, so the truck still rides comfortably instead of feeling stiff. There is nothing to maintain after installation, and unlike air bags there are no lines or pressure to keep an eye on. Timbren says you can install the kit and get back to work in under 30 minutes, right from your driveway. For anyone hauling a load that sits high and wants a steadier highway drive, this kit gives the rear of the truck real support.

Single Convoluted Aeon Springs Engineered For Top Heavy Applications

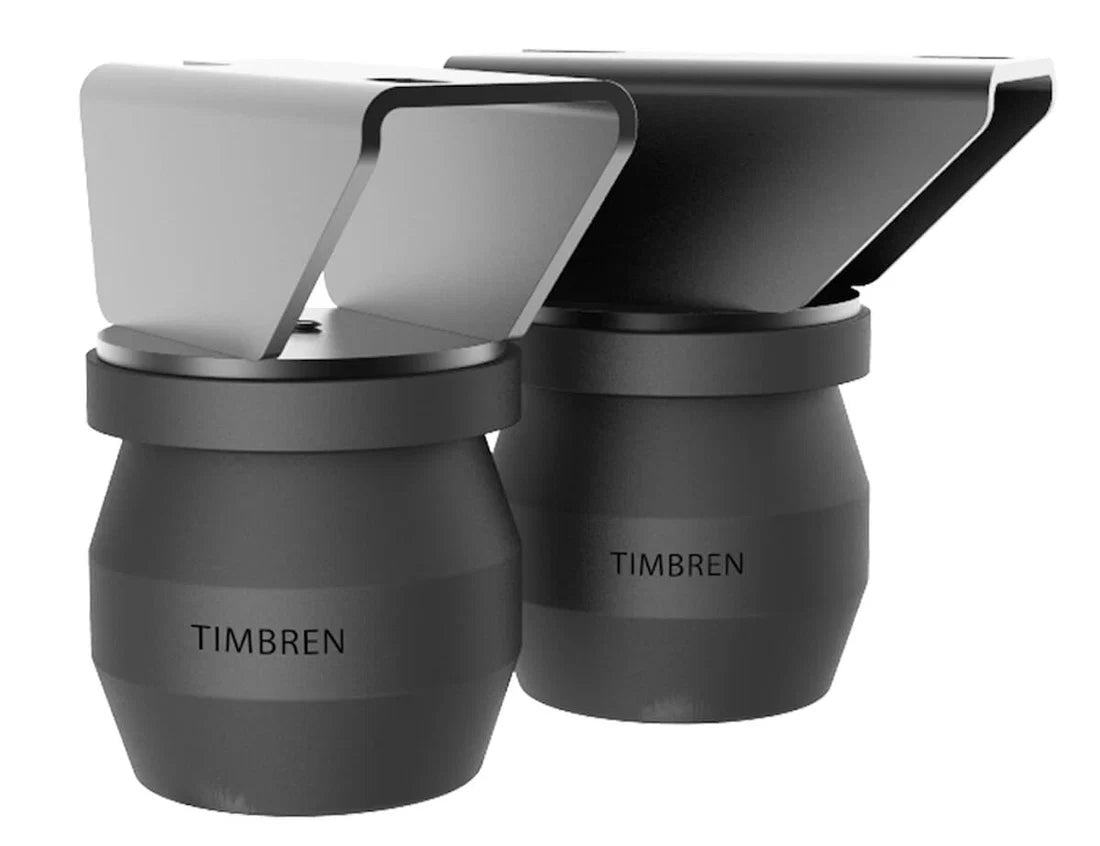

The Timbren DRTT3500D is a rear severe service SES kit engineered for 2011-2026 RAM 3500 trucks in 4WD and 2WD configurations, along with Ram 3500 Cab and Chassis models. It is built around two patented Aeon SES suspensions, which are hollow rubber springs that use a single-convoluted design made for applications like truck campers and salt spreaders. The kit is rated for 8,000 pounds of capacity. Kit height is 6.25 inches without the 1 inch spacer and 7.25 inches with it, and the two 1 inch rubber spacers are included in the box along with two steel mounting brackets and all necessary hardware. After installation, there should be a gap of 1/2 inch to 1 1/2 inches between the rubber spring and the vehicle frame, which is what gives you a comfortable ride when the truck is unloaded. The system needs no post-installation maintenance, and it is made of rubber rather than foam, which Timbren says holds up under all loads and in any weather. Adding this kit increases the spring rate but does not increase the truck's Gross Vehicle Weight Rating, so the load must never exceed the GVWR set by the manufacturer.

Fitment: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 RAM 3500 4WD/2WD & RAM 3500 Cab & Chassis

Notes:

• Made for top heavy applications such as truck campers and salt spreaders
• Does not increase the GVWR, never exceed the manufacturer's Gross Vehicle Weight Rating
• After installation, there should be a 1/2" to 1 1/2" gap between the rubber spring and the vehicle frame
• Rated capacity is 8,000 lbs
• Kit height is 6.25" without the 1" spacer and 7.25" with the 1" spacer
• Includes two Aeon SES rubber springs, two 1" rubber spacers, two steel mounting brackets, and all necessary hardware
• Requires no post-installation maintenance
• Manufacturer states the kit can be installed in under 30 minutes
