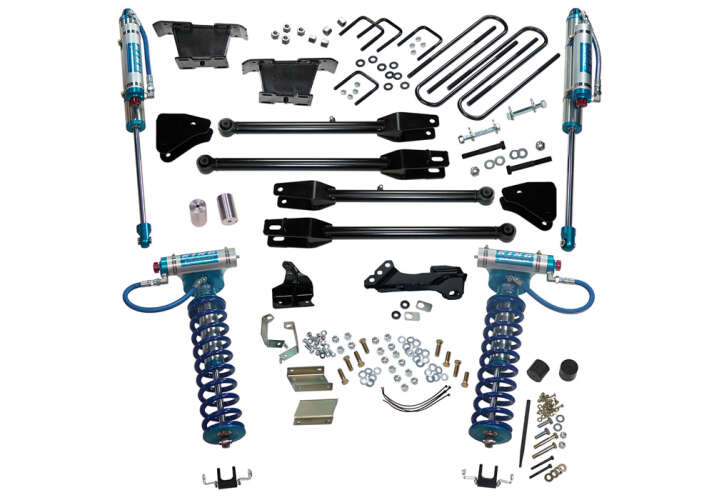

4" inch King Edition Lift Kit

Features:

• 4" inch lift for F250/F350 4WD
• KING adjustable front coilovers included
• Rear reservoir shocks with adjusters
• External reservoirs for cooler operation
• Super Soft to Super Firm tuning
• Heavy duty tubular 4-Link arms
• REFLEX bushings reduce vibration
• Optimized caster control through suspension travel
• Track bar relocation bracket included
• Front sway bar correction provided
• Brake line relocation brackets included
• Complete hardware for straightforward installation

Take Command Of Every Mile With King Tuned Confidence

If you are ready to transform your 2011-2016 Ford F250 or F350 Powerstroke into a truck that feels as capable as it looks, this SuperLift 4 inch King Edition system delivers in a big way. Right out of the box, you get KING front coilovers and rear reservoir shocks that bring true race inspired performance to your daily drive. With a simple twist of the external adjusters, you can dial the ride from super soft and comfortable to firm and controlled when the terrain gets rough or the trailer gets heavy. That flexibility means you are not stuck with a one size fits all ride quality. Additionally, the added lift clears larger tires and gives your Super Duty the aggressive stance it deserves without sacrificing control. The result is a truck that feels planted on the highway, composed on back roads, and confident when the pavement ends. This is not just a lift kit, it is a complete upgrade in how your truck drives and responds.

Precision Engineered Suspension Built For Super Duty Performance

Underneath the bold stance is a carefully engineered system designed specifically for 2011-2016 Ford F250 and F350 4WD trucks. SuperLift used OEM CAD data and advanced 3D design software to ensure every bracket and component fits correctly and works as a complete package. The heavy duty tubular 4-Link arms are built for strength and feature press fit REFLEX bushings that help reduce vibration while allowing proper suspension articulation. Furthermore, the 4-Link geometry helps limit caster change throughout suspension travel, which promotes stable handling and more consistent tire wear. KING coilovers and rear shocks are precisely valved for this application and feature external reservoirs to help manage heat under demanding conditions. The kit also includes a track bar relocation bracket, sway bar correction, bump stop extensions, brake line relocation brackets, rear lift components, and all required hardware. When installed properly and matched to the correct rear block configuration, this system delivers reliable lift, improved suspension control, and the durability Super Duty owners expect.

Fitment: 2011, 2012, 2013, 2014, 2015, 2016 Ford F250/F350 Powerstroke 4WD

Notes:

• Fits 2011-2016 Ford F250 and F350 4WD models only
• Designed specifically for Powerstroke equipped Super Duty trucks
• Requires verification of factory rear block height
• Factory 1-7/8 inch rear blocks required
• Trucks with 3.71 inch blocks need longer U-bolts
• Top mounted overload springs require specific U-bolts
• Additional U-bolt kits sold separately
• Two piece rear driveshaft requires carrier bearing spacer
• Carrier bearing spacer part number 9649 sold separately
• Rear lift configured for non top mount overload setups
• Professional installation strongly recommended
• Alignment required after installation
