SunCoast SC-47-5-LC Cat5 47RE Rebuild Kit | 1996-2002 Dodge RAM 2500/3500

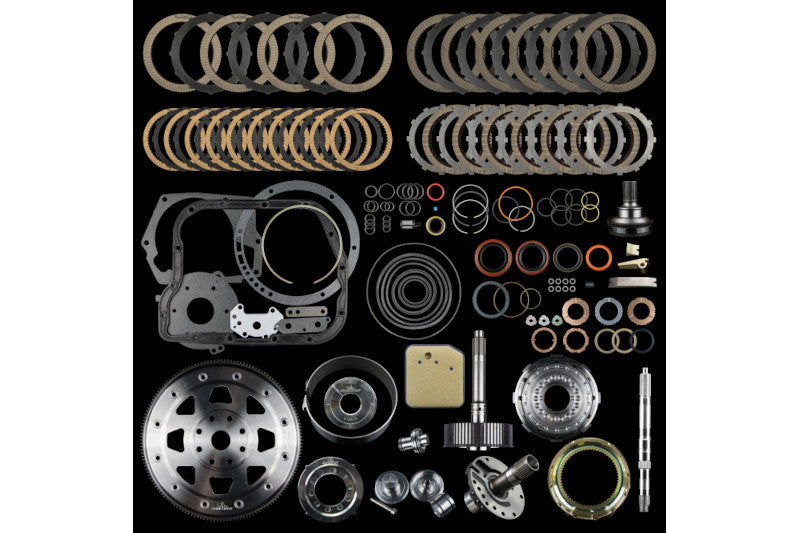

Rebuild Kit Features:

• 4 Raybestos GPZ forward frictions with steels
• 6 Raybestos GPZ clutches with steels
• 10 Raybestos overdrive clutches with steels
• Custom machined overdrive pressure plate
• .073 custom snap ring for forward clutch pack
• High flow 47RE transmission filter
• 47RE front pump bushing
• SunCoast custom billet carbon fiber band
• SunCoast 47RE paper/rubber/gasket kit
• 47RE thrust washer kit
• SunCoast Billet accumulator piston
• SunCoast billet intermediate servo
• 4.4 billet band lever
• Billet band strut
• Billet band anchor
• Billet Forward and Direct Piston
• Billet 27 Spline Input Shaft
• Machined 27 Spline Stator Support
• Billet Forward and Direct Piston
• Billet Flexplate
• Billet 29 Spline Output Shaft
• Billet Forward Drum and Direct Drum
• Billet Intermediate Shaft

Upgrade Your Rig's Components For Enhanced Performance

This SunCoast Category 5 47RE rebuild kit includes everything necessary to rebuild your 47RE transmission. This high-performance rebuild kit is for customers seeking improvement over the stock unit along with improvements to the band, band actuation, servos, accumulator piston, forward drum, larger 27-spline input shaft, larger 29-spline output shaft, billet intermediate shaft, 27-spline stator support and billet direct drum. The addition of the billet intermediate servo, billet band anchor and billet band strut allow this kit to address the common know shortcomings of this 47RE transmission. This kit also comes with a new billet blueprinted 4.4 band lever. The new thrust washer kit also contains selective for setting endplay.

Made With High-Quality Components For A Boost In Power

This rebuild kit also includes our much larger, one-piece, billet 27-spline input shaft. This shaft is made from 300 maraging steel and is then heat treated and stress relieved to handle the additional demands of higher torque and stress loads. This shaft is precision ground to exact tolerances. We're also including our exclusive 27-spline stator support with this kit to accommodate the larger input shaft. This Category 5 47RE master rebuild kit also includes a band upgrade. While some of our other kits include a Raybestos Pro Series carbon fiber flex band, in this kit we use our billet rigid band. This band is CNC machined from billet steel and then lined with carbon graphite lining to ensure unmatched performance by any other manufacturer.

Note: This kit fits all 4WD 47RE transmissions.

Note: Converter is NOT included.

Vehicle Fitment: 1996-2002 Dodge Ram 2500, 3500

Year Ranges	Make	Model	Series	Engine
1996-2002	Dodge RAM		2500/3500

Property	Values
Year Ranges	1996-2002
Make	Dodge RAM
Model
Series	2500/3500
Engine
