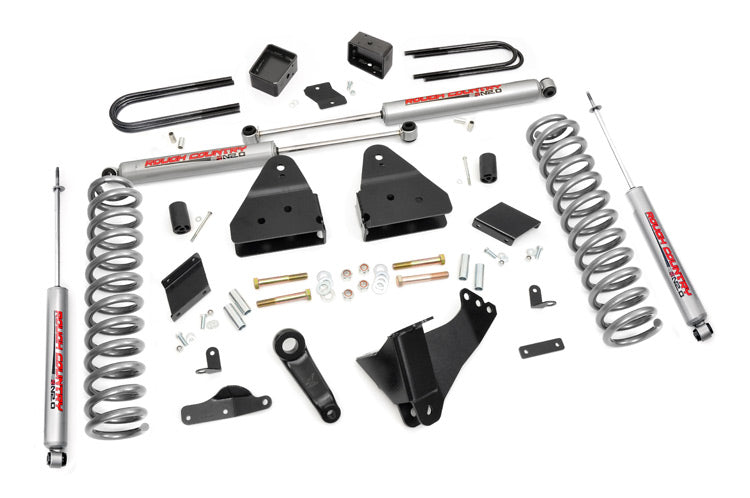

Rough Country 563.20 4.5 inch Suspension Lift Kit | 2011-2014 Ford F250 6.7L Powerstroke

Features:

• Provides 4.5 inches of suspension lift
• Increases ground clearance for off-road use
• Levels front stance with rear height
• Includes Premium N3 series shock absorbers
• Radius arm brackets maintain proper caster
• Fabricated blocks offer superior strength
• Track bar and sway bar brackets included
• Supports up to 35x12.50 R17 tires
• Bolt-on installation with all hardware included

Complete Suspension Overhaul for HD Ford Trucks

If you’re looking to give your 2011–2014 Ford F250 6.7L Powerstroke a more commanding stance, better clearance, and room for 35s, the Rough Country 4.5-Inch Suspension Lift Kit is a solid solution that doesn’t cut corners. This isn’t just about making your truck look good—though it definitely will—it’s about dialing in ride quality, handling, and durability for the way you actually use your Super Duty. Right out of the gate, this kit gives you a true 4.5 inches of front lift and levels the stance of your truck by bringing the nose in line with the rear. That alone makes a huge difference visually, but it also allows you to clear larger tires without rubbing. More importantly, everything included in this kit is engineered to maintain proper geometry and factory-like drivability.

Engineered with Precision

You’re not just getting taller springs—Rough Country includes radius arm drop brackets that correct caster, which plays a major role in keeping your steering tight and responsive. A track bar drop bracket, sway bar relocation brackets, bumpstop spacers, and a new Pitman arm are all part of the package, making sure everything works in sync after the lift. In the rear, fabricated lift blocks and high-strength U-bolts offer durability you can count on, especially if your truck sees heavy loads or regular off-road use. Unlike cast blocks, fabricated blocks hold up better over time and are less prone to cracking under stress. What ties everything together are the included N3 series shocks, tuned specifically for both on- and off-road performance. These shocks do a great job soaking up bumps without making the truck feel floaty or harsh. Whether you're daily driving, towing, or hitting backroads, they provide a solid, balanced ride.

Fits: 2011, 2012, 2013, 2014 Ford F250 6.7L Powerstroke

Application Notes:

• Does NOT F-350 models.
• Does NOT fit gas engine models.
• Does NOT fit dually models.
• A carrier bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft. (#1197)
• Models equipped with rear contact overload springs must remove the overload spring
