Heavy-Duty 10R140 Cast Aluminum Transmission Pan (Raw)

Features:

• Fits 2020-2022 Ford Super Duty Diesel
• Designed for 10R140 transmissions
• Adds 8 quarts fluid capacity
• A356.0-T6 cast aluminum construction
• Raw aluminum finish

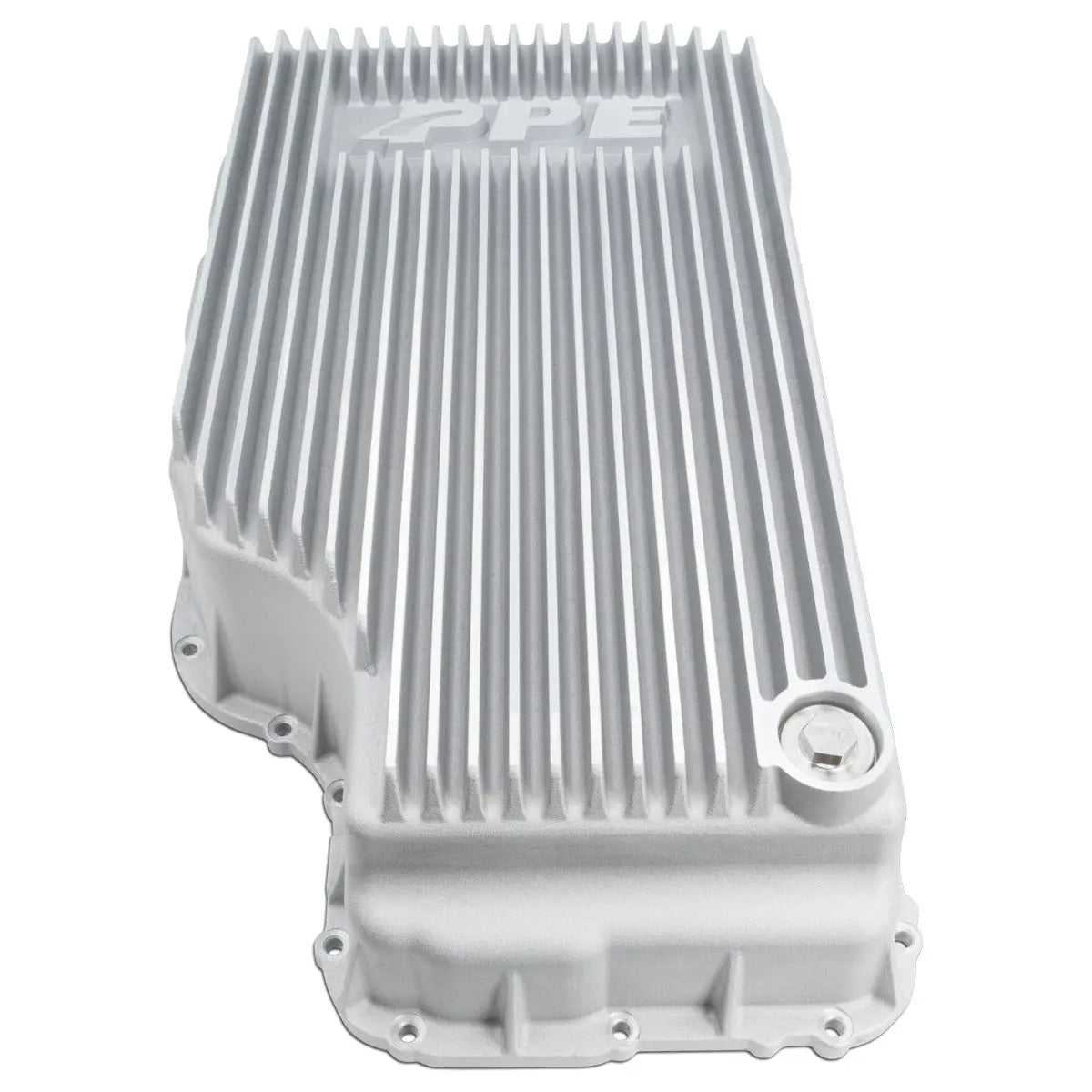

• Deep external cooling fins

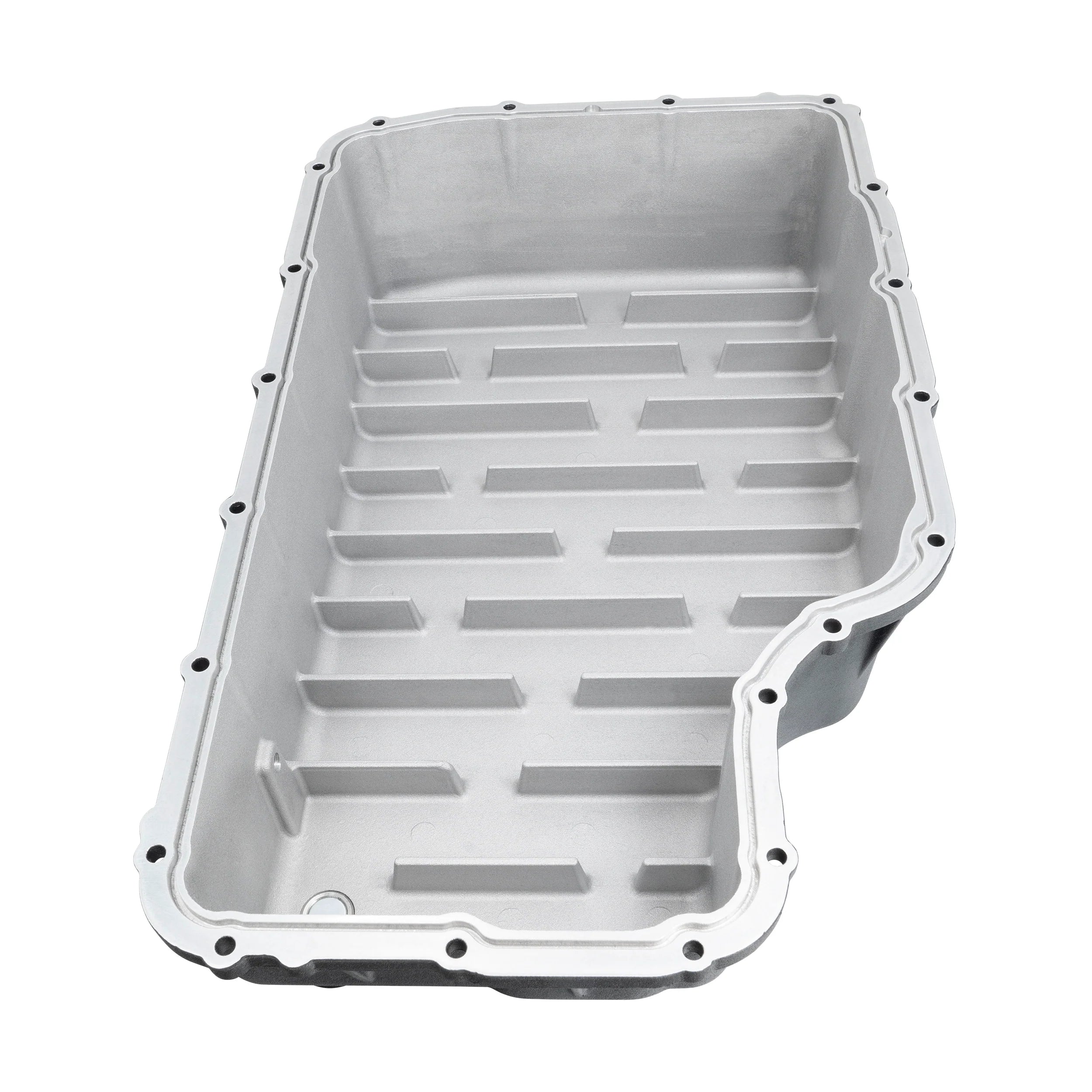

• Internal baffles reduce fluid slosh
• Improves transmission heat dissipation
• Magnetic stainless steel drain plug
• Built-in 1/8 inch NPT port
• Compatible with OEM gasket and filter
• Reinforced cross bracing design

Give Your Transmission More Cooling When It Matters Most

When your Super Duty is pulling heavy loads or putting in long hours on the road, transmission temperature can quickly become a concern. The PPE Heavy Duty Cast Aluminum Transmission Pan gives your 10R140 transmission the extra cooling capacity it needs by adding an impressive 8 quarts of additional fluid volume. That larger fluid supply helps absorb and manage heat more effectively, promoting more consistent transmission performance during demanding driving conditions. Constructed from premium A356.0-T6 heat treated cast aluminum, this pan is built to withstand serious use while transferring heat far better than a factory stamped steel pan. The raw aluminum finish highlights its rugged cast construction and delivers a clean appearance that looks right at home on a hardworking truck. Furthermore, the deep external cooling fins help shed heat while adding strength to the bottom of the pan for improved durability. If you want to help protect one of the hardest working components in your truck, this is an upgrade that continues delivering benefits every time you get behind the wheel.

Advanced Engineering Built Into Every Cast Detail

PPE designed this transmission pan to improve cooling efficiency while reinforcing the overall strength of the transmission assembly. Precision casting with permanent steel molds creates excellent dimensional accuracy for a dependable fit with the factory gasket and filter. Deep internal baffles increase contact between the transmission fluid and the aluminum housing, allowing heat to transfer more efficiently while reducing fluid movement during acceleration, braking, and uneven terrain. Additionally, the external cooling fins and internal baffles combine to create a reinforced cross bracing structure that improves rigidity and impact resistance. Cast in gussets provide additional support around the transmission housing flange, helping strengthen the entire assembly under demanding conditions. The 304 stainless steel drain plug includes a high temperature rated neodymium magnet that captures ferrous metal particles before they continue circulating through the transmission. A built in 1/8 inch NPT port with a pre installed plug also gives you the flexibility to add compatible monitoring equipment as your truck build evolves.

Fitment: 2020, 2021, 2022 Ford F250/F350 Super Duty Diesel

Notes:

• Fits 2020-2022 Ford Super Duty diesel models.
• Designed specifically for 10R140 10-speed transmissions.
• Adds 8 quarts over factory fluid capacity.
• Uses the factory gasket and transmission filter.
• Raw aluminum finish may show natural casting marks.
• Drain plug includes a high-temperature magnetic insert.
• Built-in 1/8 inch NPT port includes plug.
• Transmission temperature control is the main purpose.
• Verify fitment before ordering for modified trucks.
• OEM part number reference is not provided.
