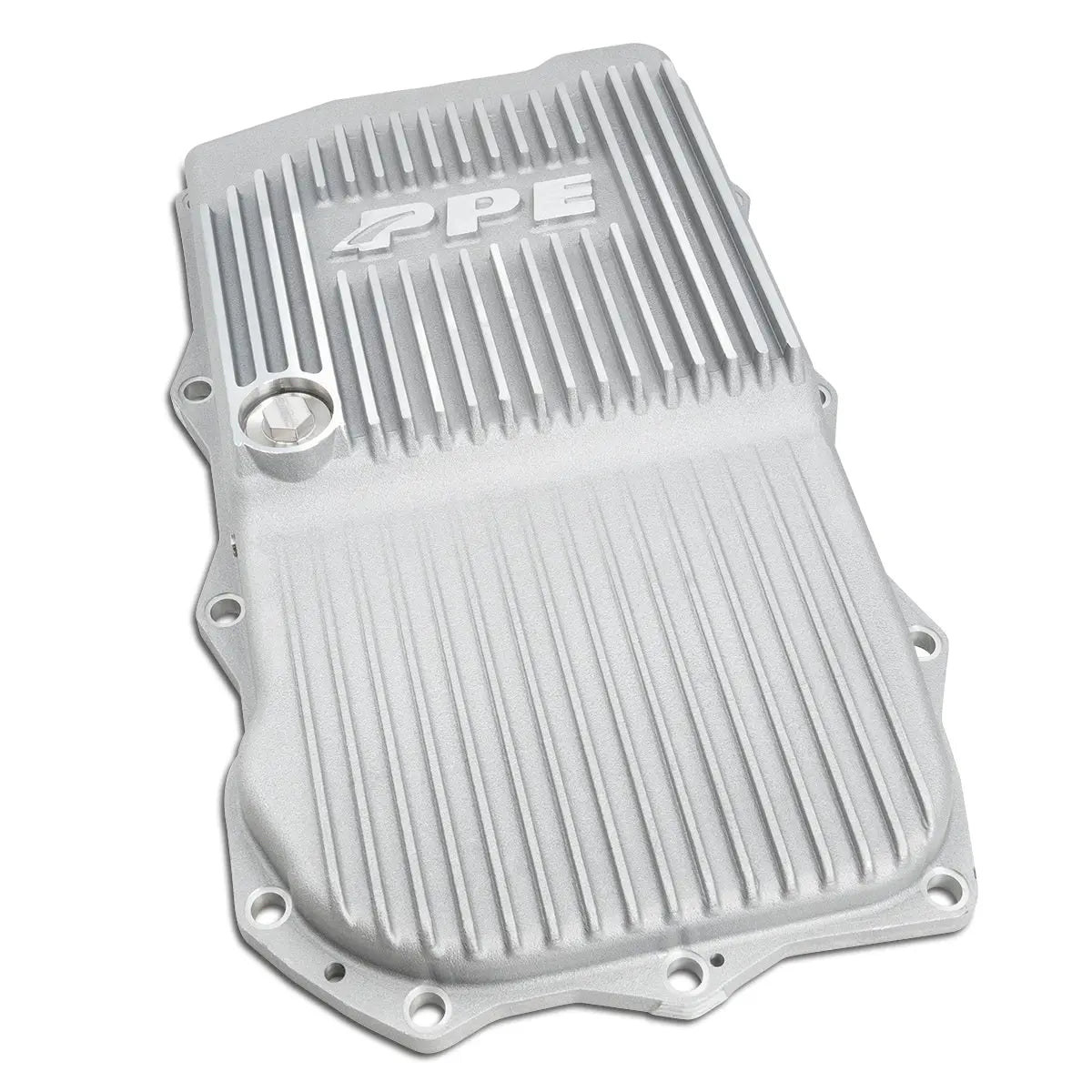

ZF 8-Speed Heavy-Duty Cast Aluminum Transmission Pan (Raw)

Features:

• High-strength A356.0-T6 cast aluminum construction
• Increases fluid capacity by 1 quart
• Improves transmission cooling and thermal control
• External cooling fins enhance heat dissipation
• Internal baffles reduce fluid sloshing
• Cross-braced design adds structural strength
• Magnetic drain plug captures metal particles
• Durable stainless steel drain plug included
• Built-in temperature sensor port provision
• Supports replaceable internal transmission filter
• Compatible with OEM gasket and hardware
• Improves transmission longevity and reliability

Keep Your Transmission Running Cooler And Stronger Under Load

Heat is one of the fastest ways to shorten the life of your transmission, and that is exactly where this PPE heavy-duty transmission pan steps in. Built for 2013-2018 RAM 1500 trucks, it replaces the factory plastic unit with a rugged cast aluminum design that is made to handle real-world abuse. The added one quart of fluid capacity gives your system more thermal stability, which helps maintain proper lubrication when you are towing, hauling, or pushing your truck hard. Additionally, the deep external fins actively pull heat away from the fluid, helping keep temperatures in check during long drives or demanding conditions. What really stands out is how this pan also adds strength underneath your truck, offering better resistance against impacts from road debris or rough terrain. The integrated magnetic drain plug captures harmful metal particles before they can circulate, giving your transmission an extra layer of protection. On top of that, the switch to a serviceable internal filter makes maintenance easier and more cost effective over time. It is a straightforward upgrade that delivers real benefits you will notice every time you put your truck to work.

Engineered Aluminum Design That Maximizes Cooling And Structural Integrity

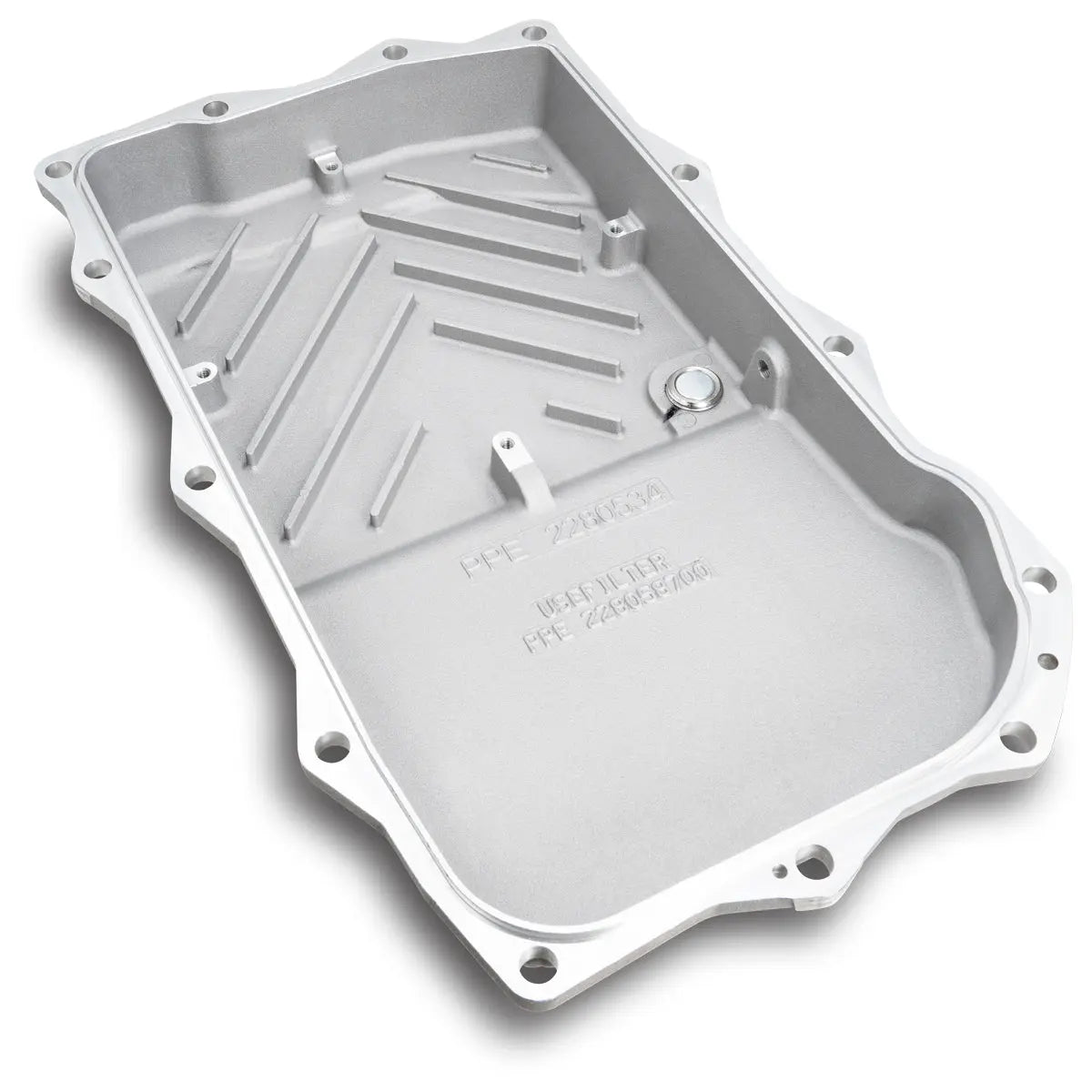

This PPE transmission pan is precision cast from A356.0-T6 heat-treated aluminum, a material known for its excellent strength and thermal conductivity. The casting process uses permanent steel molds, which results in consistent wall thickness and a clean, accurate fit that works seamlessly with OEM gaskets and hardware. Internally, half-inch baffles are designed to control fluid movement, reducing sloshing and improving fluid contact with the pan surface for more efficient heat transfer. Furthermore, the external 3/4-inch cooling fins are strategically positioned to increase surface area, allowing heat to dissipate faster while also reinforcing the overall structure. These internal and external features work together to form a cross-braced design that enhances rigidity and impact resistance. The included stainless steel drain plug features a high-temp rated neodymium magnet and a durable Viton O-ring, ensuring a secure seal and long service life. A built-in 1/8-inch NPT port gives you the option to add a temperature sensor for more precise monitoring. To complete the package, PPE includes a replaceable transmission filter that mounts securely within the pan, improving serviceability compared to the factory sealed design.

Fitment:  2013, 2014, 2015, 2016, 2017, 2018 RAM 1500 6 Cyl 3.6 Liter

Notes:

• Verify vehicle clearance before installation
• Lower capacity version offers better ground clearance
• Compatible with ZF 8-speed plastic pan setups
• Works with OEM gasket and steel collars
• Replaces factory non-serviceable plastic pan design
• Supports easier and more cost-effective maintenance
• Fits multiple platforms beyond RAM applications
• Also compatible with select BMW and Supra models
• Different depth options available from PPE
• Designed for improved long-term transmission durability
• Factory pan must be fully removed and replaced
• Ensure correct part number for desired capacity
