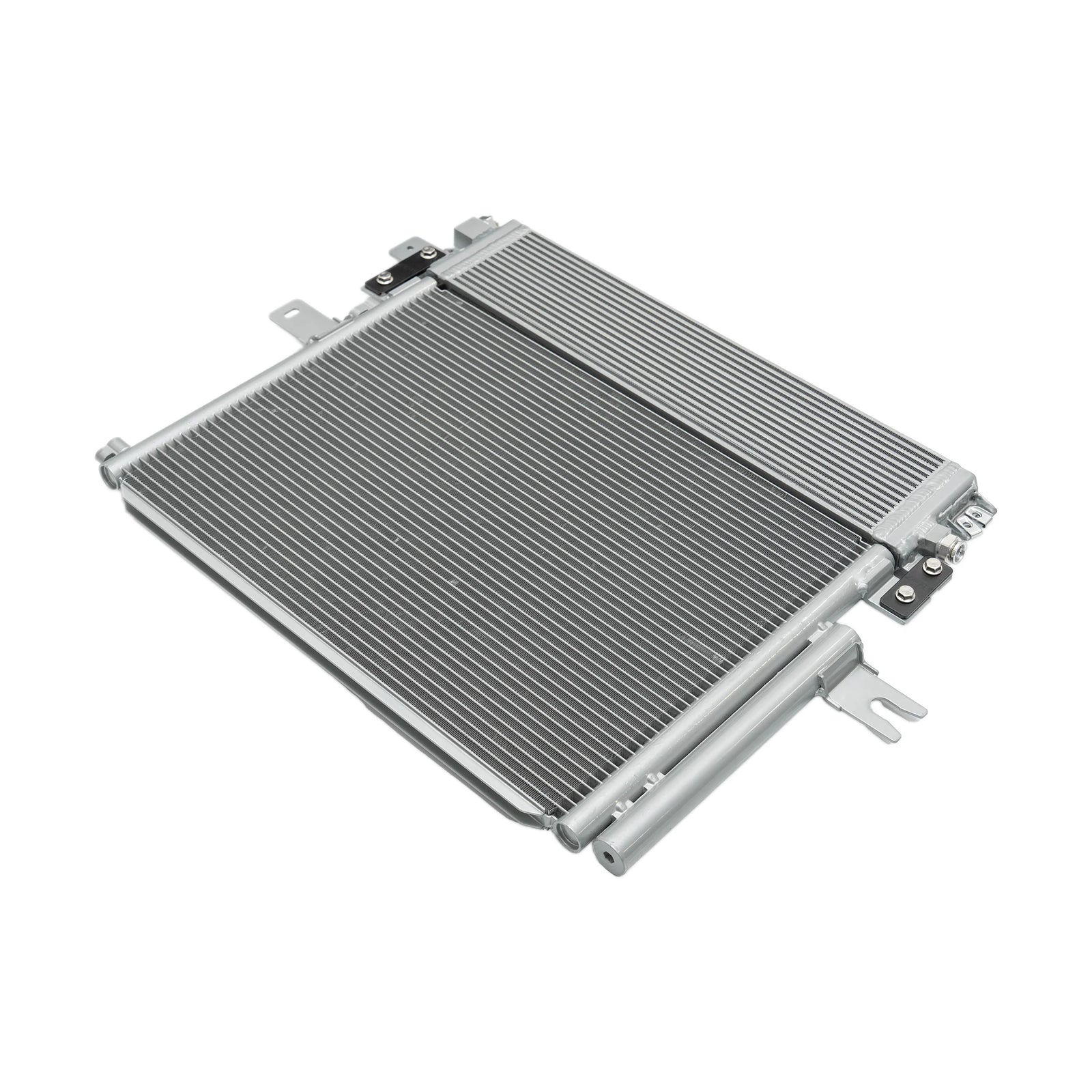

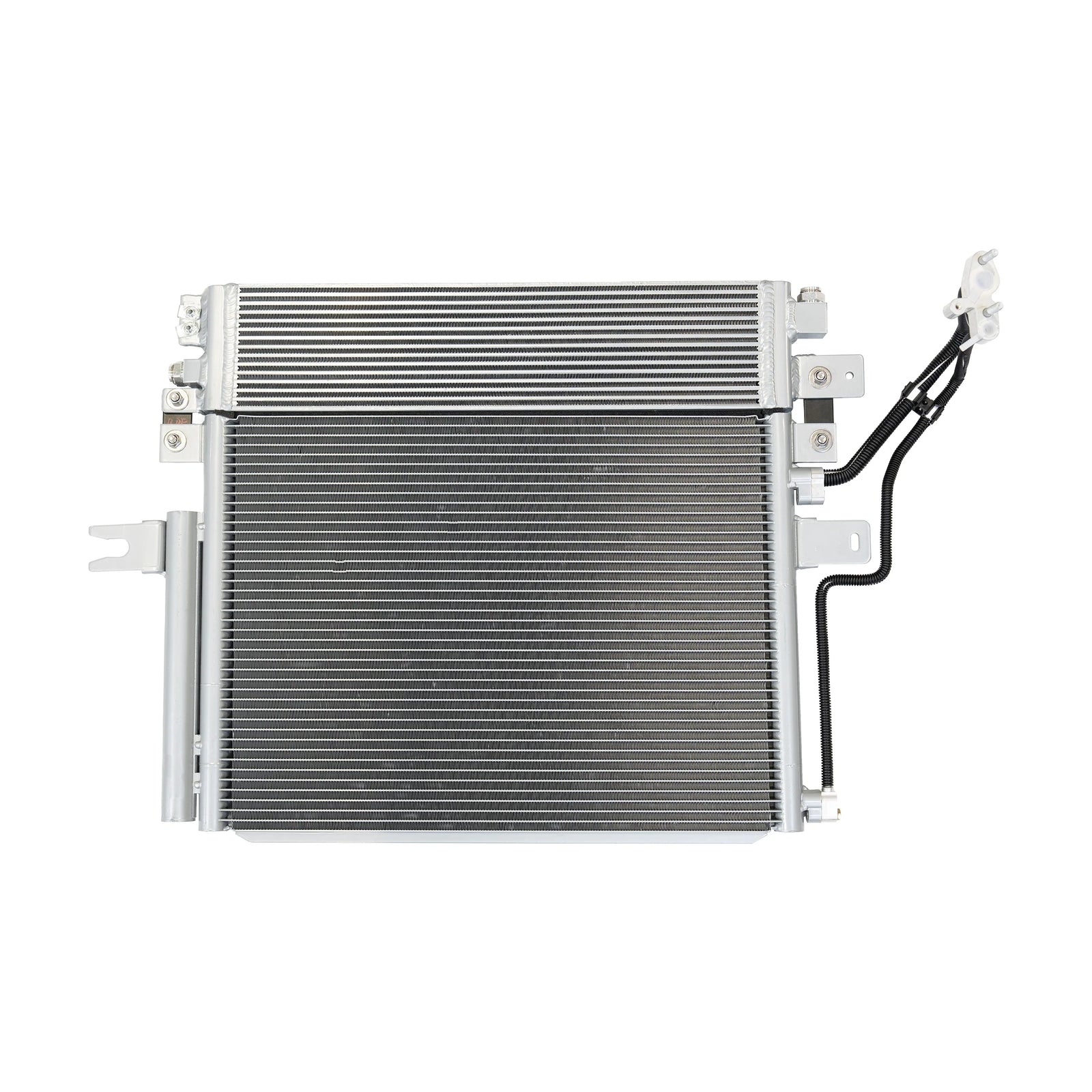

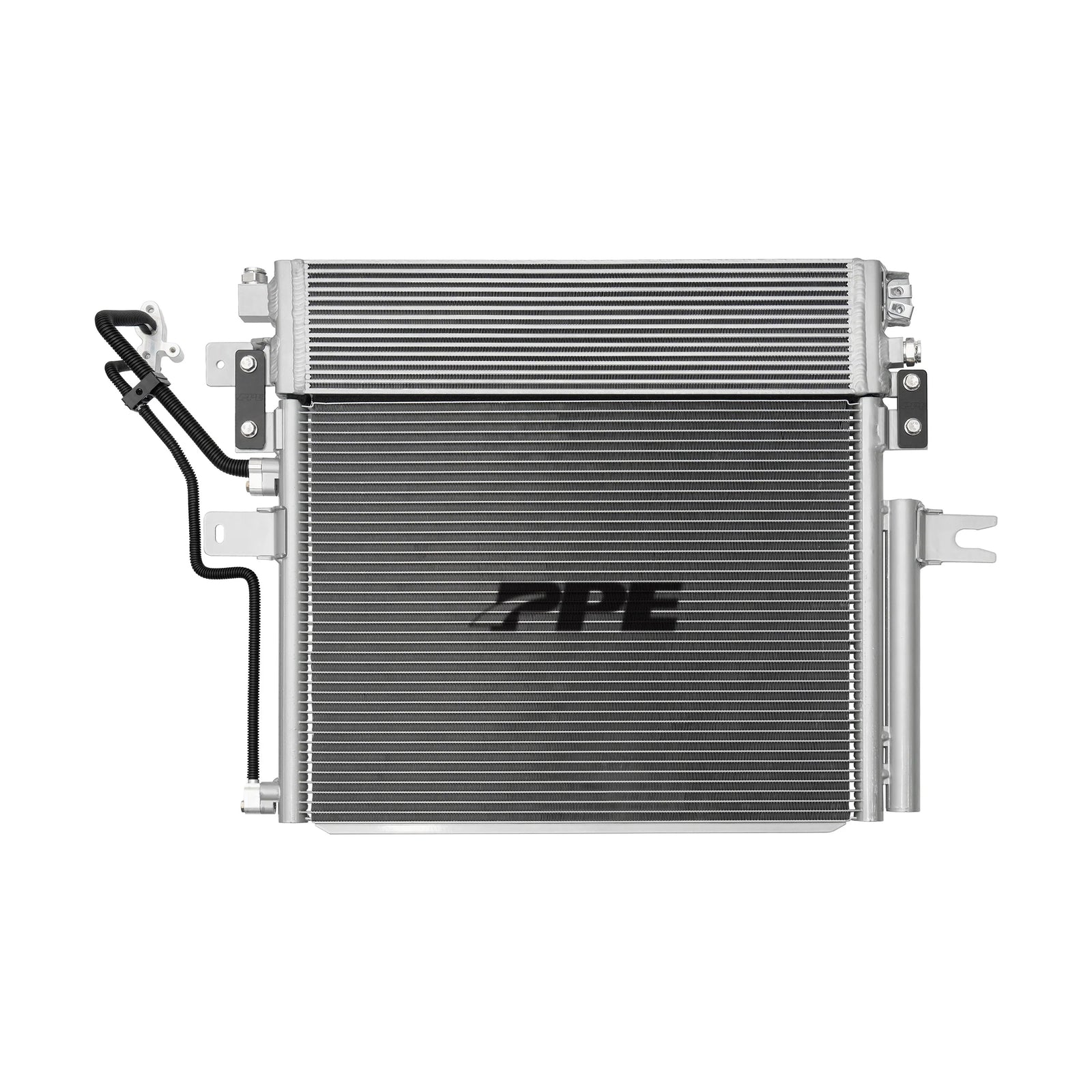

68RFE Bar and Plate Transmission Cooler and A/C Condenser Kit

Features:

• Fits 2010-2012 RAM 2500 and 3500
• Designed for 68RFE transmission applications
• 81% larger than factory cooler
• 145 cubic inch core capacity
• Up to 30°F temperature reduction
• All-aluminum bar and plate construction
• Fully TIG-welded for added durability
• Separate cooler and condenser design
• Improves long term serviceability
• 7% larger frontal area for airflow
• Includes quick-connect factory line fittings
• Direct bolt-on using factory mounts

Upgrade Your Cooling Setup And Simplify Future Repairs At The Same Time

If you have ever had to replace a combined transmission cooler and condenser, you already know how frustrating and expensive that setup can be. This PPE cooler and A/C condenser kit changes the game by separating those components, giving you more control over maintenance down the road. Built for 2010-2012 RAM 2500 and 3500 trucks, it not only improves cooling performance but also makes future repairs far more manageable. The larger core design helps pull heat out of your transmission fluid faster, which is a big deal when you are towing or working your truck hard. Additionally, the ability to drop temps by up to 30 degrees helps protect internal components and keeps shifts feeling smooth and consistent. You are not just upgrading performance here, you are investing in long term reliability and easier ownership. It is the kind of smart upgrade that pays off both on the road and in the garage.

Engineered Cooling Efficiency With Service Friendly Component Design

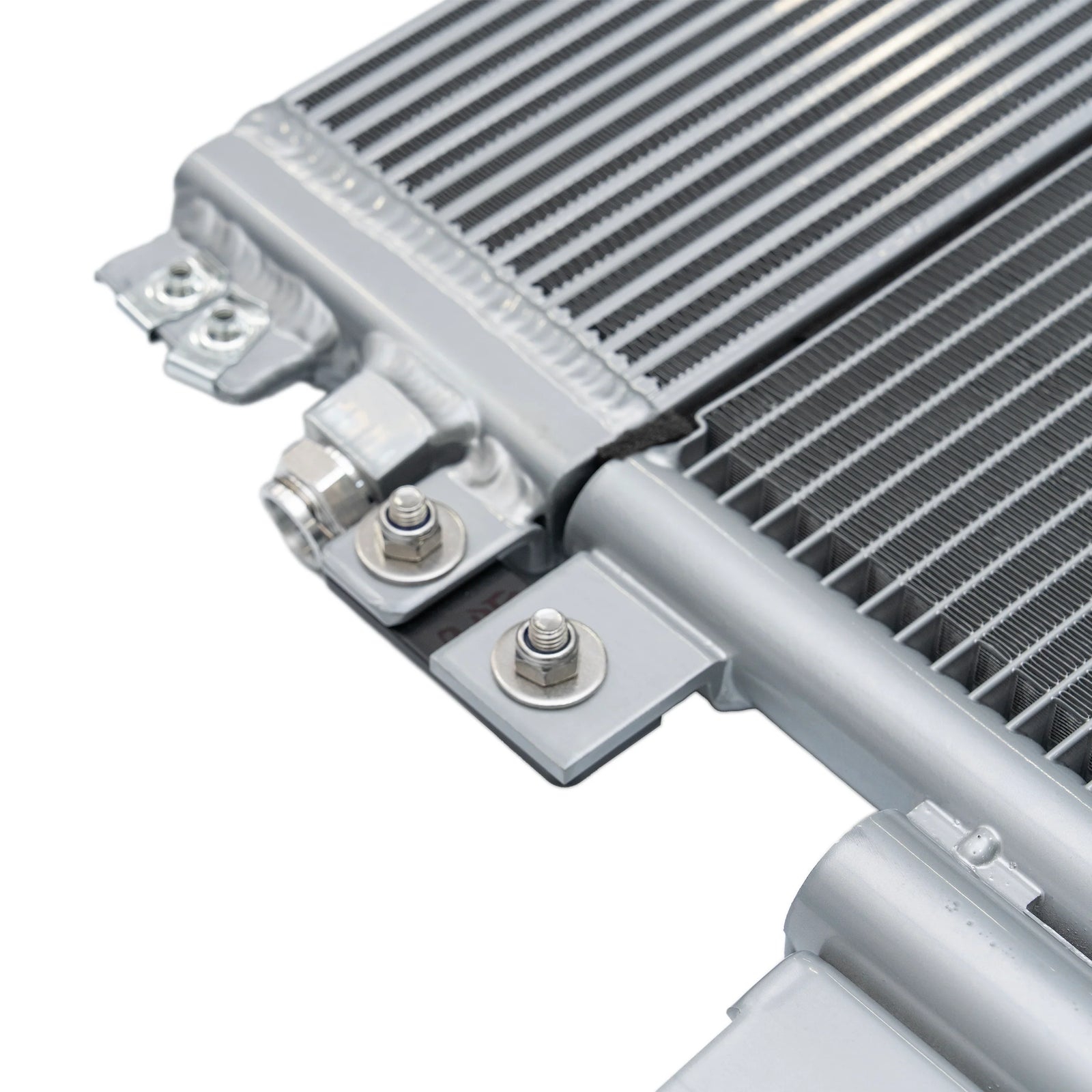

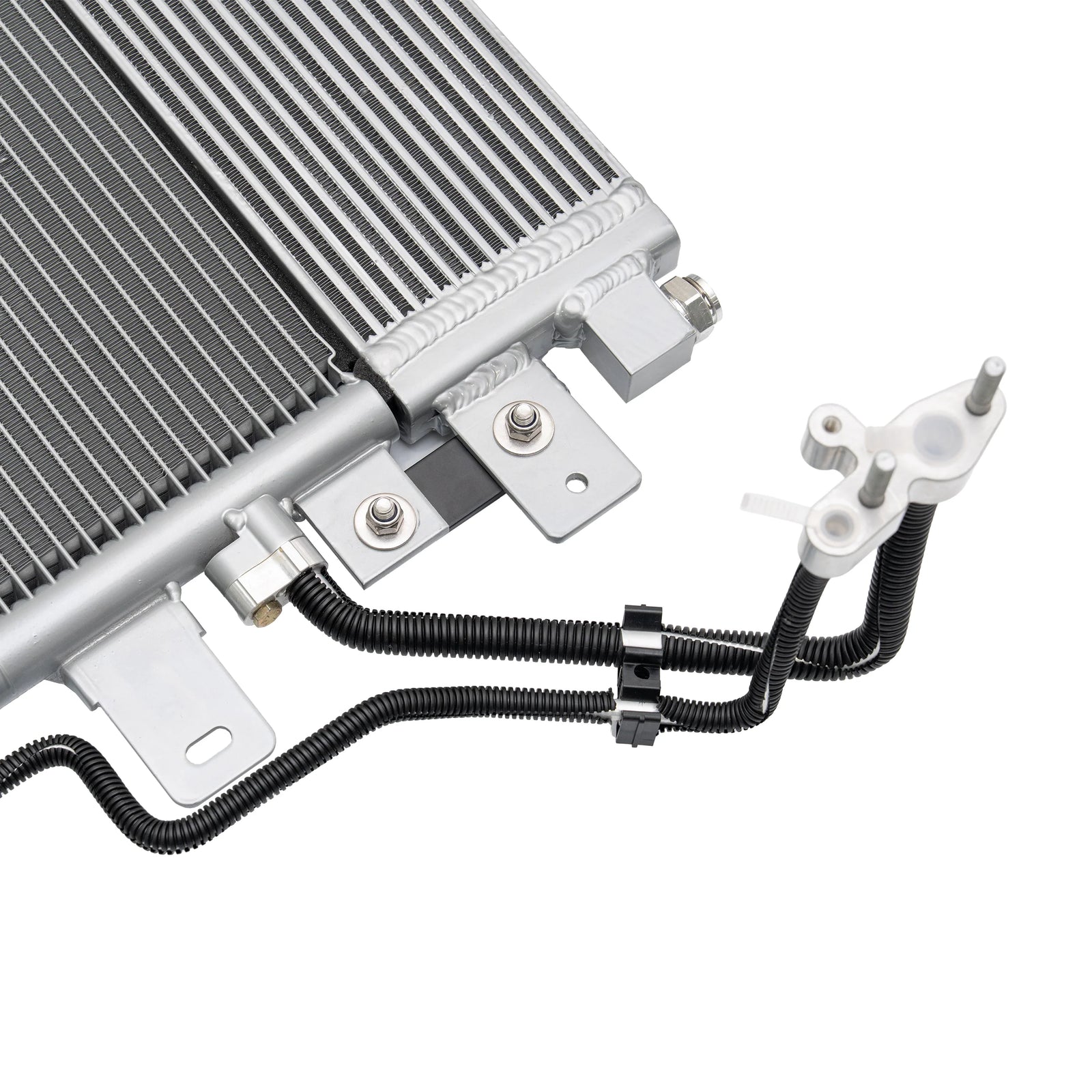

This kit is built around a 145 cubic inch bar and plate transmission cooler that delivers an 81 percent increase in core volume over the factory unit. That added capacity allows for greater heat absorption and more efficient cooling during sustained operation. The 7 percent increase in frontal area improves airflow exposure, which works together with the dense louvered fins to maximize heat transfer. Furthermore, the all aluminum construction offers improved pressure resistance while reducing the risk of failure under demanding conditions. Fully TIG welded end tanks provide added structural strength, ensuring durability over time. The included quick connect fittings are designed to integrate with factory transmission lines and the A/C discharge line, making installation straightforward. By separating the transmission cooler and A/C condenser into individual units, this system allows each component to be serviced independently, reducing long term maintenance costs and complexity.

Fitment: 2010, 2011, 2012 RAM 2500/3500

Notes:

• Designed for 2010-2012 RAM 2500 and 3500
• Compatible with 68RFE transmission only
• Replaces factory integrated cooler and condenser
• Separates components for easier future repairs
• Larger core improves cooling over stock system
• Helps reduce transmission wear from heat
• Recommended for towing and heavy duty use
• Maintains factory mounting locations for install
• Includes fittings for transmission and AC lines
• May reduce long term maintenance costs
• Built for higher performance applications
• Verify fitment before purchase and installation

Install Instructions
