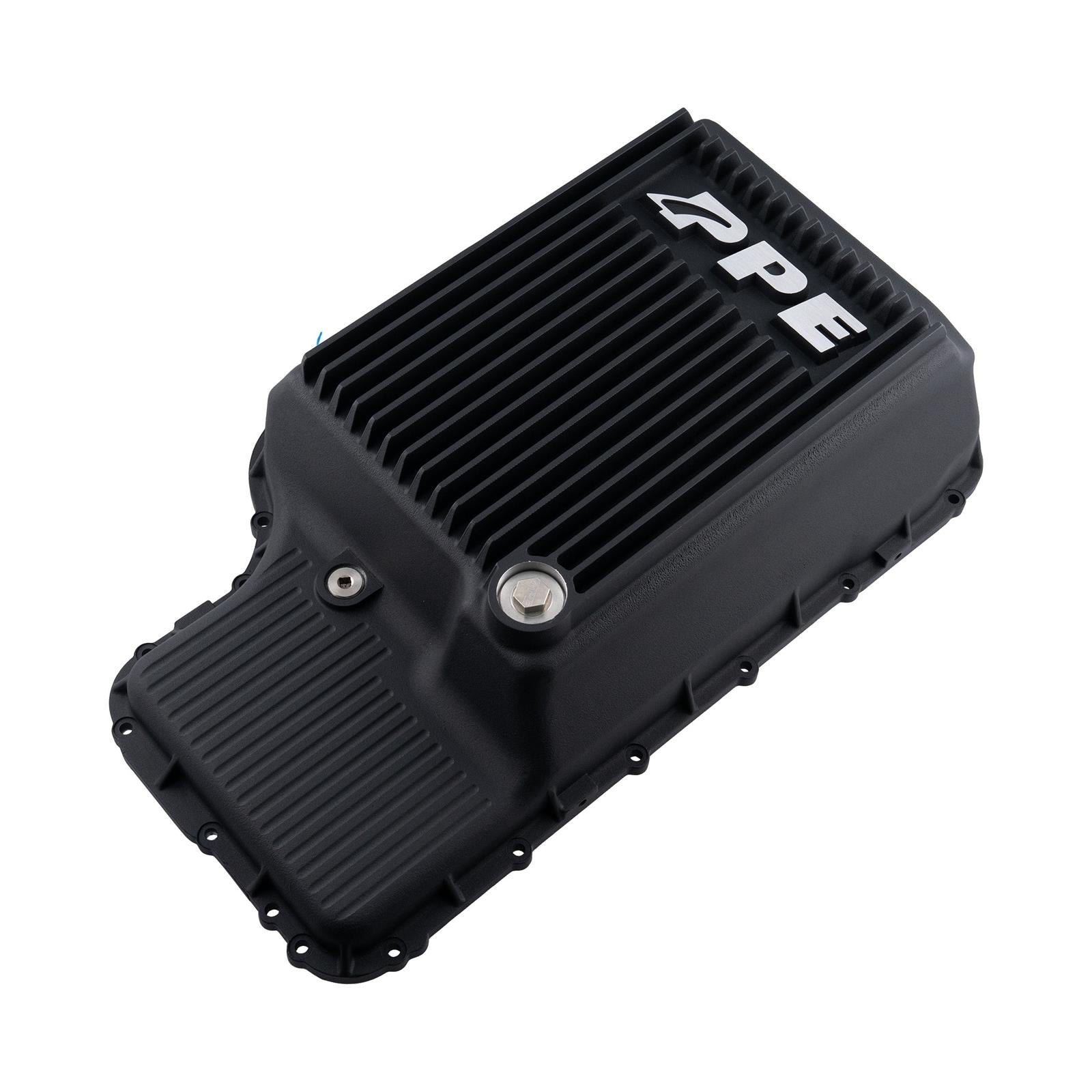

10L1000 Deep Transmission Pan (Black)

Features:

• Fits 2024-2026 Silverado and Sierra 2500HD
• Designed for 6.6L L8T Allison transmission
• Increases fluid capacity by 1.5 quarts
• A356.0-T6 cast aluminum construction
• External cooling fins improve heat dissipation
• Internal baffles reduce fluid sloshing
• Cross-braced design adds structural strength
• Magnetic drain and level check plugs
• Captures metal debris to protect transmission
• Includes fluid level check standpipe
• Compatible with OEM gasket and filter
• Black finish for clean appearance

Keep Your Allison Running Cooler When It Matters Most

If you are putting your truck to work or just want to protect your investment, managing transmission heat should be at the top of your list. The PPE Deep Transmission Pan is built to give your 10L1000 the extra cooling capacity it needs when things start to get demanding. With an added 1.5 quarts of fluid capacity, your transmission has more thermal stability, which helps maintain performance during towing or long drives under load. Additionally, the deep external cooling fins are constantly pulling heat away, helping your fluid stay in a safe operating range without any extra effort. This means less stress on internal components and more confidence every time you get behind the wheel. The black finish gives it a clean, purpose-built look that fits right in on a serious truck. Designed for 2024-2026 Silverado and Sierra 2500HD and 3500HD trucks with the 6.6L L8T and Allison transmission, it is a straightforward upgrade that delivers long-term value.

Engineered Internal And External Design For Maximum Heat Control

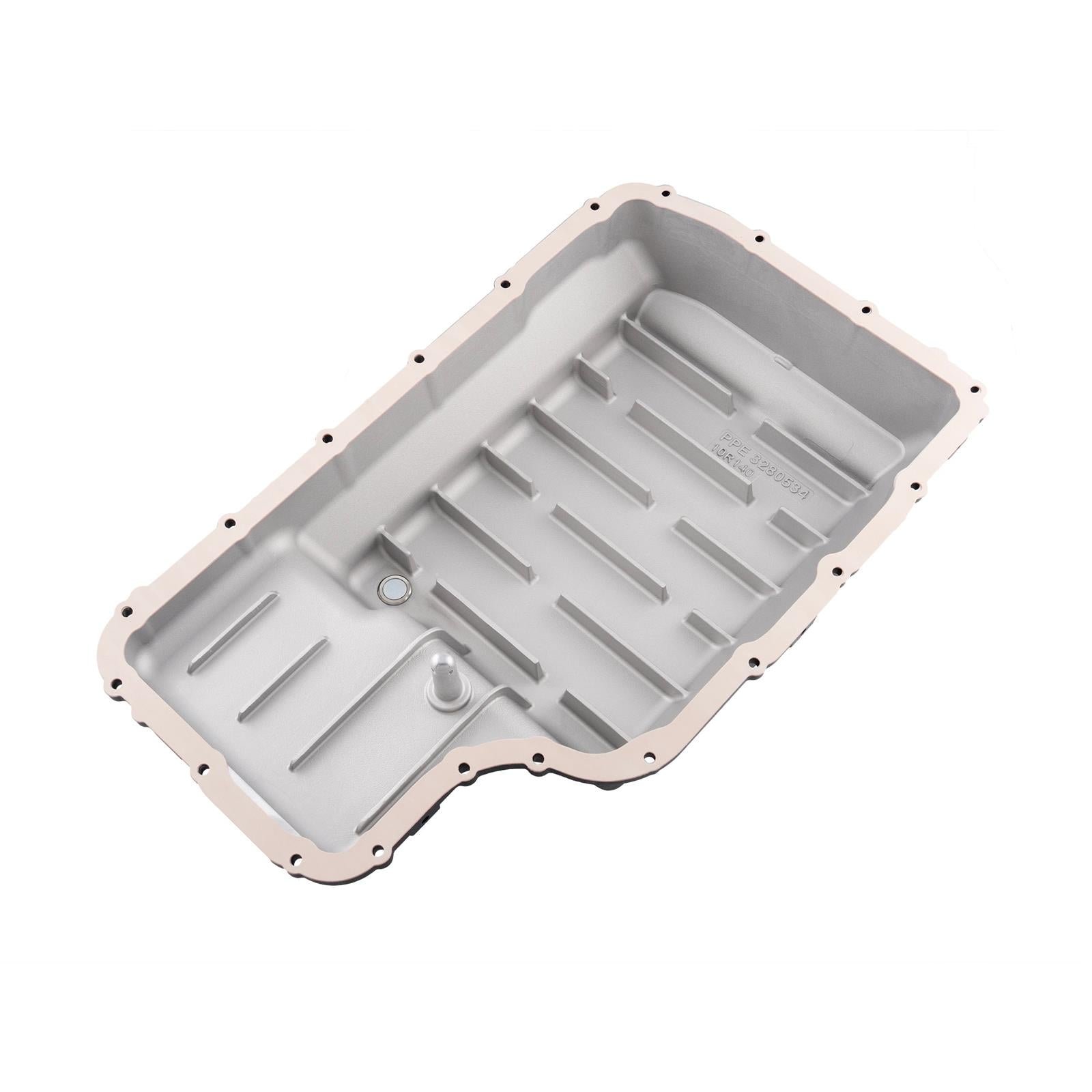

The PPE 128052420 transmission pan is constructed from A356.0-T6 heat-treated cast aluminum, offering both strength and excellent thermal conductivity. This material allows heat to transfer away from the fluid more efficiently than a factory stamped steel pan. Inside the pan, deep internal baffles increase fluid contact with the aluminum surface, improving heat absorption while also reducing fluid sloshing during acceleration or uneven terrain. At the same time, the tall external cooling fins expand surface area and promote airflow, further enhancing heat dissipation. These internal and external elements work together to create a rigid cross-braced structure that improves strength and impact resistance. The included stainless steel service plugs feature high-temperature Neodymium magnets that capture metal particles, helping protect internal components from wear. A built-in standpipe ensures accurate fluid level checks during servicing, making maintenance more precise and consistent. Compatible with OEM gaskets and filters, this design delivers both performance improvements and ease of installation.

Fitment:  2024, 2025, 2026 GM Sierra/Silverado 6.6L L8T Gas Allison

Notes:

• Only fits 10L1000 Allison transmission
• Designed for 2024-2026 L8T gas trucks
• Increased capacity requires additional fluid
• Uses OEM gasket and filter components
• Fluid level must be set using standpipe
• Magnetic plugs require periodic cleaning
• Deeper pan may reduce ground clearance
• Ideal for towing and heavy-duty applications
