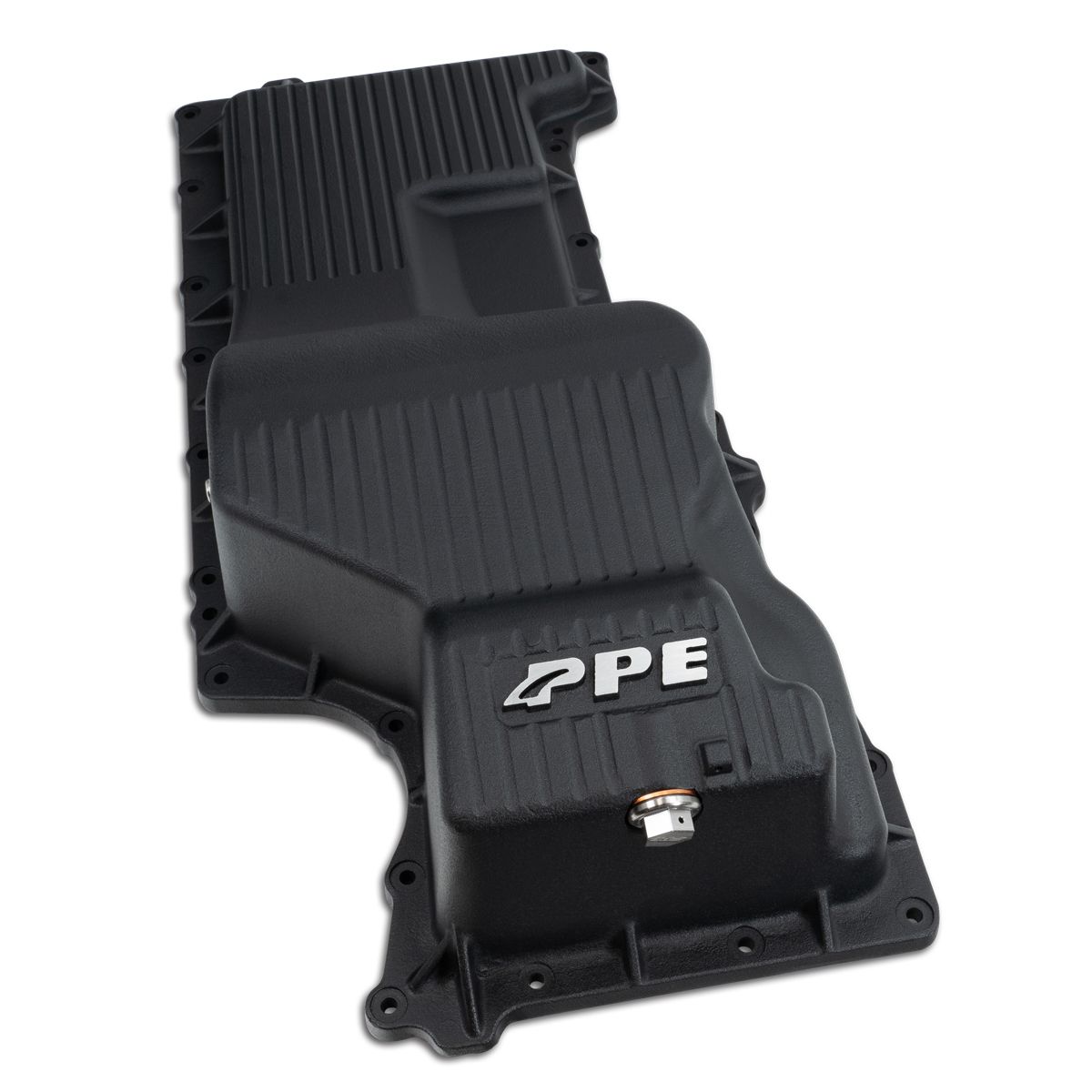

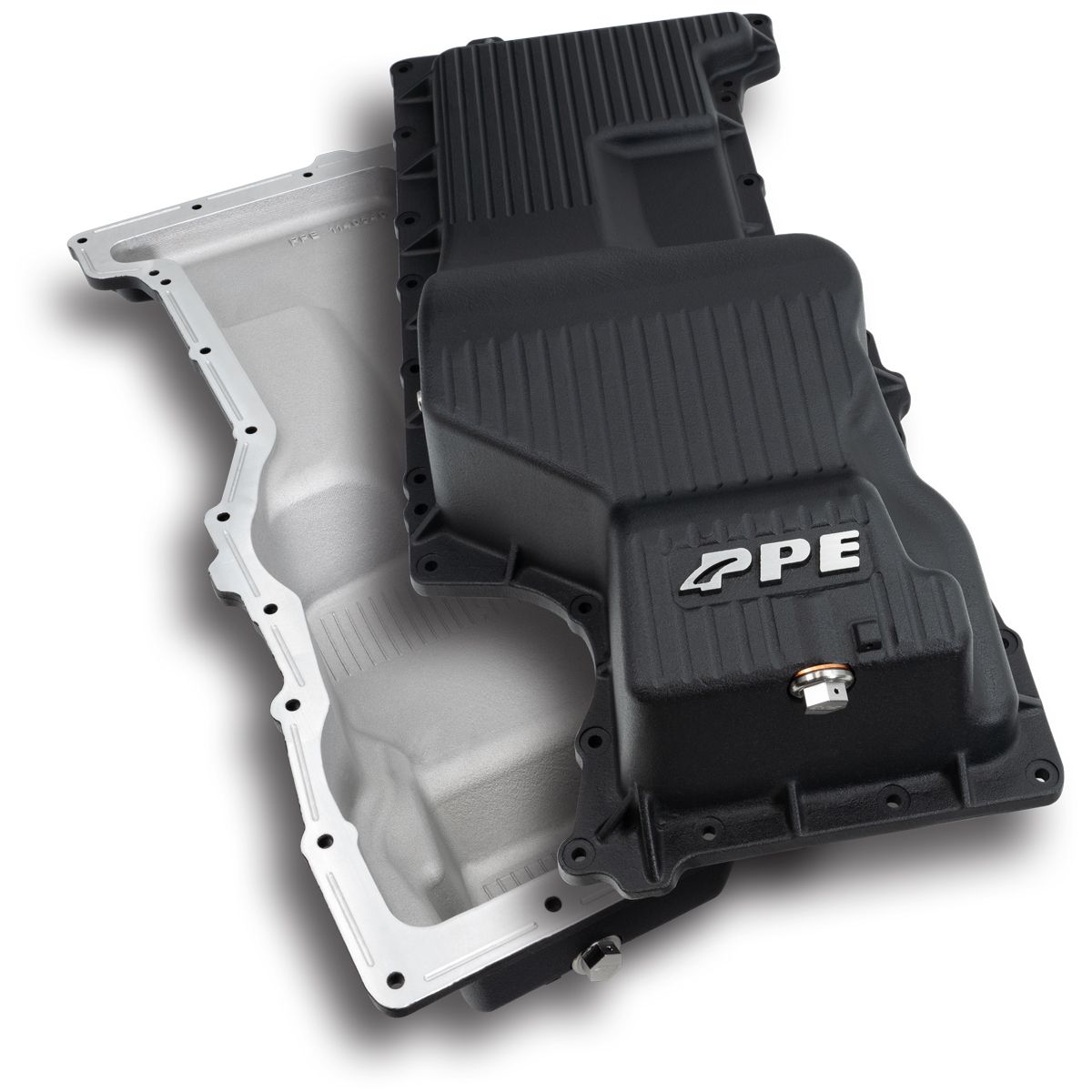

PPE 114054020 Heavy Duty Deep Black Aluminum Oil Pan | 2019-2022 GM Silverado/Sierra 1500 3.0L

Features:

• Increases oil capacity by 2 quarts
• Designed to achieve a complete oil drain
• Gussets provide extra support to flange and increase overall robustness
• Outer machined grooves increase the effective surface area and maximize thermal performance
• CNC machined inner flange grooves promote a complete seal
• High-power Neodymium magnet equipped hardened billet stainless steel drain plug with copper gasket and safety wire provision
• Tapped and plugged 1/8-inch NPT port for optional fluid temperature sensor
• Limited lifetime warranty
• Available in Raw and Black finishes

The factory drain plug port is located below the bottom of the pan and about half a quart of dirty oil remains which immediately contaminates your fresh oil with sludge and ferrous metal. PPE solves that filthy problem with a flat, angled bottom, and a drain plug port engineered below the bottom surface of the pan to ensure a complete drain.

A 1/8-inch NPT port is tapped and plugged into the side if you want to run an optional temperature sensor. We've also included a high-power Neodymium magnet equipped, billet, hardened stainless steel drain plug, This powerful plug pulls ferrous particles out of your oil before they damage your internals.
