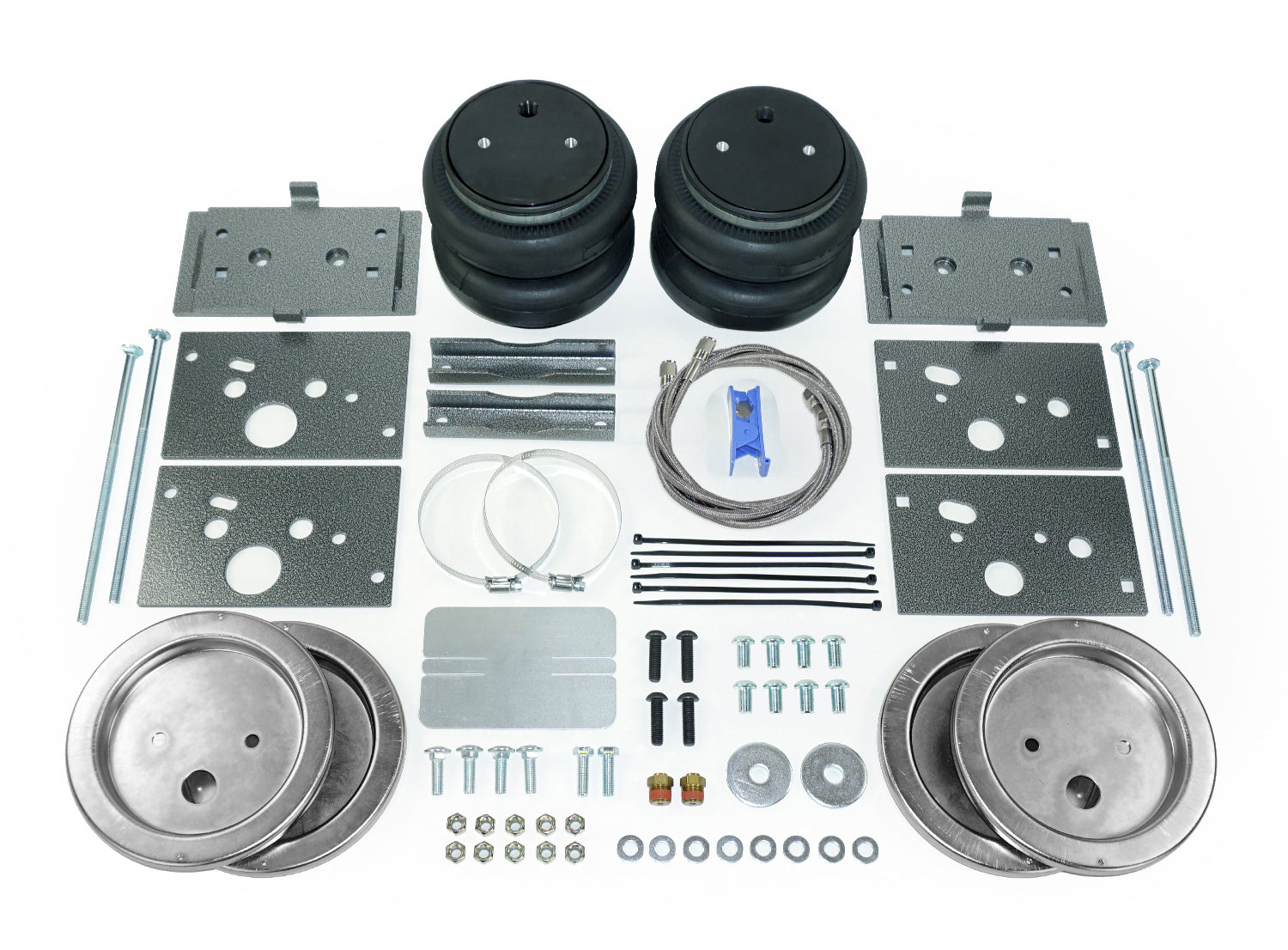

Alpha XD Pro S Air Suspension

Features:

• 7,500 lb load leveling capacity
• Reduces truck sag, sway, and bottoming out

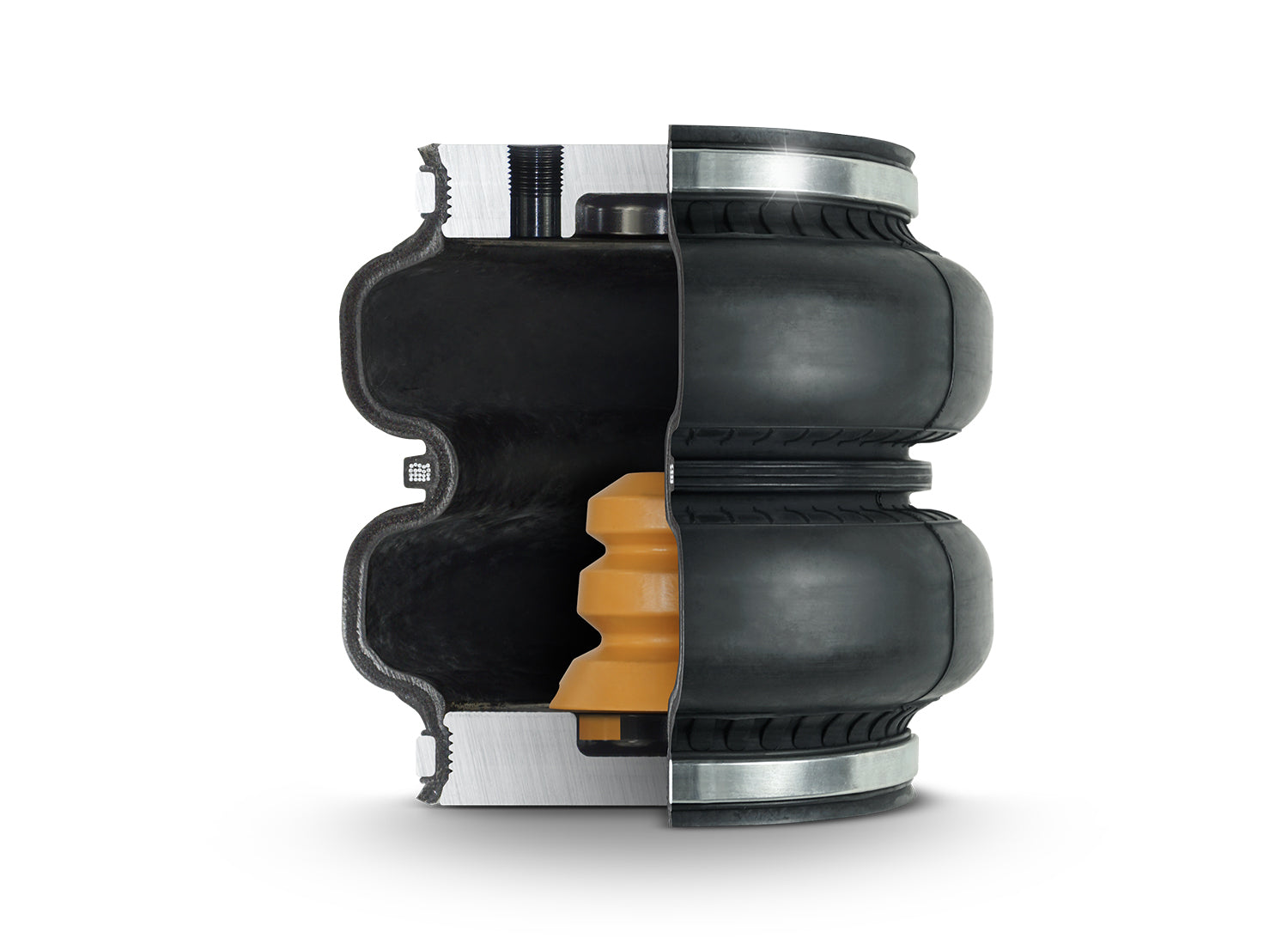

• Internal polyurethane bump stop inside each bag
• Run at 0 psi when unloaded

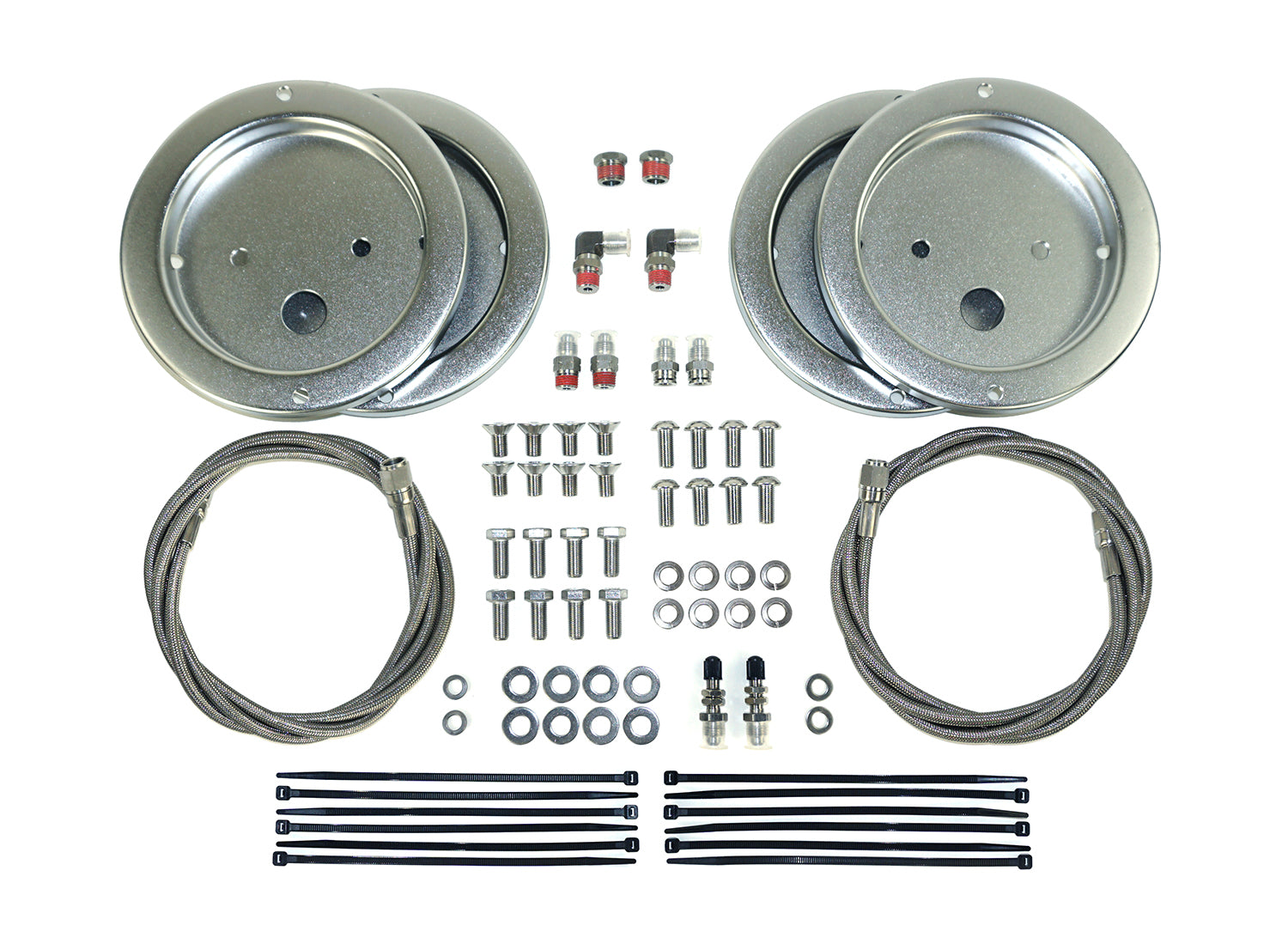

• Stainless steel hardware and roll plates
• 6 ft braided stainless steel air lines
• Stainless steel fittings and Schrader valves
• Built to avoid plastic end cap failures
• Fits factory 5th wheel prep packages
• Complete kit with everything for install

Maximum Load Support With Stainless Hardware That Resists Rust

If your RAM 2500 squats in the rear every time you hook up a heavy trailer, you already know how much it hurts steering, braking, and headlight aim. The Pacbrake Alpha XD Pro S air springs are built to take that sag out of the picture, with up to 7,500 pounds of load leveling capacity to keep the truck sitting level and tracking straight. Pacbrake takes a direct shot at the plastic end caps used by other brands, which it says are more prone to air leaks and cold weather fractures, and positions its own build quality as the better answer. Each bag has a flexible polyurethane bump stop inside, so a hard hit while loaded will not bottom out the air spring and damage it. That same bump stop is what lets you run the bags at 0 psi when you are empty, so the truck rides like it did from the factory on a normal commute. The S in the name means you also get stainless steel throughout the kit, which matters if your truck sees road salt, mud, or years of weather. Everything required for installation comes in the box, so you will not be stopping at the parts counter halfway through the job.

Stainless Steel Components Paired With An Internal Bump Stop Design

The Pacbrake HP10206-X-J Alpha XD Pro S is an air helper spring kit engineered for 2014-2026 RAM 2500 trucks in both 2WD and 4WD configurations. Each of the two air springs includes a flexible polyurethane bump stop inside the bag to prevent bottoming out that could damage the spring, and it allows the bags to be run at 0 psi when the truck is unloaded. The kit is rated for 7,500 pounds of load leveling capacity, and Pacbrake states that owners should never exceed the manufacturer's recommended Gross Vehicle Weight Rating. The S designation covers the stainless steel package, which includes air spring fittings, mounting hardware, Schrader valves, and roll plates, along with 6 foot braided stainless steel air lines. This version suits owners who want an internal bump stop and the comfort of running without air when not towing, while those who want maximum bag travel for off road use, launching boats, or lowering the rear to pick up trailers are pointed to the HP10206-X Alpha XD air bag. The kit fits trucks with the factory 5th wheel prep package, but it will not fit vehicles with the factory optional air suspension or models equipped with MagneRide. Pacbrake also notes it may not fit some later model Power Wagon applications, and that the Alpha XD kits in the X and X-J series are not compatible with its 2, 4, or 6 inch air spring spacers.

Fitment: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 RAM 2500 2WD/4WD

Notes:

• Will not fit vehicles equipped with factory optional air suspension
• Will not fit models equipped with MagneRide
• May not fit some later model Ram 2500 Power Wagon applications, verify before ordering
• Not compatible with Pacbrake 2", 4", or 6" Air Spring Spacers
• Fits models equipped with the factory 5th wheel prep package
• 7,500 lb figure is load leveling capacity, never exceed the manufacturer's recommended GVWR
• Kit includes two air springs, 6 ft braided stainless steel air lines, stainless fittings, hardware, Schrader valves, and roll plates
• For maximum bag travel, Pacbrake points customers to the HP10206-X Alpha XD air bag
• California Proposition 65 warning applies to this product
