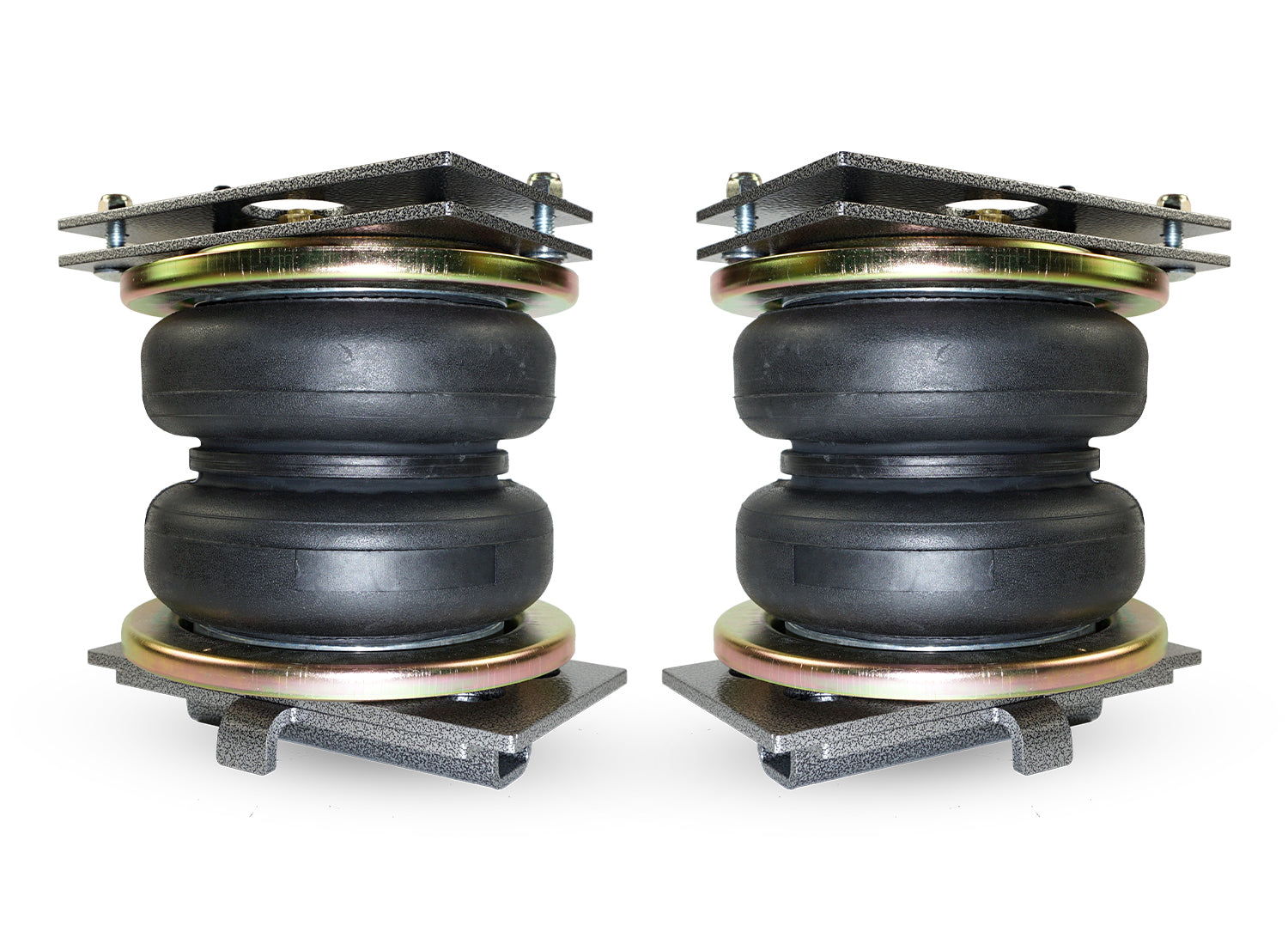

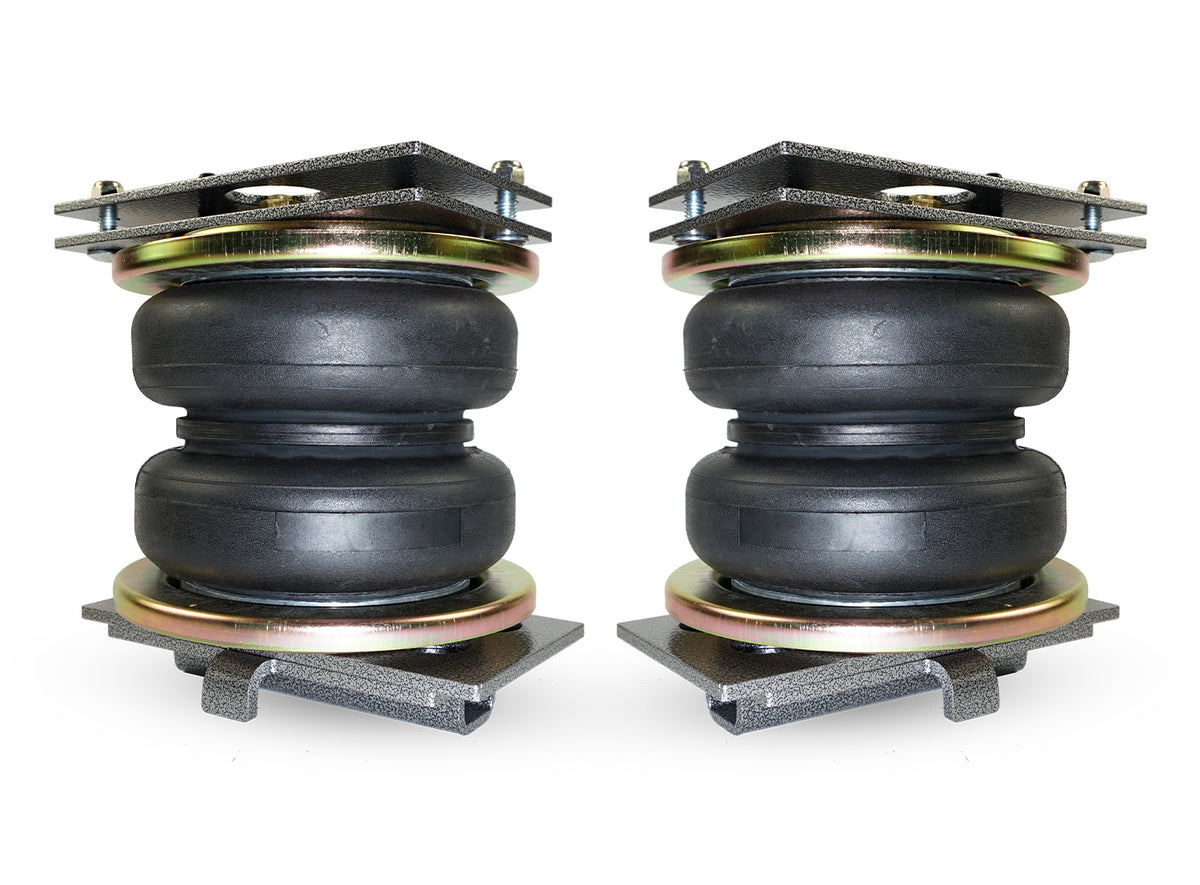

Alpha XD Pro Air Suspension

Features:

• 7,500 lb load leveling capacity
• Reduces truck sag, sway, and bottoming out
• Internal polyurethane jounce bumper inside each bag
• Protects air springs from bottoming out damage
• Run at 0 psi when unloaded
• Factory ride comfort when not towing
• Fits factory 5th wheel prep packages
• Fits 2WD and 4WD RAM 2500 trucks
• Built to avoid plastic end cap failures

Factory Ride Comfort Empty And Full Support When You Tow

If your RAM 2500 squats at the rear every time you hook up a heavy trailer or drop a load in the bed, the Pacbrake Alpha XD Pro air springs are built to fix that. According to Pacbrake, they eliminate sag, sway, and bottoming out with up to 7,500 pounds of load leveling capacity, which keeps the truck sitting level and tracking the way it should under real weight. What sets the Pro version apart is the flexible polyurethane jounce bumper built inside each bag, which stops the air spring from bottoming out and damaging itself if you hit a big bump while loaded. That internal bumper also means you can run the bags at 0 psi when you're not towing, so your truck rides like it did from the factory instead of feeling stiff on your daily commute. Pacbrake also calls out the plastic end caps used on other brands as a source of air leaks and cold weather fractures, and positions its own build quality as the answer to that. The kit fits 2WD and 4WD Ram 2500 trucks from 2014 through 2026, including models with the factory 5th wheel prep package. For a truck that tows part of the week and commutes the rest, this setup gives you support when you need it and a normal ride when you do not.

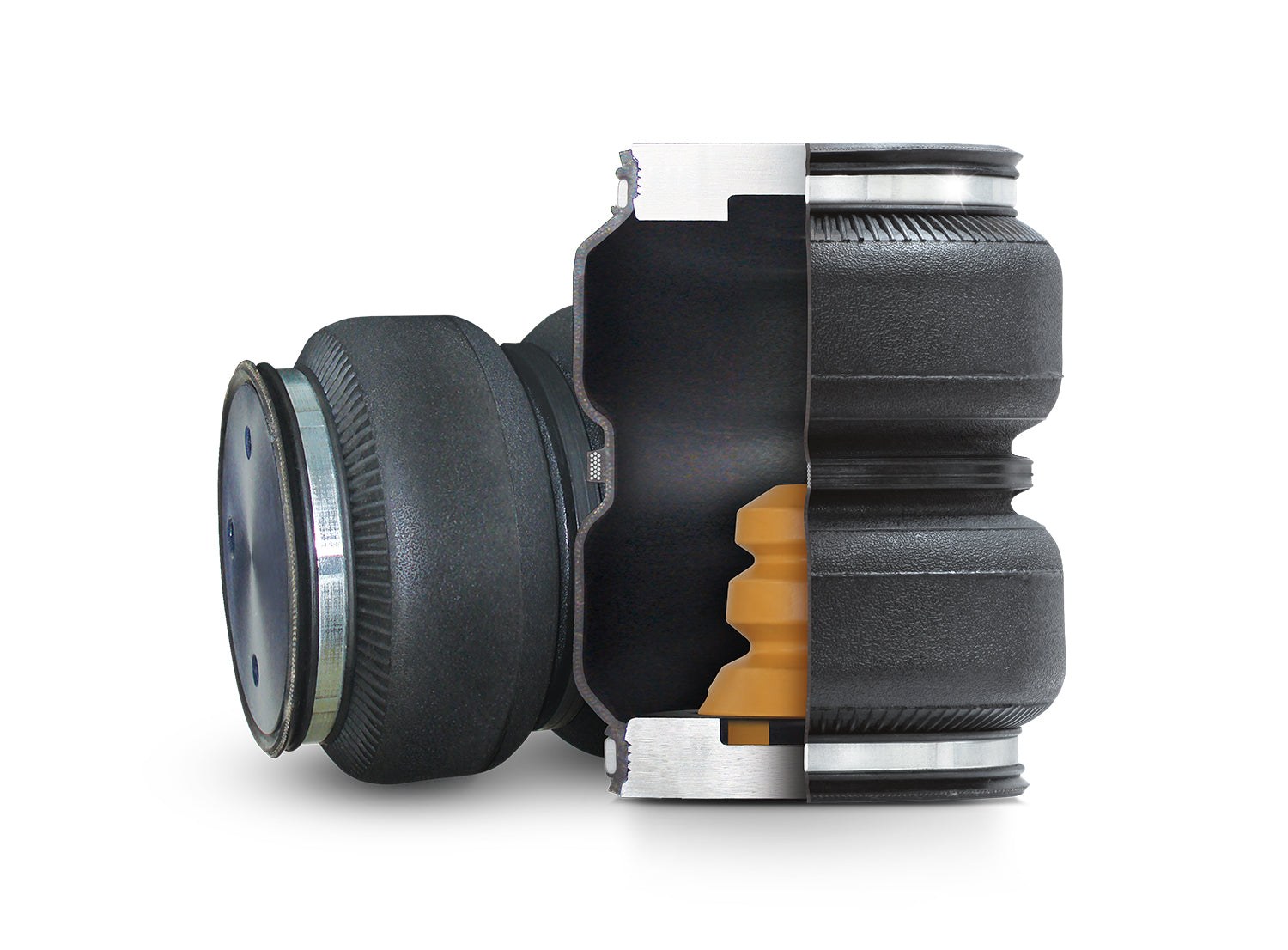

Internal Polyurethane Bumper Design Built To Protect The Air Spring

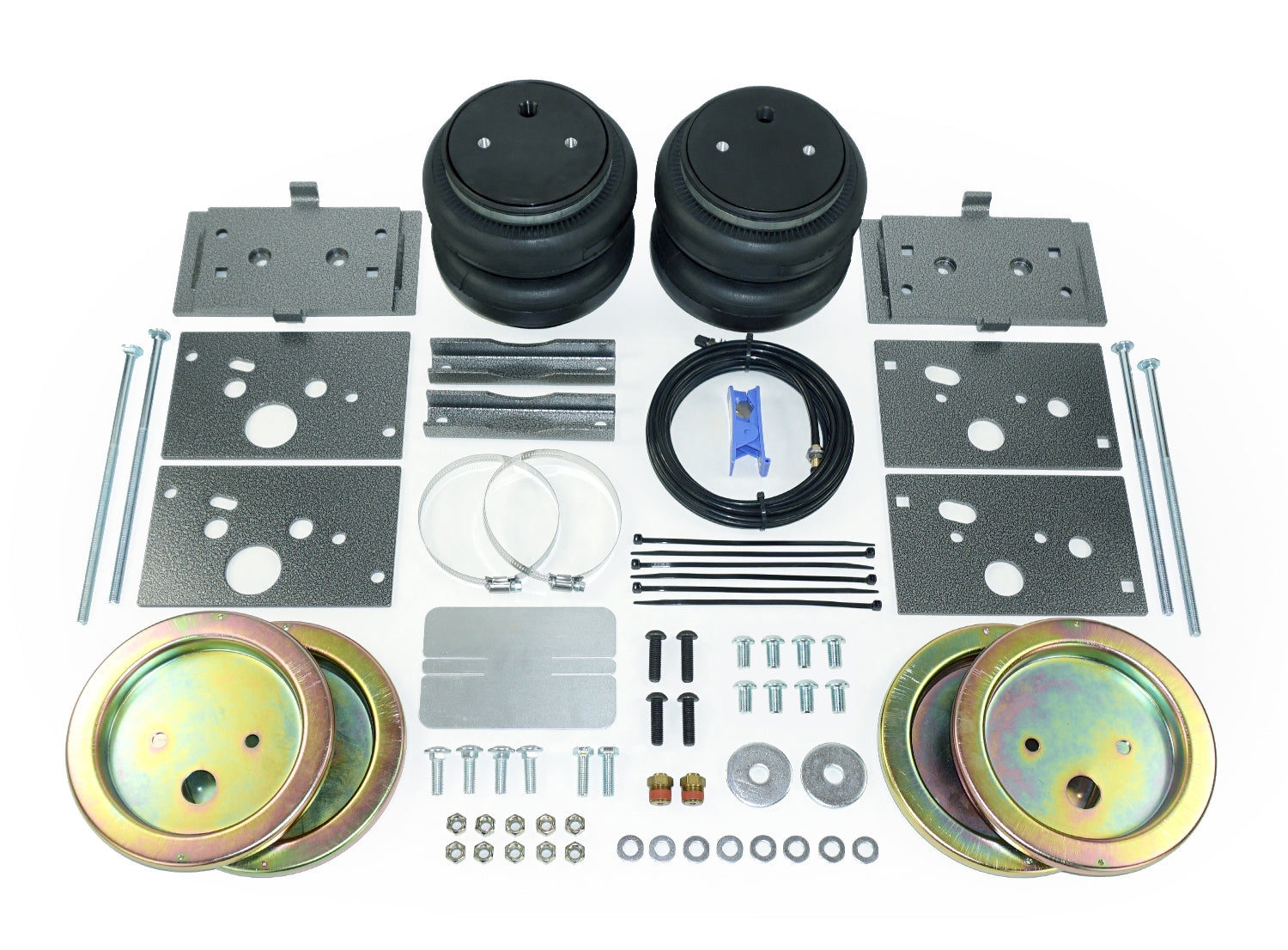

The Pacbrake HP10206-X-J Alpha XD Pro is an air helper spring kit engineered for 2014-2026 RAM 2500 trucks in both 2WD and 4WD configurations. Each bag includes a flexible polyurethane jounce bumper, also called a bump stop, mounted inside the air spring to prevent bottoming out that could damage the bag itself. Because of that internal bumper, the bags can be run at 0 psi when the truck is unloaded, which preserves factory ride comfort without needing to keep the system inflated. The kit is rated for 7,500 pounds of load leveling capacity, and Pacbrake is clear that owners should never exceed the manufacturer's recommended Gross Vehicle Weight Rating. This version is designed for owners who want the added protection of an internal bumper, while those who need maximum bag travel for off road use, launching boats, or lowering the rear to pick up trailers are pointed to the HP10206-X Alpha XD air bag. The kit fits trucks equipped with the factory 5th wheel prep package, but it will not fit vehicles with the factory optional air suspension or models equipped with MagneRide. Pacbrake also notes it may not fit some later model Power Wagon applications, and that the Alpha XD kits in the X and X-J series are not compatible with its 2, 4, or 6 inch air spring spacers.

Fitment: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 RAM 2500 2WD/4WD

Notes:

• Will not fit vehicles equipped with factory optional air suspension
• Will not fit models equipped with MagneRide
• May not fit some later model Ram 2500 Power Wagon applications, verify before ordering
• Not compatible with Pacbrake 2", 4", or 6" Air Spring Spacers
• Fits models equipped with the factory 5th wheel prep package
• 7,500 lb figure is load leveling capacity, never exceed the manufacturer's recommended GVWR
• For maximum bag travel, Pacbrake points customers to the HP10206-X Alpha XD air bag
• California Proposition 65 warning applies to this product
