Alpha HD Pro S Air Suspension

Features:

• 5,000 lb load leveling capacity
• Reduces truck sag, sway, and bottoming out
• One inch thick corrosion resistant end caps
• 20 support wires for added strength
• Internal polyurethane jounce bumper in each bag
• Run at 0 psi when unloaded
• Stainless steel hardware and roll plates
• 6 ft braided stainless steel air lines
• Fits factory 5th wheel prep packages
• Complete kit with everything for install

Stainless Steel Support For A Truck That Tows Hard And Rides Soft

A Ram 2500 that sags in the rear under a loaded trailer tongue or a full bed is not just uncomfortable, it also changes how the truck steers and stops. The Pacbrake Alpha HD Pro S air springs are built to take that squat out of the equation, with up to 5,000 pounds of load leveling capacity to keep your truck sitting level and tracking straight. Pacbrake says this is the only brand with end caps that are one inch thick and corrosion resistant, backed by 20 support wires for strength, which matters if your truck sees road salt, rain, or years of hard use. Each bag also has a flexible polyurethane jounce bumper built inside, so a big hit while loaded will not bottom out and damage the air spring. That same bumper lets you run the bags at 0 psi when you are empty, so the truck rides the way it did from the factory instead of feeling stiff on a normal commute. The S in the name stands for the stainless steel upgrade, and the kit includes stainless fittings, hardware, Schrader valves, roll plates, and 6 foot braided stainless air lines. Everything you need for installation is in the box, so you are not stopping at the parts counter halfway through the job.

Heavy Duty End Caps And Stainless Hardware Built Into One Complete Kit

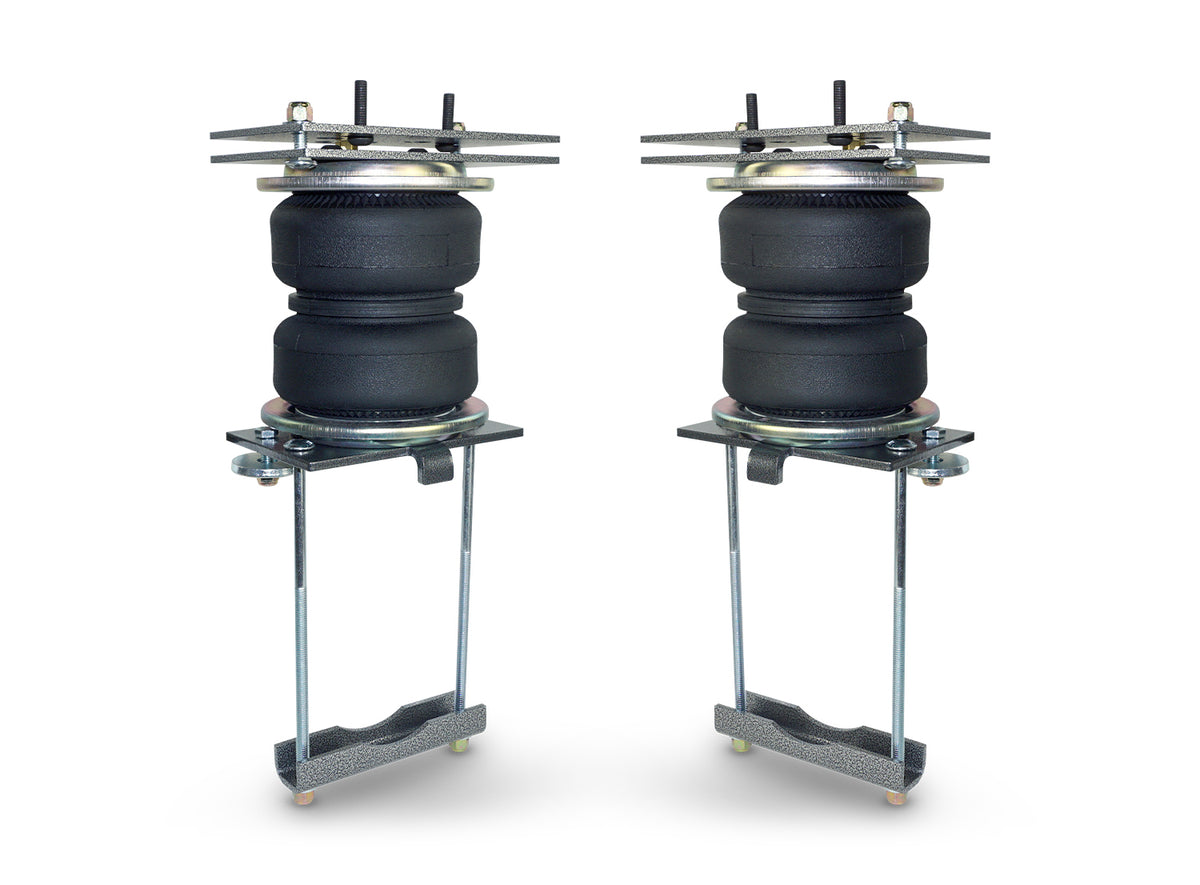

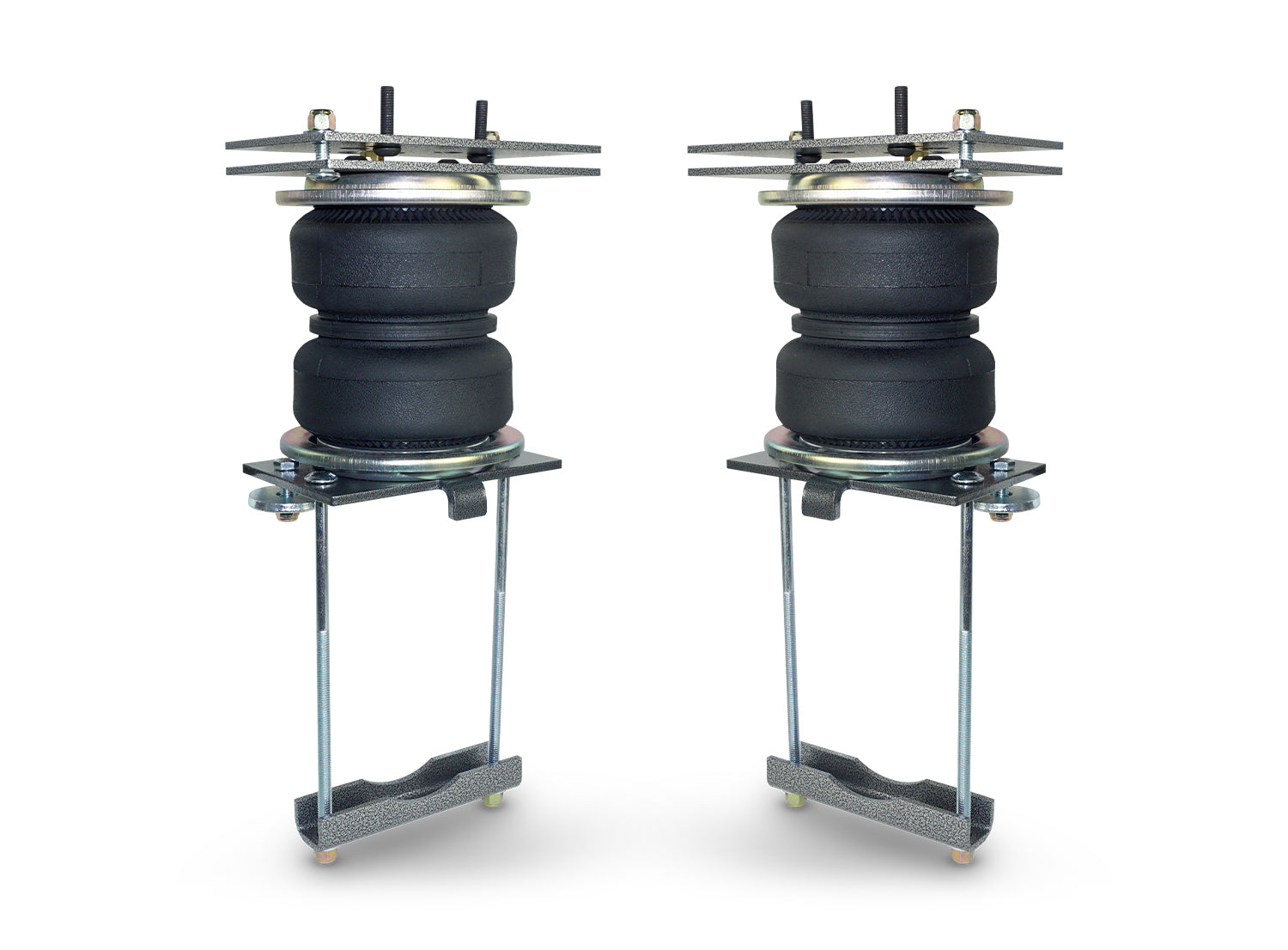

The Pacbrake HP10206-J-S Alpha HD Pro S is an air helper spring kit engineered for 2014-2026 Ram 2500 trucks in both 2WD and 4WD configurations. The two air springs use end caps that Pacbrake describes as one inch thick and corrosion resistant, reinforced with 20 support wires for strength and durability. A flexible polyurethane jounce bumper, also known as a bump stop, sits inside each bag to prevent bottoming out that could damage the air spring, and it allows the bags to be run at 0 psi when the truck is unloaded. The kit is rated for 5,000 pounds of load leveling capacity, and Pacbrake states that owners should never exceed the manufacturer's recommended Gross Vehicle Weight Rating. Each kit includes two air springs, 6 foot braided stainless steel air lines, stainless steel air spring fittings, stainless steel mounting hardware, stainless steel Schrader valves, stainless steel roll plates, and everything required for installation. This version suits owners who want an internal bumper and the ability to run without air when not towing, while those who need maximum bag travel for off road driving, launching boats, or lowering the rear to hook up trailers are pointed to the HP10206 Alpha HD air bag. The kit fits trucks with the factory 5th wheel prep package, but it will not fit vehicles with the factory optional air suspension or models equipped with MagneRide.

Fitment: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 RAM 2500 2WD/4WD

Notes:

• Will not fit vehicles equipped with factory optional air suspension
• Will not fit models equipped with MagneRide
• May require a 2" Air Spring Spacer (HP10152) on some later model Ram 2500 Power Wagon applications
• Fits models equipped with the factory 5th wheel prep package
• 5,000 lb figure is load leveling capacity, never exceed the manufacturer's recommended GVWR

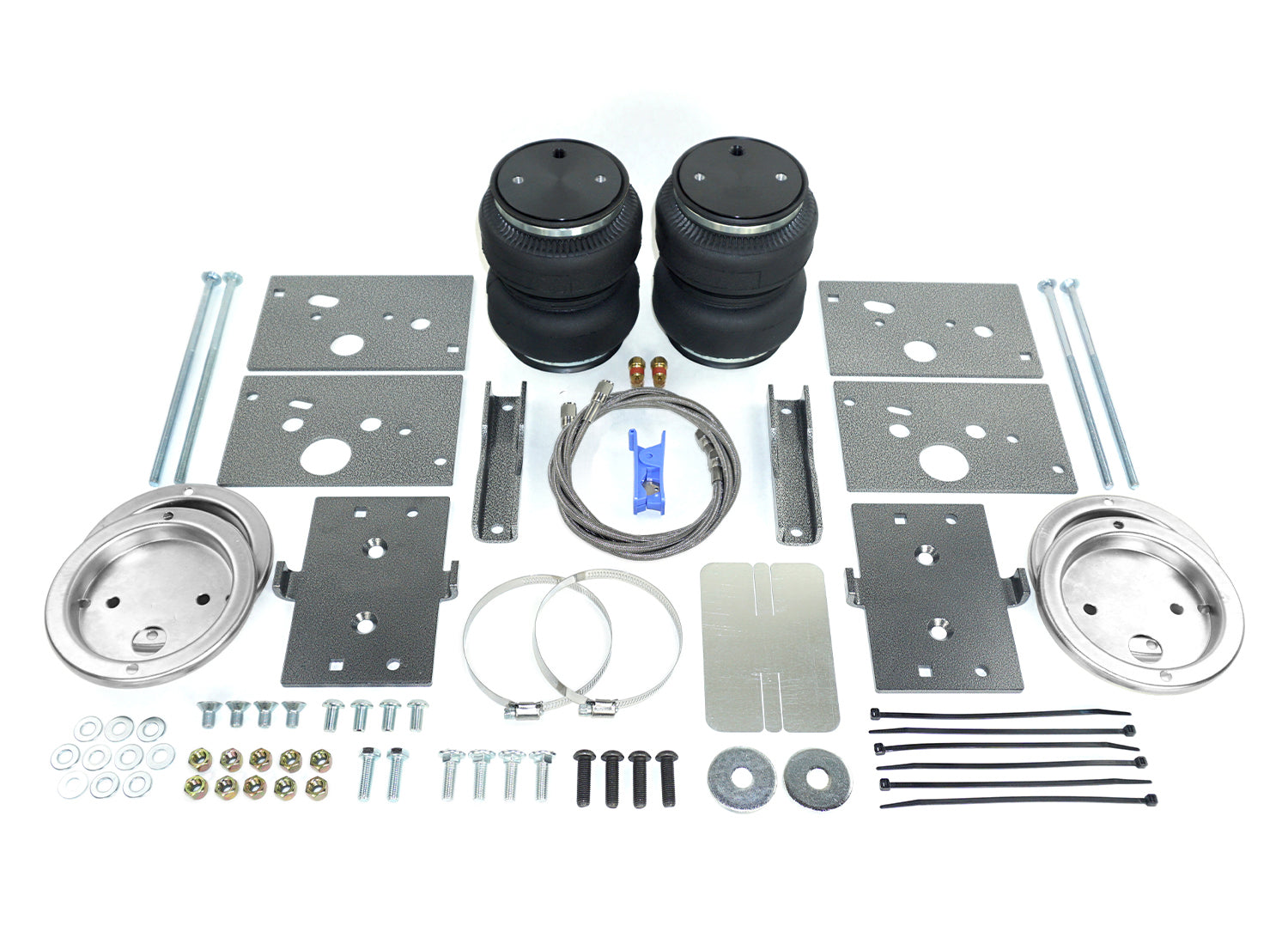

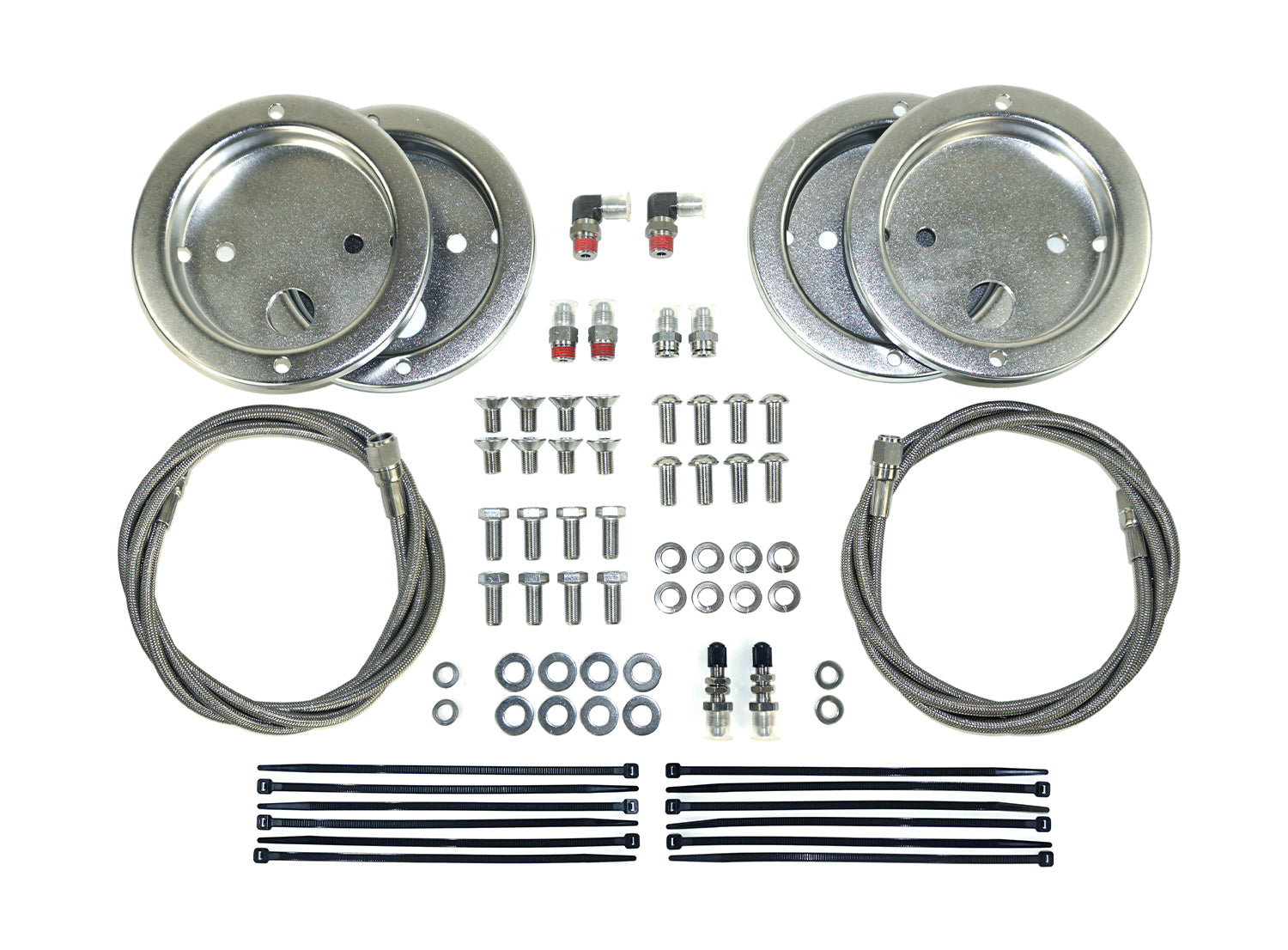

• Kit includes two air springs, 6 ft braided stainless steel air lines, stainless fittings, hardware, Schrader valves, and roll plates
• For maximum bag travel, Pacbrake points customers to the HP10206 Alpha HD air bag
• California Proposition 65 warning applies to this product
