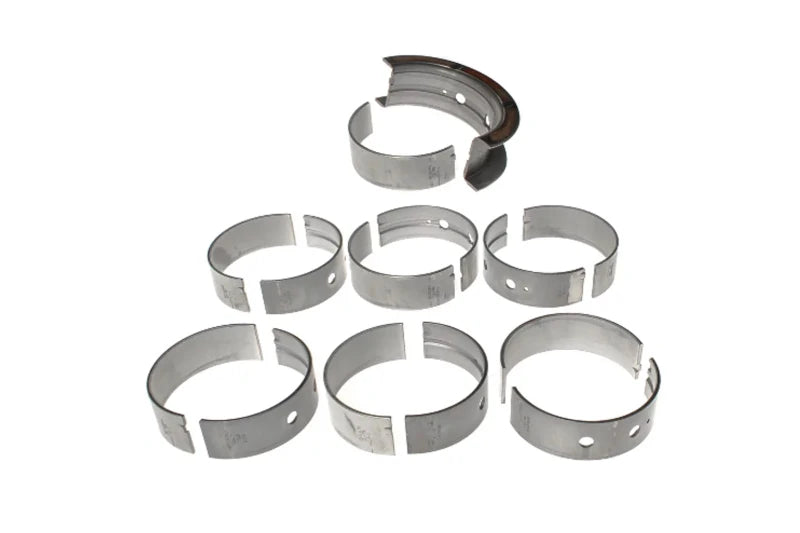

P-Series Main Bearing Replacement Set

Features:

• Standard size main bearing replacements
• Clevite P-Series
• Grooved to maximize oil flow
• High-crush for maximum retention
• Reduced overlay thickness
• Straightforward installation

High-Quality Standard Main Beating Replacement Set

The MAHLE P-Series Main Bearing Set is a high-quality replacement for the existing spun bearings in your 1989-2017 Dodge 5.9L/6.7L Cummins. The Clevite P-Series are the longest-running series of Clevite high-performance bearings with the main bearings fully-grooved to maximize oil flow for lubrication. These bearings also come equipped with a high crush for superior retention, and a reduced overlay thickness to avoid overlay fatigue which is also known as hen tracking. Designed for narrow bearing contact patterns and to deliver improved oiling to the main bearings, these bearings offer a vast improvement over the stock RAM bearings.

Improved Steering & Ride Quality

The MAHLE P-Series Main Bearing Replacement Set was constructed using only premium materials to improve the overall driving performance of your Dodge 5.9L/6.7L Cummins. This bearing set helps reduce friction while the wheel spins, giving your vehicle improved ride quality in every situation without compromise. Additionally, the increase in oil flow will help keep your other components well lubricated, keeping your truck up and running for just about any job you have in mind.

Vehicle Fitment: 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 Dodge RAM 2500/3500 5.9L/6.7L Cummins

Specifications:

• Housing Bore (Min-Max): 3.464" to 3.465"
• Max Length: 1.47"
• Vert. Oil Clearance (Min-Max): 0.002" to 0.005"
• Shaft Diameter (Min-Max): 82.987mm to 83.012mm
• Wall Thickness (Max): 0.097"
