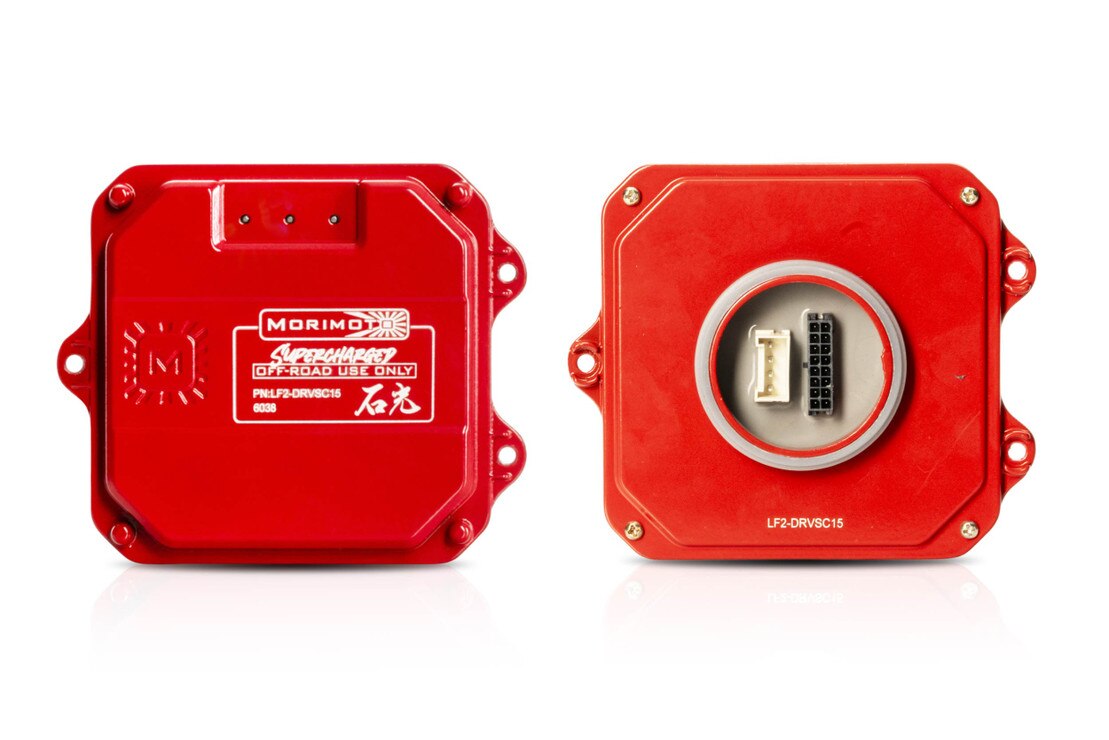

XB EVO Supercharged Drivers (Pair)

Features:

• Boosts light output by 30-50 percent
• Increases both low and high beams
• 1,500mA power rating for increased output
• Direct replacement for standard LED drivers
• Bolt-on installation takes only minutes
• Maintains Morimoto headlight reliability and warranty

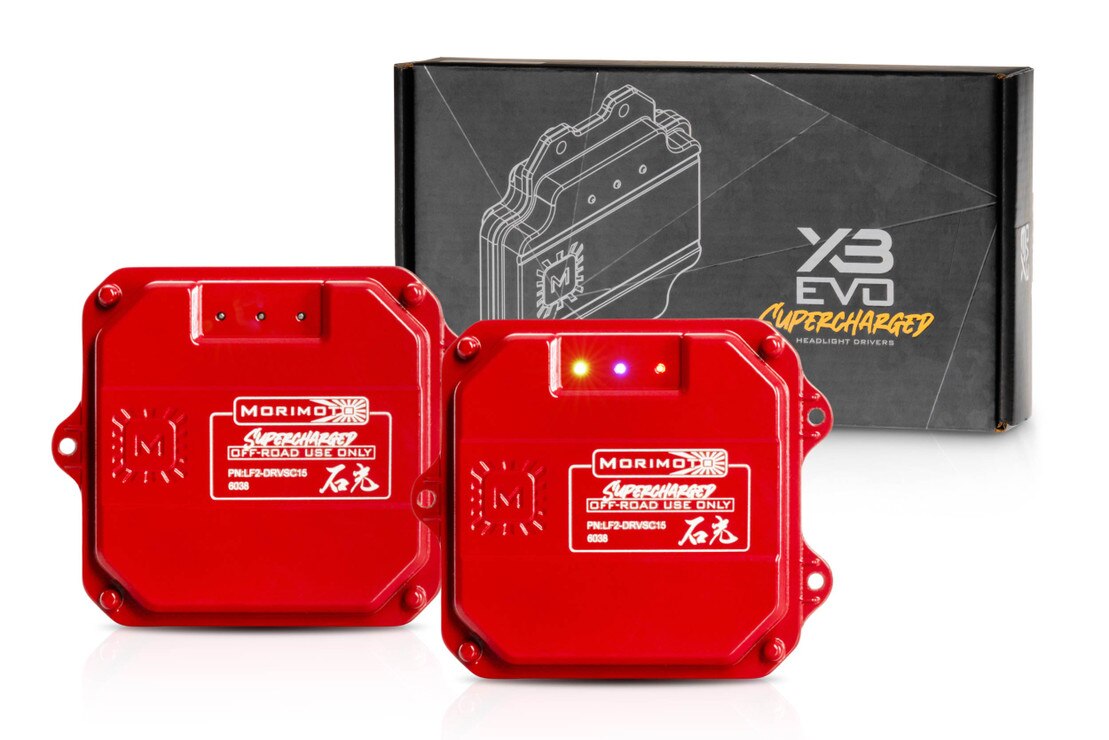

• Includes two Supercharged LED drivers
• Includes mounting screws and grease packet
• Compatible with select Morimoto Evo headlights
• Adds Hybrid headlight welcome sequence
• Designed specifically for off-road use
• Not legal for public-road use

Unlock The Full Potential Of Your XB Evo Headlights

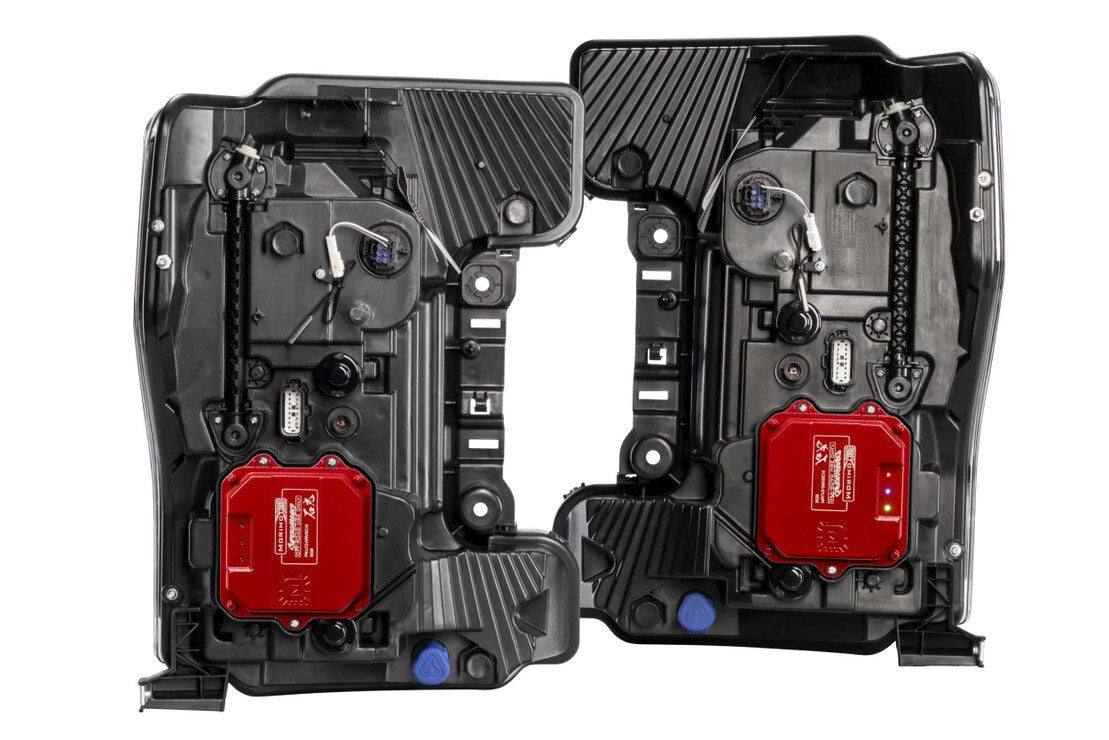

Your Morimoto XB Evo headlights already pack serious lighting performance, but there is even more waiting behind those projectors. The Morimoto LF2-DRVSC15 XB Evo Supercharged Drivers give your compatible 2017-2019 Ford F250 or F350 Super Duty headlights a substantial increase in intensity for situations where maximum off road visibility matters. By replacing the standard drivers, these upgraded units boost both low and high beam output by approximately 30 to 50 percent. That extra intensity can make a noticeable difference when navigating dark trails, remote worksites, open desert, or other areas where factory compliant output is no longer the priority. Installation is refreshingly straightforward because the drivers bolt directly onto the back of the compatible headlight housings and use the existing multi pin connection. What's more, the upgrade is designed to deliver the additional power without sacrificing the reliability or warranty of your Morimoto headlights. For XB Evo Hybrid owners, the drivers also activate the welcome sequence within the projectors and DRL optics, adding another layer of visual personality every time the truck comes to life. Since the increased intensity exceeds compliant lighting limits, these drivers are intended strictly for off road use and should not be operated on public roads in the USA or Canada.

More Current Behind Every Beam

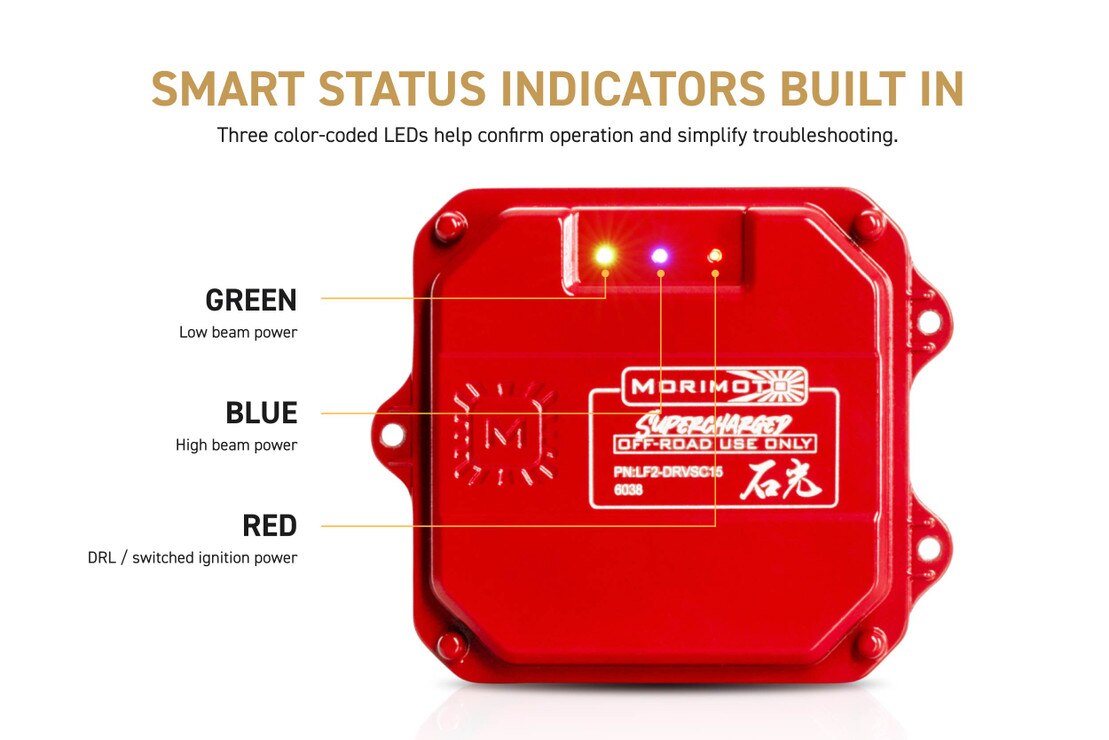

The LF2-DRVSC15 Supercharged Drivers operate at a 1,500mA power rating to take greater advantage of the capabilities built into Morimoto's XB Evo projector systems. Standard drivers intentionally limit LED power so compatible headlights can remain within applicable on road intensity requirements, while these upgraded drivers allow the projectors to produce approximately 30 to 50 percent more output. The increased power applies to both low and high beam operation, giving the lighting system greater intensity across the modes that matter most after the pavement ends. Compatibility is specific to Morimoto LF2-503, LF2-503Y, and LF2-503R headlight assemblies, including supported XB Evo, XRGB Evo, and XB Evo Hybrid configurations. Each driver connects through the headlight's multi pin connector and replaces the original unit at the rear of the housing, keeping the installation clean and relatively simple. A pair of Supercharged LED drivers is included along with six screws and a packet of grease, providing the essential hardware needed for installation. Red, green, and blue status indicators correspond with switched ignition power, low beam power, and high beam power, making system operation easier to identify during setup or troubleshooting. Once installed, the headlights produce noncompliant peak intensity, so returning them to compliant output requires reinstalling the original standard drivers.

Fitment: 2017, 2018, 2019 Ford F250/F350 Super Duty 4WD

Notes:

• For off-road use only in USA and Canada
• Installation creates non-compliant peak beam intensity
• Compatible only with LF2-503, LF2-503Y, and LF2-503R
• Fits compatible XB Evo, XRGB Evo, and XB Evo Hybrid headlights
• Standard drivers must be reinstalled for compliant output
• Designed as a direct replacement for factory Morimoto drivers
• Boosts both low and high beam intensity
• Output increases approximately 30 to 50 percent
• Installation does not affect Morimoto headlight warranty
• XB Evo Hybrid models gain the welcome sequence
• Package includes two drivers, screws, and grease

Install Instructions
