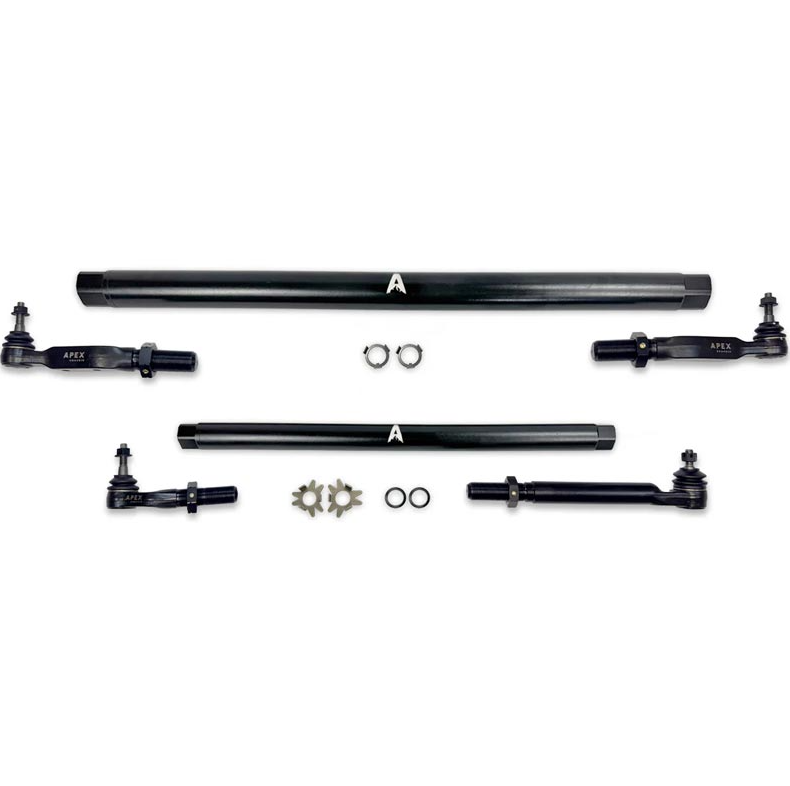

Heavy Duty ProLock DOM Steel Tie Rod & Drag Link Assembly

Features:

• Vehicle Fitment: 2014-2024 Ram 2500/3500
• Steering Upgrade: Complete Tie Rod And Drag Link Assembly
• Construction: Heavy-Walled DOM Steel Tubing
• Housing Material: SAE 1045 Forged Steel
• Ball Stud Material: SAE 4140 Chromoly Steel
• Exclusive Design: Apex ProLock Connect System
• Locking System: Pre-Bent Ninja Washers
• Serviceability: Greaseable And Pre-Greased Components
• Bushing Design: High-Articulation Spherical Bushing
• Hardware Included: Grade 8 Class 10.9 Fasteners
• Lift Compatibility: Up To 6-Inch Lifts
• Performance Benefit: Helps Eliminate Death Wobble

Put An End To Loose Steering And Drive With Confidence

Anyone who has spent time behind the wheel of a hard-working Ram knows how frustrating vague steering can become, especially when larger tires, suspension modifications, or years of use start exposing the limitations of factory components. The Apex KIT385-STL Heavy Duty ProLock Tie Rod and Drag Link Assembly was built to address those weaknesses with a stronger, more robust steering solution designed specifically for demanding truck owners. Oversized tie rod and drag link ends work together with heavy-duty DOM steel construction to help tighten steering feel and improve overall control. Furthermore, this complete replacement assembly is engineered to withstand the punishment that comes from towing heavy trailers, navigating rough job sites, and putting down thousands of highway miles. Apex also incorporates several exclusive design features that help keep adjustments secure and steering components properly aligned long after installation. The result is a front-end upgrade that inspires confidence every time you turn the wheel. For owners looking to strengthen one of the most important systems on their truck, this kit delivers durability where it matters most.

Designed Around Strength Precision And Long Term Reliability

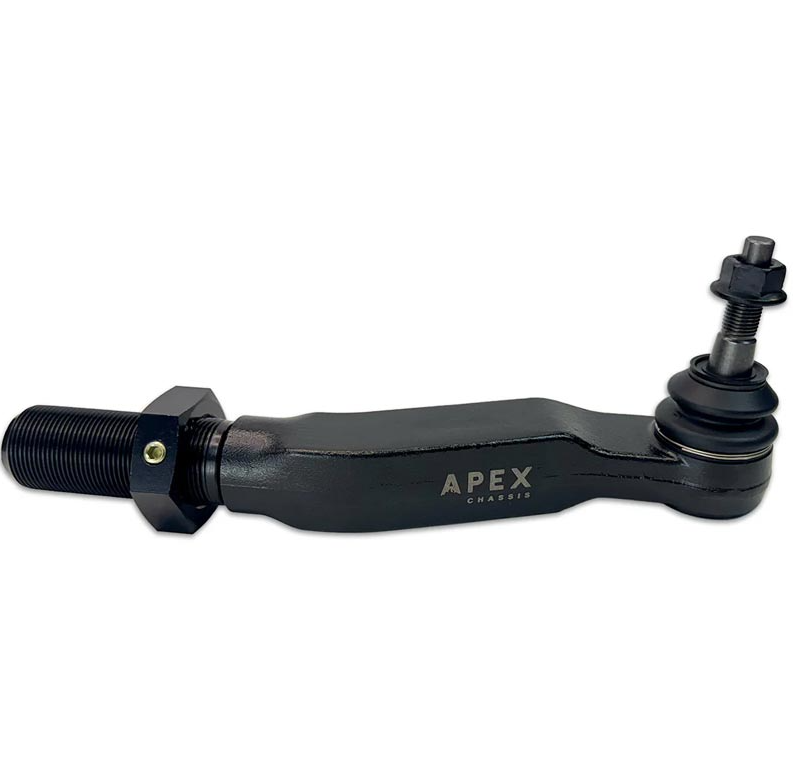

A closer look at the engineering behind the KIT385-STL reveals why it stands apart from conventional steering upgrades. The assembly utilizes SAE 1045 forged steel housings and SAE 4140 hot forged chromoly ball studs, creating exceptional strength in critical load-bearing areas that experience constant stress. Additionally, Apex machines the housings to precise tolerances and incorporates rugged metal-to-metal bearing designs that are built for long service life. Heavy-walled DOM steel tubing forms the backbone of the tie rod and drag link assembly, while Grade 8 Class 10.9 hardware provides the clamping force necessary for demanding applications. Serviceability is equally important, which is why the system includes greaseable and pre-greased components, pre-threaded zerk housings, and specialized grease grooves that help distribute lubrication more effectively. The exclusive ProLock Link Connect System and Ninja Washer technology work together to prevent unwanted movement after adjustments have been made, helping maintain proper alignment settings over time. Combined with a high-articulation spherical bushing and compatibility with lifted applications up to six inches, this steering system is engineered to provide dependable performance for 2014-2024 Ram 2500 and 3500 trucks.

Fitment: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 RAM 2500/3500 6.7L Cummins

Notes:

• Vehicle Fitment: 2014-2024 Ram 2500/3500 4WD
• Engine Application: Designed For 6.7L Cummins Models
• Lift Note: Compatible With Up To 6-Inch Lifts
• Stabilizer Note: Includes Apex TR203 Damper Bracket
• Compatibility Note: Not Rough Country Dual Stabilizer Compatible
• Dual Stabilizer Note: Bracket Modifications May Be Required
• Installation Note: Components Come Pre-Greased
• Service Note: Greaseable For Long-Term Maintenance
• Adjustment Note: Minimum Engagement Mark Included
• Design Note: Replaces Weak Factory Adjusting Sleeves
• Hardware Note: Grade 8 Class 10.9 Hardware Included
• Build Note: Designed For Heavy-Duty Steering Use
