SKU: IVDK63165R

ICON K63165R Stage 5 Coilover Conversion System with Radius Arms - for 2.5-3" Lift - (Package) | 2023-2024 Ford F250/F350 Powerstroke 4WD

4 in stock and ready for shipping
Confirmed fitment below
YEARS
2023-2024
MAKE / MODEL
Ford / Super Duty
SERIES
F250/F350
ENGINE
6.7L Powerstroke
Sale price
$7,590.01
Regular price
$8,929.43
SAVE $1,339.42
or
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Free Shipping
ORDERS $70+
Easy Returns
HASSLE-FREE
Earn Rewards
ALLIGATOR POINTS
Not sure this fits your build?
Our diesel experts know these trucks. Call or chat before you buy.
1-208-719-7400

PRODUCT DETAIL

Key Features & Description

Features:

  • Ride height 2.5-3" of lift adjustable coilovers
  • Fits 2023-2024 Ford F250/F350 Powerstroke 4WD
  • Front secondary shocks for increased damping
  • Fabricated, fully boxed radius arm system
  • Sealed pivot bushings reduce road feedback
  • Arm profile clears 37-inch tall tires
  • CDC valves with 10 compression settings
  • Bolt-in design fits OE coil bucket location
  • Shocks are fully rebuildable and revalvable
  • Adjustable track bar included
  • Dual steering stabilizer kit included
  • Less body roll, better on and off-road ride
  • Remote reservoir front, piggyback rear shocks

Go All In On The Front End With Coilovers, Second Shocks, And Radius Arms

If you are going to lift a Super Duty, it makes sense to do the whole front end properly. The ICON K63165R Stage 5 system does that in one package. Adjustable coilovers lift the front 2.5 to 3 inches, and you set the ride height yourself. A secondary shock at each front corner adds damping on top of the coilovers. CDC valves give you ten compression settings, from soft to hard, so you can tune the ride from the outside. The radius arms are fabricated and fully boxed, and their sealed pivot bushing minimizes road feedback. ICON says the arm profile is optimized for tire clearance at full steering lock, so a 37 inch tall tire clears it. ICON says you also get less body roll and better on and off road ride dynamics, whether you are towing, working, or heading off road. For a 2023 or 2024 Super Duty that has to do all of it, this is the most complete way to set up the front end.

Everything In The Stage 5 Box From Coilovers To Radius Arms Listed Out

The ICON K63165R is a Stage 5 coilover conversion system with radius arms for 2023-2024 Ford F250 and F350 4WD trucks with the Powerstroke. The front coilovers are ICON 2.5 Series CDCV remote reservoir units with adjustable ride height. They are based on ICON's 2.5 VS Series shock line, so ICON engineered coil springs, FK rod end bearings, and vehicle specific valving come standard. Stage 5 adds 2.5 Aluminum Series CDCV remote reservoir secondary shocks at the front, and a 7.5 inch resi doubler mount kit is part of the system. The rear shocks are 2.5 Aluminum Series CDCV piggyback reservoir shocks, compatible with 0 to 3 inches of rear lift over stock. The package also includes an adjustable track bar and a dual steering stabilizer kit with two ICON 2.0 Aluminum Series stabilizers. The radius arm system has a fabricated, fully boxed design with a sealed pivot bushing for a long life and quiet operation. Trucks with the Tremor package have a front lift of 1.5 inches over stock, and the kit is not compatible with OnBoard Scales or F-350 Cab and Chassis models.

Fitment: 2023, 2024 Ford F250/F350 Super Duty Powerstroke 4WD w/ 2.5-3" Front Lift

Notes:

  • Fits 4WD models only
  • Trucks equipped with the Tremor package have a front lift height of 1.5" over stock
  • Not compatible with models equipped with OnBoard Scales
  • Not compatible with F-350 Cab and Chassis models
  • ICON track bar bracket part number 64039 is also recommended to correct bump steer geometry, sold separately
  • Included rear shocks are compatible with 0-3" of rear lift over stock
  • Radius arm profile is optimized for tire clearance at full steering lock, a 37" tall tire clears the arm

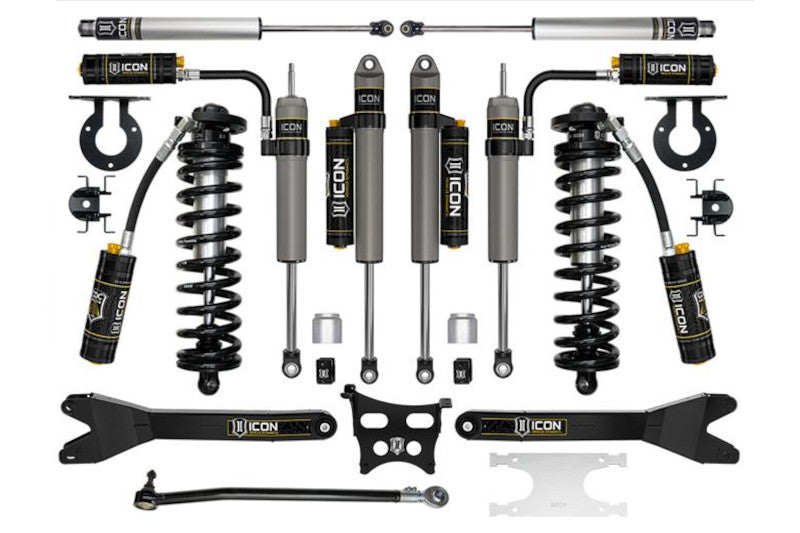

  • Package includes the bolt-in coilover conversion kit, front secondary shocks, 7.5" resi doubler mount kit, rear CDCV piggyback shocks, adjustable track bar, dual steering stabilizer kit with two stabilizers, and the radius arm system
  • Product images may be representative

FITMENT GUIDE

Exact Fitment — Verify Your Year

Year RangesYears
Make
Model
Series
Engine
2023-2024
Ford
Super Duty
F250/F350
6.7L Powerstroke
