Features:
- Supports 2.5-3" of adjustable front lift
- Fits 2023 Ford F250/F350 Powerstroke 4WD
- Bolt-in design fits OE coil bucket location
- CDC valves with 10 compression settings
- Front remote reservoir, rear piggyback reservoir shocks
- Vehicle-specific shock valving
- Shocks are fully rebuildable and revalvable
- Adjustable track bar included
- Dual steering stabilizer kit included
- Lifetime guarantee against spring sag or breakage
- Reduced body roll, improved ride dynamics
- Allows addition of a secondary shock

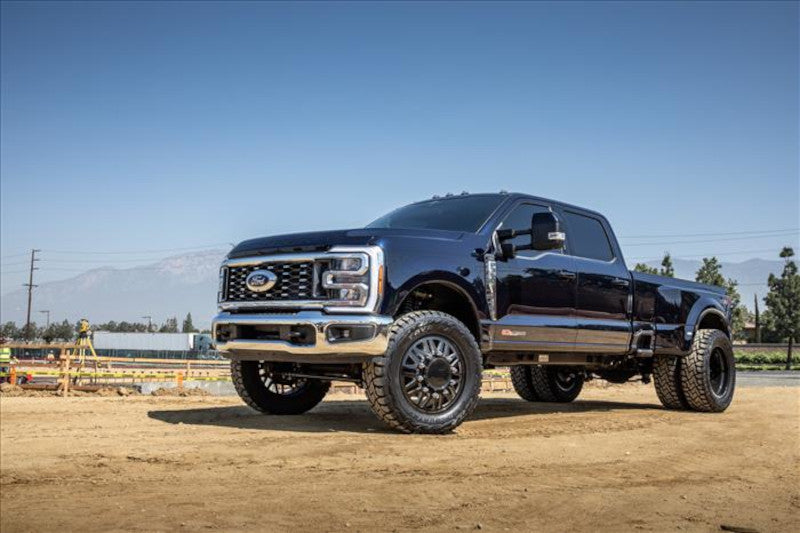

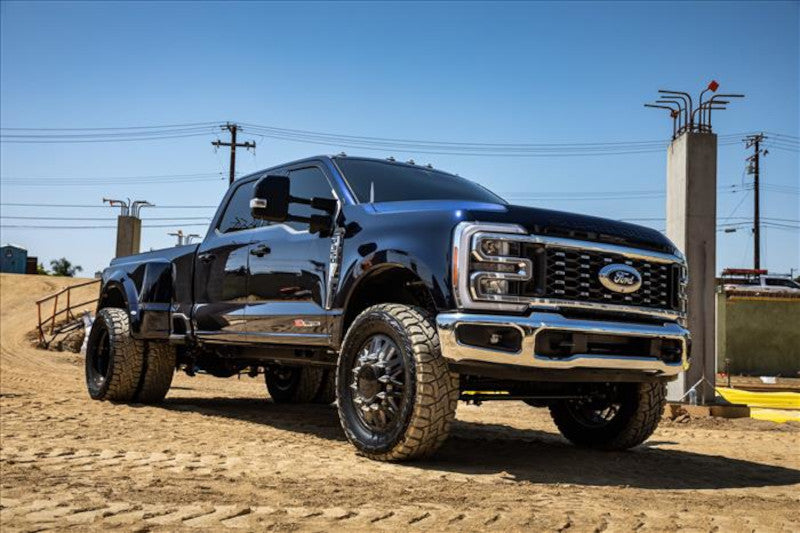

Lift Your 2023 Super Duty And Keep The Ride Height In Your Own Hands
A 2023 Super Duty diesel is a tough truck, but the stock front end was not built around a lift. This ICON Stage 4 system fixes that with a coilover conversion that lifts the front 2.5 to 3 inches on diesels without the Tremor package. ICON says the coilovers increase the truck's overall damping ability and let you set the ride height yourself. They drop into the factory coil bucket location, so it is a bolt in system. The front and rear shocks have CDC valves with 10 compression settings, from soft to hard, so you can tune the ride from the outside. ICON says you also get less body roll and better on and off road ride dynamics. An adjustable track bar and a dual steering stabilizer kit come in the box to help with axle placement and wheel control. The coil springs are guaranteed for life against sagging or breakage. For a truck that tows, works, and heads off road, this is a complete package.
Bolt In Coilovers That Drop Into The Factory Coil Bucket With Ten Damping Settings
The ICON K63164 is a Stage 4 coilover conversion system for 2023 Ford F250 and F350 4WD trucks with the Powerstroke. The front uses ICON 2.5 Series CDCV remote reservoir coilovers with adjustable ride height, based on ICON's 2.5 VS Series shock line. The coilover bodies are corrosion resistant, CAD plated, and have 7/8 inch shafts. They use ICON engineered coil springs, FK rod end bearings, and vehicle specific valving. The rear shocks are 2.5 Aluminum Series CDCV piggyback reservoir shocks with one piece, impact extruded aluminum cylinders. All of the shocks are fully rebuildable and revalvable, and the CDC valves give 10 compression settings. The kit also includes an adjustable track bar and a dual steering stabilizer kit with two ICON 2.0 Aluminum Series stabilizers. ICON lists front lift at 2.5 to 3 inches over stock on diesels without the Tremor package and 1.5 to 2 inches with it. Installation requires removing the factory coil centering cup, and the truck needs ADAS recalibration afterward.
Fitment: 2023 Ford F250/F350 Super Duty Powerstroke 4WD w/ 2.5-3" Front Lift
Notes:
- Fits 4WD models only
- Fits 2023 trucks only, will not fit 2024 models
- Will not fit F-350/F-450 Cab and Chassis models
- Diesel front lift is 2.5-3" over stock without the Tremor package and 1.5-2" with the Tremor package, heights are for a stock equipped vehicle
- Removal of the coil centering cup in the factory coil bucket is required for installation
- Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation
- In rare cases, a 2.6 degree alignment cam is required on one side of the vehicle for the proper caster split
- ICON track bar bracket part number 64039 is also recommended to correct bump steer geometry, sold separately
- Optional brake line kit part number 61111 is available for those who don't want to bend the factory steel lines, not necessary for a complete install
- Installer must make sure there is adequate clearance between the wiring harness, the coilover reservoir, and other components in the upper front passenger wheel well, contact ICON Customer Service if adequate clearance cannot be achieved
- Factory wheels and tires fit, ICON recommends 35" x 12.50" tires, and 37" x 12.50" tires may fit but fender trimming and modifications will be required
- Secondary shock options are available, contact ICON for details
- Package includes the front coilover conversion kit with alignment cams, rear CDCV shocks, adjustable track bar, and dual steering stabilizer kit with two stabilizers
- Lifetime guarantee against sagging or breakage of the ICON engineered coil springs
- California Proposition 65 warning applies to this product
- Product images may be representative

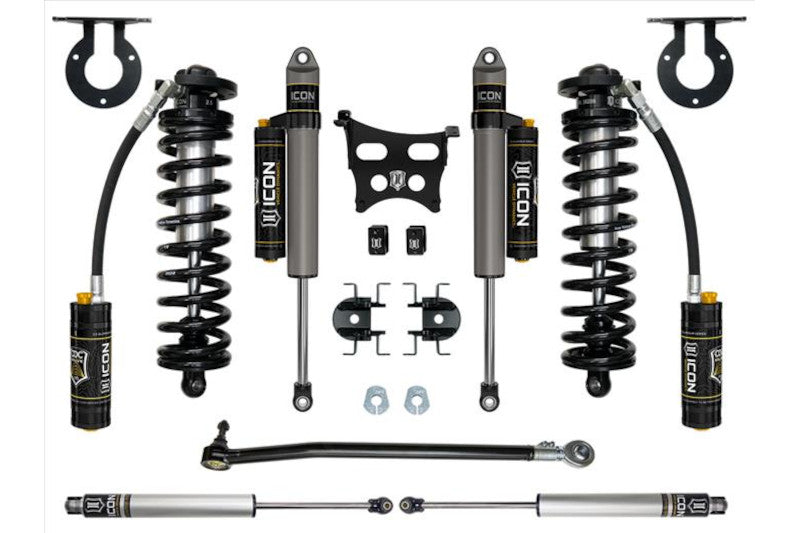

System Components:
- 61720C (qty: 1) | 05-23 F250/F350 4WD 2.5-3" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT W/ CAMS
- 65002 (qty: 1) | 23-25 FSD DUAL STABILIZER KIT
- 36511 (qty: 2) | 99-25 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR
- 64038 (qty: 1) | 17-25 FSD ADJ TRACKBAR KIT
- 37705CP (qty: 1) | 99-25 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
