SKU: IVDK62565R

ICON K62565R 2.5" Stage 5 Suspension System with Radius Arms - for 0-3" Lift - (Package) | 2023 Ford F250/F350 6.7L Powerstroke 4WD

4 in stock and ready for shipping
Confirmed fitment below
YEARS
2023
MAKE / MODEL
Ford / Super Duty
SERIES
F250/F350
ENGINE
6.7L Powerstroke
Sale price
$5,667.06
Regular price
$6,667.14
SAVE $1,000.08
or
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Free Shipping
ORDERS $70+
Easy Returns
HASSLE-FREE
Earn Rewards
ALLIGATOR POINTS
Not sure this fits your build?
Our diesel experts know these trucks. Call or chat before you buy.
1-208-719-7400

PRODUCT DETAIL

Key Features & Description

Features:

  • Supports 0-2.5" front lift/0-3" rear lift
  • Fits 2023 Ford F250/F350 6.7L Powerstroke 4WD
  • Fabricated, fully boxed radius arm system
  • Sealed pivot bushings reduce road feedback
  • Arm profile clears 37-inch tall tires
  • 2.5-inch front lift (1.5 inches with Tremor)
  • Dual rate coil springs tuned for diesel
  • CDC shocks with 10 compression settings
  • Remote reservoir front, piggyback rear shocks
  • Shocks are fully rebuildable and revalvable
  • Adjustable front track bar included
  • Dual steering stabilizer kit included
  • About 25% more front wheel travel
  • Lifetime guarantee on springs and fabricated parts

Get The Lift, The Shocks, And The Radius Arms As One Matched Package

Lifting a 2023 Super Duty is easy to start and easy to get wrong when the parts do not work together. The ICON K62565R fixes that by delivering the lift, the shocks, and the radius arms as one package. ICON says it tests and tunes its suspension components and shocks together as a complete system. Up front, you get a 2.5 inch lift on diesel trucks, dual rate coil springs made for diesel, and about 25% more front wheel travel than stock. The CDC shocks have ten compression settings, from soft to hard, so you can tune the ride from the outside. The radius arms are what set this stage apart. They are fabricated and fully boxed, and their sealed pivot bushings reduce road feedback and keep things quiet. ICON says the arm profile is optimized for tire clearance at full steering lock, and a 37 inch tall tire clears it. ICON backs the springs and its fabricated parts with a lifetime guarantee.

Boxed Radius Arms With Sealed Pivots Added To The Stage 5 Component List

The ICON K62565R is a complete 2.5 inch Stage 5 suspension system with radius arms for 2023 Ford F250 and F350 4WD trucks with the 6.7L Powerstroke. The front uses a 2.5 inch diesel dual rate spring kit and 2.5 Aluminum Series CDCV remote reservoir shocks. The rear uses 2.5 Aluminum Series CDCV piggyback reservoir shocks, which are compatible with 0 to 3 inches of rear lift over stock. The shock bodies are hard anodized, one piece, impact extruded aluminum, and the shocks are fully rebuildable and revalvable. The package includes an adjustable track bar, a 2 inch bump stop spacer kit, and a dual steering stabilizer kit with two ICON 2.0 Aluminum Series stabilizers. The radius arm system uses a fabricated, fully boxed design with a sealed pivot bushing. ICON says the bushing minimizes road feedback and ensures a long life and quiet operation. The kit is not compatible with models equipped with OnBoard Scales or with F-350 Cab and Chassis models.

Fitment: 2023 Ford F250/F350 Super Duty 6.7L Powerstroke 4WD w/ 0-2.5" Front Lift/0-3" Rear Lift

Notes:

  • Fits 4WD models only
  • Fits 2023 trucks, springs are optimized for diesel engines
  • Trucks equipped with the Tremor package will have a front lift height of 1.5" over stock
  • Not compatible with models equipped with OnBoard Scales
  • Not compatible with F-350 Cab and Chassis models
  • ICON track bar bracket part number 64039 is also recommended to correct bump steer geometry, sold separately
  • Included rear shocks are compatible with 0-3" of rear lift over stock
  • ICON says the radius arm profile is optimized for tire clearance at full steering lock and a 37" tall tire clears the arm
  • Package includes the front dual rate diesel spring kit, front CDCV remote reservoir shocks, rear CDCV piggyback reservoir shocks, adjustable track bar, dual stabilizer kit with two stabilizers, 2" bump stop spacer kit, and radius arm system
  • Lifetime guarantee against coil spring breakage or sag, and against ICON fabricated component breakage or manufacturer defect
  • Product images may be representative

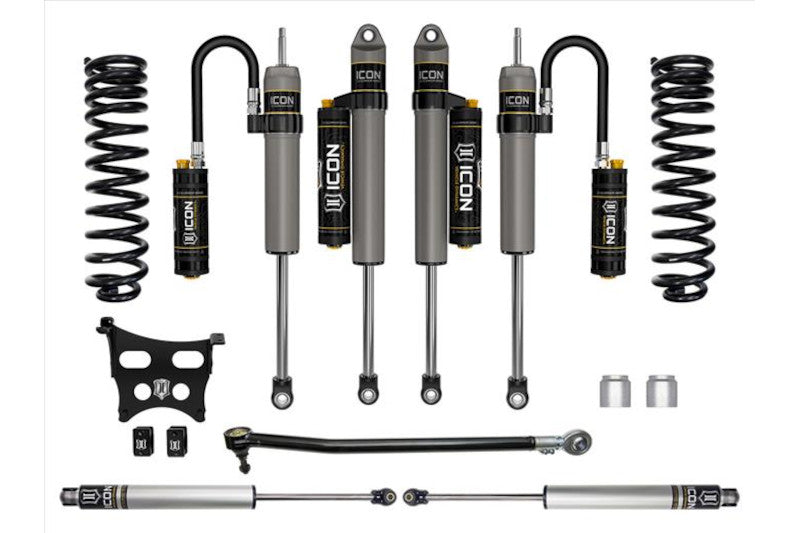

System Components:

  • (1) 23 FORD F-250/F-350 FRONT 2.5" DIESEL DUAL RATE SPRING KIT
  • (1) 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
  • (1) 99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
  • (1) 17-23 FSD ADJ TRACKBAR KIT
  • (1) 23 FSD DUAL STABILIZER KIT
  • (2) 99-23 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR
  • (1) 05-23 FSD 2" BUMP STOP SPACER KIT
  • (1) 23 FSD RADIUS ARM SYSTEM
