SKU: IVDK62501

Stage 2 Suspension Leveling System - Provides 2.5" Lift

6 in stock and ready for shipping
Confirmed fitment below
YEARS
2005-2016
MAKE / MODEL
Ford / Super Duty
SERIES
F250/F350
ENGINE
6.0L Powerstroke/6.4L Powerstroke/6.7L Powerstroke
$2,085.54
$2,189.82
SAVE $104.28
or
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Free Shipping
ORDERS $70+
Easy Returns
HASSLE-FREE
Earn Rewards
ALLIGATOR POINTS
Not sure this fits your build?
Our diesel experts know these trucks. Call or chat before you buy.
1-208-719-7400

PRODUCT DETAIL

Key Features & Description

Features:

  • Provides 2.5" Lift
  • Fits 2005-2016 Ford F250/F350 Super Duty 4WD Diesel
  • ICON engineered dual rate coil springs with match tuned performance shocks
  • Application Specific Alignment Cams ensure proper Caster alignment
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Less body-roll than stock
  • Lifetime guarantee that coil springs won't sag
  • No drive shaft modifications required
  • 100% Bolt-on system - no drilling, cutting or welding necessary for install

Improved Ride Quality Over Stock

A comfortable ride does not happen without having quality suspension components. For the 2005-2016 Ford F250/F350 Powerstroke, the best way to take your suspension performance to the next level is with the 2005-2016 Ford F250/F350 Powerstroke ICON 2.5" Stage 2 Suspension System. It includes ICON's V.S. 2.5" Aluminum Series front piggyback reservoir shocks, 2.0" Aluminum Series internal reservoir rear shocks, dual rate coil springs, and alignment cams. There is no better way to optimize the comfortability of your ride through added suspension strength, superior shock damping and control, cooler operating temperatures, a taller ride height, and component longevity.

Superior Damping and Control

The 2005-2016 Ford F250/F350 Powerstroke ICON 2.5" Stage 2 Suspension System includes piggyback remote reservoir front shocks and internal reservoir rear shocks that offer the necessary damping to comply with the massive spring rate of the factory torsion bar system. Whether you are hitting the public roads or going off for some fun on the trails, having these shocks on your 2005-2016 Ford F250/F350 Powerstroke build will maintain the same control and drivability. Each shock is specifically tuned to this model truck and are combined with dual rate coil springs to optimize ride quality and comfort. The added bonus of the alignment cams account for the added caster caused by raising the ride height.

Fitment: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 Ford F250/F350 Super Duty 4WD Powerstroke w/ 2.5" Lift

Technical Notes:

  • OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
  • APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • TECH NOTE: Compatible with 4WD models only
  • TECH NOTE: 2005-2016 F-250s require 4” rear blocks with 15” U-bolt kit to sit level with 2.5” lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
  • TECH NOTE: Not compatible with F-350 Cab & Chassis models
  • TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry on 2008-2016 models
  • TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock

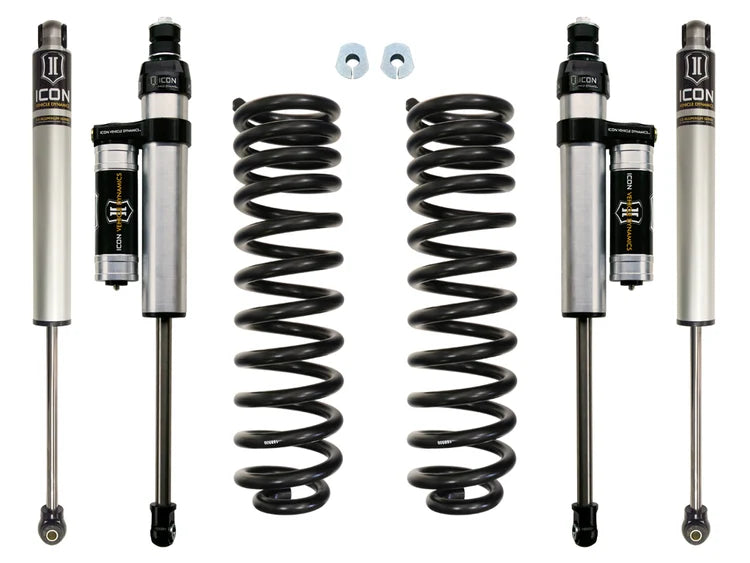

System Components:

  • 62510 (qty: 1) | 05-19 FSD FRONT 2.5" DUAL RATE SPRING KIT
  • 67700P (qty: 1) | 05-25 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
  • 36508 (qty: 2) | 99-16 FSD 4WD 3-6" REAR 2.0 VS IR

FITMENT GUIDE

Exact Fitment — Verify Your Year

Year RangesYears
Make
Model
Series
Engine
2005-2016
Ford
Super Duty
F250/F350
6.0L Powerstroke/6.4L Powerstroke/6.7L Powerstroke
