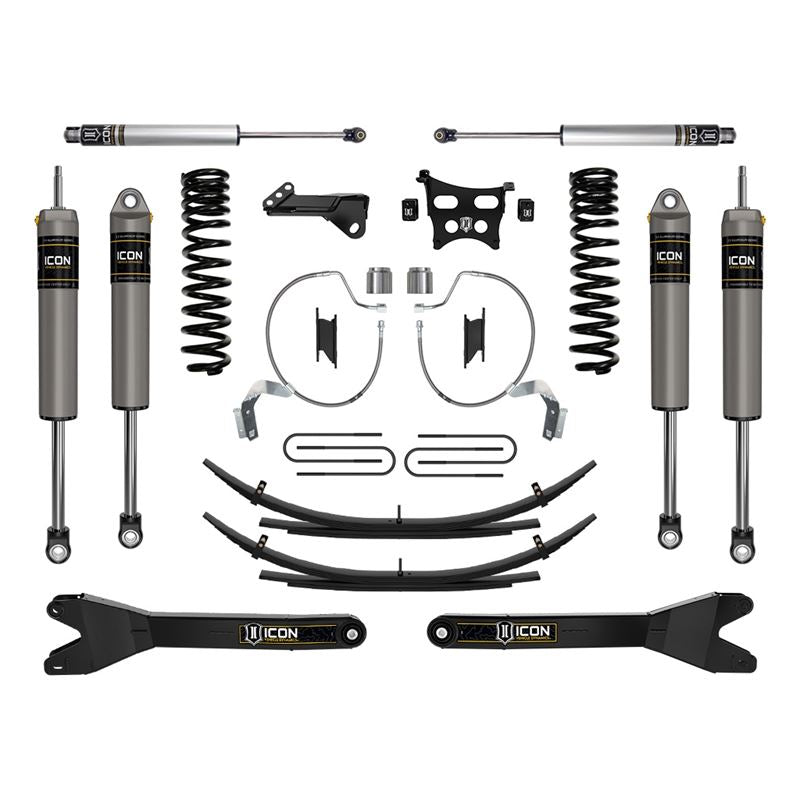

ICON K65912RL 4.5" Lift Stage 3 Suspension System Kit w/ Radius Arms & Expansion Packs (Gas) | 2023-2025 Ford F250/F350 Super Duty

Features:

• Fits 2023–2025 F-250/F-350 gas 4WD
• 4.5" front lift with dual rate coils
• 2" rear lift using expansion packs
• Radius arms improve strength and ground clearance
• Built-in caster cams for easy alignment
• 2.5 shocks tuned for gas Super Duty
• 50% more front wheel travel than stock
• Dual stabilizers improve steering with larger tires
• Expansion packs reduce axle wrap and improve ride
• Track bar bracket improves steering response
• Shocks are fully rebuildable and tunable
• Lifetime warranty on coils and fabricated parts

Give Your Super Duty The Lift It Was Built For

If you're looking for a suspension system that does more than just lift your truck, the ICON Stage 3 System with Radius Arms and Expansion Packs delivers the performance and confidence serious Super Duty owners expect. This setup is built for 2023–2025 F-250 and F-350 gas models and gives your truck a true 4.5 inches of front lift and 2 inches in the rear. It not only clears bigger tires but transforms the way your truck handles on-road, off-road, and everywhere in between. The included expansion packs offer a smoother ride out back and reduce axle wrap that can affect stability when towing or carrying a load. Up front, fabricated radius arms bring more strength and control, especially when pushing through rough terrain or tight turns. You’ll notice tighter steering, better alignment, and a more balanced ride even with oversized tires, thanks to the dual steering stabilizers and 2.5 performance-tuned shocks. Whether you're cruising highways, climbing rocky trails, or hauling tools to the job site, this kit gives your Super Duty the lift it needs without giving up comfort or control.

Tuned Suspension Geometry That Works On And Off Road

The ICON K65912RL Stage 3 System is designed to offer long-term durability and dialed-in suspension performance for gas-powered 2023–2025 Super Duty trucks. At the core of this kit are ICON's dual rate coil springs, which balance daily driving comfort with off-road capability by delivering a smooth initial ride and firmer compression during deep travel. The included 2.5 Aluminum Series internal reservoir shocks are valved specifically for the Super Duty’s weight and offer better oil volume and thermal stability compared to smaller 2.0 shocks. Instead of relying on basic lift blocks, this system uses leaf spring expansion packs in the rear for improved ride quality, especially when handling uneven surfaces or hauling. Fabricated radius arms with integrated caster cams help correct front-end geometry without the need for drop brackets, which also increases ground clearance under the chassis. A track bar drop bracket helps reduce bump steer while keeping the front axle properly centered under load. Stainless steel brake lines, sway bar drop brackets, and aluminum bump stop spacers complete the package, making this a true bolt-on upgrade built to last.

Fits: 2023, 2024, 2025 Ford F250/F350 Super Duty

Notes:

• Fits 2023–2025 F-250/F-350 4WD gas models only.
• Not compatible with diesel, dually, or Tremor trucks.
• Provides 4.5" front and 2" rear lift height.
• Rear lift achieved using expansion packs, not blocks.
• Expansion packs improve ride comfort and reduce axle wrap.
• Radius arms eliminate the need for drop brackets.
• Built-in caster cams allow on-truck alignment adjustment.
• Dual steering stabilizers help control oversized tires.
• Factory wheels may require spacers for clearance.
• Trimming may be needed depending on tire size and offset.
• Alignment is required after installation to correct caster.
• Shocks are rebuildable and tunable for future performance needs.
• All components are bolt-on, no cutting or welding necessary.
• System is tuned specifically for gas engine weight and dynamics.
• Includes sway bar brackets, bump stop spacers, and brake lines.
• Covered by ICON's lifetime warranty on springs and fabricated parts.
