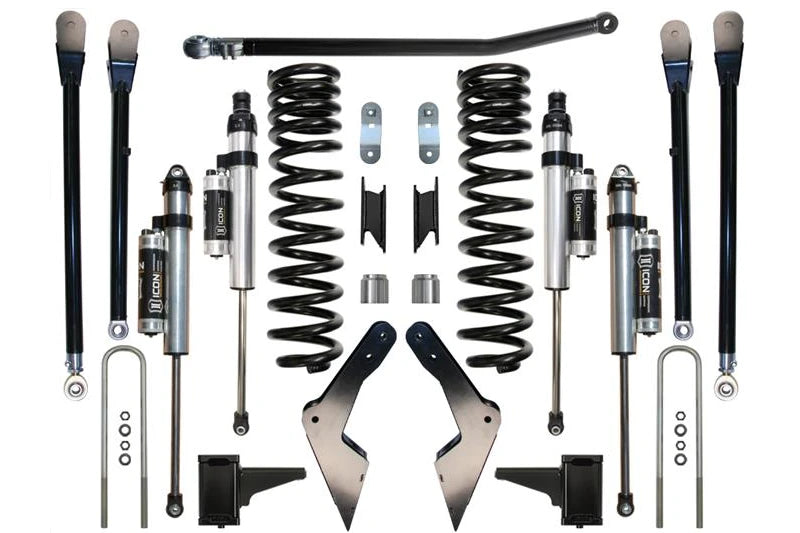

Stage 4 Lift Kit - for 4.5" Lift

Features:

• Provides 4.5 inches of suspension lift
• Fits 2008-2010 Ford F250/F350 Powerstroke 4WD
• Increases wheel travel by 50 percent
• Dual rate coils improve ride quality
• CDCV shocks provide adjustable compression damping
• Piggyback reservoirs support consistent shock performance
• Four link system improves suspension performance
• Adjustable track bar improves axle alignment
• Reduces body roll compared to stock
• Clears 35 inch tires without trimming
• Maintains factory towing capacity
• No driveshaft modifications required
• 100 percent bolt on installation

Step Into A More Serious Suspension Setup

When you are ready to move beyond a basic lift, the ICON K64553 Stage 4 Lift Kit gives your Super Duty the hardware to make that extra height genuinely useful. Designed for 2008-2010 Ford F250 and F350 Powerstroke 4WD trucks, the system adds 4.5 inches of lift while increasing wheel travel by 50 percent over stock. Dual rate coil springs and ICON 2.5 inch piggyback reservoir shocks work together to improve ride quality and keep the truck controlled when pavement gives way to rutted roads or rough job sites. The CDCV shocks let you adjust compression damping, making it easy to change the suspension response when your driving conditions or preferences change. ICON also replaces the factory radius arm arrangement with a four link system, giving drivers who demand more from their suspension a substantial upgrade in front end design. The added clearance accommodates 35 inch tires without trimming, while 37 inch tires can fit with minor trimming when a larger footprint is the goal. Even with the added height and suspension capability, towing capacity remains unchanged and no driveshaft modifications are required, helping your Super Duty remain every bit the workhorse you bought it to be.

Four Link Geometry Meets Adjustable Damping

The K64553 Stage 4 system takes a comprehensive approach to the front suspension by combining 4.5 inch dual rate coil springs with ICON's dedicated four link conversion components. Upper and lower front links work with frame brackets to replace the factory radius arm configuration, while an adjustable track bar with an FK rod end helps maintain proper axle positioning beneath the truck. ICON 2.5 inch Aluminum Series piggyback reservoir shocks are fitted front and rear, providing additional fluid capacity to support consistent damping as the suspension works through repeated movement. CDCV technology adds external compression adjustment, allowing suspension firmness to be changed without disassembling or revalving the shocks. The shocks also feature corrosion resistant anodized aluminum bodies and substantial 7/8 inch shafts, and their serviceable construction allows them to be rebuilt as needed. A 5 inch rear block kit and 17 inch U bolts complete the rear lift, while the overall system provides 4.5 inches of additional travel between ride height and the front bump stops. With no drilling, cutting, or welding required for installation, ICON brings together corrected suspension architecture, adjustable damping, and increased travel in a package engineered specifically for diesel powered 2008-2010 Super Duty trucks.

Fitment:  2008, 2009, 2010 Ford F250/F350 Powerstroke 4WD w/ 4.5" Lift

Notes:

• Fits 2008-2010 Ford F250 and F350 Powerstroke 4WD
• Springs are rated for diesel engines only
• Not compatible with manual transmission vehicles
• Recommended tire size is 35 x 12.50 inches
• Larger tires may require trimming or modifications
• Factory wheels and tires remain compatible
• Radius arm pinch weld may contact hardware
• Shocks are fully serviceable
• Ride height specifications assume stock vehicle equipment
• No driveshaft modifications are required
• Installation requires no drilling cutting or welding
• Kit ships in multiple boxes
• Product images may be representative
