Stage 1 Lift Kit - for 4.5" Lift

Features:

• Provides 4.5 inches of suspension lift
• Fits 2008-2010 Ford F250/F350 Powerstroke 4WD
• Increases wheel travel by 50 percent
• Dual rate coils improve ride quality
• Reduces body roll compared to stock
• Adjustable track bar improves axle alignment
• Corrected radius arm geometry improves handling
• Clears 35 inch tires without trimming
• Supports 37 inch tires with trimming
• Maintains factory towing capacity
• No driveshaft modifications required
• 100 percent bolt on installation
• Fully serviceable ICON shocks

Raise The Truck Without Losing Its Work Ethic

A good lift should make your Super Duty more enjoyable to drive while preserving the strength and usefulness that made you buy a heavy duty truck in the first place. The ICON K64550 Stage 1 Lift Kit adds 4.5 inches of lift to 2008-2010 Ford F250 and F350 Powerstroke 4WD trucks while improving suspension travel and overall ride quality. ICON dual rate front coil springs pair with 2.0 inch Aluminum Series shocks to give the suspension a more controlled response over broken pavement, gravel roads, and everyday job site conditions. With 50 percent more wheel travel than stock and additional room before reaching the front bump stops, the suspension can better manage uneven surfaces without feeling like it is constantly running out of travel. The added height clears 35 inch tires without trimming, while 37 inch tires can be fitted with minor trimming when you want a larger and more aggressive setup. You also keep the truck's original towing capacity, so trailers and work equipment can remain part of the routine after the lift goes on. For an owner who wants a capable 4.5 inch setup without jumping straight into a more complex suspension package, Stage 1 delivers the height and everyday performance that matter most.

The Right Geometry Supports A Better Ride

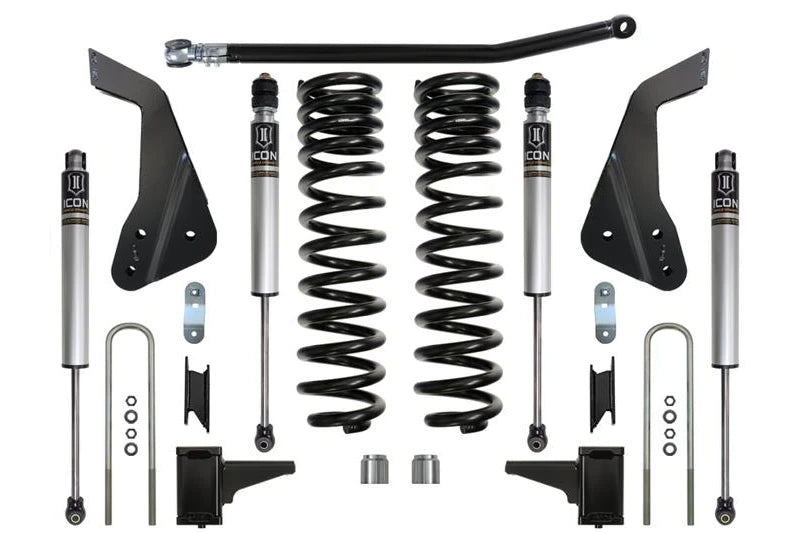

The K64550 Stage 1 system addresses the suspension geometry that changes when a 2008-2010 Super Duty is raised 4.5 inches rather than simply installing taller springs and calling the job finished. Dual rate front coil springs establish the increased ride height, while radius arm drop brackets reposition the factory radius arms to work properly with the lifted suspension. ICON's adjustable track bar with an FK rod end allows the front axle to be properly aligned beneath the truck, helping the suspension track correctly after installation. Front and rear 2.0 inch Aluminum Series shocks provide damping matched to the application and are fully serviceable for future maintenance. A 5 inch rear block kit and 17 inch U bolts raise the rear to complement the front suspension and complete the truck's lifted stance. The system installs using a completely bolt on process with no drilling, cutting, or welding required, and the intended diesel application does not require driveshaft modification. Together these components create a coordinated suspension package that improves wheel travel and body control while retaining the practical towing capability expected from a Powerstroke Super Duty.

Fitment:  2008, 2009, 2010 Ford F250/F350 Powerstroke 4WD w/ 4.5" Lift

Notes:

• Fits 2008-2010 Ford F250 and F350 Powerstroke 4WD
• Springs are rated for diesel engines only
• Not compatible with manual transmission vehicles
• Recommended tire size is 35 x 12.50 inches
• Larger tires may require trimming or modifications
• Factory wheels and tires remain compatible
• Radius arm pinch weld may contact hardware
• Shocks are fully serviceable
• Lift height assumes a stock equipped vehicle
• Gas models may require exhaust modifications
• Kit ships in multiple boxes
• Product images may be representative
