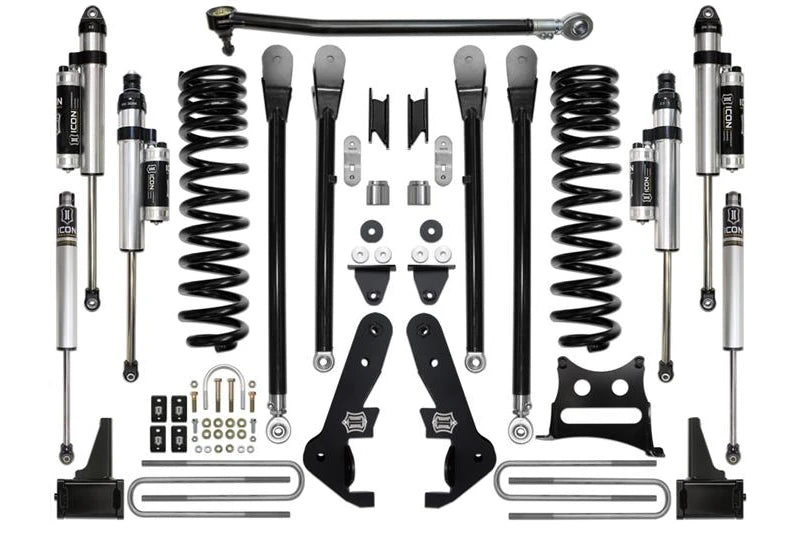

Stage 5 Suspension System Kit - for 4.5" Lift

Features:

• Provides 4.5 inches of suspension lift
• Fits 2017-2019 Ford F250/F350 Super Duty 4WD
• Increases front wheel travel about 50 percent
• Four link system reduces suspension bind
• Maintains positive caster through suspension travel
• CDCV shocks offer 10 compression settings
• Dual steering stabilizers improve handling control
• Dual rate coils improve vehicle control
• Adjustable track bar improves axle positioning
• Piggyback reservoirs improve damping consistency
• Fully rebuildable and revalvable shocks
• Supports recommended 37 inch tires
• Corrosion resistant aluminum shock bodies

Bring Serious Trail Control To Your Super Duty

When your Super Duty needs to tow during the week and tackle challenging terrain on the weekend, a suspension built for only one job can feel like a compromise. The ICON K64515 Stage 5 Suspension System gives your 2017-2022 Ford F250 or F350 Super Duty 4WD 4.5 inches of lift while adding the suspension and steering upgrades needed for a more confident driving experience. Approximately 50 percent more front wheel travel gives the tires greater freedom to follow uneven terrain, while dual rate coil springs help keep the truck controlled when the surface changes beneath you. ICON's four link system frees up front suspension movement by reducing the bind associated with factory radius arms, which pays off when the axle needs to articulate over rocks, ruts, and uneven job site roads. The 2.5 inch piggyback reservoir shocks add 10 levels of compression adjustment through ICON's CDC Valve, letting you fine tune the ride as your load or terrain changes. A dual opposing steering stabilizer system adds another layer of control to the front end, helping deliver predictable steering manners both on the highway and away from pavement. With clearance for recommended 37 by 12.50 inch tires, Stage 5 gives your Super Duty the stance and suspension capability to handle demanding adventures without forgetting how the truck gets used every day.

Advanced Front End Hardware Works As One System

The K64515 Stage 5 package combines several major suspension upgrades to control axle movement, steering behavior, and damping throughout the increased travel range. ICON's four link conversion uses dedicated frame brackets with upper and lower links to reduce articulation bind while maintaining positive caster as the front suspension cycles. An adjustable track bar works alongside the four link geometry to keep the front axle properly positioned beneath the truck after adding 4.5 inches of lift. ICON 2.5 inch Aluminum Series piggyback reservoir shocks feature vehicle specific tuning and CDC Valve technology, providing 10 external compression settings for quick changes in damping response. These shocks use corrosion resistant anodized aluminum bodies and substantial 7/8 inch shafts, while their rebuildable and revalvable construction allows for future servicing and tuning. Additionally, the included dual opposing steering stabilizer kit uses a pair of ICON 2.0 inch Aluminum Series stabilizers to improve steering control and complement the upgraded suspension hardware. A 5 inch rear block kit completes the stance, resulting in a comprehensive system engineered to make suspension travel, damping, steering, and axle geometry work together on the 2017-2022 Super Duty.

Fitment:  2017, 2018, 2019 Ford F250/F350 Super Duty 4WD w/ 4.5" Lift

Notes:

• Fits 2017-2022 Ford F250 and F350 4WD
• Springs are rated for diesel engines
• Recommended tire size is 37 x 12.50 inches
• Larger tires may require trimming or modifications
• Factory wheels and tires remain compatible
• Carrier bearing drop kit 33700 may be required
• Gas models may require exhaust modifications
• Shocks are fully serviceable
• Lift height assumes a stock equipped vehicle
• Optional brake line kit 61110 is available
• Factory steel brake lines may require bending
• Kit ships in multiple boxes
• Product images may be representative
