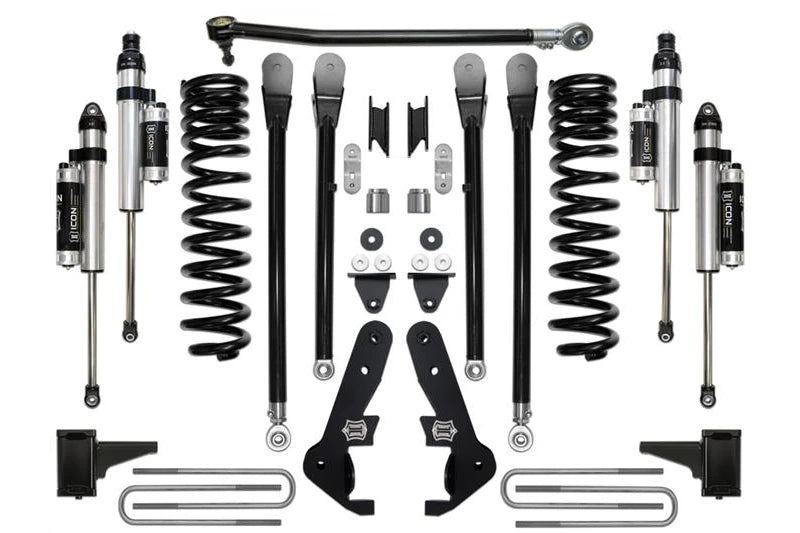

Stage 4 Suspension System Kit - for 4.5" Lift

Features:

• Provides 4.5 inches of suspension lift
• Fits 2017-2019 Ford F250/F350 Super Duty 4WD
• Increases front wheel travel about 50 percent
• Four link system reduces suspension bind
• Maintains positive caster through suspension travel
• CDCV shocks offer 10 compression settings
• Piggyback reservoirs improve damping consistency
• Dual rate coils improve vehicle control
• Adjustable track bar improves axle positioning
• Vehicle specific shocks improve ride quality
• Fully rebuildable and revalvable shocks
• Supports recommended 37 inch tires
• Corrosion resistant aluminum shock bodies

Unlock More From Your Super Duty Suspension

There comes a point where adding height is not enough, especially if you expect your Super Duty to feel just as capable on rough terrain as it does pulling onto the highway. The ICON K64514 Stage 4 Suspension System gives 2017-2019 Ford F250 and F350 Super Duty 4WD trucks 4.5 inches of lift while transforming how the front suspension moves and responds. Its four link system eliminates much of the suspension bind associated with the factory radius arms, allowing the front end to articulate more freely when the terrain starts working each wheel independently. Approximately 50 percent more front wheel travel gives the suspension additional room to absorb rough surfaces, while dual rate coil springs help maintain controlled and comfortable behavior across changing conditions. ICON CDCV shocks add another level of versatility with 10 compression settings, letting you dial in the damping for daily driving, towing, job site duty, or more demanding off road adventures. The added height also provides clearance for recommended 37 by 12.50 inch tires, giving the truck the footprint and stance to complement its upgraded suspension capability. If you want a Super Duty that can handle serious weekend terrain without becoming a chore during the workweek, Stage 4 brings together the travel, adjustability, and suspension geometry to make that balance possible.

Four Link Control Changes How The Front End Moves

At the heart of the K64514 Stage 4 system is ICON's four link conversion, which replaces the limitations of the factory radius arm arrangement with upper and lower links designed for improved articulation. By reducing suspension bind and maintaining positive caster throughout the range of travel, the four link geometry helps preserve predictable handling as the front axle moves through compression and extension. ICON pairs this setup with 4.5 inch dual rate coil springs and an adjustable track bar, allowing the axle to remain properly positioned beneath the truck at the increased ride height. Front and rear 2.5 inch Aluminum Series piggyback reservoir shocks use vehicle specific tuning and CDCV technology to provide 10 levels of externally adjustable compression damping. Their anodized aluminum bodies resist corrosion, while 7/8 inch shafts and FK rod end bearings support durability and minimize unwanted deflection during suspension movement. The shocks are also fully rebuildable and revalvable, giving owners a serviceable damping package that can be maintained as the truck accumulates miles. Finished with a 5 inch rear block kit and matched rear shocks, the system brings lift height, axle control, damping, and suspension geometry together as one thoroughly engineered package.

Fitment: 2017, 2016, 2019 Ford F250/F350 Super Duty 4WD w/ 4.5" Lift

Notes:

• Fits 2017-2019 Ford F250 and F350 4WD
• Springs are rated for diesel engines only
• Recommended tire size is 37 x 12.50 inches
• Larger tires may require trimming or modifications
• Factory wheels and tires remain compatible
• Carrier bearing drop kit 33700 may be required
• Gas models may require exhaust modifications
• Shocks are fully serviceable
• Optional brake line kit 61110 is available
• Factory steel brake lines may require bending
• Ride height assumes a stock equipped vehicle
• Kit ships in multiple boxes
• Product images may be representative
