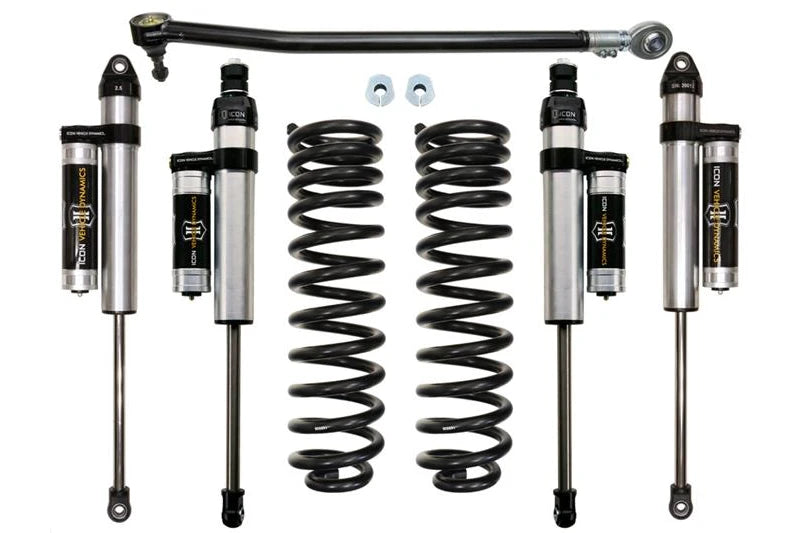

Stage 3 Suspension System Kit - for 2.5" Lift

Features:

• Provides 2.5 inches of front lift
• Fits 2017-2019 Ford F250/F350 Super Duty 4WD
• Creates a more level truck stance
• Increases front wheel travel approximately 25 percent
• Dual rate coils improve vehicle control
• Vehicle specific shocks improve ride quality
• Piggyback reservoirs support consistent shock performance
• Adjustable track bar improves axle positioning
• Fully rebuildable and revalvable shocks
• Aluminum shock bodies resist corrosion
• Supports recommended 35 inch tires
• Ideal for towing and off road use
• Made in the USA

Find The Sweet Spot Between Work And Adventure

Your Super Duty can spend Friday pulling a trailer and Saturday exploring a rough back road, so its suspension should feel comfortable doing both. The ICON K62513 Stage 3 Suspension System gives 2017-2019 Ford F250 and F350 Super Duty 4WD trucks 2.5 inches of front lift for a more level stance while improving ride quality and suspension performance. ICON dual rate coil springs provide controlled support across changing terrain, while vehicle specific shock tuning helps the truck feel composed on pavement without holding it back when the surface turns rough. Approximately 25 percent more front wheel travel gives the suspension additional room to absorb bumps, ruts, and uneven job site roads before that movement reaches the cab. The recommended 35 by 12.50 inch tire size also gives you room to build a more capable setup without going to the height of a larger suspension lift. Piggyback reservoir shocks are especially valuable during spirited off road driving, where additional fluid capacity helps manage heat and maintain consistent damping through repeated suspension movement. Put it all together and you get a well rounded suspension package for a truck that still needs to tow and work during the week but deserves some fun when the pavement ends.

Better Suspension Control Starts With Matched Components

Rather than treating springs and shocks as separate upgrades, ICON engineers the K62513 Stage 3 system so its major suspension components work together on the 2017-2019 Ford F250 and F350 Super Duty 4WD. Dual rate front coil springs establish 2.5 inches of lift, while alignment cams help achieve the proper suspension alignment after the change in ride height. ICON 2.5 inch Aluminum Series piggyback reservoir shocks are used at all four corners and receive vehicle specific tuning to deliver controlled damping across a broad range of driving conditions. Their one piece impact extruded aluminum bodies provide corrosion resistance, while substantial 7/8 inch shafts contribute strength for demanding suspension use. The shocks are fully rebuildable and revalvable, which gives owners a serviceable platform that can be maintained or retuned as the truck's needs evolve. An adjustable track bar helps properly position the front axle beneath the truck, and FK rod end bearings provide low deflection and dependable articulation at this critical suspension connection. With rear shocks designed for zero to three inches of rear lift and an optional ICON track bar bracket available to further correct bump steer geometry, the Stage 3 system provides a carefully developed foundation for drivers who expect precise suspension behavior both on road and off.

Fitment:  2017, 2018, 2019 Ford F250/F350 Super Duty 4WD w/ 2.5" Lift

Notes:

• Fits 2017-2019 Ford F250 and F350 4WD
• Springs are rated for diesel engines only
• Not compatible with F350 Cab and Chassis
• Not compatible with all factory wheel setups
• Lower offset aftermarket wheels are recommended
• Recommended tire size is 35 x 12.50 inches
• Larger tires may require trimming or modifications
• Rare cases may require 2.6 degree alignment cam
• Optional brake line kit 61111 is available
• Factory steel brake lines may require bending
• Track bar bracket 64039 is recommended
• Rear shocks support 0-3 inches lift
