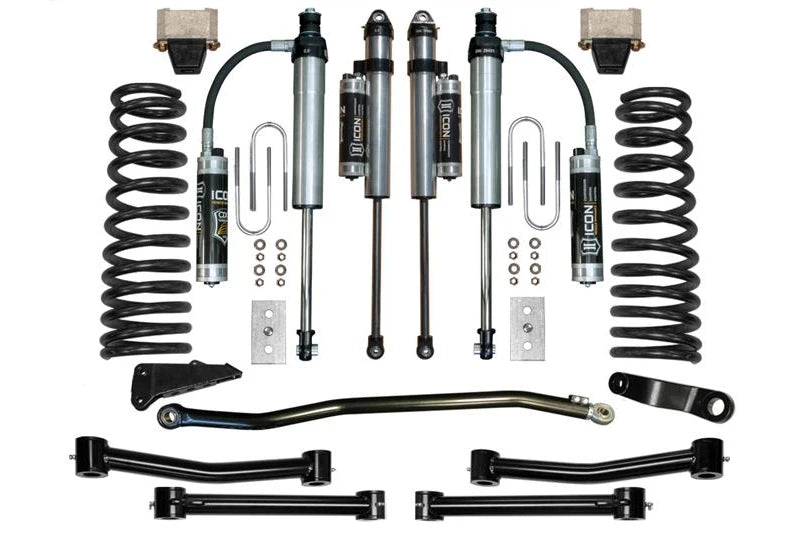

Stage 5 Lift Kit - for 4.5" Lift

Features:

• Provides 4.5 inches of suspension lift
• Fits 2009-2012 Dodge RAM 2500/3500 4WD
• Clears 35 inch tires without modifications
• CDCV shocks provide adjustable compression damping
• Dual rate coils improve ride quality
• Increases wheel travel over stock
• Heavy duty steel upper and lower links
• Adjustable track bar centers front axle
• Maintains factory towing capacity
• Reduces body roll compared to stock
• Maintains proper steering geometry
• Fully serviceable 2.5 Series shocks
• No driveshaft modifications required

Turn Your Ram Into A More Capable Machine

There is a big difference between simply making your Ram taller and building a suspension that actually performs better, and the ICON K214554T Stage 5 Lift Kit is designed with the latter in mind. Built for 2009-2012 Ram 2500 and 3500 4WD trucks, this system adds 4.5 inches of lift while creating the ground clearance and stance that make a heavy duty truck look ready for business. The added height provides room for 35 inch tires without modifications, giving you an easy path toward a more aggressive setup without immediately reaching for the cutting tools. ICON also focuses heavily on how the truck feels from behind the wheel, pairing dual rate coil springs with adjustable 2.5 inch shocks to improve ride quality and wheel travel compared to stock. Turn the external CDCV knob and you can adjust compression damping to better suit changing roads, loads, or terrain instead of being locked into one suspension setting. Heavy duty steel link arms, an adjustable track bar, and properly positioned steering components help the truck feel controlled and predictable while reducing body roll compared to the factory suspension. Best of all, you gain this extra capability without sacrificing towing capacity or requiring driveshaft modifications, making the Stage 5 system a serious upgrade that still respects what your Ram was built to do.

Built To Keep Suspension Geometry Working Properly

The ICON Stage 5 system goes well beyond springs and shocks by addressing the suspension and steering geometry affected when a 2009-2012 Ram 2500 or 3500 4WD is raised 4.5 inches. ICON dual rate front coil springs work with matched 2.5 inch Aluminum Series shocks featuring CDCV compression adjustment, giving the driver control over damping while providing consistent performance as conditions change. These shocks use one piece impact extruded aluminum cylinders for corrosion resistance and 7/8 inch shafts for strength, and they are fully serviceable for long term use. Tubular steel upper and lower link arms improve strength and alignment range while reducing the suspension bind associated with the factory link bushings. An adjustable track bar equipped with PTFE lined FK bearings adds rigidity and allows the front axle to be properly centered beneath the truck after lifting. ICON also includes a forged pitman arm, track bar drop bracket, sway bar drop brackets, bump stops with billet extensions, and the necessary rear lift components to keep the complete suspension working together through its travel. The result is a thoughtfully engineered system that increases wheel travel, maintains a level stance, and gives diesel powered Ram HD owners a suspension package built for controlled highway manners and demanding terrain.

Fitment:  2009, 2010, 2011, 2012 Dodge RAM 2500/3500 4WD w/ 4.5" Lift

Notes:

• Fits 2009-2012 RAM 2500 and 3500 4WD
• Springs are rated for diesel engines only
• 35 x 12.50 inch tires are recommended
• Larger tires may require fender trimming
• Factory wheels and tires remain compatible
• No driveshaft modifications are required
• Shocks are fully serviceable
• Vehicle ride height assumes stock equipment
• 2013 Ram applications require contacting ICON
• Kit ships in multiple boxes
• Product images may be representative
