Stage 4 Suspension System Kit - for 4.5" Lift

Features:

• Provides 4.5 inches of suspension lift
• Fits 2009-2012 Dodge RAM 2500/3500 4WD
• 2.5 Aluminum Series reservoir shocks included
• Adjustable track bar centers front axle
• Dual rate coils improve ride quality
• Heavy duty steel link arms included
• Increased wheel travel improves suspension performance
• Corrected steering geometry supports proper handling
• Reservoir shocks maintain consistent damping longer
• Clears 35 inch tires without modifications
• Reduces body roll compared to stock
• Maintains factory towing capacity
• No driveshaft modifications required

Unlock More Potential From Your Heavy Duty Ram

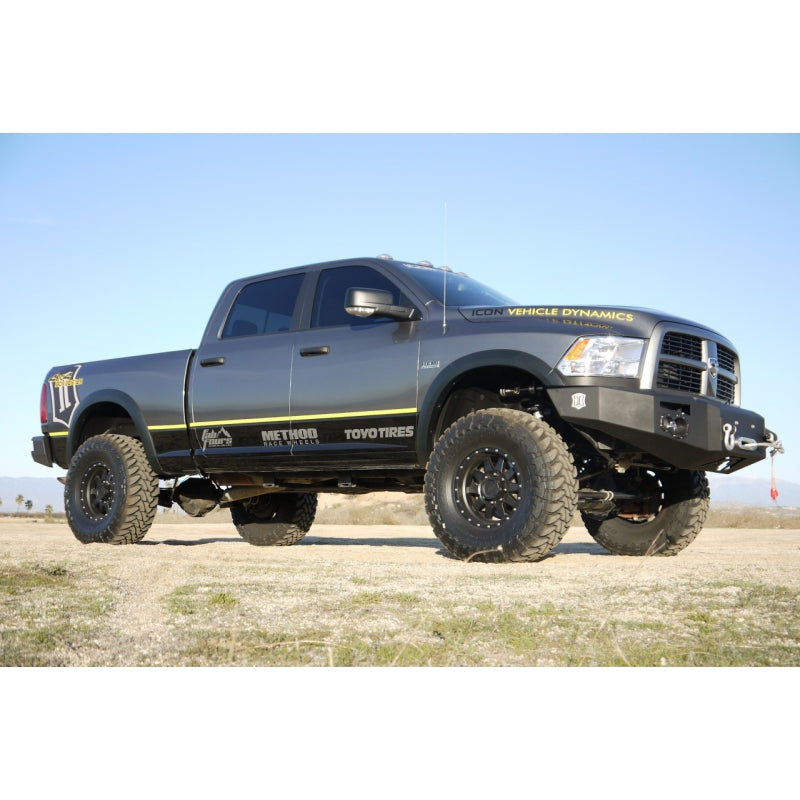

A serious suspension upgrade should make your Ram feel more capable every time you climb behind the wheel, not just make it look taller in the driveway. The ICON K214553T Stage 4 Suspension System gives 2009-2012 Dodge Ram 2500 and 3500 4WD trucks 4.5 inches of lift while bringing together components designed for better control both on and off the pavement. Matched 2.5 Aluminum Series reservoir shocks and dual rate coil springs help smooth out everyday roads while keeping suspension movement controlled when the truck encounters washboard surfaces, ruts, or rough job sites. An adjustable track bar lets you center the front axle after lifting the truck, while PTFE lined FK bearings provide a more rigid connection than flexible factory style joints. Heavy duty steel upper and lower links add strength and reduce factory bushing bind, allowing the suspension to move more effectively through its increased wheel travel. Additionally, the system maintains towing capacity and delivers less body roll than stock, so your Ram can gain capability without giving up the practical qualities you depend on. With clearance for 35 inch tires without modifications and the ability to accommodate some 37 inch tires with minor trimming, this Stage 4 system gives you plenty of room to build a truck that works hard and explores farther.

Better Axle Control Starts With Better Hardware

The K214553T goes beyond adding ride height by addressing the steering and suspension geometry changes that come with lifting a heavy duty Ram 4.5 inches. A forged drop pitman arm and track bar drop bracket work with the dual rate coil springs and sway bar drop brackets to maintain proper front end positioning throughout suspension travel. The bearing style adjustable track bar uses PTFE lined FK bearings and provides the adjustment needed to recenter the front axle beneath the chassis. ICON also includes tubular steel upper and lower link arms that increase strength and alignment range while reducing the bind associated with the factory link bushings. The 2.5 Aluminum Series shocks use reservoirs for greater damping consistency and feature FK bearings, billet top caps and rod ends, and strong 7/8 inch shafts for demanding suspension use. At the rear, 2.5 inch lift blocks and extended U bolts complement the front suspension height while helping establish a level overall stance. What's more, the shocks are fully serviceable, giving owners a practical option for future maintenance as mileage and suspension use accumulate. The complete system is engineered around coordinated suspension movement, proper axle location, and predictable handling across everything from highway miles to uneven off road terrain.

Fitment: 2009, 2010, 2011, 2012 Dodge RAM 2500/3500 4WD w/ 4.5" Lift

Notes:

• Fits 2009-2012 Ram 2500/3500 4WD models
• Springs are rated for diesel engines only
• OEM wheels and tires are compatible
• Recommended tire size is 35x12.50
• Larger tires may require fender trimming
• Includes an adjustable front track bar
• No driveshaft modifications are required
• Factory towing capacity remains unchanged
• Shocks are fully serviceable
• Lift height assumes a stock equipped vehicle
• Contact ICON for 2013 Ram applications
• Kit ships in multiple boxes
• Product images may be representative
