Stage 3 Suspension Kit - for 4.5" Lift

Features:

• Provides 4.5 inches of suspension lift
• Fits 2009-2012 Dodge RAM 2500/3500 4WD
• 2.5 V.S. Series reservoir shocks included
• Dual rate coils improve ride quality
• Heavy duty steel link arms included
• Increased wheel travel improves suspension performance
• Corrected steering geometry supports proper handling
• Reservoir shocks maintain consistent damping longer
• Aluminum shock bodies resist corrosion
• Clears 35 inch tires without modifications
• Reduces body roll compared to stock
• Maintains factory towing capacity
• No driveshaft modifications required

Give Your Ram The Clearance To Go Further

A taller truck is easy to notice, but a lift that actually improves how your Ram handles the road and trail is where things get interesting. The ICON K214552T Stage 3 Suspension Kit gives 2009-2012 Dodge Ram 2500 and 3500 4WD trucks 4.5 inches of lift while adding the suspension hardware needed to make that extra height perform. Dual rate coil springs and matched 2.5 V.S. Series reservoir shocks work together to improve ride quality and maintain controlled damping when rough roads keep the suspension moving. Heavy duty steel upper and lower links add strength and reduce factory bushing bind, helping the front axle move more naturally through its increased travel. On the highway, the system is designed to deliver a smooth ride with less body roll, while the added ground clearance makes rough job sites and back roads easier to tackle with confidence. You can run 35 inch tires without modifications, and some 37 inch tires can fit with minor fender well trimming when a larger setup is the goal. Towing capacity remains unchanged and no driveshaft modifications are needed, giving you a substantial suspension upgrade without sacrificing the working capability of your Ram.

Stronger Hardware Keeps The Suspension In Check

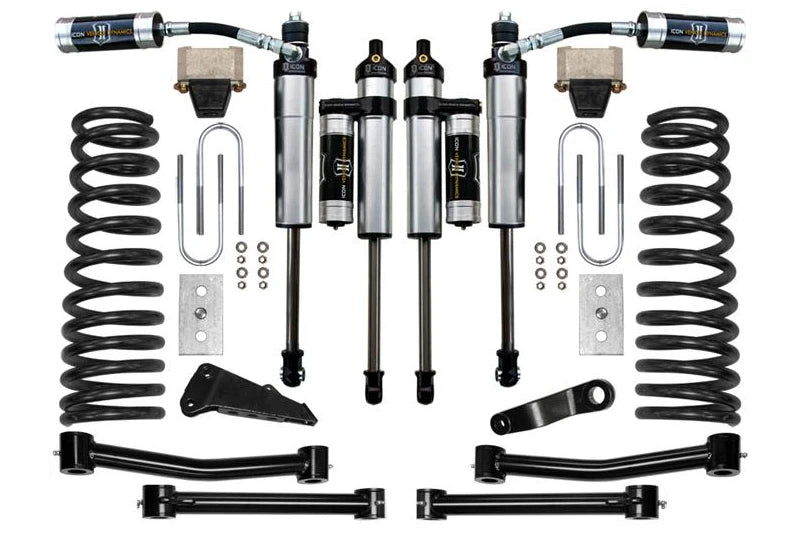

The K214552T combines carefully matched suspension and steering components to maintain proper geometry throughout the increased travel created by its 4.5 inch lift. ICON dual rate front coil springs work with a drop pitman arm, track bar drop bracket, sway bar drop brackets, and extended bumpstops to account for the revised suspension position. Tubular steel upper and lower link arms provide additional strength and alignment range while reducing the bind commonly associated with the factory link bushings. ICON 2.5 V.S. Series shocks use reservoirs to support consistent damping during extended use, making them well suited for repeated suspension cycling over uneven terrain. Their construction includes FK bearings, billet top caps and rod ends, strong 7/8 inch shafts, and one piece impact extruded aluminum cylinders for excellent corrosion resistance. Additionally, the shocks are fully serviceable, allowing them to be maintained as the truck accumulates miles and demanding use. Rear 2.5 inch lift blocks and extended U bolts complement the front suspension to establish the intended stance while retaining the truck's towing capacity. Together, these components create a coordinated Stage 3 system that improves clearance, suspension travel, and control without overlooking the geometry required for a properly lifted heavy duty Ram.

Fitment: 2009-2012 Dodge RAM 2500/3500 4WD w/ 4.5" Lift

Notes:

• Fits 2009-2012 Ram 2500/3500 4WD models
• Springs are rated for diesel engines only
• OEM wheels and tires are compatible
• Recommended tire size is 35x12.50
• Larger tires may require fender trimming
• Adjustable track bar may be needed
• No driveshaft modifications are required
• Factory towing capacity remains unchanged
• Shocks are fully serviceable
• Lift height assumes a stock equipped vehicle
• Contact ICON for 2013 Ram applications
• Kit ships in multiple boxes
• Product images may be representative
