Stage 2 Suspension System Kit - for 4.5" Lift

Features:

• Provides 4.5 inches of suspension lift
• Fits 2009-2012 Dodge RAM 2500/3500 4WD
• Remote reservoir shocks improve damping consistency
• Dual rate coils improve ride quality
• Heavy duty steel link arms included
• Increased wheel travel improves suspension performance
• Corrected steering geometry supports proper handling
• Reduces body roll compared to stock
• Clears 35 inch tires without modifications
• Maintains factory towing capacity
• No driveshaft modifications required
• Levels front and rear stance
• Made in the USA

Raise Your Ram Without Leaving Ride Quality Behind

A 4.5 inch lift can completely change the way your Ram looks, but the ICON K214551T Stage 2 Suspension System is built to make sure the driving experience improves along with the stance. Designed for 2009-2012 Dodge Ram 2500 and 3500 4WD trucks, this package adds useful ground clearance while keeping the suspension comfortable enough for long stretches of highway. ICON pairs dual rate coil springs with 2.0 Aluminum Series remote reservoir shocks, giving the truck controlled damping that stays more consistent when rough roads keep the suspension busy. Heavy duty steel upper and lower links strengthen the front suspension while reducing factory bushing bind, which helps the axle move more naturally across uneven surfaces. That makes this setup equally at home pulling a trailer down the highway, crossing a rutted construction site, or spending the weekend exploring country roads. Additionally, the lift creates clearance for 35 inch tires without modifications, while some 37 inch tires can fit with minor fender well trimming. With less body roll, increased wheel travel, unchanged towing capacity, and no required driveshaft modifications, this Stage 2 system adds capability without forgetting what makes a heavy duty Ram useful.

Matched Suspension Hardware Keeps Everything Moving Properly

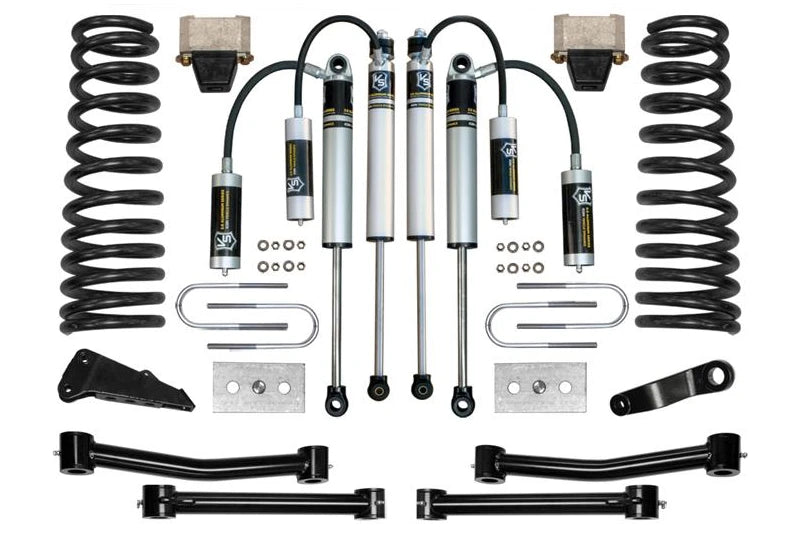

Getting the ride height right is only part of a proper suspension lift, so the K214551T includes supporting hardware designed to maintain steering and suspension geometry at 4.5 inches of lift. Dual rate front coil springs work with polyurethane bump stops and billet extensions, while sway bar drop brackets help accommodate the suspension's new operating position. A forged drop pitman arm and track bar drop bracket reposition key front end components to support proper steering geometry throughout the available travel. Tubular steel upper and lower link arms provide additional strength and alignment range while reducing the bind found in the original link bushings. ICON 2.0 Aluminum Series remote reservoir shocks are matched to the application, with separate front and rear configurations that help maintain consistent damping as heat builds during repeated suspension cycling. At the rear, 2.5 inch lift blocks and extended U bolts complement the front suspension height and help establish the intended level stance. The shocks are also fully serviceable, giving owners the option to maintain them as the suspension accumulates miles and demanding use. Together, these components create a coordinated system that balances additional clearance with controlled suspension movement and predictable road manners.

Fitment: 2009, 2010, 2011, 2012 Dodge RAM 2500/3500 4WD w/ 4.5" Lift

Notes:

• Fits 2009-2012 Ram 2500/3500 4WD models
• Springs are rated for diesel engines only
• OEM wheels and tires are compatible
• Recommended tire size is 35x12.50
• Larger tires may require fender trimming
• Adjustable track bar may be needed
• No driveshaft modifications are required
• Factory towing capacity remains unchanged
• Shocks are fully serviceable
• Lift height assumes a stock equipped vehicle
• Contact ICON for 2013 Ram applications
• Kit ships in multiple boxes
• Product images may be representative
