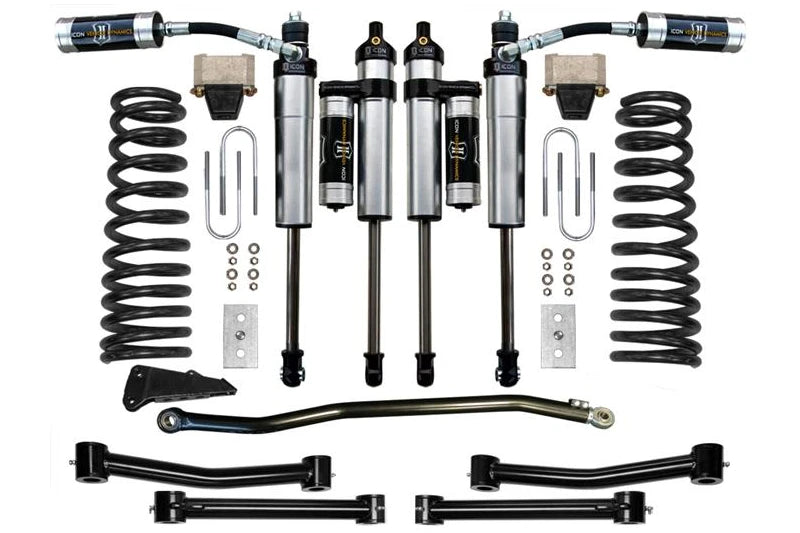

Stage 4 Lift Kit - for 4.5" Lift

Features:

• Provides 4.5 inches of suspension lift
• Fits 2003-2008 Dodge RAM 2500/3500 4WD
• 2.5 Aluminum Series reservoir shocks included
• Dual rate coils improve ride quality
• Adjustable track bar centers front axle
• Heavy duty steel link arms included
• Increased wheel travel improves suspension performance
• Corrected steering geometry supports proper handling
• Reduces body roll compared to stock
• Clears 35 inch tires without modifications
• Maintains factory towing capacity
• No driveshaft modifications required
• Fully serviceable performance shocks

Build A Ram That Feels Ready For Anything

More ground clearance is great, but the real payoff comes when your lifted truck feels composed enough to enjoy every mile getting to the next destination. The ICON K214503T Stage 4 Lift Kit transforms 2003-2008 Dodge Ram 2500 and 3500 4WD trucks with 4.5 inches of lift while improving the suspension characteristics that matter both on pavement and rough terrain. ICON matches dual rate coil springs with 2.5 Aluminum Series reservoir shocks, giving the truck controlled damping that can stay consistent as the suspension works through long stretches of uneven ground. An adjustable track bar helps center the front axle beneath the truck, while heavy duty steel upper and lower links add strength and allow the suspension to move with less factory bushing bind. The result is increased wheel travel, less body roll, and a smoother highway feel that makes the added height useful instead of simply noticeable. You can also step up to 35 inch tires without modifications, while some 37 inch combinations can fit with minor fender well trimming when you want an even larger footprint. With towing capacity retained and no driveshaft modifications required, this Stage 4 system gives your Ram more trail capability without taking away the practical strengths you depend on every day.

Stronger Geometry Creates More Usable Suspension Travel

The K214503T addresses the geometry changes created by a 4.5 inch lift with components engineered to keep the suspension and steering working correctly throughout their travel. Its dual rate front coil springs are paired with steering correction hardware, sway bar drop brackets, and other supporting components that position the suspension around the increased ride height. The adjustable track bar uses PTFE lined FK bearings for additional rigidity and allows the front axle to be centered beneath the chassis after installation. Tubular steel upper and lower links provide increased strength and alignment range while reducing the bind associated with the original link bushings. ICON 2.5 Aluminum Series reservoir shocks use FK bearings, billet top caps and rod ends, and substantial 7/8 inch shafts to support demanding suspension use while maintaining consistent damping. Additionally, the shocks are fully serviceable, providing a path for future maintenance rather than requiring replacement when service becomes necessary. Rear suspension components complement the front lift while helping create the intended level stance and preserve the truck's towing capacity. Together, these matched components create a suspension system focused on controlled travel, proper axle positioning, and dependable performance across changing road and terrain conditions.

Fitment: 2003, 2004, 2005, 2006, 2007, 2008 Dodge RAM 2500/3500 4WD w/ 4.5" Lift

Notes:

• Fits 2003-2008 Ram 2500/3500 4WD models
• Springs are rated for diesel engines only
• OEM wheels and tires are compatible
• Recommended tire size is 35x12.50
• Larger tires may require fender trimming
• No driveshaft modifications are required
• Factory towing capacity remains unchanged
• Shocks are fully serviceable
• Lift height assumes a stock equipped vehicle
• 03-06 steering may require pitman arm changes
• 07-12 steering requires ICON pitman arm 214101
• Kit ships in multiple boxes
• Product images may be representative
