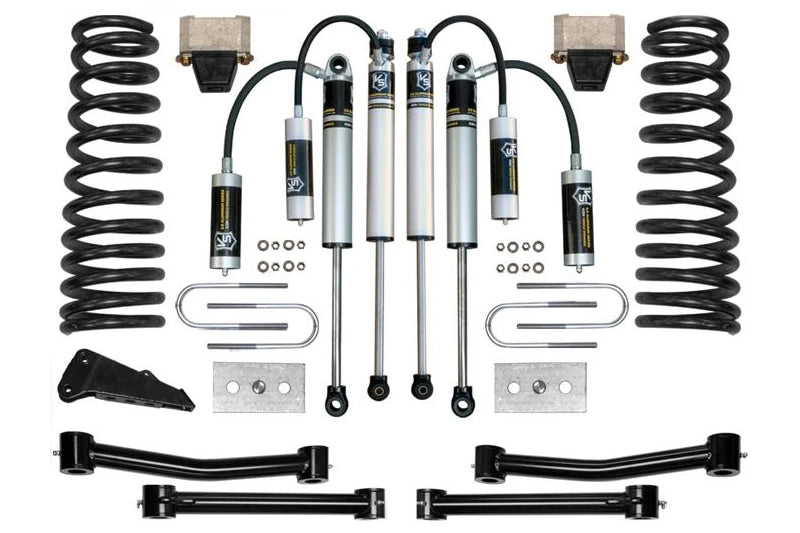

Stage 2 Lift Kit - for 4.5" Lift

Features:

• Provides 4.5 inches of suspension lift
• Fits 2003-2008 Dodge RAM 2500/3500 4WD
• Increases ground clearance for challenging terrain
• Clears 35 inch tires without modifications
• Remote reservoir shocks maintain consistent damping
• Dual rate coils improve ride quality
• Heavy duty steel link arms included
• Corrected steering geometry maintains proper function
• Increased wheel travel improves suspension performance
• Reduces body roll compared to stock
• Maintains factory towing capacity
• No driveshaft modifications required
• Levels front and rear stance

Build More Capability Into Every Mile

Adding 4.5 inches of lift to a heavy duty Ram should give you more than a taller stance, and the ICON K214501T Stage 2 Lift Kit is designed to make that extra height work for the truck. Developed for 2003-2008 Dodge Ram 2500 and 3500 4WD models, this system adds valuable ground clearance while improving suspension performance for everything from highway driving to rough job sites and country roads. ICON pairs dual rate coil springs with 2.0 Aluminum Series remote reservoir shocks, helping the truck stay comfortable on everyday drives while maintaining controlled damping when the terrain gets rough. Heavy duty steel upper and lower link arms reduce the binding associated with factory link bushings, giving the suspension more freedom to move through its travel. The complete system also maintains towing capacity, making it a practical choice for owners who still expect their truck to handle trailers and demanding workloads after the lift. Additionally, the added clearance accommodates 35 inch tires without modifications, while some 37 inch tires can fit with minor fender well trimming. With improved ride quality, reduced body roll, and a level front to rear stance, this Stage 2 system gives your Ram a more capable setup without forgetting how a heavy duty truck needs to work.

Geometry Matters When The Suspension Gets Taller

The ICON K214501T takes a complete suspension approach by adding the supporting components needed to maintain proper steering geometry throughout the increased travel range. Up front, dual rate coil springs establish the additional lift while polyurethane bumpstops with billet extensions and sway bar drop brackets help accommodate the revised suspension position. A forged pitman arm and track bar drop bracket correctly position critical steering and axle locating components, helping the truck maintain proper function after gaining 4.5 inches of lift. Tubular steel upper and lower link arms add strength while increasing alignment range and reducing the bind found in the original link bushings. ICON 2.0 Aluminum Series remote reservoir shocks provide matched damping, with the additional reservoir capacity helping maintain consistent shock performance during extended use on uneven terrain. At the rear, 2.5 inch lift blocks and U bolts raise the truck to complement the front suspension and create a level overall stance. The system increases wheel travel and ground clearance without requiring driveshaft modifications, resulting in a thoughtfully engineered suspension package for drivers who want additional height without overlooking the geometry that makes it all function correctly.

Fitment:  2003, 2004, 2005, 2006, 2007, 2008 Dodge RAM 2500/3500 4WD w/ 4.5" Lift

Notes:

• Fits 2003-2008 Ram 2500/3500 4WD models
• Provides approximately 4.5 inches of lift
• Clears 35 inch tires without modifications
• Some 37 inch tires require minor trimming
• No driveshaft modifications are required
• Factory towing capacity remains unchanged
• Includes 2.5 inch rear lift blocks
• Includes front and rear reservoir shocks
• Includes steering geometry correction components
• Designed to level the truck front to rear

• Product images may be representative
