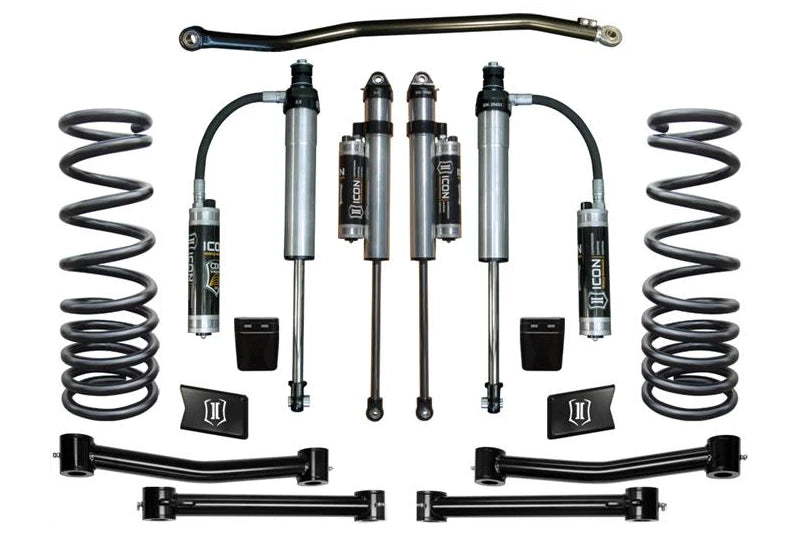

Stage 5 Lift Kit - for 2.5" Lift

Features:

• Supports 2.5" front lift height
• Fits 2003-2012 RAM 2500/3500 4WD
• Stage 5 ultimate performance system
• 2.5 inch VS Series shocks
• CDCV external compression adjusters
• Dual rate coil springs included
• Bearing style adjustable track bar
• Heavy duty steel upper and lower links
• Increased wheel travel and ride quality
• No driveshaft modifications required
• Maintains factory towing capacity
• Made in the USA

Transform Your Ram Into A Controlled And Capable Machine

If you have been wanting your 2003-2012 RAM 2500 or 3500 to sit right and drive even better, the ICON Stage 5 2.5 inch Lift Kit is where things get serious. This system does more than level the stance, it completely changes how the truck feels on and off the road. The dual rate coil springs smooth out everyday driving while still supporting the weight of a diesel truck, so you are not sacrificing comfort for capability. Paired with ICON 2.5 inch VS Series shocks featuring CDCV adjusters, you can fine tune compression with the turn of a knob to match your terrain or driving style. That means you can dial it in for highway cruising during the week and tighten things up for rough trails on the weekend. Additionally, the improved wheel travel and reduced body roll give the truck a more planted and confident feel in corners and over uneven ground. It is the kind of upgrade that makes you look for excuses to take the long way home.

Engineered Suspension Components Built For Strength And Precision

The K212505T Stage 5 system is built around ICON 2.5 inch VS Series shocks with CDCV, designed to maintain consistent damping even under aggressive use. These shocks feature 7-8 inch shafts for strength, billet top caps and rod ends, FK bearings, and the industry only forged stem on a 2.5 inch shock with rolled threads. The external Compression Damping Control Valve allows precise adjustment of compression valving without removing the shock, giving you real control over ride characteristics. Furthermore, the bearing style adjustable track bar uses PTFE lined FK bearings to improve rigidity and accurately center the front axle under the truck. Heavy duty steel upper and lower links, combined with 6061 billet components and 1 inch PTFE lined stainless bearings, reduce bind found in factory bushings and increase alignment range. Polyurethane bumpstops and sway bar drop brackets complete the package, ensuring proper geometry and suspension performance. Designed for 2003-2012 RAM 2500 and 3500 4WD models with 5.9L or 6.7L Cummins engines, this system delivers premium performance without requiring driveshaft modifications or sacrificing towing capacity.

Fitment: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Dodge RAM 2500/3500 5.9L/6.7L Cummins 4WD w/ 2.5" Front Lift

Notes:

• Fits 2003-2012 RAM 2500/3500 4WD only
• Designed for 5.9L and 6.7L Cummins
• Provides 2.5 inch front lift
• Professional installation highly recommended
• Alignment required after installation
• No driveshaft modifications required
• Maintains factory towing capacity
• External shock adjusters require periodic inspection
• Increased ride height may require larger tires
• Made in the USA
• Product images may be representative
