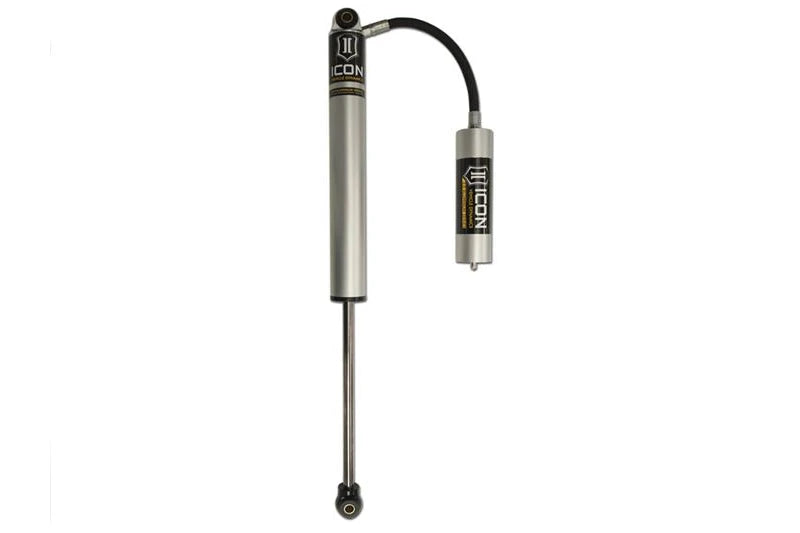

2.0" Aluminum VS RR Rear Shock - for 8-12" Lift

Features:

• Supports 8-10" front lift/12" rear lift
• Fits 1999-2004 Ford F250/F350 Powerstroke 4WD
• Vehicle specific valving improves ride control
• Remote reservoir supports consistent shock performance
• Nitrogen charged monotube design
• Premium oil provides consistent damping
• Aluminum body improves heat dissipation
• Anodized construction improves corrosion resistance
• Hardened steel shaft resists pitting
• Linear digressive piston improves suspension response
• Polyurethane bushings provide factory style fitment
• Designed for street and offroad performance
• Fully rebuildable for long term service
• Fully revalveable for customized performance

Bring Control Back To Your Lifted Super Duty

Once your Super Duty is sitting high above stock, the right shock can make the difference between simply having clearance and actually enjoying how the truck drives. The ICON 36510R 2.0 inch Aluminum Series remote reservoir shock is built for lifted 1999-2004 Ford F250 and F350 Powerstroke 4WD trucks that need more controlled suspension behavior on pavement and dirt. ICON uses vehicle specific valving to manage suspension movement in a way that complements the truck, helping deliver a more composed ride through rough streets, gravel roads, and moderate offroad terrain. Its remote reservoir provides additional fluid capacity and helps manage heat, which becomes especially valuable when the shocks are working repeatedly over uneven surfaces. The aluminum construction also promotes heat dissipation while providing corrosion resistance for a shock that will spend its life exposed beneath the truck. Inside, premium 5WT shock oil helps maintain consistent damping across a broad temperature range, giving you dependable performance as driving conditions change. Best of all, the shock is completely rebuildable and revalveable, giving you a quality suspension component that can be serviced or retuned instead of simply replaced.

Engineered Components Keep Damping Consistent

The 36510R combines a nitrogen charged monotube layout with a remote reservoir to provide consistent damping for heavily lifted Ford Super Duty applications. Its one piece linear digressive piston uses vehicle specific valving to balance ride quality and suspension control across changing road and trail conditions. A 5/8 inch chrome plated hardened steel shaft provides the strength required for suspension duty while helping resist corrosion and surface pitting over time. ICON constructs the shock body and reservoir tubing from anodized 6063 aluminum, which provides effective heat dissipation while adding another layer of corrosion resistance. Additionally, 6061 aluminum is used for the rod end, top cap, and internal components to provide strength without unnecessary weight. Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems support a factory style fitment, while a nitrile rubber top out bumper helps keep operation quiet at full extension. Since the shock can be completely rebuilt and revalved, owners can service worn components or alter the damping characteristics as their truck and suspension setup evolve.

Fitment:  1999, 2000, 2001, 2002, 2003, 2004 Ford F250/F350 Powerstroke 4WD w/ 8-10" front lift/12" rear lift

Notes:

• Fits 1999-2004 Ford F250 and F350 Powerstroke 4WD
• Supports 8-10" front lift/12" rear lift
• Designed for heavily lifted Super Duty applications
• Verify required lift range before ordering
• Quantity requirements may vary by axle
• Shock is fully rebuildable
• Shock is fully revalveable
• Remote reservoir requires proper mounting space
• Vehicle specific valving is application dependent
• ICON recommends 2.5 Series for extreme use
• Confirm front or rear placement before purchase
• (1) ICON 2.0" Aluminum VS RR Rear Shock
• Product images may be representative
