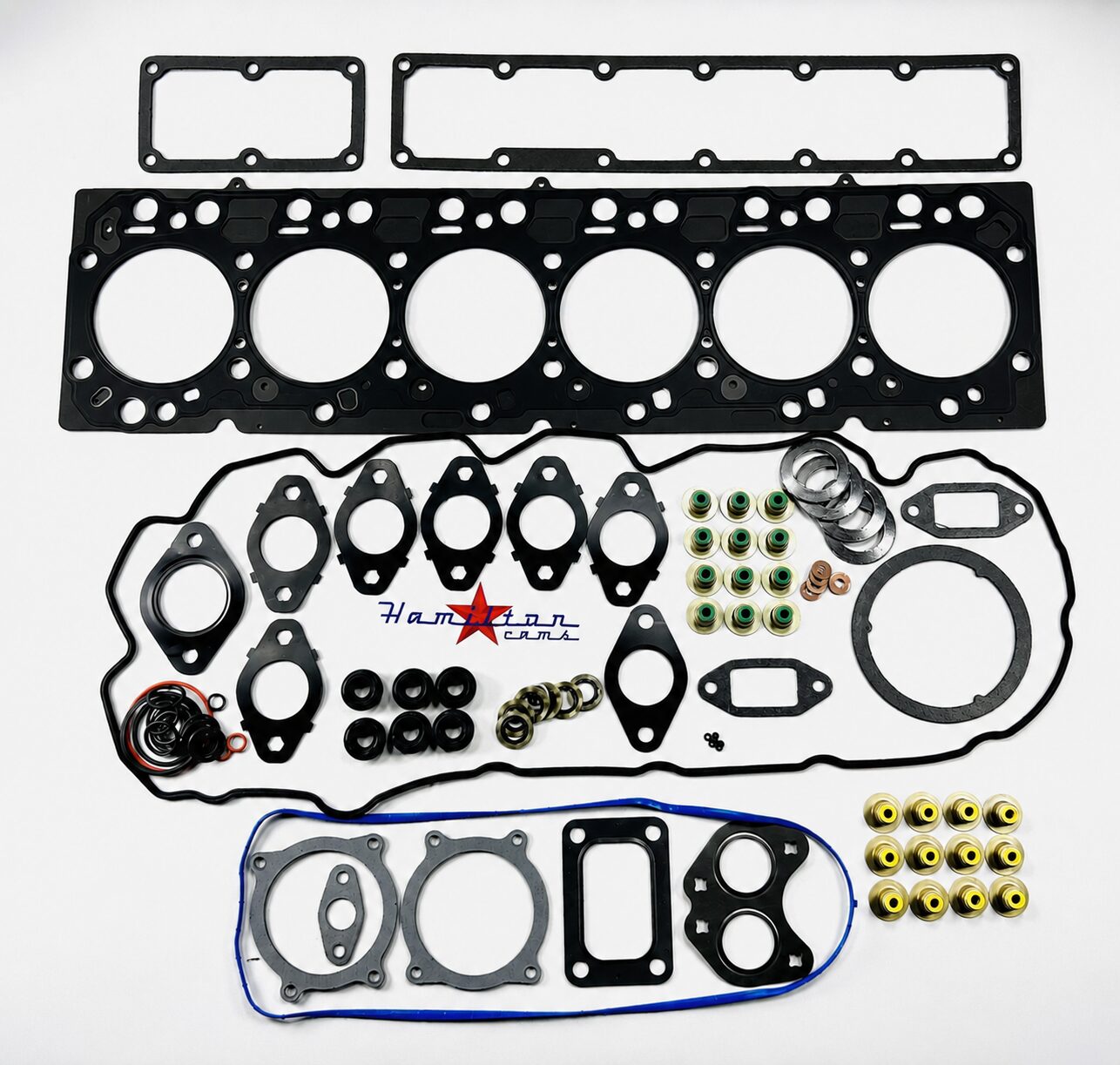

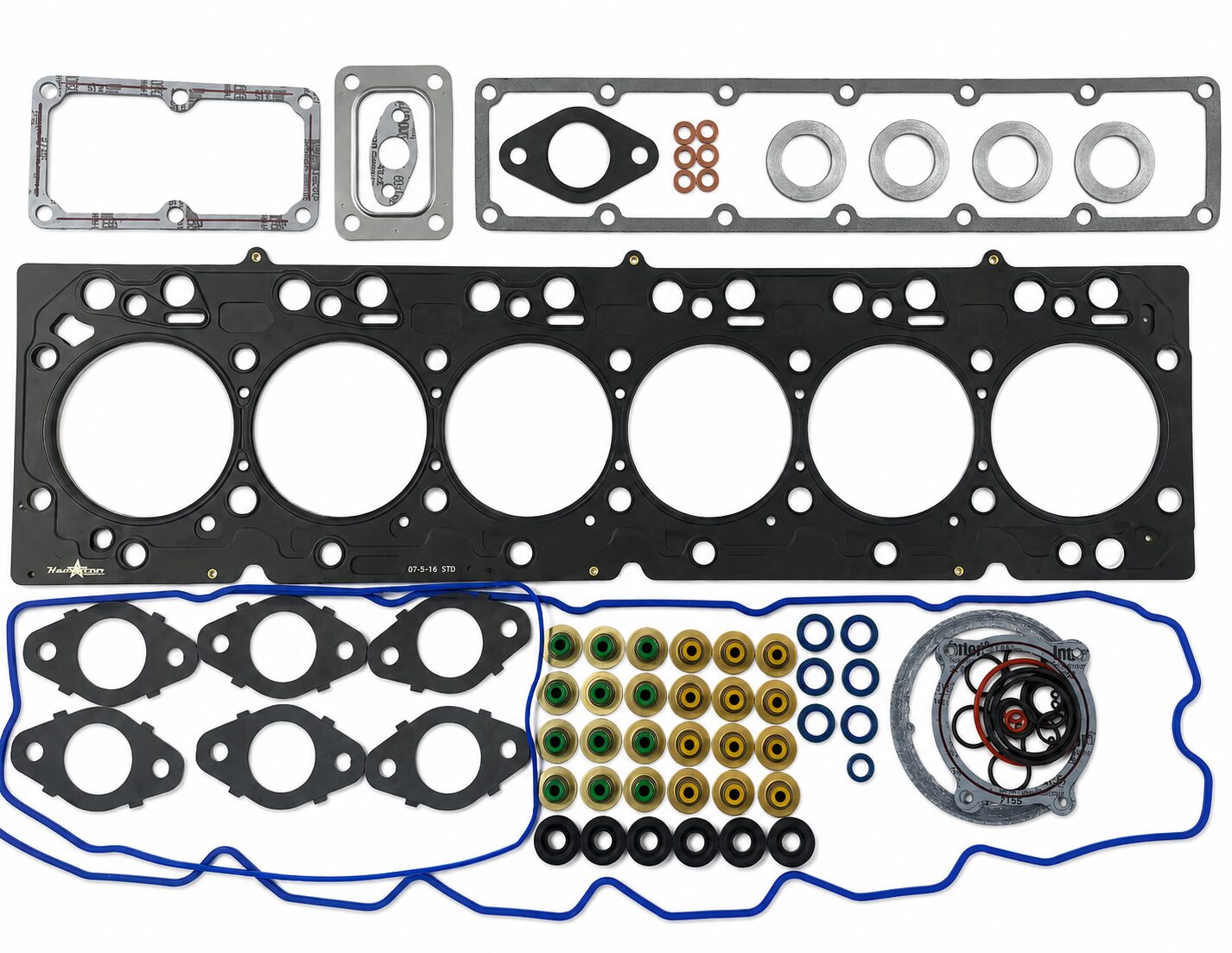

07-g-6.719+TE Top End Gasket Kit

Features:

• Complete top end gasket kit included
• Fits 2019-2024 RAM 2500/3500 6.7 Cummins
• New head gasket for high compression
• Intake plenum and intake horn gaskets
• Exhaust manifold gaskets resist extreme heat
• Valve stem seals prevent oil leakage
• EGR gaskets maintain proper system seal
• CCV filter gasket seals crankcase ventilation
• Valve cover gasket and bushings included
• Injector coppers and O-rings included
• Meets or exceeds OEM specifications
• Ideal for head gasket jobs and rebuilds

Give Your Cummins The Seal It Deserves

There is a specific kind of headache that comes with tearing into a 6.7 Cummins top end and realizing halfway through that you are missing one gasket you did not think to order. Hamilton Cams built this kit so that moment never happens to you again. Every seal your engine needs for a head gasket job or a full top end rebuild is already in the box, from the head gasket itself down to the small stuff like injector coppers and CCV filter gaskets that are easy to overlook until you need them. That matters just as much for a shop working through a full week of Cummins jobs as it does for the guy doing this once in his own driveway. You are not stuck ordering from three different parts counters and waiting on a shipment to finish a job that is already half apart. Instead, you open one kit and everything lines up with the 2019-2024 6.7 Cummins sitting on your stand. Once it is buttoned up, you get to drive away knowing the seal underneath that valve cover and around every injector is fresh, not just patched together with whatever was left in the shop. That peace of mind is worth more than the time it saves.

Every Gasket Built To Handle The Heat

This kit covers the full top end of the 2019-2024 6.7L Cummins, starting with a head gasket engineered to hold a stable seal under the high compression and sustained heat this engine generates. From there it works outward to the intake plenum gasket and intake horn gasket, both of which keep airflow consistent and prevent the small air leaks that throw off intake pressure readings. The exhaust manifold gaskets are built to handle the extreme temperatures that come off a 6.7 Cummins under load, which is exactly the environment they are designed for. Valve stem seals are included to keep oil out of the combustion chamber and off the valve train, while the EGR gaskets restore a proper seal to the emissions system without changing how it functions. A CCV filter gasket keeps the crankcase ventilation system sealed the way the factory intended, and the valve cover gasket and bushings stop the slow oil seep that shows up at the base of the valve cover over time. Rounding out the kit are fuel injector coppers and injector O-rings, which seal each injector tight against the head and support consistent fuel delivery. Hamilton Cams engineers every gasket in this kit to meet or exceed OEM specifications, so fitment and sealing performance on a correctly prepped 6.7 Cummins should match or beat what came off the factory line.

Fitment: 2019, 2020, 2021, 2022, 2023, 2024 RAM 2500/3500 6.7 Cummins

Notes:

• Have the cylinder head surfaced before installation
• Go over the block deck surface with a 320 grit or finer stone to knock down peaks
• Designed for 2019-2024 Ram 2500/3500 6.7L Cummins engines
• Verify your exact engine code and model year before ordering
• This is a top end gasket kit, not a complete rebuild kit
• Includes injector coppers and O-rings, not the injectors themselves
• EGR gaskets restore the factory seal and do not alter emissions function
• Valve cover bushings are included along with the valve cover gasket
• Manufacturer states gaskets meet or exceed OEM specifications
• Follow manufacturer torque specs and installation instructions during assembly
• Suitable for head gasket replacement or full top end rebuild jobs
• Professional installation is recommended for this level of engine work
