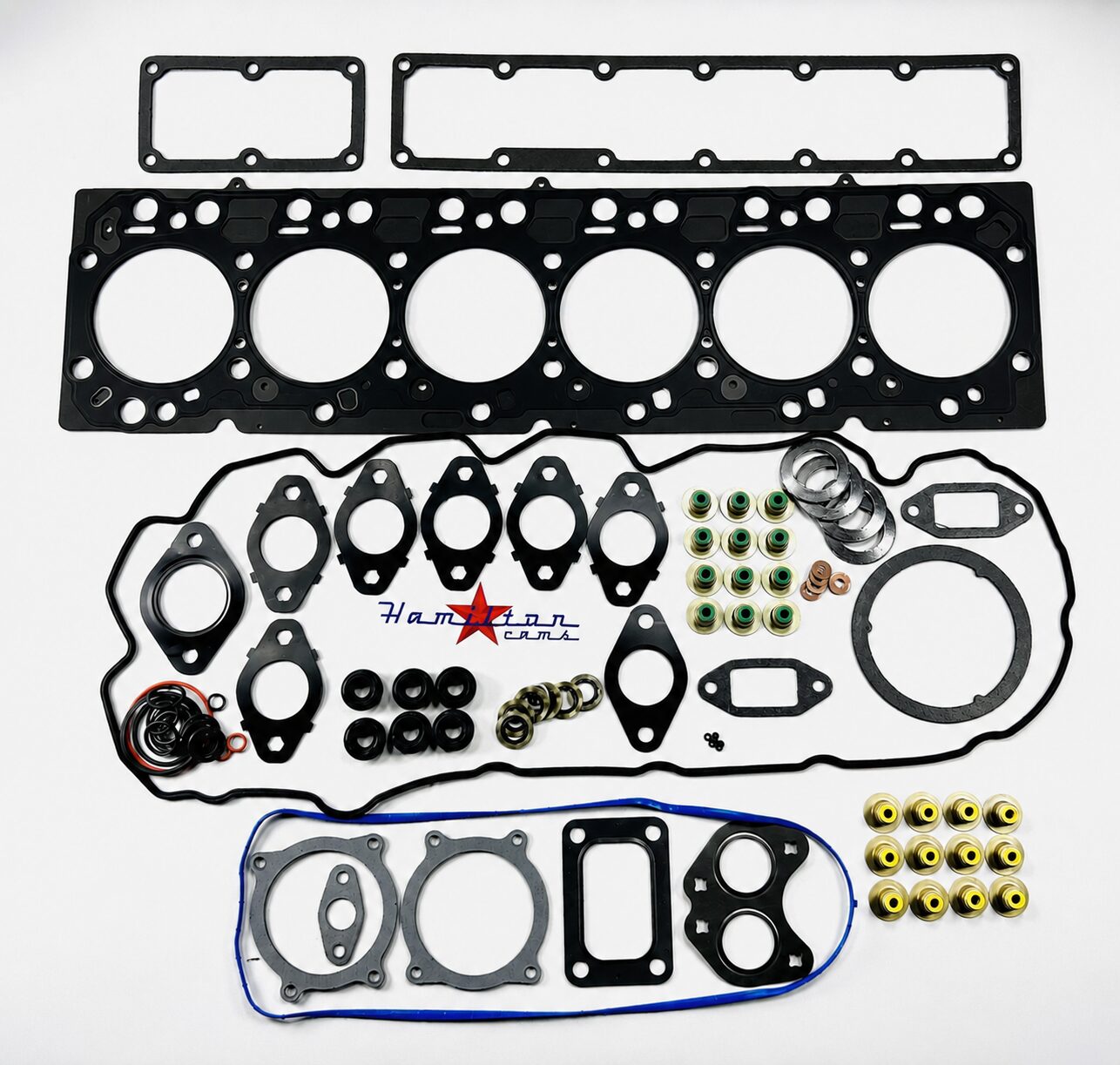

07-g-6.719+TE Top End Gasket Kit

Features:

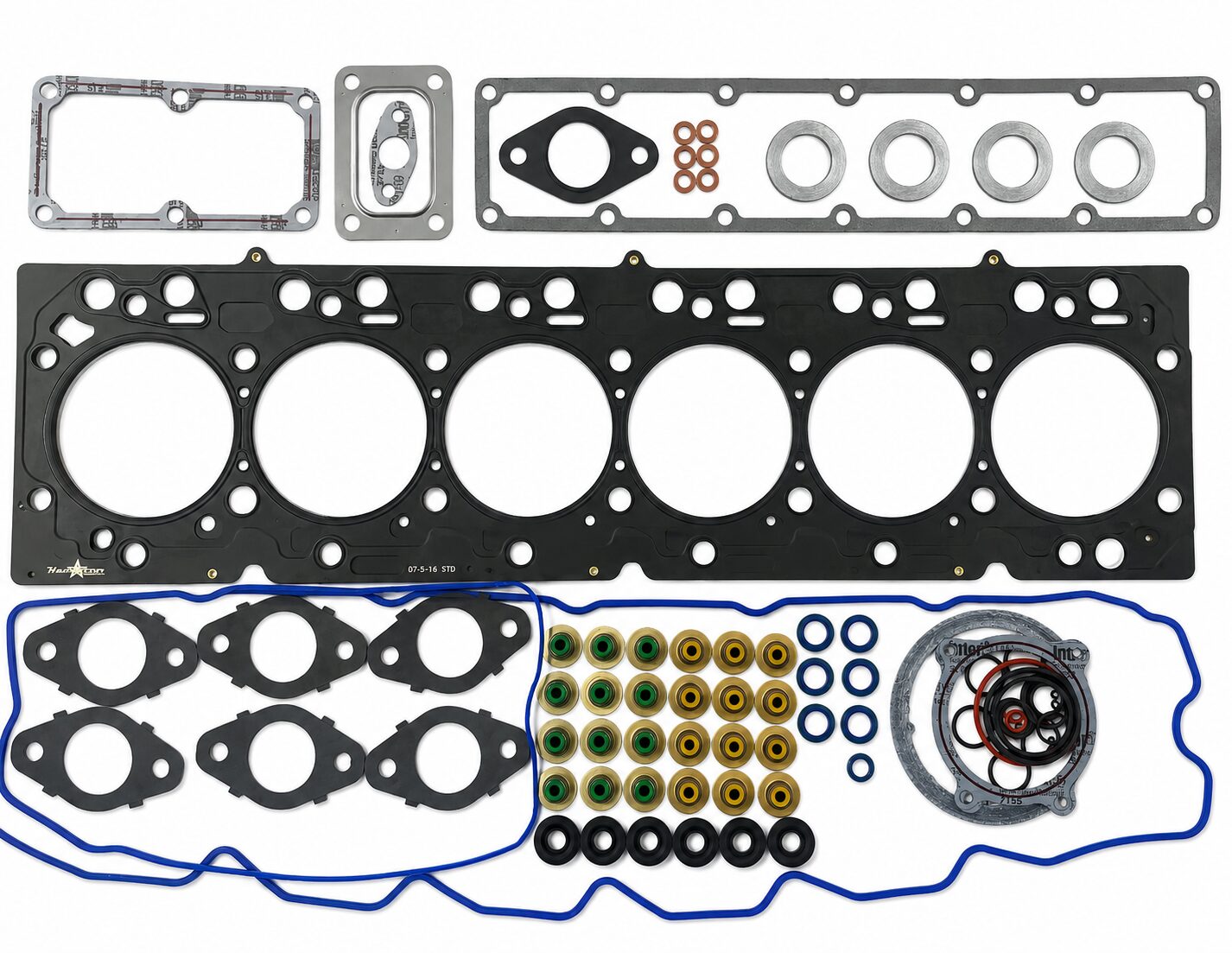

• Top end sealing kit for 6.7L Cummins
• Includes head gasket
• Intake plenum and intake horn gaskets
• Exhaust manifold gaskets included
• New valve stem seals included
• EGR and CCV filter gaskets included
• Valve cover gasket and bushings included
• Fuel injector coppers and O-rings included
• Fits 2019-2024 RAM 2500/3500/4500/5500 Cummins
• Includes surface preparation guidance

A Top End Rebuild Should Only Have To Happen Once

A top end job on a 6.7L Cummins is not something you want to do twice. Whether you are chasing a head gasket failure or finishing a planned rebuild, the engine is torn down and the clock is ticking. The seals you put back in have to hold up under heat and pressure for the long haul. That is why Hamilton Cams put together a top end gasket kit for 2019-2024 RAM 2500 through 5500 trucks. Instead of ordering parts one at a time, you start the job with the sealing parts grouped in one box. That means fewer delays and fewer surprises while the engine is apart. It also means small items, like the injector coppers, are already on the bench when you need them. For a truck you depend on, that kind of preparation is worth having.

What Goes Where From The Cylinder Head To The Injectors

The Hamilton Cams 07-G-6.719+TE is a top end gasket kit for the 6.7L Cummins in 2019-2024 RAM 2500, 3500, 4500, and 5500 trucks. At the cylinder head, it includes the head gasket, valve stem seals, and a valve cover gasket with bushings. The intake side gets an intake plenum gasket and an intake horn gasket. Exhaust manifold gaskets, EGR gaskets, and a CCV filter gasket cover the remaining sealing points. For the fuel injectors, the kit adds injector coppers and injector O rings. Hamilton says to have the cylinder head surfaced before installation. It also suggests going over the block deck with a 320 or finer grit axe sharpening stone to knock down peaks. Head studs, head bolts, and other hardware are not listed, so compare the contents with your repair before ordering.

Fitment: 2019, 2020, 2021, 2022, 2023, 2024 RAM 2500/3500/4500/5500 6.7L Cummins

Notes:

• Compare the kit contents with the parts needed for your repair before ordering
• Have the cylinder head surfaced before installation
• Hamilton suggests going over the cylinder block deck with a 320 or finer grit axe sharpening stone to knock down peaks
• Head studs, head bolts, and other hardware are not listed in the kit contents
