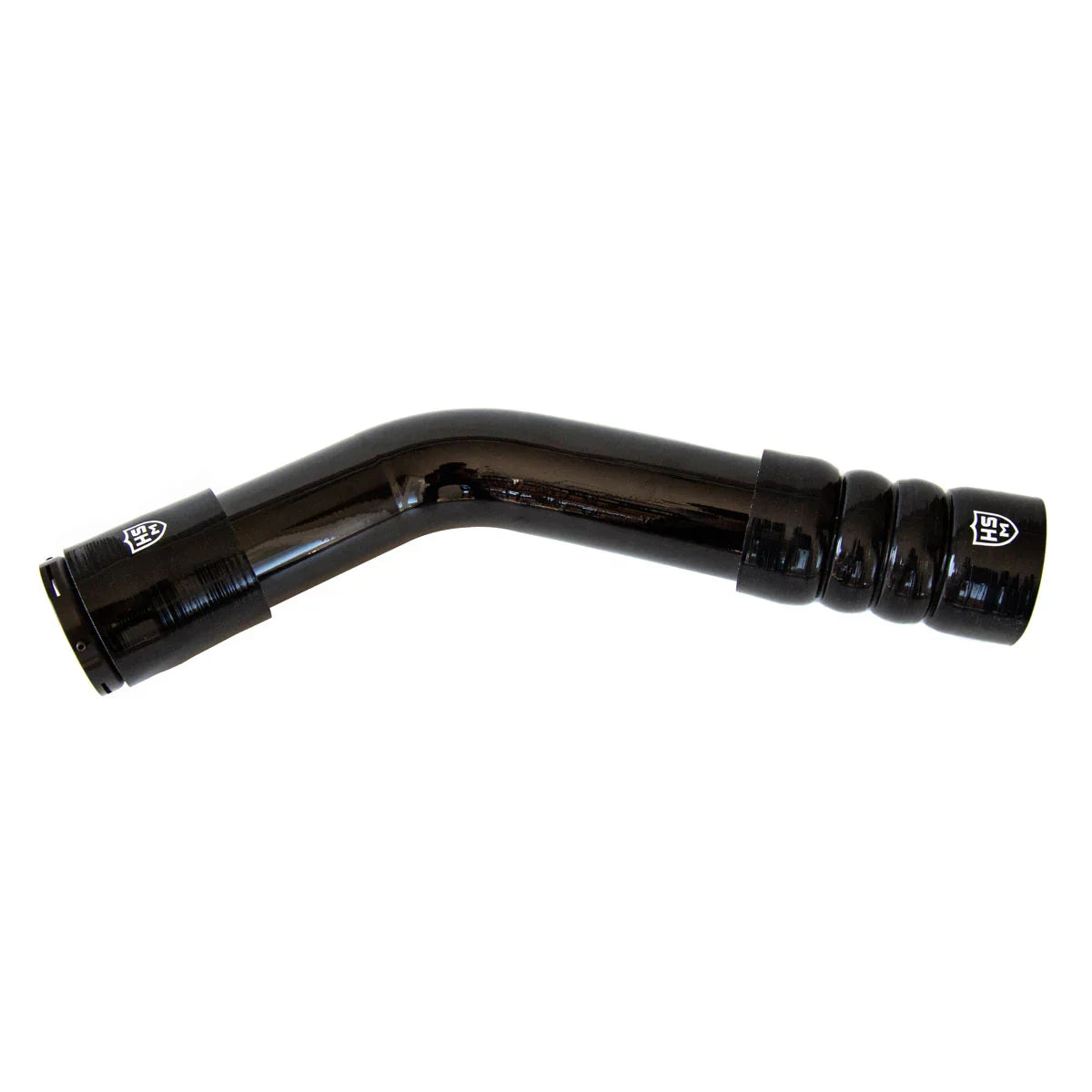

122016-B Hot Side Intercooler Pipe Upgrade

Features:

• Fixes known factory hot side pipe failure point
• Full 3-inch, all-metal pipe design
• Heavy-duty billet coupler for secure seal
• Resists heat cycling better than factory plastic
• Reduces restriction for improved boost efficiency
• Quicker throttle response under load
• Direct bolt-on, no cutting required
• 50-state emissions legal, CARB EO certified
• Custom powder coat finish available
• Backed by limited lifetime warranty

Stop A Known Weak Point Before It Leaves You Stranded

If you own a 6.7L Power Stroke, there's a good chance you've heard about the factory hot side intercooler pipe letting go under boost, and it's not a rare occurrence. The crimped connections and plastic sections Ford used from the factory just aren't built to handle repeated heat cycling and boost pressure over the long haul, and when that connection separates, you're looking at a sudden loss of power right in the middle of driving. H&S Motorsports built this upgrade specifically to eliminate that failure point, replacing the weak factory design with a full 3-inch, all-metal pipe and a heavy-duty billet coupler that actually holds up to real use. Once this is installed, you get a secure, long-term seal that resists the heat and pressure cycling that destroys factory components, along with a full 3-inch diameter that reduces restriction and helps your truck maintain boost efficiency. That translates to quicker throttle response and more consistent power delivery, especially under load while towing or working the truck hard. Since it's a direct bolt-on replacement with no cutting or fabrication needed, most installs take just 1 to 2 hours with basic hand tools. For a part that's known to fail on stock trucks, this is the kind of preventative upgrade that saves you from a roadside headache down the line.

All-Metal Construction Engineered To Outlast The Factory Design

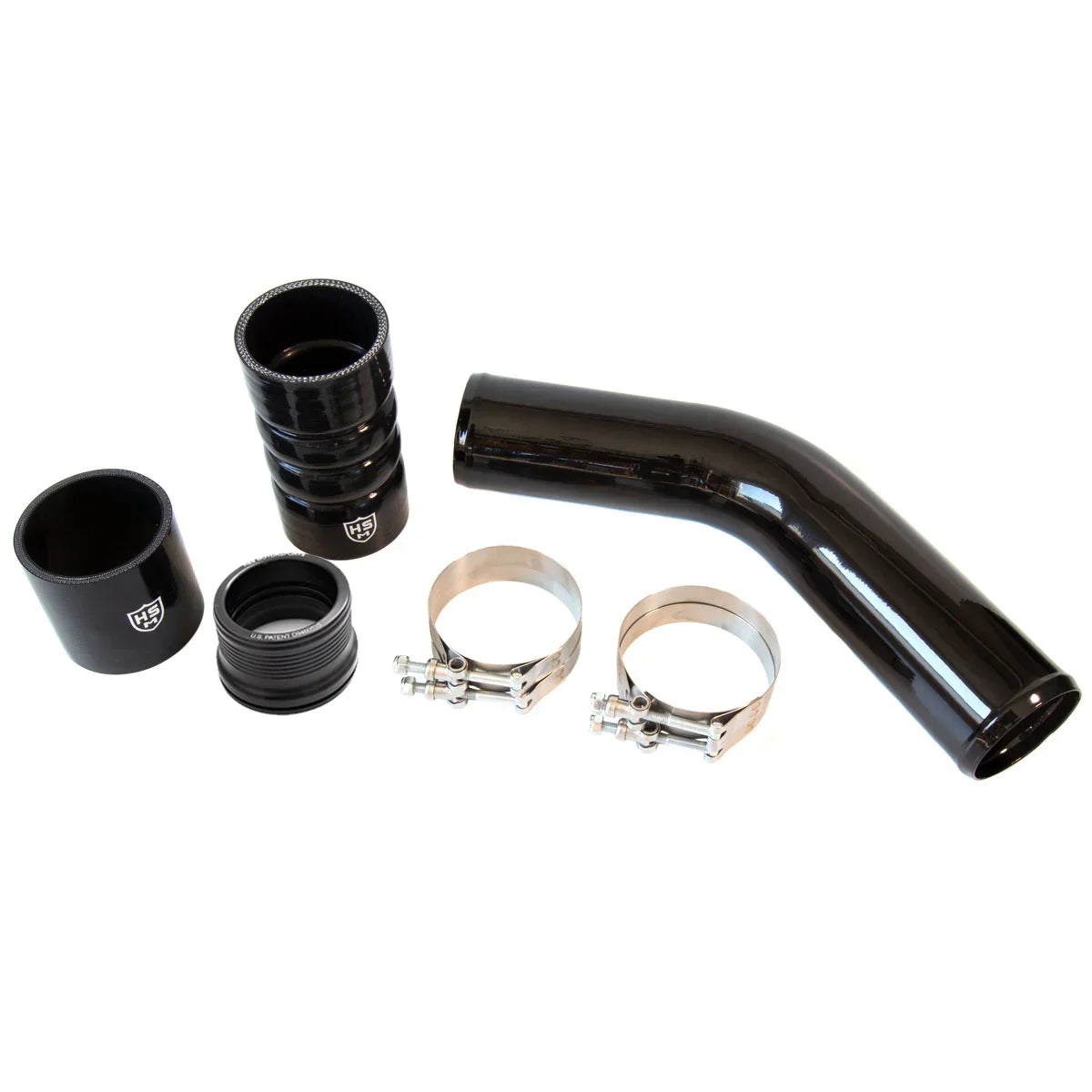

The H&S Motorsports 122016-B is a 3-inch hot side intercooler pipe upgrade engineered specifically for 2011-2026 Ford F250 and F350 Super Duty trucks equipped with the 6.7L Power Stroke engine. This kit replaces the factory pipe assembly, which relies on crimped connections and plastic sections prone to separating under sustained boost pressure, with a full 3-inch aluminum pipe paired with a heavy-duty billet hose coupler for a far more secure connection. The all-metal construction resists the heat cycling that causes factory plastic components to become brittle and fail over time, while the larger 3-inch diameter reduces airflow restriction compared to the factory pipe's narrower sections. One important fitment note applies to 2023-2026 High Output trucks, since some factory hot side pipes on these models include a sensor that requires a specific version of this kit, so checking your factory tube before ordering is necessary. The kit includes the billet coupler, the aluminum pipe, and all required clamps and hardware, with a raw aluminum finish standard and custom powder coat available upon request. This product is 50-state emissions legal and carries C.A.R.B. Executive Order D880-1 certification, and it directly replaces Ford OEM part numbers including BC3Z-6F073-D, BC3Z-6F073-A, BC3Z-6F073-B, BC3Z-6F073-C, HC3Z-6F073-A, and HC3Z-6F073-B. Every kit is backed by H&S Motorsports' limited lifetime warranty.

Fitment: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Ford F250/F350 Super Duty 6.7L Powerstroke

Notes:

• 2023-2026 High Output trucks may have a sensor in the factory pipe, verify before ordering
• Select the sensor option in the dropdown if your factory tube has one
• Direct bolt-on install, no cutting or fabrication required
• Typical install time is 1-2 hours with basic tools
• 50-state emissions legal, C.A.R.B. EO #D880-1 certified
• Standard finish is raw aluminum, custom powder coat available on request
• Custom powder coat colors add 7-10 days to processing time
• Replaces Ford OEM part numbers BC3Z-6F073-D, BC3Z-6F073-A, BC3Z-6F073-B, BC3Z-6F073-C, HC3Z-6F073-A, HC3Z-6F073-B
• Covered by H&S Motorsports' limited lifetime warranty

Install Instructions
