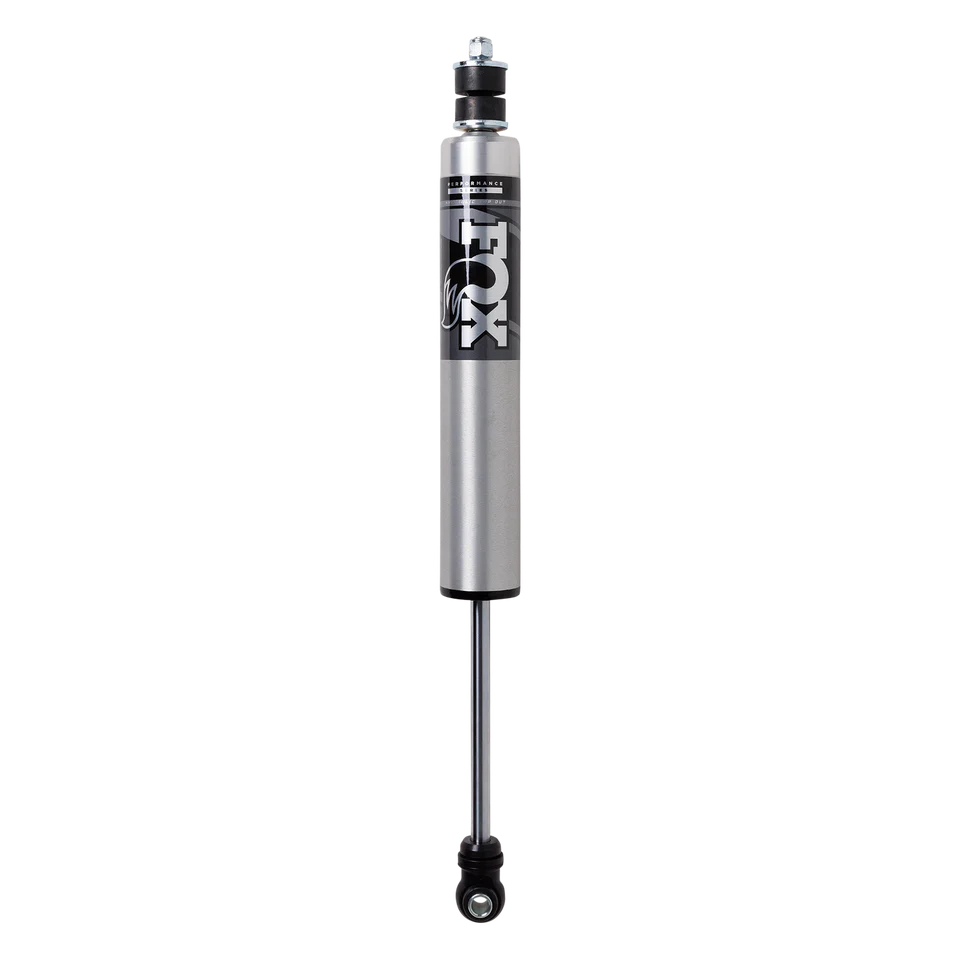

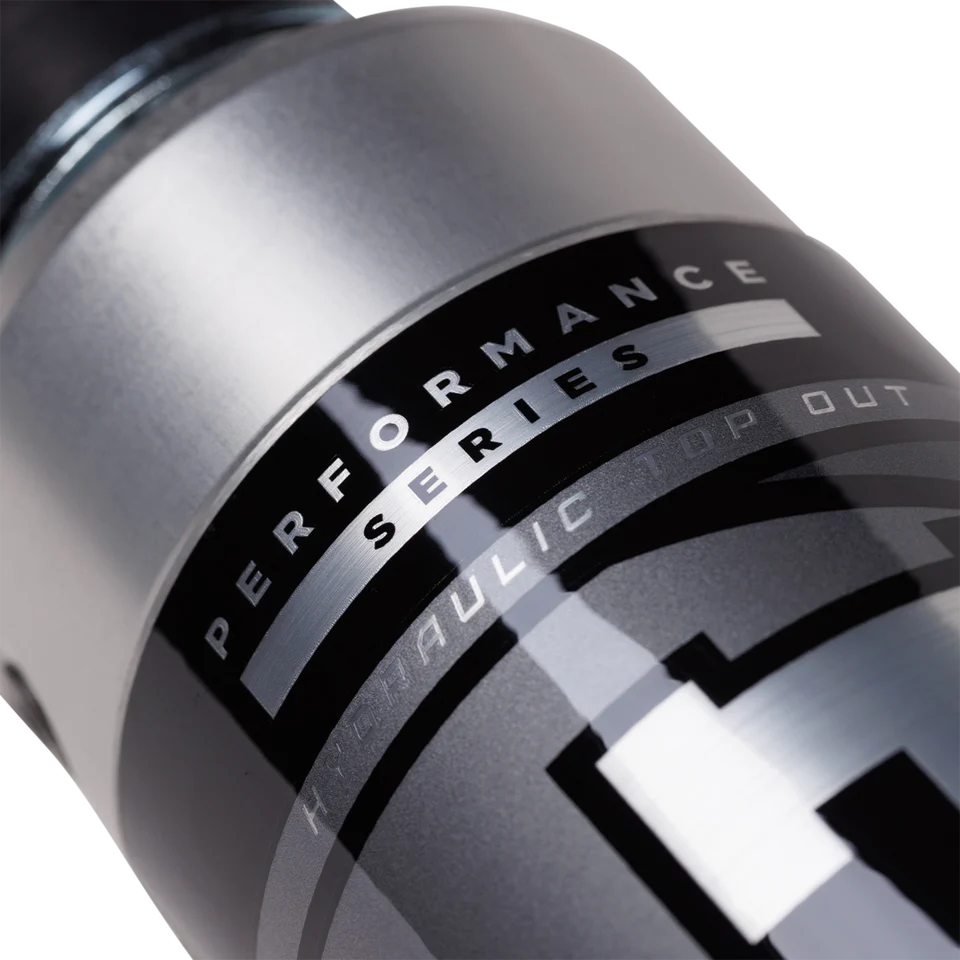

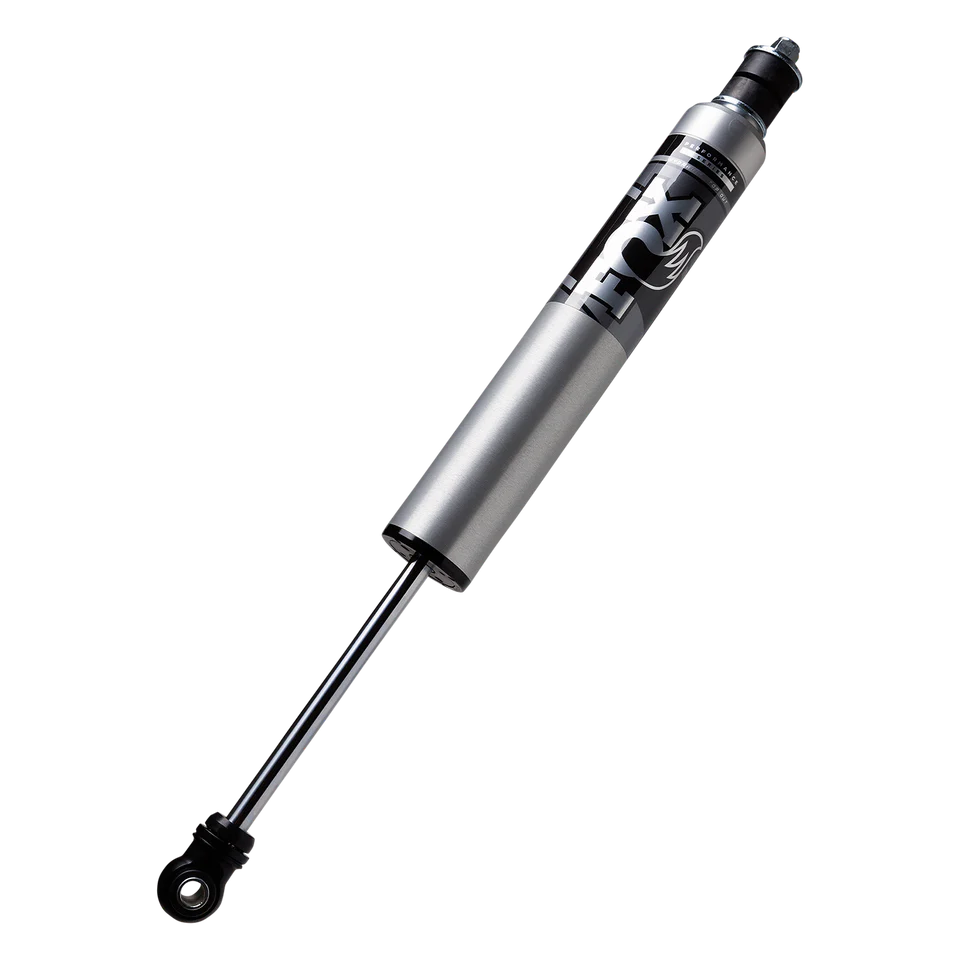

FOX 987-24-045 Fox 2.5 Performance Series IFP HTO Front Shock w/ 2-3" Lift | 2013-2025 RAM 2500/3500

Features:

• Fits 2014–2025 RAM 2500 and 2013–2025 RAM 3500
• Designed for 2 to 3 inches of front lift
• 2.5" aluminum body dissipates heat efficiently
• Type II anodized coating resists corrosion
• Internal Floating Piston (IFP) maintains damping consistency
• Hydraulic Top Out (HTO) softens top-out impact
• 7.69 inches of travel for better articulation
• 5/8" hard chrome shaft enhances durability
• High-flow valving improves off-road response
• Vehicle-specific tuning for smoother ride quality
• Stem top and eyelet bottom mount configuration
• Bolt-on installation with no cutting required

Smooth Out Your Ride And Take Control

If you’ve lifted your RAM 2500 or 3500 between 2 to 3 inches, you’re going to want a shock that does more than just fill the gap. The FOX 2.5 Performance Series IFP HTO front shock is designed to give you the comfort and control your factory setup just can’t deliver. It smooths out the rough spots whether you're towing, trail driving, or running oversized tires on city streets. FOX’s Hydraulic Top Out tech comes in handy when your suspension fully extends, softening that jolt you usually feel with lifted setups. This means a smoother ride even on uneven roads or deep ruts, making it easier to keep things steady behind the wheel. It’s a direct bolt-on upgrade, so you won’t have to cut or modify anything to get professional-grade performance. Backed by a hard-anodized finish and durable materials throughout, it’s a shock you can count on for the long haul.

Engineered For Lifted Trucks With Refined Control

The FOX 987-24-045 front shock is purpose-built for 2014–2025 RAM 2500 and 2013–2025 RAM 3500 trucks with a front lift of 2 to 3 inches. At the core is a 2.5-inch impact-extruded 6061-T6 aluminum body that increases oil volume for improved cooling and fade resistance under pressure. This body is treated with a Type II clear-anodized finish that resists corrosion in wet, dirty, or salty environments. Internally, the shock separates nitrogen gas from the oil using an Internal Floating Piston (IFP), which prevents aeration and maintains precise damping. The Hydraulic Top Out piston adds rebound control at full extension, which helps reduce shock load during quick suspension unloads, especially valuable with aggressive tire setups or additional front-end weight. With 7.69 inches of travel and a robust 5/8-inch hard chrome shaft, the shock offers both articulation and durability. Designed with a stem top and eyelet bottom mount, it installs easily into factory-style brackets. This is a high-performance, vehicle-specific upgrade that delivers a noticeable improvement in both on-road feel and off-road control.

Fits: 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 RAM 2500/3500

Notes:

• Compatible with 2014–2025 RAM 2500 and 2013–2025 RAM 3500
• Designed for 2–3 inch front suspension lifts
• Not compatible with lift kits altering OE mounts
• Sold individually; purchase two for both front wheels
• Ideal for trucks with larger, heavier tires
• Direct bolt-on installation; no modifications needed
• Hydraulic Top Out (HTO) enhances rebound control
• Internal Floating Piston (IFP) maintains damping consistency
• Aluminum body efficiently dissipates heat
• Type II anodized finish resists corrosion
• 5/8" hard chrome shaft offers durability
• Vehicle-specific valving ensures optimal performance
• Fully rebuildable and re-tunable for longevity

Install Instructions
