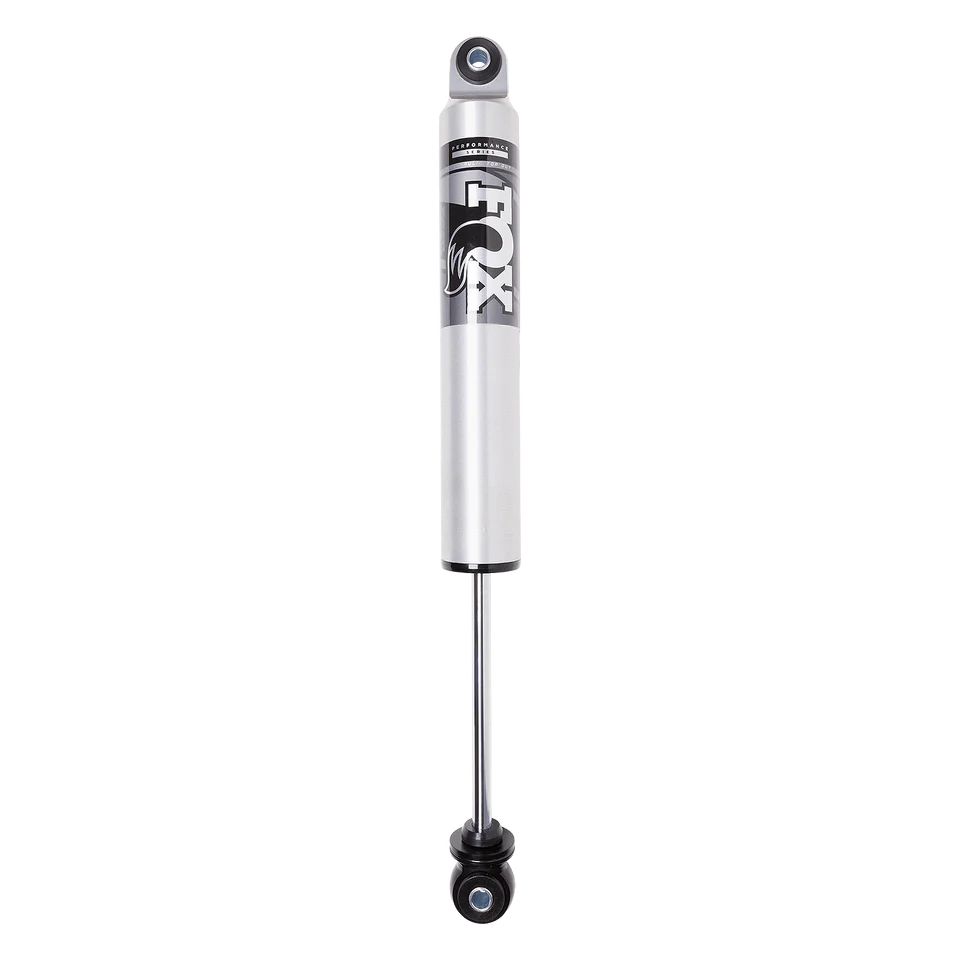

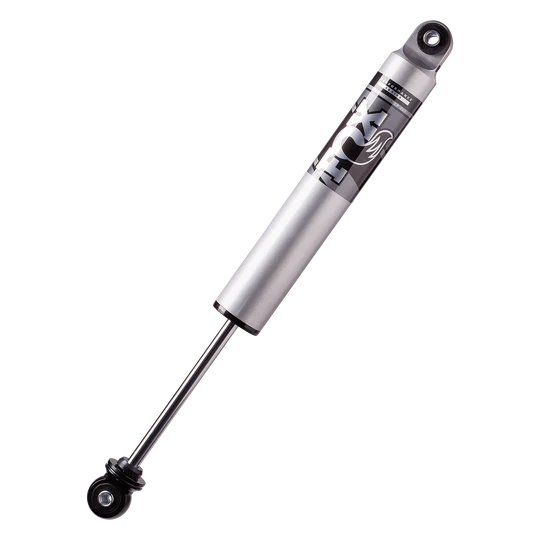

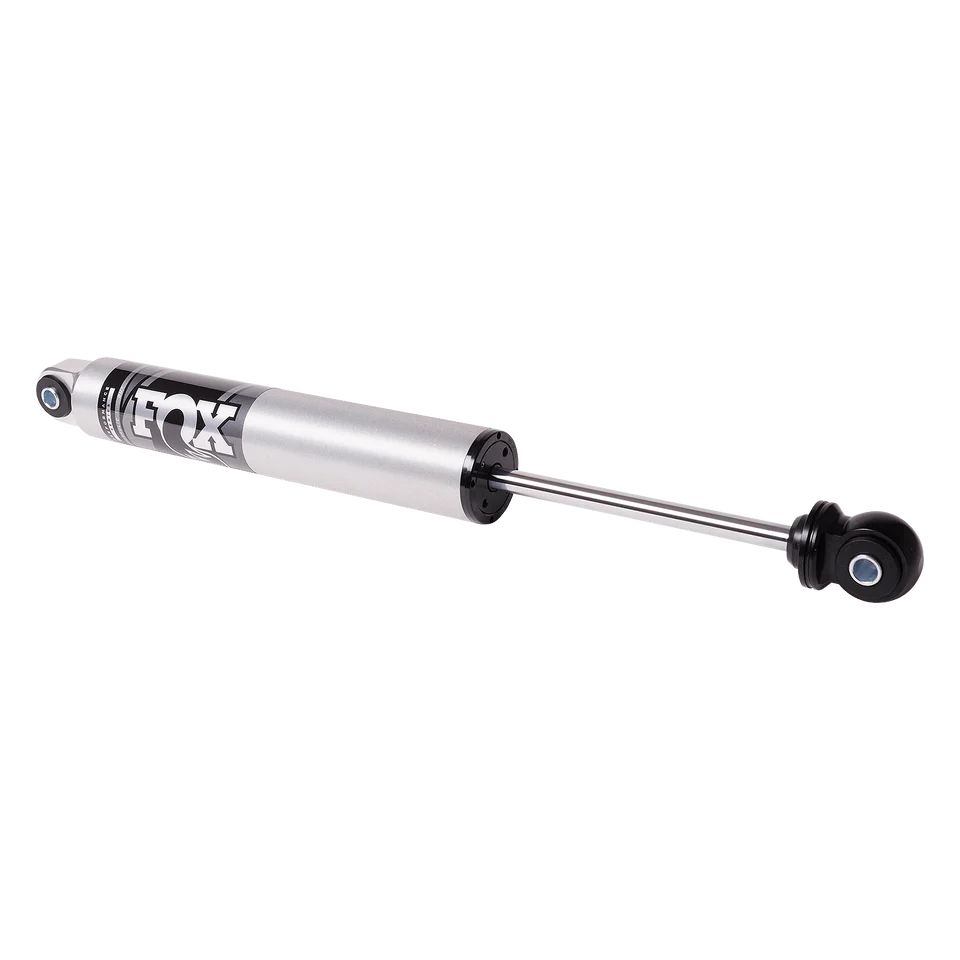

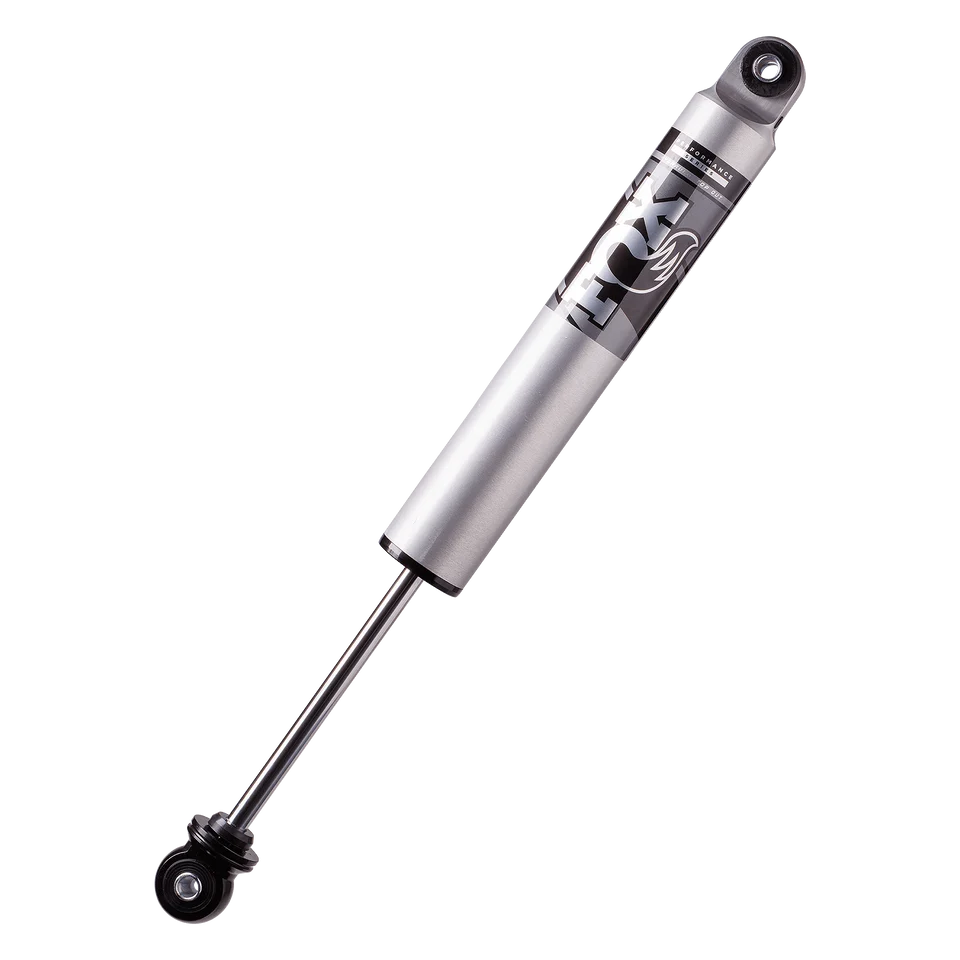

2.5 Performance IFP HTO Rear Shock - for 6-8" Lift - (Single)

Features:

• Supports 6-8" rear lift
• Fits 2017-2026 Ford F250/F350 Powerstroke 4WD
• Large 2.5in 6061-T6 aluminum shock body
• Increased sized improves oil capacity for heat dissipation
• Hydraulic Top Out (HTO) piston reduces harsh top-out for a comfortable ride
• Delivers excellent performance on and off-road
• Clear-anodized body plating for corrosion resistance
• 5/8" hard chrome shaft for durability
• Internal floating piston design
• Fully rebuildable and re-tunable
• Designed for trucks sporting 6-8 inches of lift
• Sold Individually

Improved Stability and Handling for Lifted Super Dutys

When it comes to upgrading your truck's rear suspension to accommodate a 6-8 inch lift, the FOX Performance Series IFP HTO Rear Shock stands out as the ultimate choice for your 2017-2026 Ford F250 and F350 Super Duty. Designed to deliver unmatched stability, control, and comfort, this rear shock absorber ensures your lifted truck performs as well as it looks. FOX's Hydraulic Top Out (HTO) technology is a game-changer in this rear shock, offering position-sensitive rebound damping control. By channeling shock oil through a secondary shim stack, HTO technology effectively slows the shock shaft speed, minimizing harsh top-outs and enhancing ride comfort. This is particularly beneficial for trucks equipped with heavy and more aggressive tires, ensuring a smoother and more controlled ride no matter the terrain the lies beneath. Additionally, this shock is fully rebuildable and re-tunable, allowing for long-term customization and maintenance to keep it performing at its very best.

Heavy-Duty Construction for Strength & Durability

The massive 2.5-inch diameter shock body, made from impact-extruded 6061-T6 aluminum, is engineered to deliver excellent heat dissipation and corrosion resistance, even in extreme conditions. The 5/8” hard chrome shaft further guarantees durability and smooth operation, giving you more peace of mind when you're out pushing things to the limit. What's more, the high-flow velocity-sensitive damping system adjusts to changing road conditions, providing a balanced and comfortable ride no matter where you venture to next. With vehicle-specific valving, this rear shock ensures your Super Duty truck handles with precision and reliability, whether you're hauling heavy loads or exploring rugged trails.

Fitment: 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Ford F250/F350 Powerstroke 4WD w/ 6-8" Rear Lift

Specifications:

• Extended Length: 35.880in
• Compressed Length: 22.190in
• Travel: 13.690in

Notes:

• Fits 2017-2026 Ford F250/F350 4WD with 6-8" lift
• Designed for lifted trucks with heavy-duty tires
• HTO piston reduces harsh top-out for smooth ride
• 2.5in aluminum body improves oil cooling capacity
• Clear-anodized finish resists corrosion and wear
• Internal floating piston keeps damping consistent
• Fully rebuildable and re-tunable for long-term use
• 5/8" chrome shaft ensures durability under pressure
• High-flow velocity-sensitive valving adapts to terrain
• Excellent stability and comfort on and off-road
• Sold individually and installs in stock mounting points
• Extended length: 35.880in, compressed: 22.190in
• (1) FOX 2.5 Performance IFP HTO Rear Shock
• Product images may be representative
