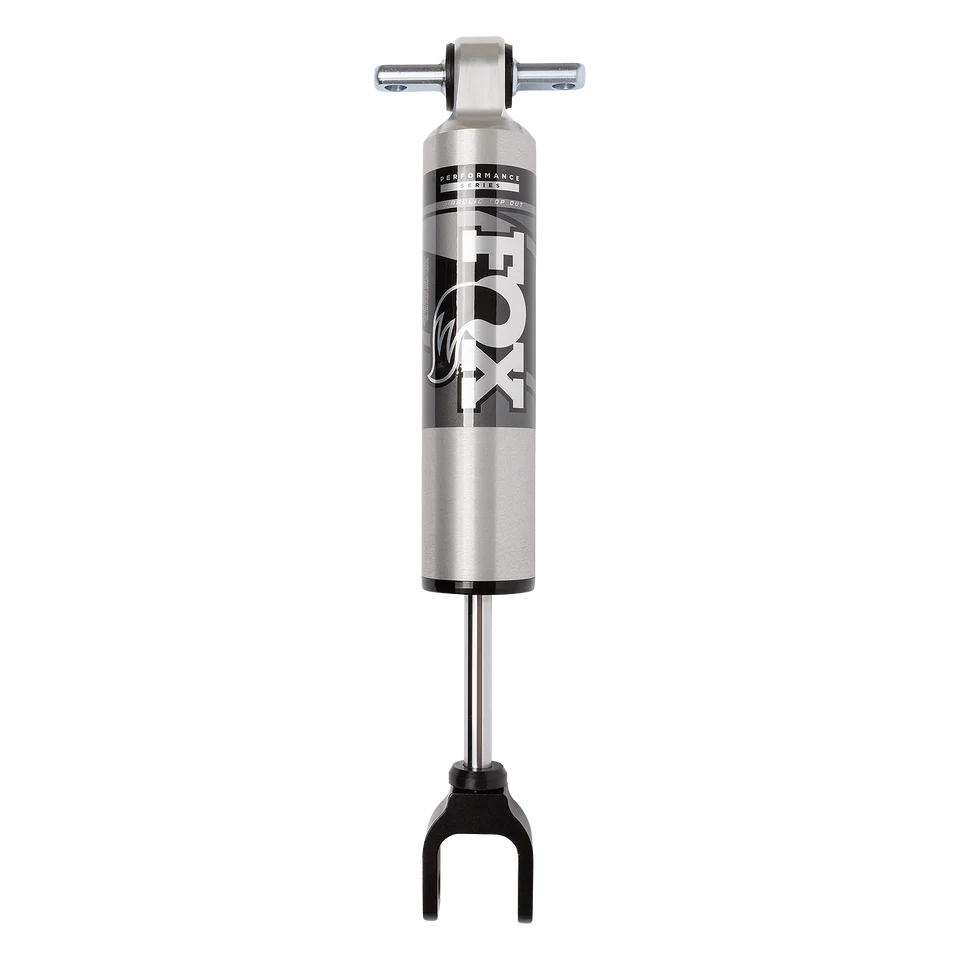

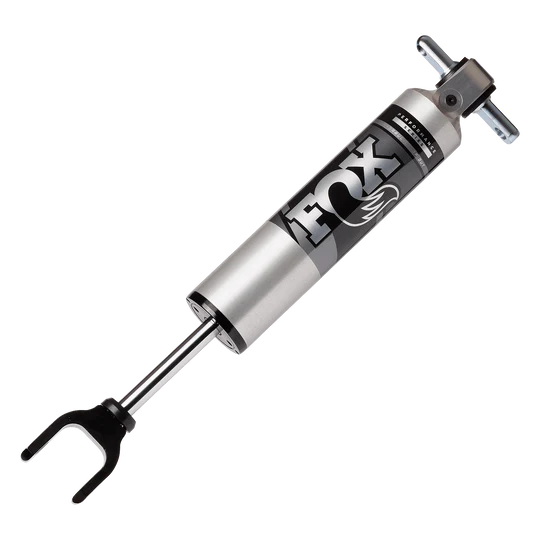

2.5 Performance IFP HTO Front Shock - for 6-7" Lift - (Single)

Features:

• Supports 6-7" front lift
• Fits 2017-2026 Ford F250/F350 Super Duty 4WD
• Large 2.5" in 6061-T6 aluminum shock body
• Increased sized improves oil capacity for heat dissipation
• Hydraulic Top Out (HTO) piston reduces harsh top-out for a comfortable ride
• Delivers excellent performance on and off-road
• Clear-anodized body plating for corrosion resistance
• 5/8" hard chrome shaft for durability
• Internal floating piston design
• Fully rebuildable and re-tunable

• Sold Individually

Superior Off-Road Shock Upgrade for Lifted Super Duty's

If you’ve lifted your truck by 6-7" inches and want to ensure it performs as well as it looks, the FOX Performance Series IFP HTO Front Shock is the upgrade you need. Specifically designed for the 2017-2026 Ford F250 and F350 Super Duty, this shock absorber delivers exceptional control and comfort for significantly lifted trucks, making it perfect for both everyday driving and serious off-road adventures. The cornerstone of this shock is FOX’s Hydraulic Top Out (HTO) technology, which takes rebound damping to the next level. By channeling shock oil through a secondary shim stack, HTO technology slows the shock shaft speed, minimizing harsh top-outs and ensuring a smoother, more controlled ride. This makes it particularly beneficial for trucks with heavy, aggressive tires. Additionally, the shock is fully rebuildable and re-tunable, allowing you to customize and maintain it over time for peak performance.

Premium Construction & Design

The FOX HTO Shock is built a 2.5-inch diameter body made from impact-extruded 6061-T6 aluminum, providing excellent heat dissipation and corrosion resistance thanks to its type II clear-anodized finish. It also features an internal floating piston (IFP) design which separates the shock oil from high-pressure nitrogen, preventing aeration and maintaining consistent damping performance even when you're out pushing things to the limit. Your truck will also benefit from the high-flow velocity-sensitive damping system which adjusts to changing road conditions, providing a balanced and comfortable ride each time you get behind the wheel. With its application-specific valving and superior damping, this shock ensures your Super Duty truck handles with precision and reliability, no matter where you venture to next.

Fitment: 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Ford F250/F350 Super Duty 4WD with 6-7" Front Lift

Specifications:

• Extended Length: 26.290in
• Compressed Length: 17.000in
• Travel: 9.290in

Notes:

• Confirmed fitment for 2017–2026 Ford F250/F350 Super Duty 4WD
• Compatible with 6-7″ front suspension lifts only
• Designed for use with all factory gas and diesel engines
• Application-tuned by lift height and vehicle weight, not engine
• Ideal for aggressive off-road use and daily driving
• HTO piston reduces harsh top-out and improves rebound control
• Sold individually, requires (2) for complete front installation
• Fully rebuildable and re-tunable for long-term performance
• Made from 6061-T6 aluminum for superior heat dissipation
• Clear-anodized finish provides corrosion resistance
• Internal Floating Piston design separates oil and gas chambers
• Supports Super Duty trucks with oversized tires and 4WD systems
• (1) FOX 2.5 Performance IFP HTO Front Shock
• Product images may be representative
