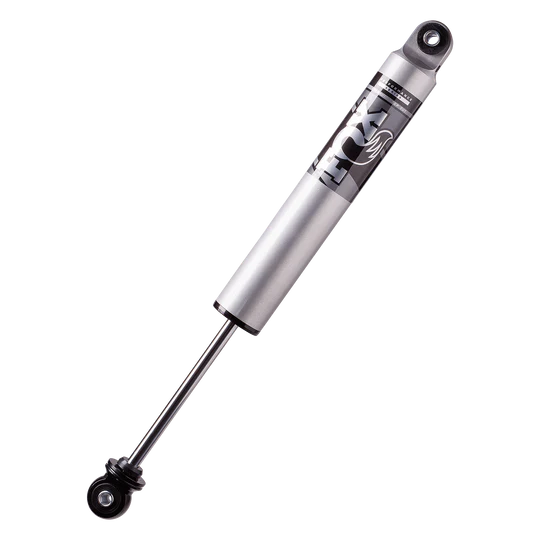

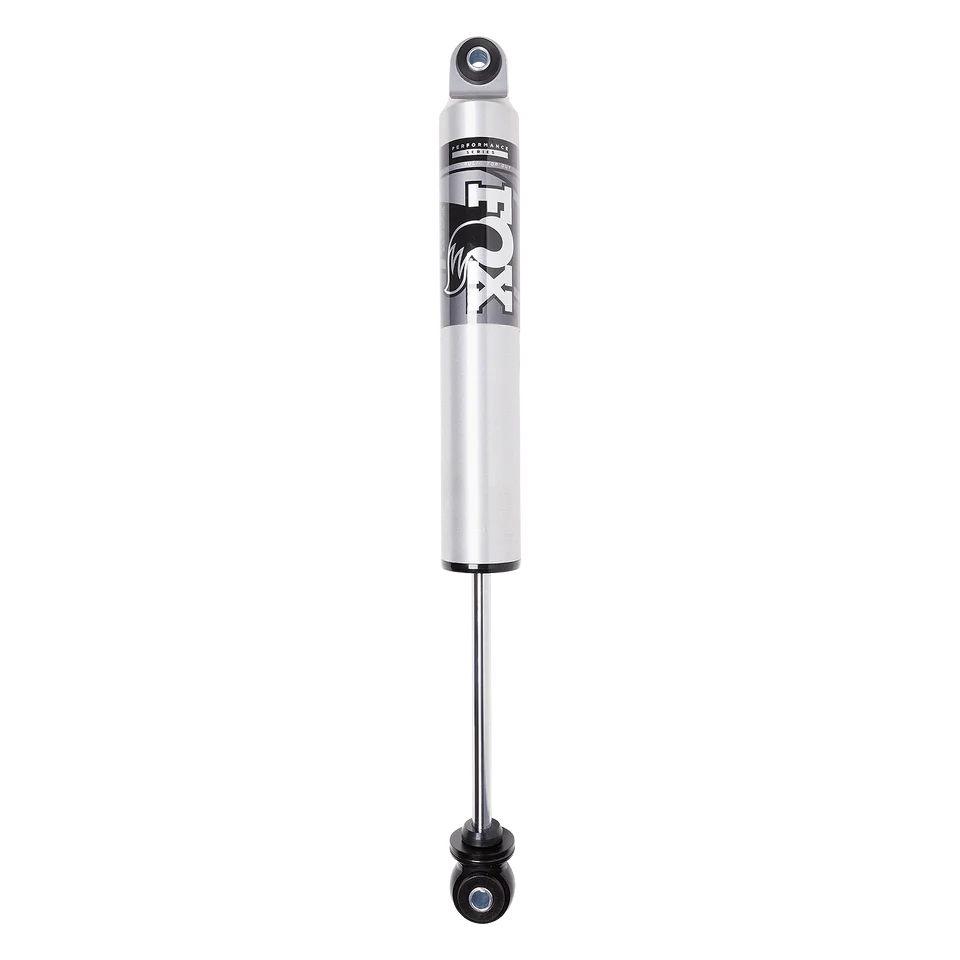

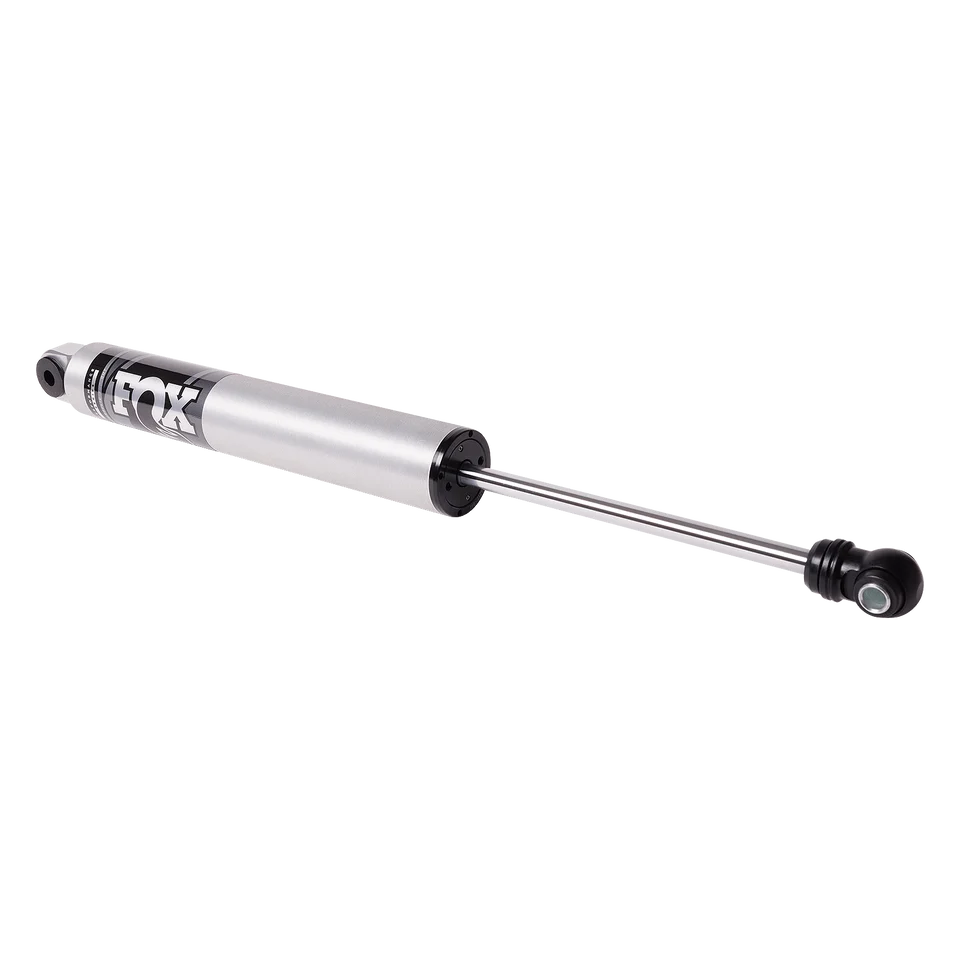

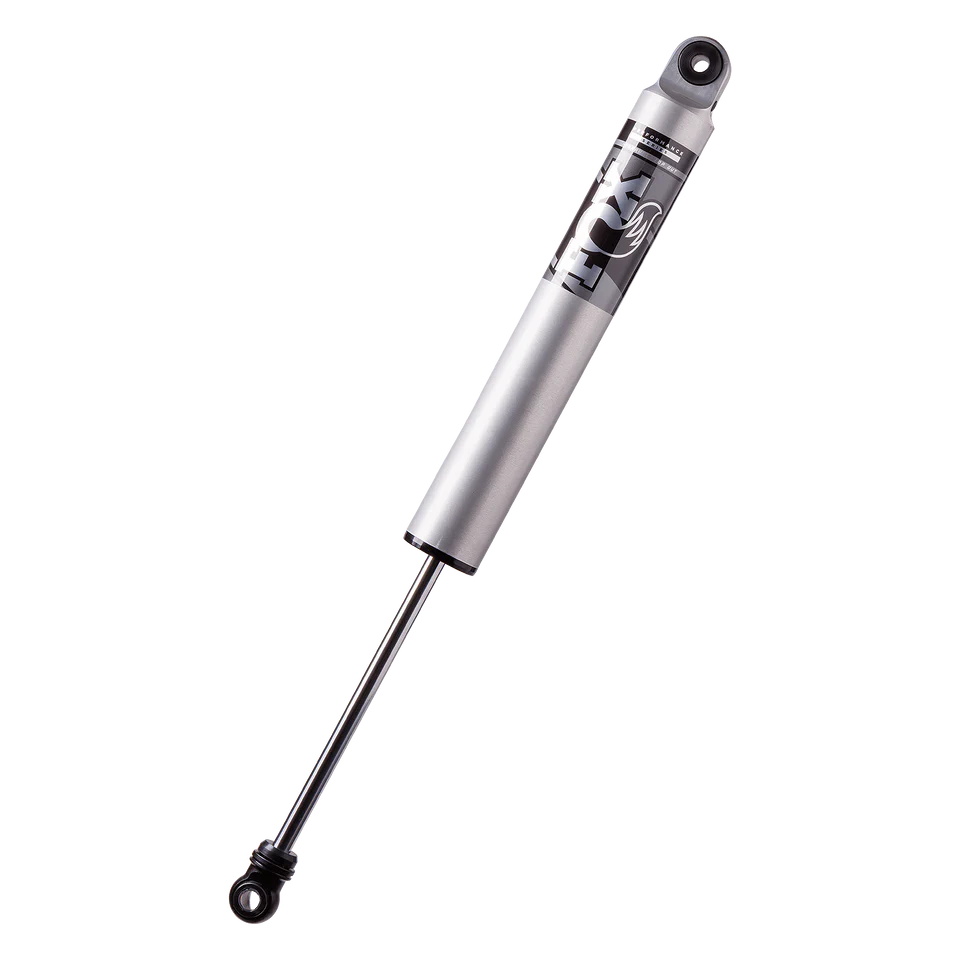

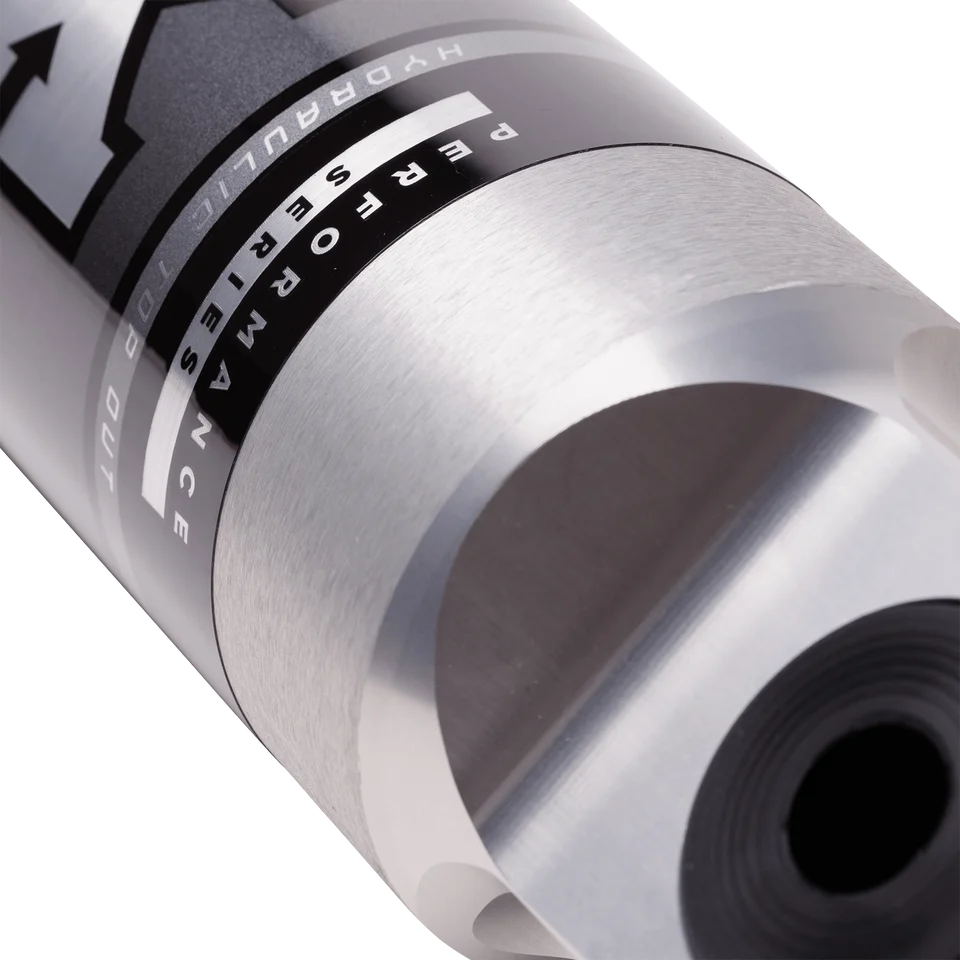

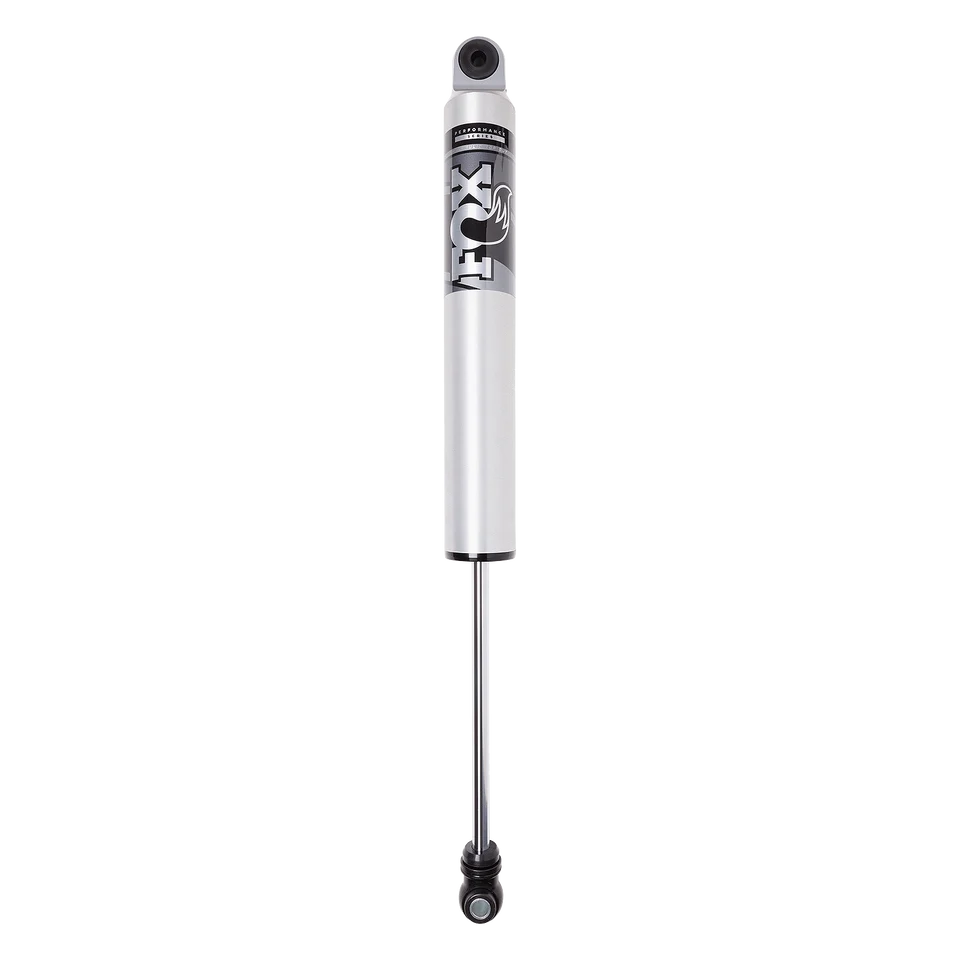

2.5 Performance IFP HTO Rear Shock - for 2-3.5" Lift - (Single)

Features:

• Supports 2-3.5" rear lift
• Fits 2017-2026 Ford F250/F350 Powerstroke 4WD
• Large 2.5in 6061-T6 aluminum shock body
• Increased sized improves oil capacity for heat dissipation
• Hydraulic Top Out (HTO) piston reduces harsh top-out for a comfortable ride
• Delivers excellent performance on and off-road
• Clear-anodized body plating for corrosion resistance
• 5/8" hard chrome shaft for durability
• Internal floating piston design
• Fully rebuildable and re-tunable
• Designed for trucks sporting 2-3.5 inches of lift
• Sold Individually

Improved Off-Road Performance for Lifted Super Dutys

Upgrading the rear suspension on your lifted 2017-2026 F250 or F350 Super Duty can make a world of difference in your truck's overall performance, providing exceptional stability, control, and comfort each time you set off for adventure. That's exactly where the FOX Performance Series IFP HTO Rear Shock comes to play as it works to ensure your truck performs at its very best. At the core of this shock is FOX’s innovative Hydraulic Top Out (HTO) technology. This cutting-edge feature enhances position-sensitive rebound damping by channeling shock oil through a secondary shim stack, which slows the shock shaft speed and reduces harsh top-outs. The result is a smoother, more controlled ride, particularly for trucks equipped with heavier and more aggressive tires. The shock also features an internal floating piston (IFP) design which separates shock oil from high-pressure nitrogen, enhancing heat dissipation while maintaining consistent damping performance over time.

Heavy-Duty Build for Enhanced Durability

Built to withstand just about anything you throw its way, the FOX HTO rear shock features a 5/8” hard chrome shaft for impressive durability and smooth operation. It also comes standard with a large 2.5-inch diameter to increase oil capacity over stock, improving the shock's ability to manage heat and enhance damping capabilities. The high-flow velocity-sensitive damping system adjusts to varying road conditions, delivering a balanced and comfortable ride. Additionally, this shock is fully rebuildable and re-tunable, allowing for customization and maintenance over time to keep it performing optimally. Better yet, installation is made simple and straightforward as this shock bolts directly to your truck's suspension without the need for a ton of hassles.

Fitment: 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Ford F250/F350 Powerstroke 4WD w/ 2-3.5" Rear Lift

Specifications:

• Extended Length: 30.580in
• Compressed Length: 19.390in
• Travel: 11.190in

Notes:

• Fits 2017-2026 Ford F250/F350 4WD with 2-3.5" lift
• HTO piston reduces top-out for smoother rebound
• 2.5in 6061-T6 aluminum body dissipates heat efficiently
• Internal floating piston separates oil and nitrogen
• Designed for trucks with heavier off-road tires
• Clear-anodized finish offers strong corrosion resistance
• 5/8" hard chrome shaft adds strength and longevity
• High-flow damping adjusts to terrain changes in real time
• Fully rebuildable and tunable for long-term use
• Bolts directly to stock mounting points for easy install
• Sold individually, not as a pair
• Extended: 30.580in, Compressed: 19.390in, Travel: 11.190in
• (1) FOX 2.5 Performance IFP HTO Rear Shock
• Product images may be representative
