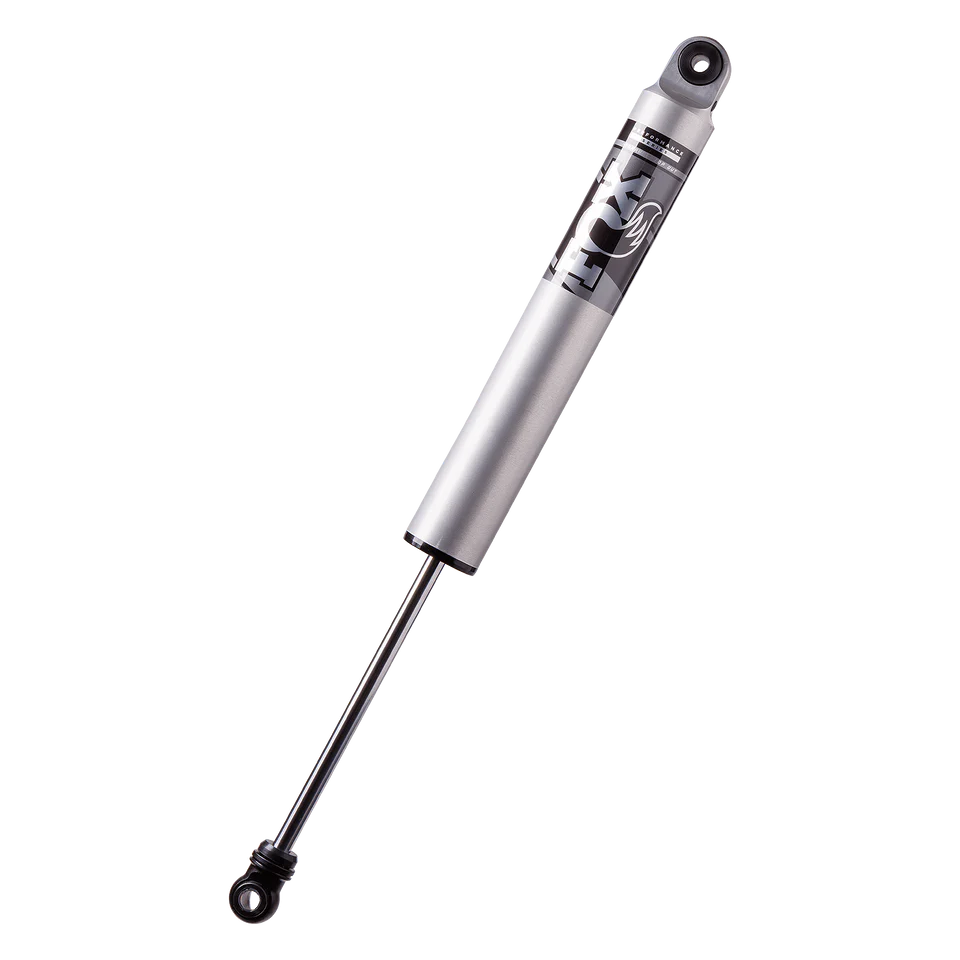

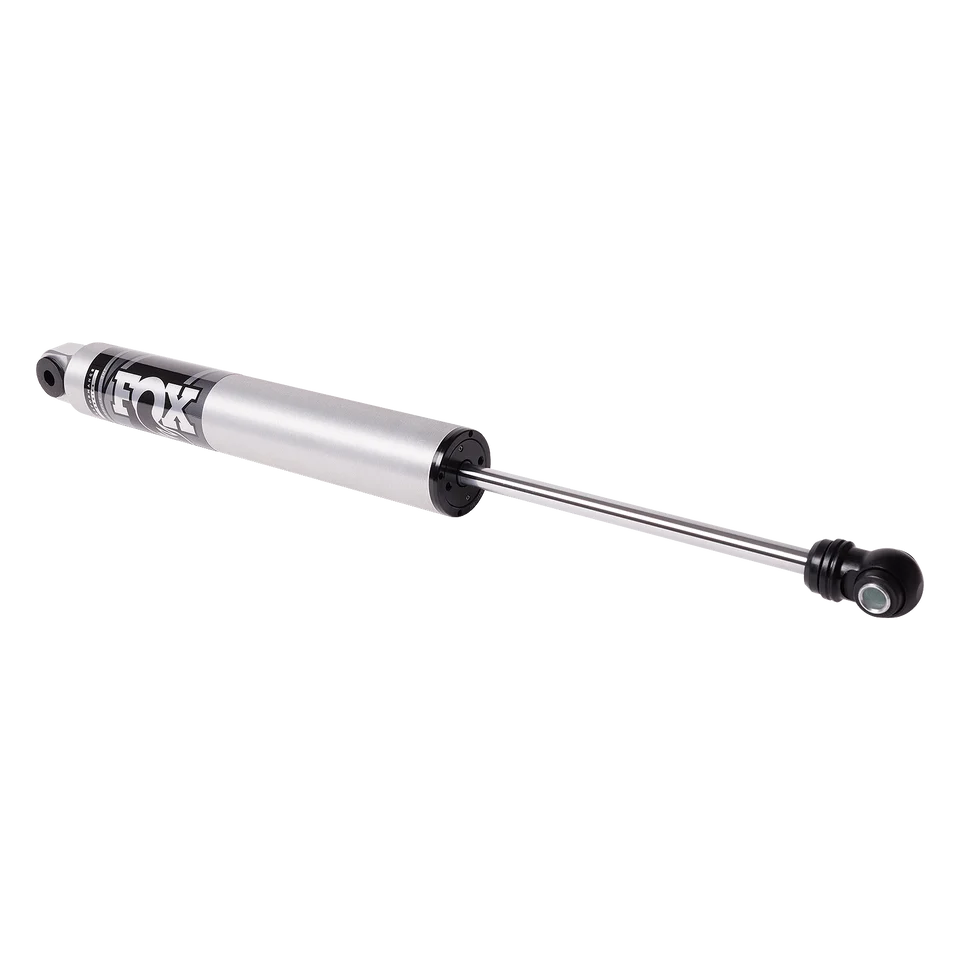

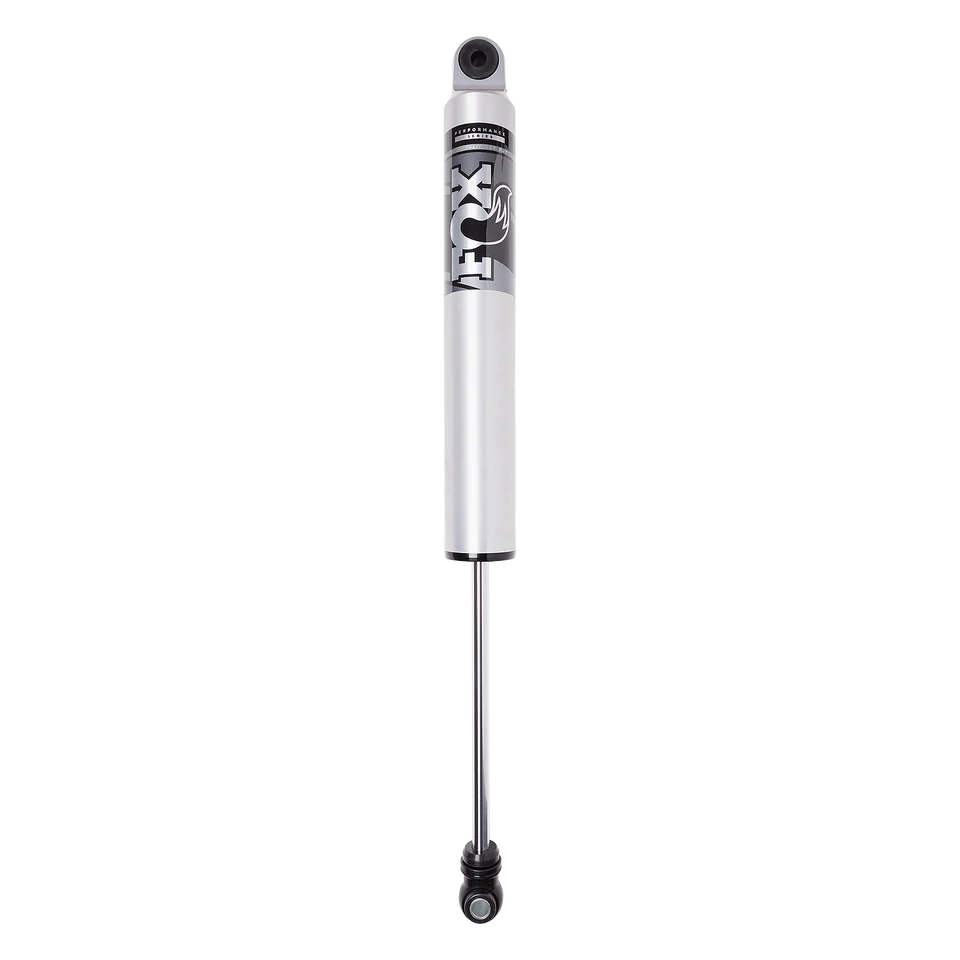

2.5 Performance IFP HTO Rear Shock - for 0-1.5" Lift - (Single)

Features:

• Supports 0-1.5" rear lift
• Fits 2017-2026 Ford F250/F350 Powerstroke 4WD
• Large 2.5 in 6061-T6 aluminum shock body
• Increased sized improves oil capacity for heat dissipation
• Hydraulic Top Out (HTO) piston reduces harsh top-out for a comfortable ride
• Delivers excellent performance on and off-road
• Clear-anodized body plating for corrosion resistance
• 5/8" hard chrome shaft for durability
• Internal floating piston design
• Fully rebuildable and re-tunable
• Designed for trucks sporting 0-1.5 inches of lift
• Sold Individually

Superior Rear Shock Upgrade for Stock to Slightly-Modified Stock Trucks

Upgrading your truck's rear suspension is essential for maximizing stability and comfort, and the FOX Performance Series IFP HTO Rear Shock is designed to deliver just that for 2017-2026 Ford F250 and F350 Super Duty models with 0-1.5 inches of lift. The FOX Performance Series Shock features an innovative Hydraulic Top Out (HTO) technology, which offers advanced position-sensitive rebound damping. By directing shock oil through a secondary shim stack, the HTO technology slows the shock shaft speed, reducing harsh top-outs and ensuring a more comfortable ride, particularly for trucks with heavy and aggressive tires. What's more, the internal floating piston (IFP) design keeps shock oil separate from high-pressure nitrogen, preventing aeration while maintaining consistent damping performance in all conditions. With a pair of these shocks equipped, you can expect more stability and handling for off-road adventures and improved comfort when you're cruising on smooth city streets.

High-Quality Construction for Strength and Durability

Constructed for both durability and optimal performance, the FOX Performance Series HTO Rear Shock includes a robust 5/8” hard chrome shaft for smooth operation even when your driving applications become extreme. The large 2.5-inch diameter increases oil capacity, enhancing the shock's ability to manage heat and improve damping capabilities, which is crucial for enhancing off-road performance. Bette yet, the high-flow velocity-sensitive damping system adjusts to changing road conditions, providing a balanced and comfortable ride no matter where you venture to next. Additionally, this shock is fully rebuildable and re-tunable, allowing for customization and maintenance over time to keep it performing at its best.

Fitment: 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Ford F250/F350 4WD 6.7L Powerstroke/7.3L Godzilla w/ 0-1.5" Rear Lift

Specifications:

• Extended Length: 29.580in
• Compressed Length: 18.790in
• Travel: 10.790in

Notes:

• Custom-crafted for 2017–2026 Super Duty rear fitments
• 2.5″ 6061‑T6 aluminum body dissipates heat efficiently
• Hydraulic Top-Out (HTO) piston minimizes harsh rebounds
• Internal Floating Piston (IFP) prevents oil aeration
• 5/8″ hard chrome shaft adds strength and corrosion resistance
• Clear-anodized finish protects against corrosion
• Fully rebuildable and tunable for long service life
• Sold individually, order two for full rear setup
• Straightforward bolt-on installation, no frame mods
• Designed for 0–1.5″ rear lift on F250/F350/F450
• Race-proven valving improves off-road and street ride
• Backed by FOX’s limited lifetime warranty
• Prop 65 warning applies for California residents
• (1) FOX 2.5 Performance IFP HTO Rear Shock
• Product images may be representative
