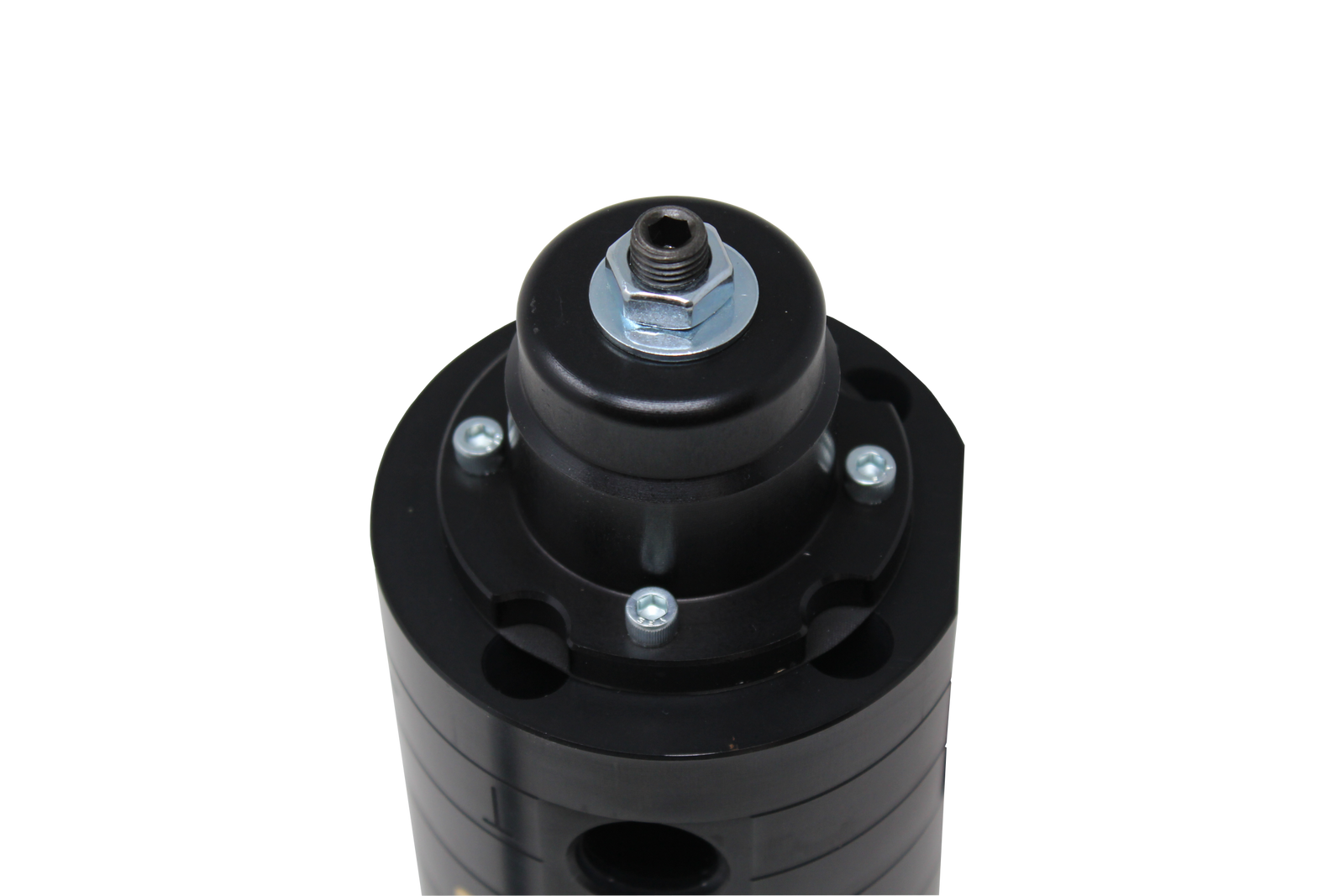

290GPH Adjustable Fuel Lift Pump

Features:

• 290 gallons per hour fuel flow
• Adjustable 1 to 75 PSI output
• Designed for 6.6L Duramax engines
• Fits 2001-2016 Silverado and Sierra HD
• Boost compensated fuel pressure control
• Maintains pressure under full throttle
• Uses Titanium Signature Series motor
• Includes STK-1002 bulkhead kit
• 6061 T-6 billet aluminum bulkhead
• 5/8 inch suction tube included
• PTFE pickup tube customizable length
• Operates safely down to 1/8 tank

Take Control Of Your Duramax Fuel System Like Never Before

If you are building a serious 2001-2016 6.6L Duramax and want full control over fuel delivery, this FASS 290GPH Adjustable Fuel Lift Pump gives you the flexibility most systems simply cannot. Rated at 290 gallons per hour, it is designed to support high horsepower street trucks and competition setups that demand consistent fuel volume. What really makes this pump stand out is the adjustable pressure range from 1 to 75 PSI, allowing you to fine tune your setup based on your injectors, turbo configuration, and tuning goals. That kind of control can make a real difference when you are chasing clean power and stable rail pressure under load. Additionally, the built in boost compensation port raises fuel pressure as boost increases, helping maintain supply when you are deep into the throttle. Instead of watching pressure fall off at the top of a pull, you get the confidence that your fuel system is keeping up. For Duramax owners who want performance without compromise, this pump delivers the flow and adjustability to back up serious power.

Engineered For High Flow Stability And Clean Installation

Under the hood, this Signature Series adjustable pump uses the same proven motor found in the Titanium Signature line, giving it the durability to handle demanding diesel applications. It is designed to work with your factory fuel filter, simplifying the overall system while still delivering the volume required for modified trucks. The included STK-1002 bulkhead and suction tube kit is machined from 6061 T-6 billet aluminum and functions as both a suction and return point. With a 5/8 inch suction tube and 1/2 inch return port, the system supports strong fuel draw and efficient return flow. Furthermore, the PTFE Teflon pickup tube can be trimmed to match different tank depths, which helps streamline installation across various configurations. The updated bulkhead design eliminates the need to cut the filler neck, saving time and reducing installation headaches. When properly installed, the system can safely operate down to about 1/8 tank of fuel, giving you reliable performance without constantly worrying about running the tank too low.

Fitment: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 GM Silverado/Sierra 2500HD/3500HD 6.6L Duramax

Notes:

• Fits 2001-2016 6.6L Duramax only
• Fuel pump only not full filtration system
• Must use factory fuel filter
• Fuel pressure gauge strongly recommended
• Adjust pressure carefully to avoid damage
• Intended for high performance applications
• Professional installation recommended
• Boost reference connection required
• Tank access required for bulkhead install
• Adjustable for race or competition setups
• Technical support available for setup questions
• Proper tuning critical for modified trucks
