4" inch Radius Arm Lift Kit with Stealth Shocks

Features:

• Improves on and off-road handling
• Coil springs enhance ride quality
• Heavy duty components
• Adds aggressive stance
• Allows for larger tires
• 5 year 60,000 mile powertrain warranty

Complete Lift Kit for Capability and Comfort

FabTech has designed their 4in Radius Arm Lift Kit w/ Stealth Shocks to enhance on and off-road capability while adding strength to the suspension. At the heart of the FabTech kit are their legendary tubular Radius Arms, which provide smooth and compliant handling on any terrain. Giving the extra 4 inches of front height are the Fabtech Coil springs; they are constructed of durable hot-wound steel and add 2 inches of wheel travel while providing a plush ride. In the rear are the rear lift blocks, which provide additional lift without changing ride quality in the rear. Working in conjunction with the extended-length Track Bar is the dropped pitman arm, for added steering response. The heavy-duty track bar mount centers the front axle under the truck to maintain full lock steering on 5" backspaced wheels. FabTech's Stealth Shocks are a sleek all black monotube shock that resists fade and enhances ride quality. To finish off the kit, there are brake line brackets to ensure the lines have more than enough room for the extra wheel travel this kit adds.

Strengthens Your Suspension

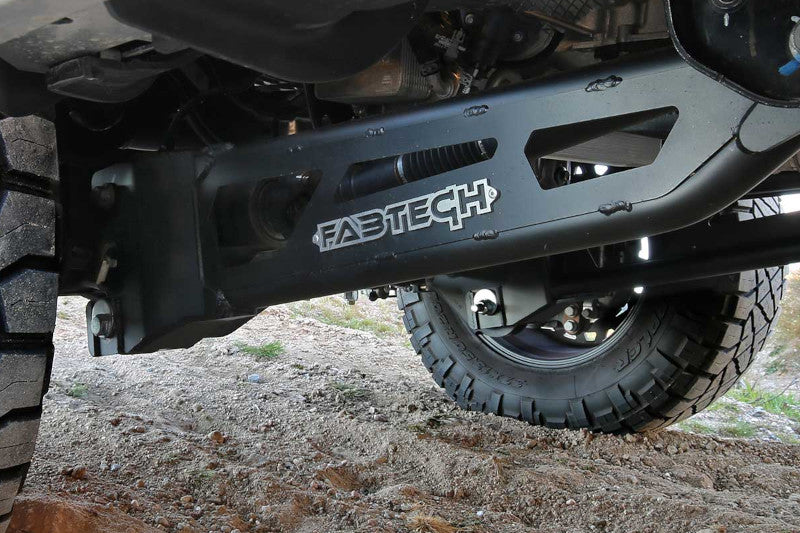

Not only does FabTech's 4in Radius Arm Lift Kit w/ Stealth Shocks offer superior ride quality with an aggressive stance, but it also enhances the strength of your suspension, providing the confidence needed to tackle demanding tasks. Constructed of tubular steel, FabTech's Radius arms withstand harsh impacts and feature a stylish side plate with a laser-cut logo. The Track Bar Bracket, made of thick 1/4-inch steel, significantly reinforces your steering system. Similarly, FabTech's Steering Stabilizer Bracket, also crafted from 1/4-inch steel, reinforces the steering stabilizer and reduces tire shimmy. For a suspension system capable of enduring the toughest terrain while delivering comfort and control, opt for FabTech's 4in Radius Arm Lift Kit w/ Stealth Shocks.

Fits: 2023, 2024, 2025 Ford F250/F350 4WD

Application Notes:

• NON DUALLY MODELS ONLY.; 42. WILL NOT FIT GAS MOTORS.; 257. DOES NOT FIT VEHICLES EQUIPPED WITH FORD ONBOARD SCALE SYSTEM
• TIRE SIZE - 35/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING

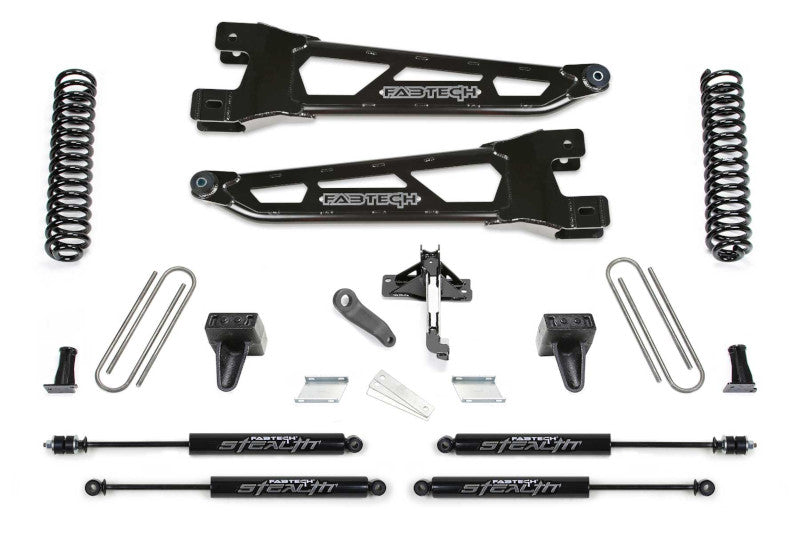

• Includes:
• Fabtech Radius Arms
• Fabtech Front Coil Springs
• Front Stealth Shocks
• Track Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm
• Rear Block & U-bolt Kit
• Rear Stealth Shocks
